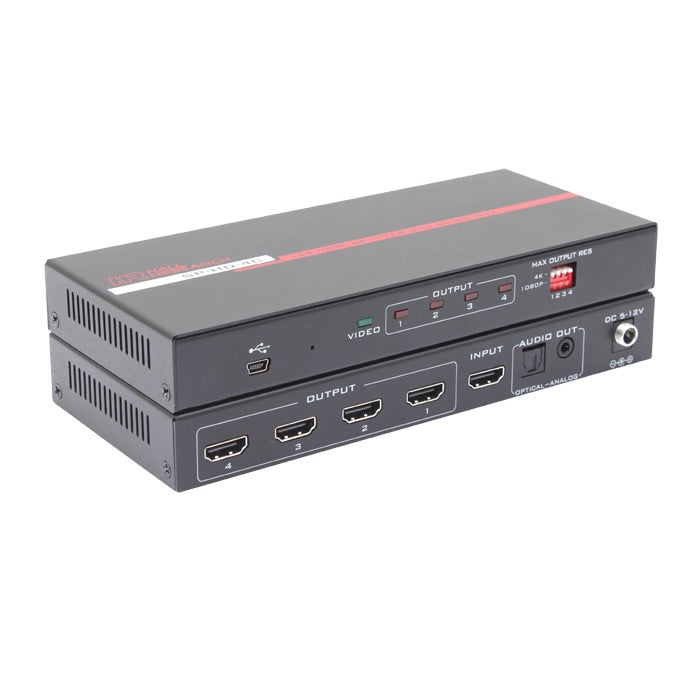

The Hall Technologies SP-HD-4C can distribute an HDMI audio/video source to up to 4 displays simultaneously without any loss. It is compliant to HDCP 2.2 and supports 4K UHD resolutions up to 4K @ 60Hz (4:4:4), HDR and 3D. This distribution amplifier also provides analog L/R and digital SPDIF (TOSLINK) outputs for connection to audio amplifiers, headphones, etc.
The SP-HD-4C is capable of scaling 4K signal down to 1080p independently for each output. This allows users to accept a 4K video source and distribute it to a mix of 4K and 1080p TVs without downgrading the image for all outputs. Users can simply set the max resolution at each output to be 4K or 1080p.
Features
• Lossless 18GB UHD/4K distribution to 4 UHD or HD outputs
• Supports 4K UHD @ 60 Hz 4:4:4, HDCP 2.2 and HDR
• Provides De-embedded analog and digital audio output
• Can Scale 4K to 1080p independently at each output (can mix 4K and 1080p TVs)
• LED status indicators for source signal and 4 output connections
• Smart EDID management (video blink when you hot plug the outputs)
• Each of the buffered outputs can run up to 12 meters (40 feet) using quality cables
• Can be cascaded up to 3 levels
• Supports 30/36/48 bit color depth
• Full 3D video support including frame packing up to a 297 MHz TMDS clock
• Locking DC input power supply connector
