The Hall Technologies VERSA-4K is an AV over IP solution, which can extend and switch multiple HDMI video and USB data to virtually an unlimited number of receivers on a simple Gigabit network. Bidirectional IR, RS-232, and auxiliary stereo audio can also be extended. Advanced features include, 1 frame (<30ms) latency video and audio, CEC and Serial over IP for control, video wall processor to expand and split 4K video on to multiple screens, video rotation and flipping (horizontal and vertical), USB Device class filtering for excluding specific USB device types such as USB flash drives, automatic KVM switching, Telnet and webGUI control, Dynamic Virtual Matrix (DVM) operation, PoE (power over Ethernet) support, and more.
In a 1-to-1 setup (one Sender to one Receiver) no external network equipment is needed, just connect a Cat6 cable up to 120 meters (400 ft) between the two ends. In a many-to-many setup, a dedicated gigabit network switch (with IGMP and Jumbo-frame support) is required. Each VERSA-4K includes a power supply adapter, however, if the network switch provides PoE, connection of the power adapter is not required.

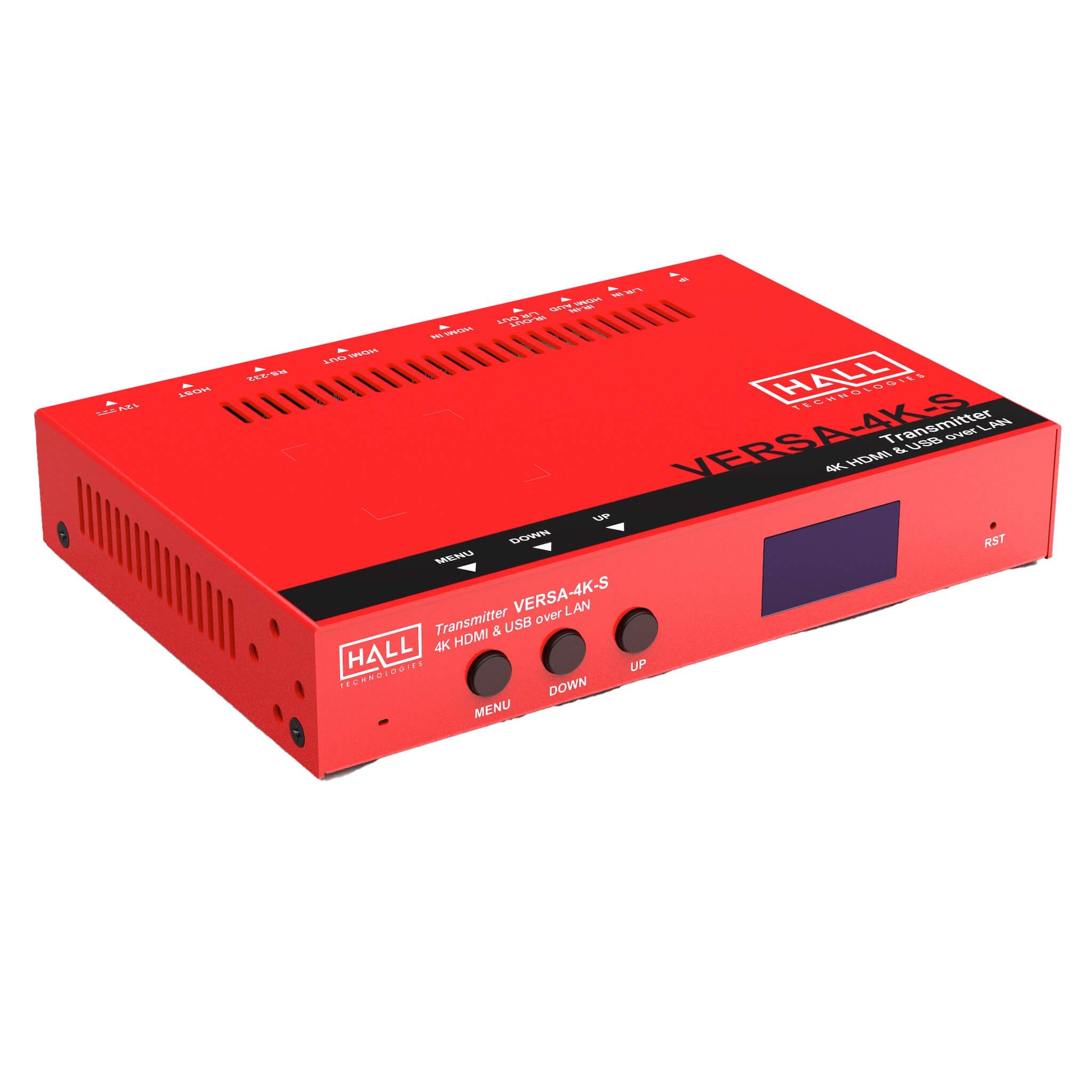

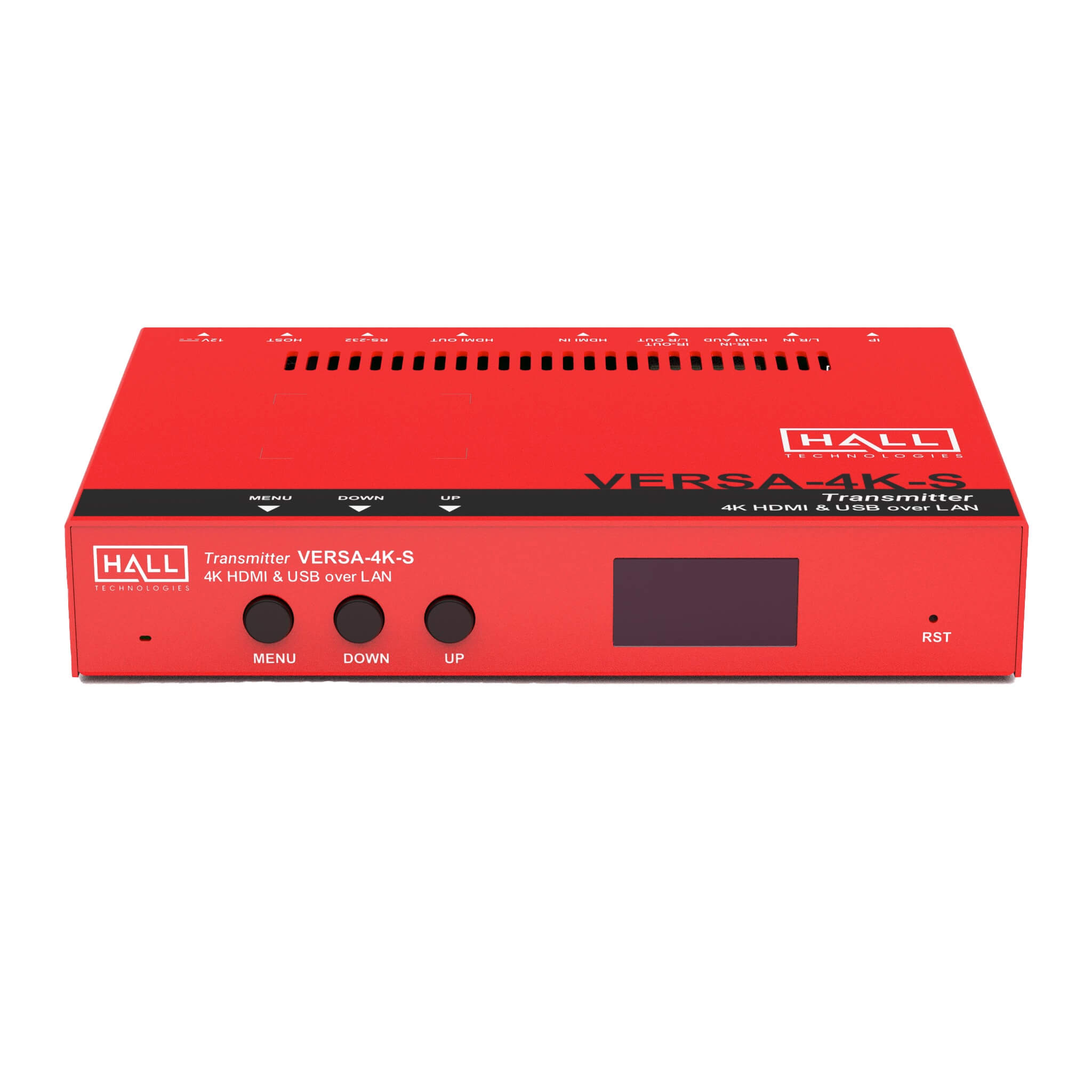

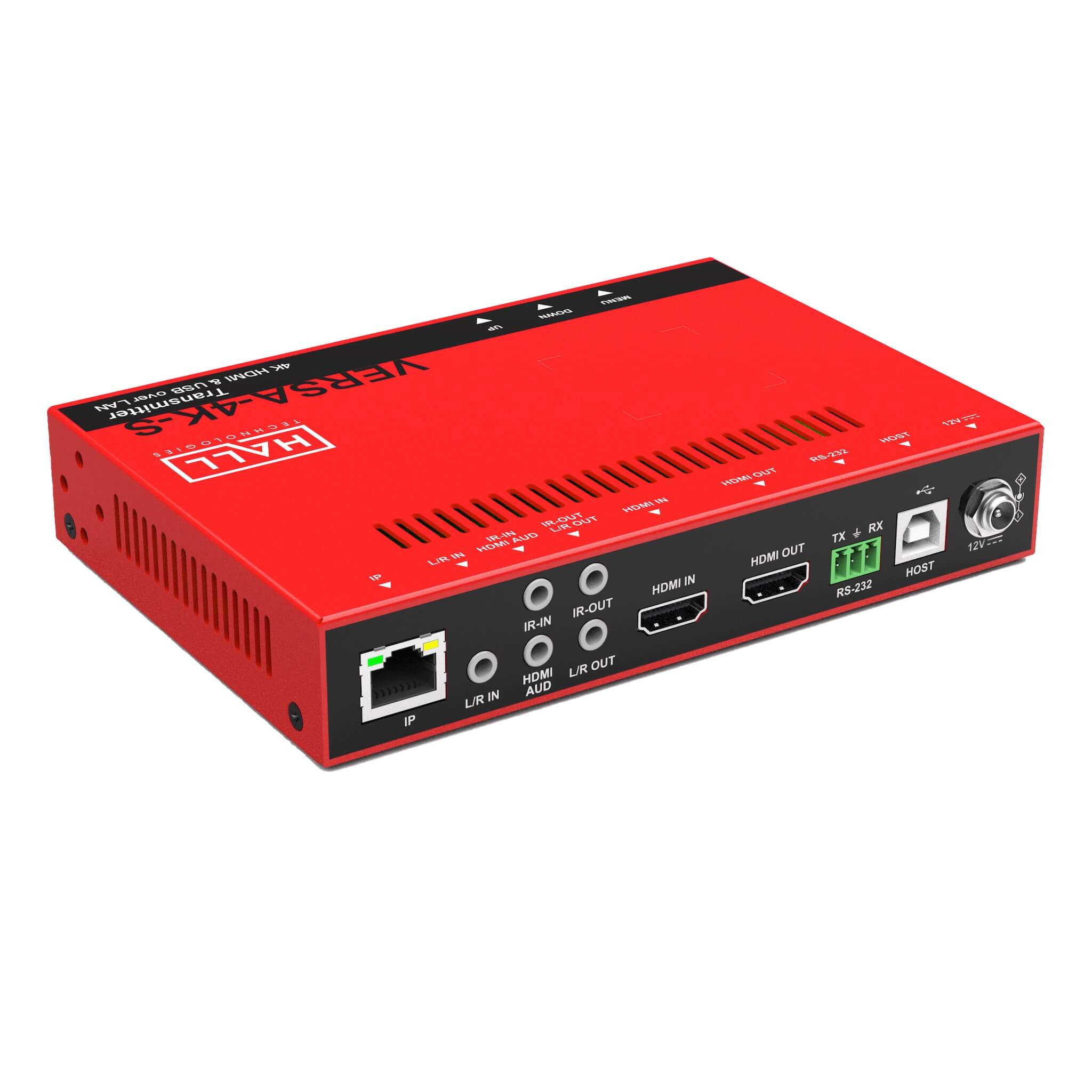

The encoder in the sender (HT-VERSA-4K-S) uses visually lossless compression, which gives pixel perfect quality at the remote end. It can accept HDMI resolutions up to 4K@30Hz, 4:4:4 with HDCP 2.2. It includes a video loop output together with extracted HDMI audio in analog format for maximum flexibility and integration.

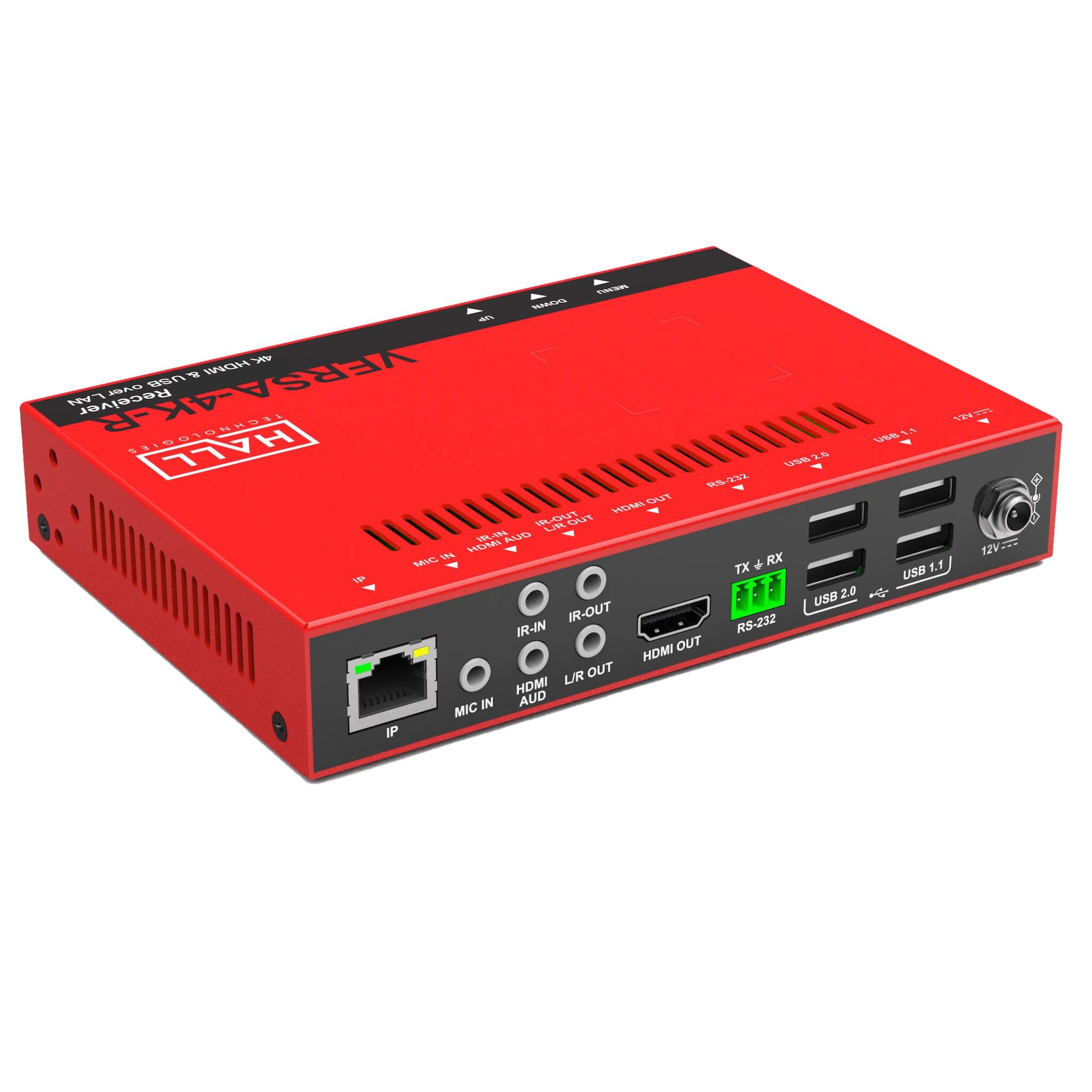

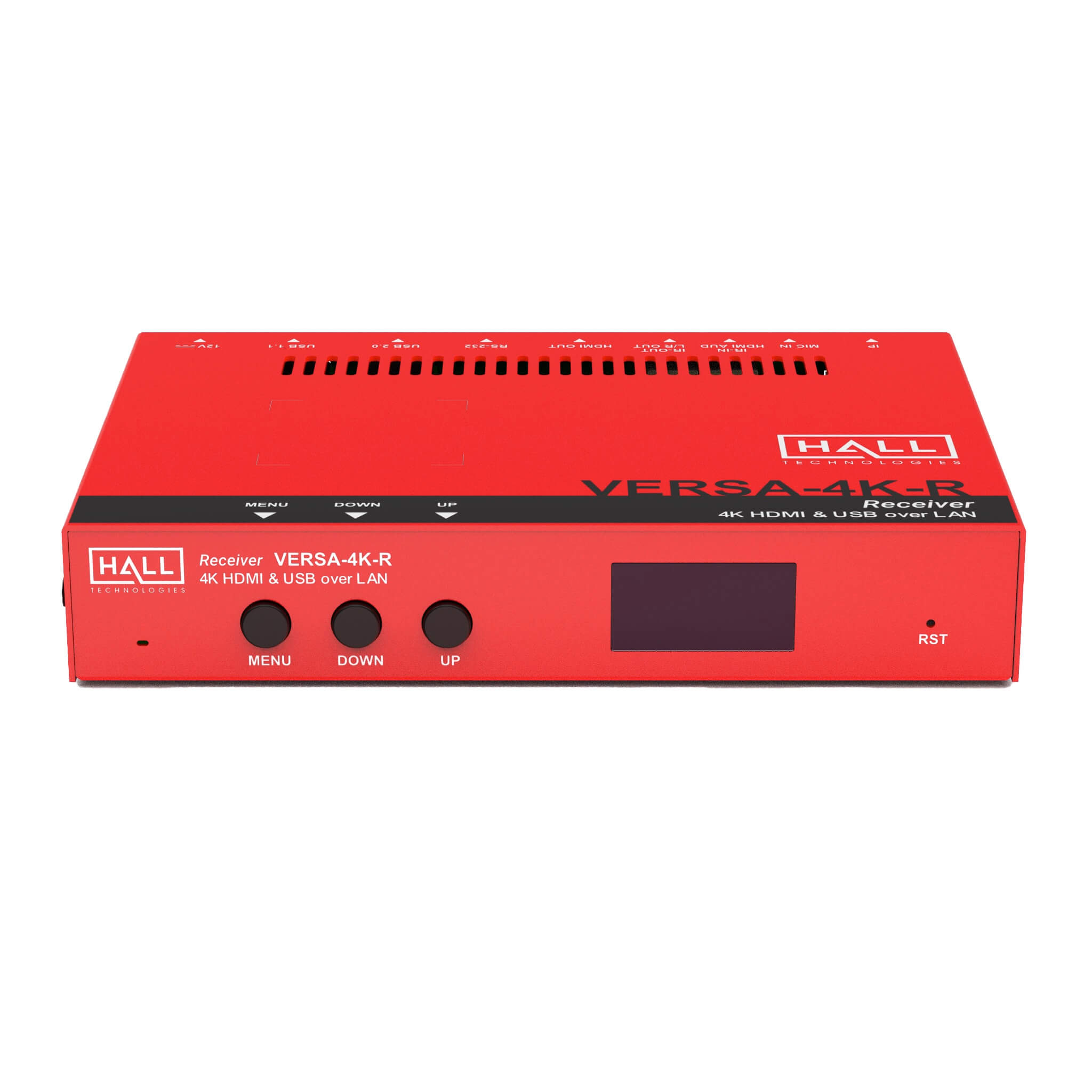

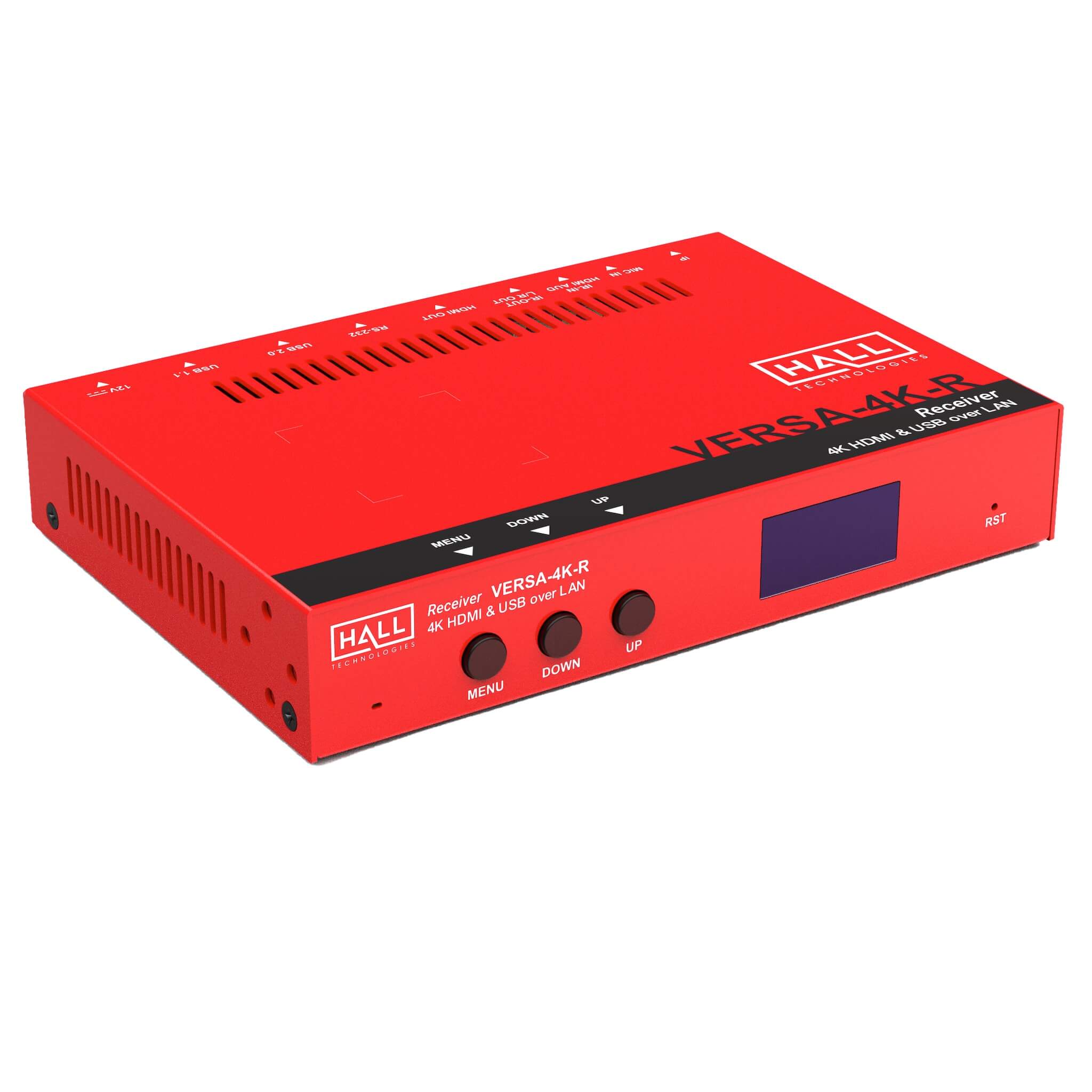

The receiver (HT-VERSA-4K-R) has a built-in scaler that not only supports a video wall up to 16x16, but can also change the orientation of the image. The receiver also includes extracted HDMI analog audio. Two USB ports are dedicated for use with keyboard and mouse (auto-switching based on user activity) and two general purpose USB 2.0 ports that support touch screens and memory devices, along with many other USB device functions.
Features
• Extend and switch multiple 4K HDMI video and USB on a simple Gigabit LAN
• Can be used directly (without LAN) for point-to-point extension on Cat6
• 1 frame (<30ms) latency video and audio
• Video rotation and flipping (horizontal and vertical)
• User configurable video-wall processor
• Extends signals up to 120 meters (400 ft)
• HDMI video loop output on the Sender
• Extracted HDMI audio in stereo analog format on both Sender and Receiver
• 4 USB ports on the Receiver, 2 USB 1.1 for keyboard/mouse plus 2 USB 2.0 ports
• PoE powered. Power supply included for direct point-to-point extension
• USB Device Class Filtering (to exclude devices like USB flash memory)
• CEC, IR, and R-232 Serial over IP for control
• Automatic KVM switching (when more than one receivers are routed to one source)
• Telnet and integrated Web GUI control
• Front panel character-LCD for configuration of IP parameters and status indication
• Receivers include small IR remote controller for switching channels
• Free PC GUI with advanced features to ease setup and configuration
• Sender accepts a max resolution of 4K 60Hz 4:4:4 on its input and loop output
• Receiver outputs a max resolution of 4K 30Hz 4:4:4
• HDCP2.2 and 1.4 compliant
