Atlona HW-LUMA-E4211 - H.264 and H.265 Networked AV Encoder

The Atlona HW-LUMA-E4211 is an H.264 and H.265 networked AV encoder for HDMI sources. Designed for high-performance distribution of video, audio, and control over data networks, with emphasis on bandwidth efficiency and scalability. H.265 (HEVC) encoding is ideal for multicast video distribution to HW-LUMA-D4111 decoders, while H.264 encoding is ideal for internet streaming via RTMP. Accepts HDMI input up to 4K/60 4:4:4 and encodes up to 4K/60 4:2:0. Features MJPEG streaming, snapshot capture, Dante audio encoding, video deinterlacing, audio de-embedding, automated multicast configuration, and image/text overlay.

Features
• Direct replacement for the discontinued HT-VERSA-4K-S
• H.264 and H.265 (HEVC) encoder for HDMI sources with HDCP 2.2/1.4 compliance
• Accepts HDMI source input up to 4K/60 4:4:4; encodes up to 4K/60 4:4:4
• H.265 encoding enables up to 50 simultaneous 4K streams over a Gigabit Ethernet link
• HDMI loop-through output ideal for local display or AV switcher connection
• Supports RTMP streaming to YouTube, Facebook, and Wowza
• Simplified multicast configuration with pre-assigned multicast IP addresses
• MJPEG sub-stream preview up to 854×480 @ 30 fps at 2048 kbps
• Logo overlay, full-screen backup image, and scrolling text overlay
• Simultaneous LumaStream and Dante audio streaming from main or Dante LAN port
• Balanced analog audio input and output (5-pin captive screw, ±20 dBu)
• PoE+ (IEEE 802.3at) powered — no local power supply required
• AES-128 encrypted content distribution with IEEE 802.1X network authentication

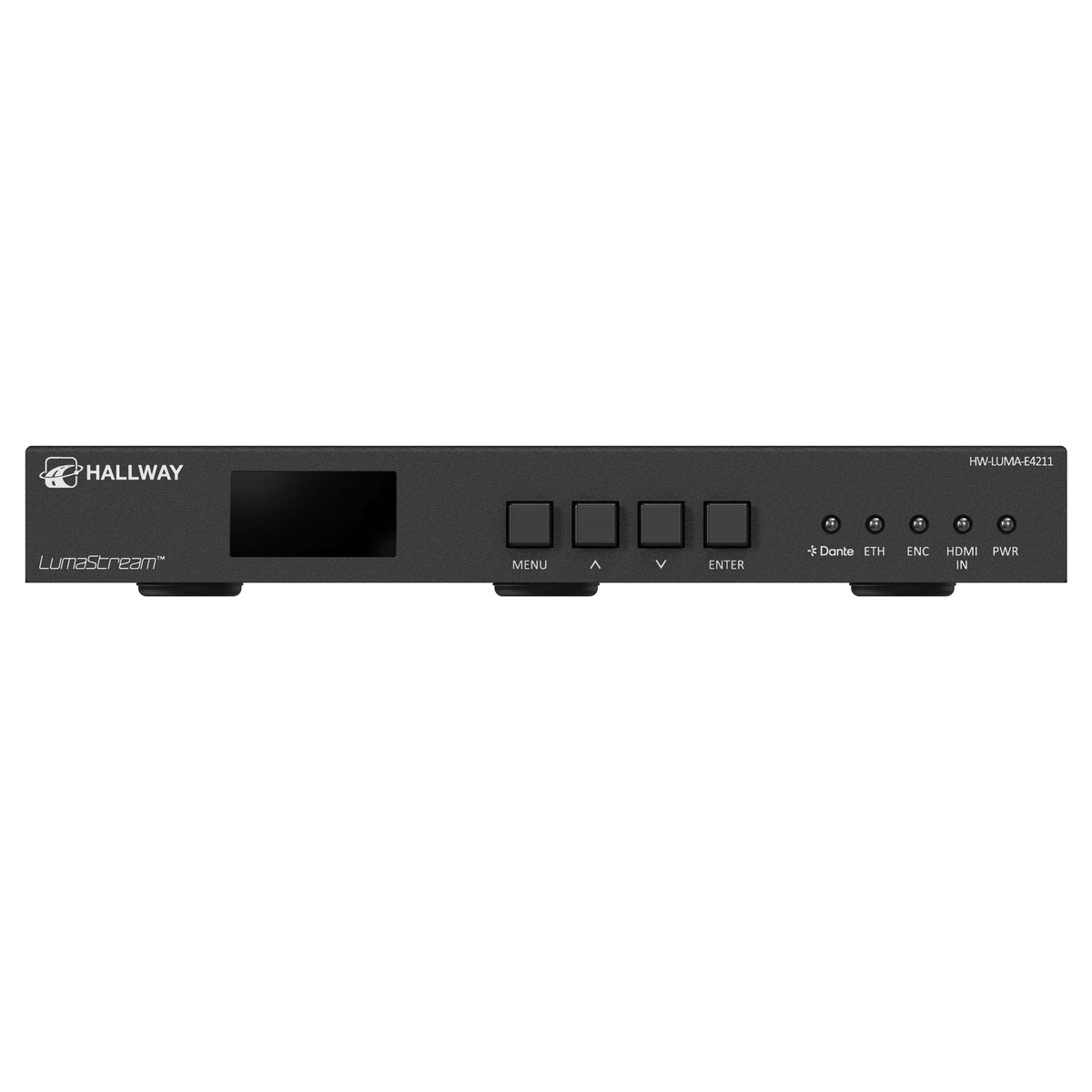

• Front panel LCD display and four-button navigation menu
• Intuitive web-based GUI; TCP/IP control with open JSON API
• Velocity Device Manager integration; field-updatable firmware
• Compact fanless enclosure with optional rack mounting
