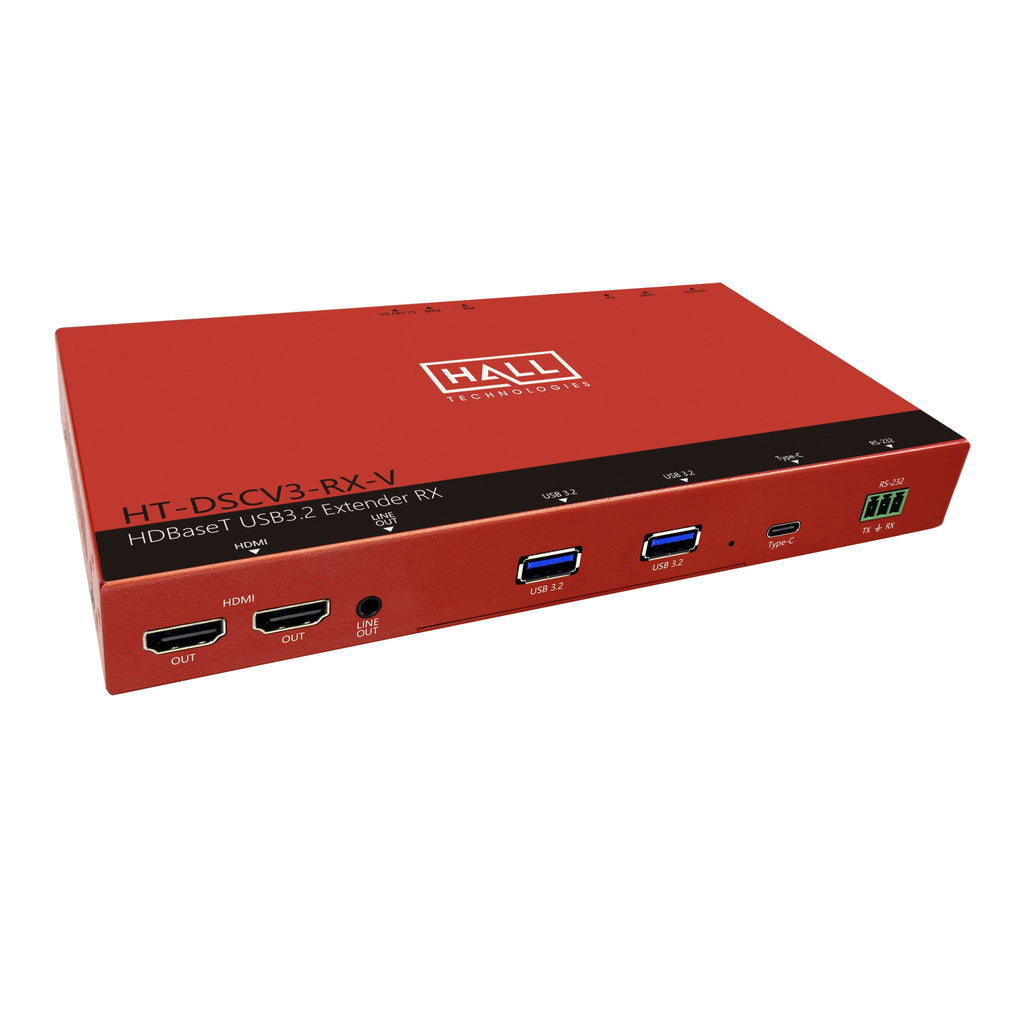

The Hall Technologies HT-DSCV3-RX-V2 is part of the Discovery 3 Series, designed to provide high-performance USB 3.2 extension capabilities. These extenders support the USB 3.2 Gen 1x1 standard, offering data transfer rates of up to 5 Gbit/s while maintaining backward compatibility with USB 3.0, USB 2.0, and USB 1.1 specifications. Engineered for efficiency and convenience, the DSCV3-RX-V2 features Power over HDBT (PoH) technology, allowing the extender system to be powered from only one side—either the transmitter (TX) or receiver (RX). The transmitter’s built-in PSE module, when locally powered, delivers up to 90W charging to host devices via USB-C, making it an excellent solution for power-hungry setups.
In addition to its robust power and connectivity features, the HT-DSCV3-RX-V2 is equipped with built-in control pass-through functionality. This allows users to operate the source device from the display’s location or vice versa, providing seamless control and flexibility in various installation scenarios. Its compact and discreet form factor makes it easy to install in tight or hidden spaces, ensuring a clean and professional setup. Whether you’re looking for efficient USB extension, simplified power management, or advanced control options, the HT-DSCV3-RX-V2 delivers exceptional performance for modern AV applications.
Features
• Supports USB 3.2 Gen 1×1 standard
• Backwards compatible to support USB 3.0, USB 2.0, and USB 1.1 devices
• Supports 90m transmission via Cat6a/7
• Supports up to 5 Gbit/s data transfer rate
• Supports RS-232 pass-through
• PoH power module – only one device connected to power
• PSE power module – provides 90W charging power to the connected host device
• Dual HDMI video outputs
• 52V 65W Power Supply Included
