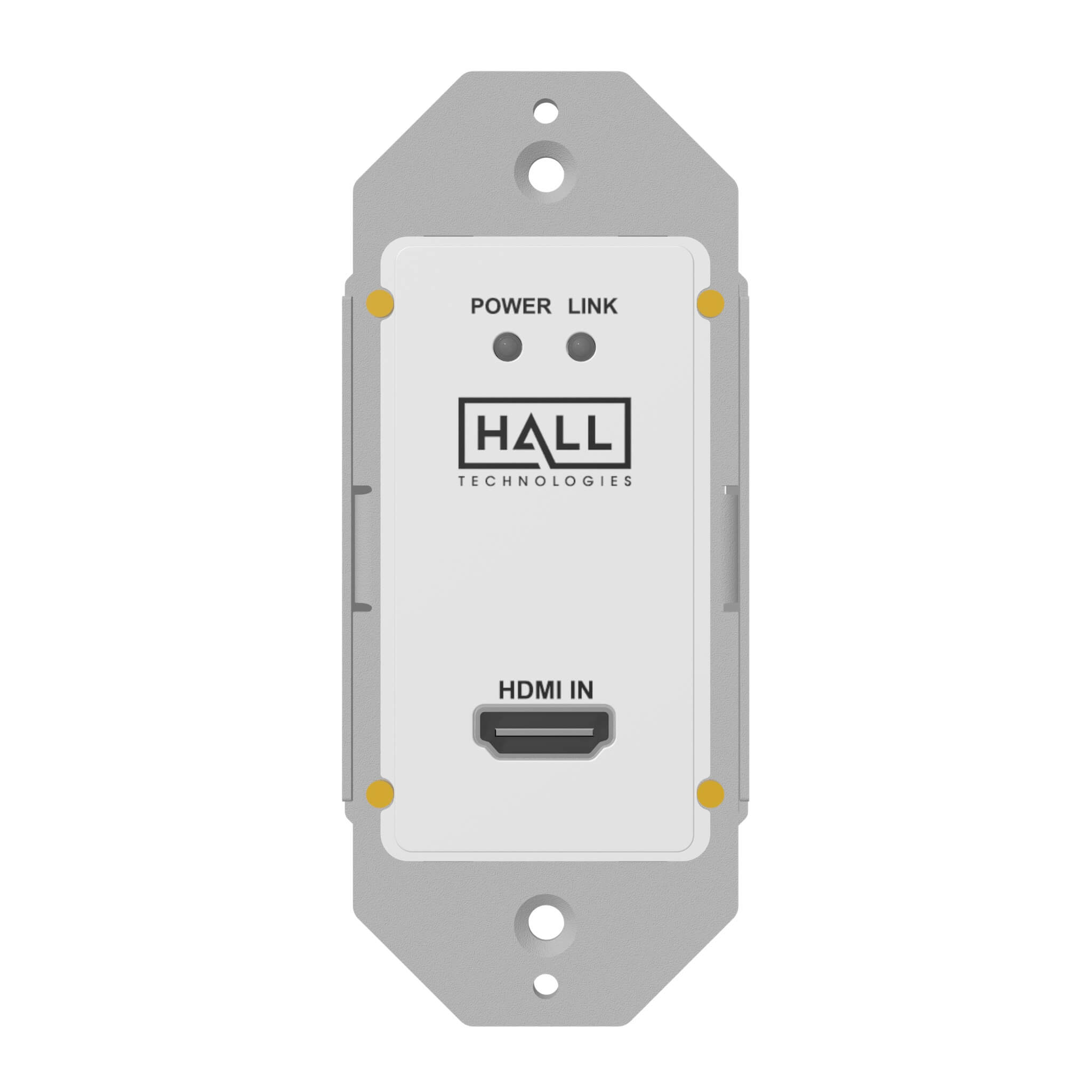

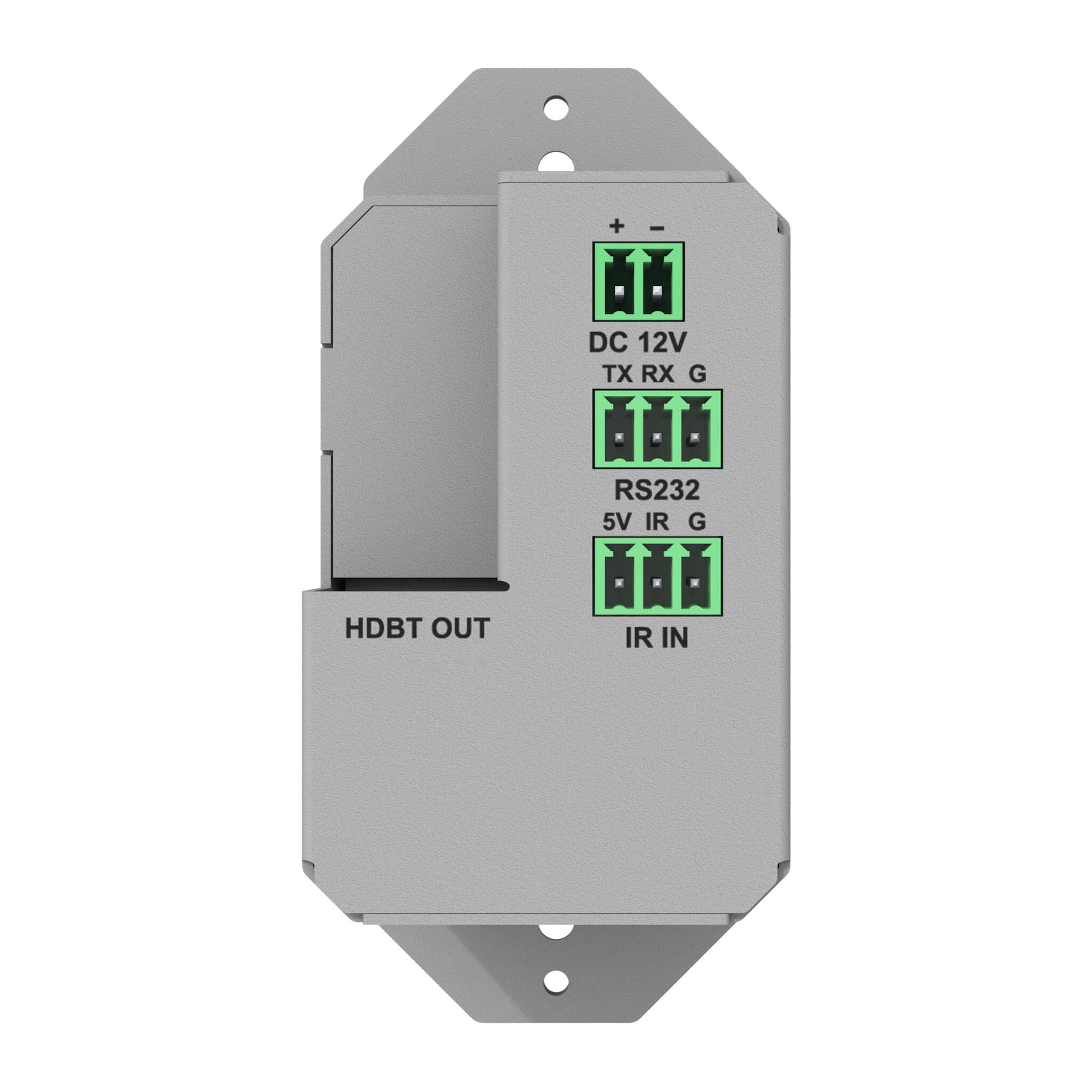

The Hall Technologies HT-AIM-70-TX-WP is a single gang wall plate transmitter for use with the HT-AIM-70-RX receiver. It supports resolutions up to 4K@60 4:2:0 8bit, and HDCP 2.2 compatibility. It can transmit 4K signal up to 35m/115ft via a single Cat 5e/6 cable and up to 40m/131ft via a single Cat 6A/7 cable. With one-way PoC function, the transmitter can be powered by the receiver (the receiver should support this function). The transmitter also features one-way IR pass-through from transmitter to receiver, CEC pass-through, and RS232 pass-through over HDBT, and it also supports firmware upgrading through RS232 port.
Features
• HDMI 1.4 with 4K@60Hz 4:2:0 8bit and HDCP 2.2 compatibility
• 4K signal transmission up to 35m/115ft via a single Cat 5e/6 cable
• 4K signal transmission up to 40m/131ft via a single Cat 6A/7 cable
• 1080p signal transmission up to 60m/197ft via a single Cat 5e/6 cable
• 1080p signal transmission up to 70m/230ft via a single Cat 6A/7 cable
• Supports one-way PoC, the TX can be powered by the RX with a PSE module
• Supports one-way IR pass-through from transmitter to receiver
• Supports CEC pass-through and RS232 pass-through via HDBT port
• Supports firmware upgrade through RS232 port
