The Hall Technologies HSM-44-BX matrix switch is a member of the Genesis Digital Matrix series of switchers. It provides exceptional quality, intuitive operation and powerful control methods that are hallmarks of Hall Research’s video matrix switches.

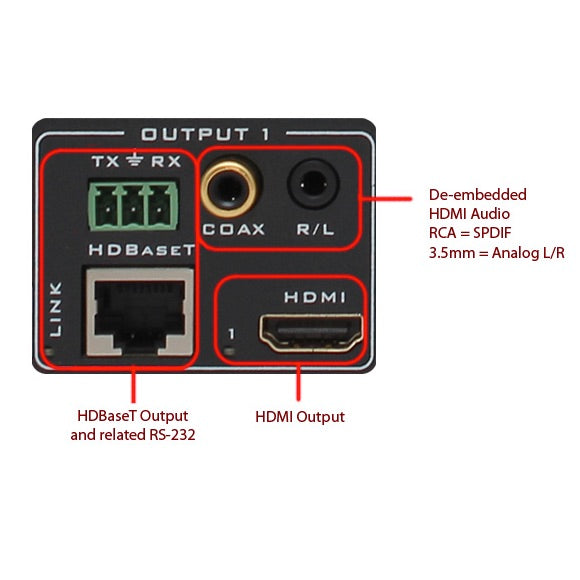

The 4K matrix is a 4×4 cross-point switch in a compact 1-RU enclosure. Each output has integrated video splitter so that simultaneous HDMI and HDBaseT are provided.
The HDBaseT outputs extend HDMI, IR, RS-232, Ethernet, and Power over a single CAT6 cable to 100m (328 ft). The HDBaseT outputs are compatible with all compliant HDBaseT receivers such as the Hall Research’s HBX-R which is a cost effective Receiver that provides HDMI, IR, RS-232 and IP (Ethernet) extension and gets its power from the matrix for maximum convenience.
The HSM-44-BX supports HDMI resolutions up to 4K @ 30 Hz 4:4:4 and 4K @ 60 Hz 4:2:0. It also supports HDCP 2.2 and 1.4, 3D, deep-color. PCM, Dolby, DTS, and HD audio standards. The matrix intelligently calculates EDID for each input based on the EDID of the connected sinks.

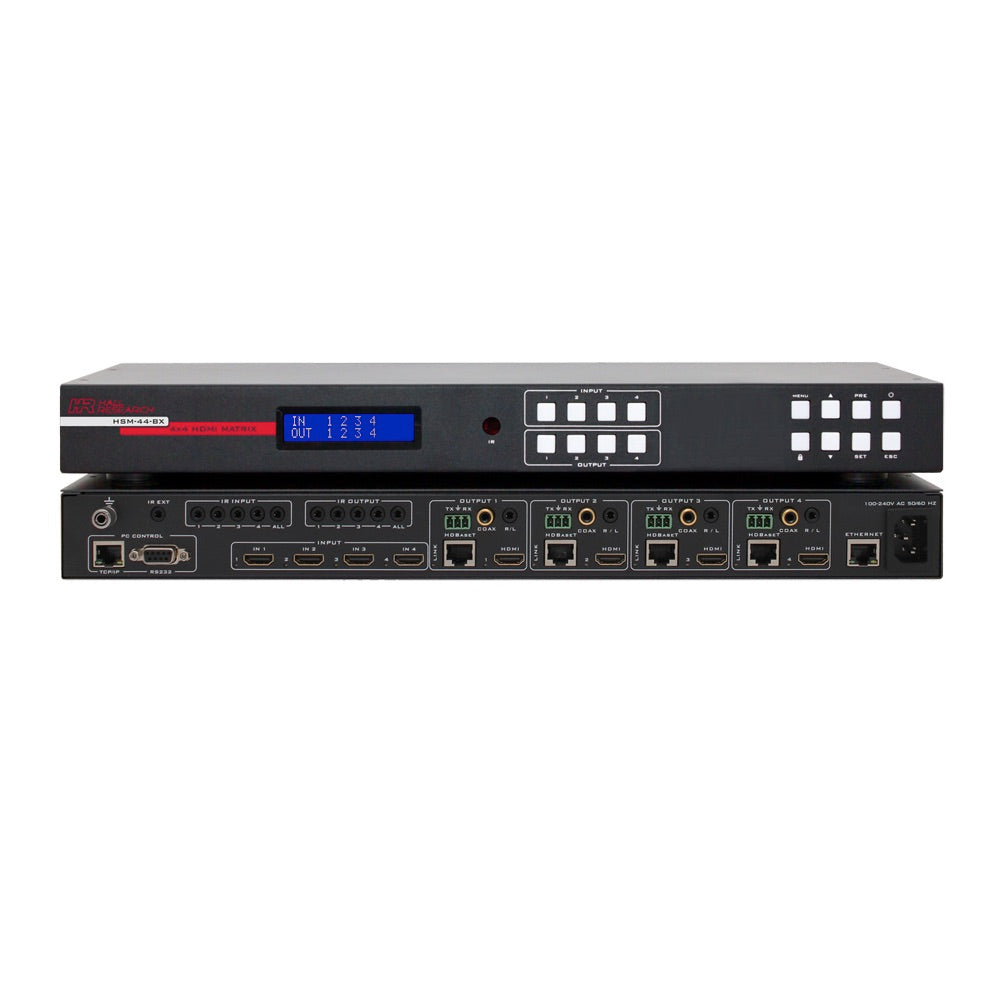

Users are able to save and recall multiple matrix routing configuration PRESETs. HDMI outputs can also be blanked. The matrix includes a two-line character LCD on its front panel in order to display the current video routing and to facilitate creating or recalling Presets.
The HSM-44-BX matrix is ideal for conference rooms, multimedia presentations, digital signage, houses of worship, and many other settings.
Features
• HDCP 2.2 and 4K UHD
• Simultaneous HDMI and HDBaseT on each output
• Extends HDMI, IR, RS-232, Ethernet, and Power on HDBaseT
• Intuitive front panel control with two-line LCD
• Analog and Digital Extracted Audio Outputs
• Uses Hall Research Genesis Control Command Set (GCCS)
Includes
• Model the HSM-44-BX
• Power cord for USA
• IR Remote
• Rack mounting brackets
• RS-232 Cable
• 6, IR Detectors (for use on IR Input and IR EXT ports)
• 5, IR Emitters (for use on IR Output ports)
• 8, 3-pin screw-terminals (for use with RS-232 connectors)
• User Manual
