The FSR HD-H1504K-SP is an 18Gbps HDMI extender set that can extend the high-definition video, audio signals, RS-232, and bi-directional IR to a distance up to 492ft/150 meters between the transmitter and receiver via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4, 18Gbps, HDCP 2.2. One HDMI loop-through port is available for local output. This set's receiver de-embeds the audio for analog L/R output. In addition, the HD-H1504K-SP is equipped with two-way IR pass-through, which allows for source and display control.

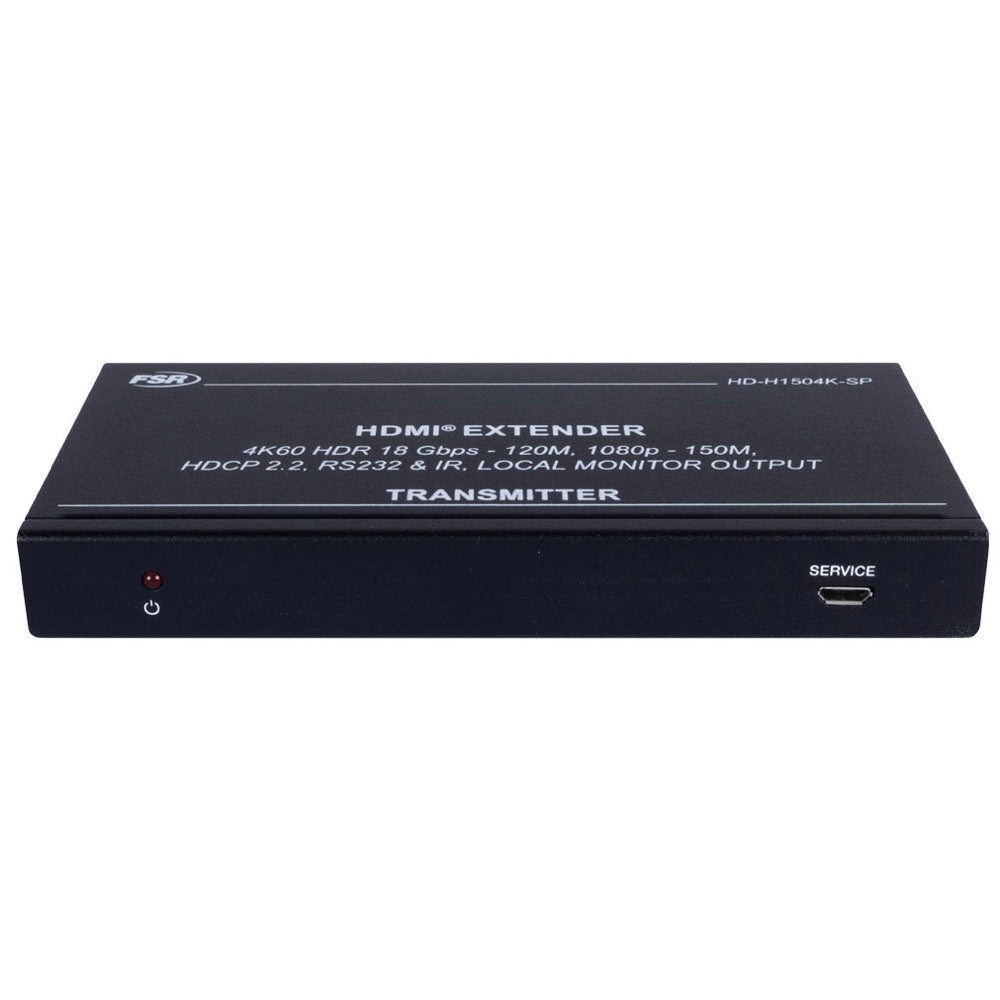

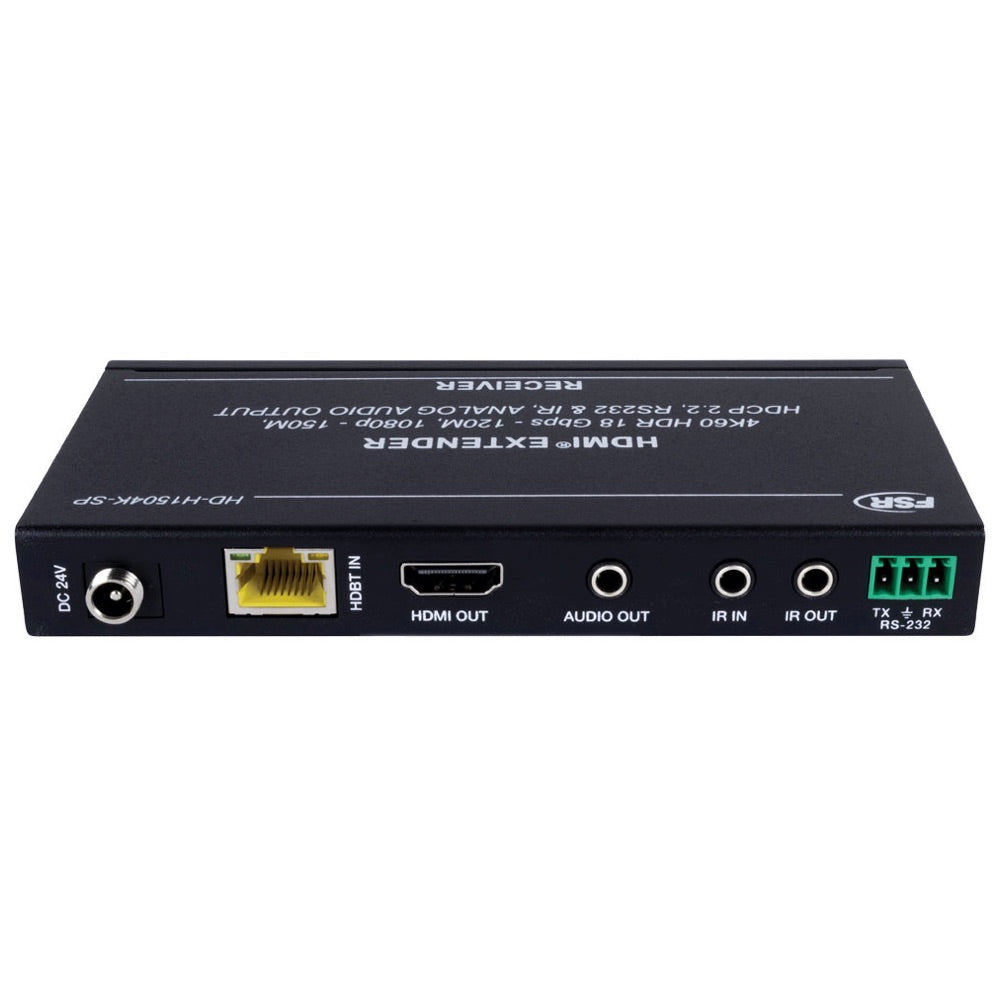

This HDMI extender set includes two units: transmitter and receiver. The transmitter is responsible for capturing the HDMI input signal and carrying the signal via one Cat5e/6 cable and transmitting/emitting IR control signals. The receiver is responsible for receiving the HDMI signal and transmitting/emitting IR control signals.
This extender set offers the most convenient solution for HDMI extension via a single Cat5e/6 with long-distance capability and is the perfect solution for any application.
• HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant
• Supports 18Gbps video bandwidth
• The maximum extended transmission distance via a single Cat5e/6 cable
• 394ft/120 meters for 4K2K signal
• 492ft/150 meters for 1080P signal
• It supports one HDMI loop output on the transmitter
• Extracts audio to analog stereo output on the receiver
• With bi-directional IR, RS-232, and CEC pass-through
• HDR, HDR10+, Dolby Vision, and HLG functions supported
• Supports PoC (Power over Cable) function
• Compact design for easy and flexible installation
