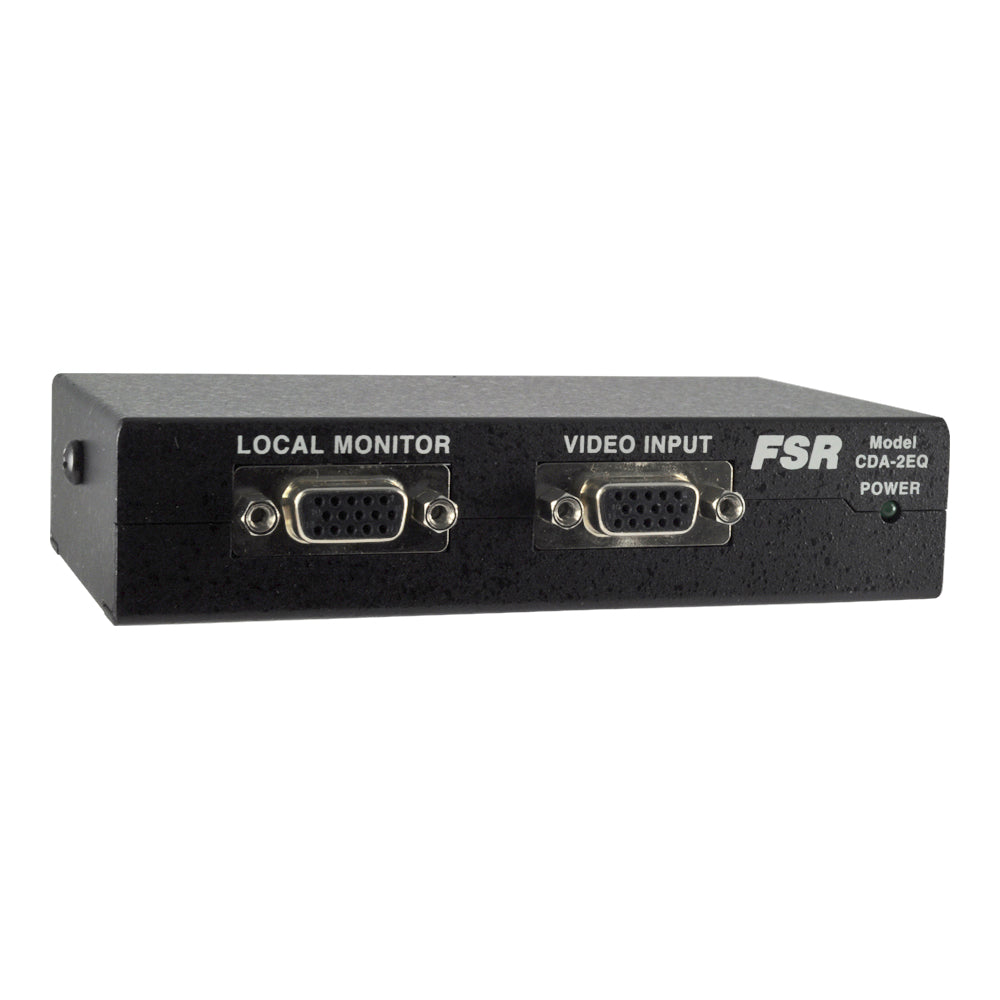

The FSR CDA-2EQ is a high resolution 1x2 distribution amplifier designed to satisfy a typical application where a local monitor and a remote display device require a long cable run.
The remote output is equalized to maintain excellent signal integrity for even the highest video resolutions. Cable runs of up to 175’ are possible with 170 MHz of full amplitude bandwidth and +/- 0.4dB flatness to a 150 MHz. A half amplitude signal yields 270 MHz of bandwidth and +/- 0.4dB flatness to 235 MHz, nearly 16 times better than cable alone. This means that the signal that you feed into the CDA-2EQ will arrive at the far end of the cable with an almost immeasurable amount of loss and no distortion due to peaking effects.
The local monitor output passes ID bits to the host computer to maintain compatibility with Mac and Windows based computers.
A 9V AC power supply and mounting hardware kit is included for above or below table installation.
The FSR CDA-2EQ is ideal for laptop or desktop presentations such as PowerPoint that require a secondary video feed to run longer distances.
Features
• Ultra High Bandwidth
• Flat Frequency Response
• Local Monitor Output
• Integrated Line Driver with Cable EQ
• Includes Power Supply and All Mounting Hardware
