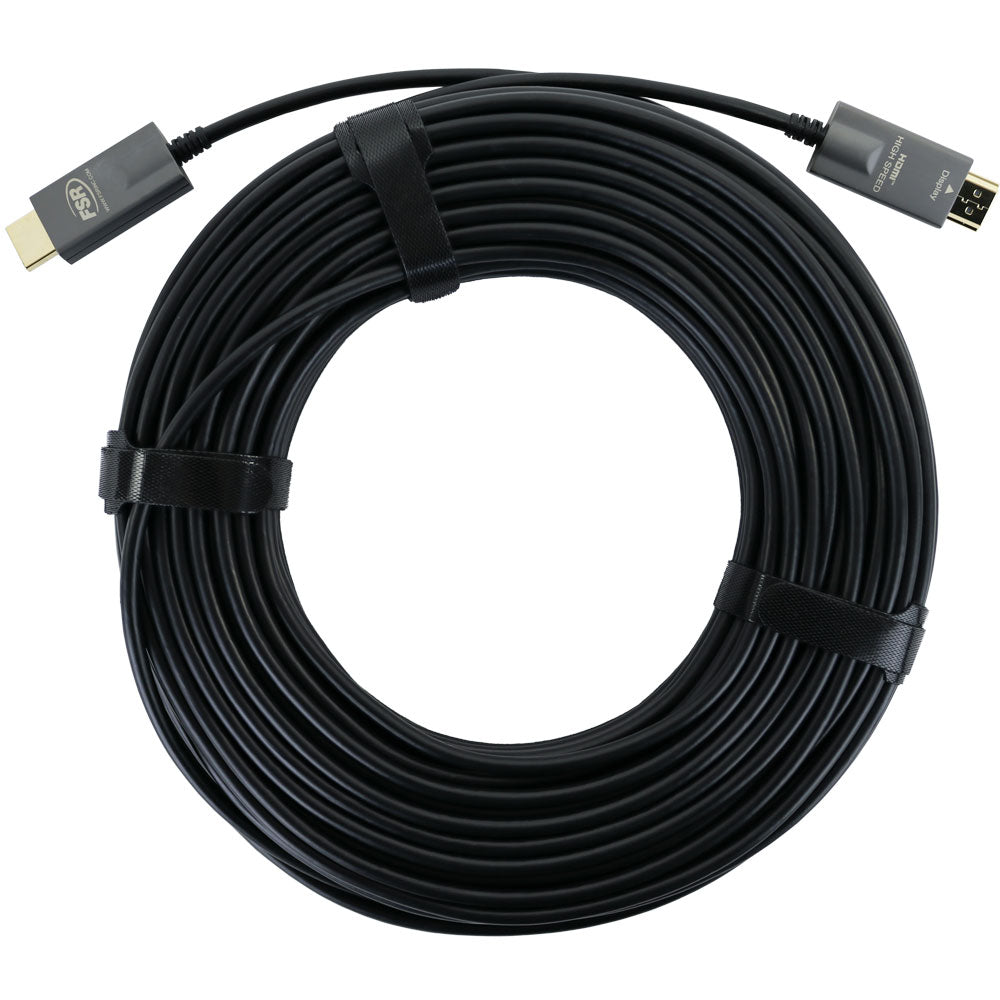

The FSR 4K Next Generation Digital Ribbon Cables utilize a proprietary technology to allow high speed and high definition HDMI signal transmission over distances of up to 328 ft. The 4K Digital Ribbon cables are Plenum Rated, giving you protection and high quality packaged together.
These Next Generation cables can easily handle up to 4k 60Hz 4:4:4 HDR uncompressed HDMI video and are ARC compatible. The cables meet HDMI and HDCP testing standards and support DDC for HDCP and EDID, PCM, Dolby, DTS-HD, and True HD Audio.

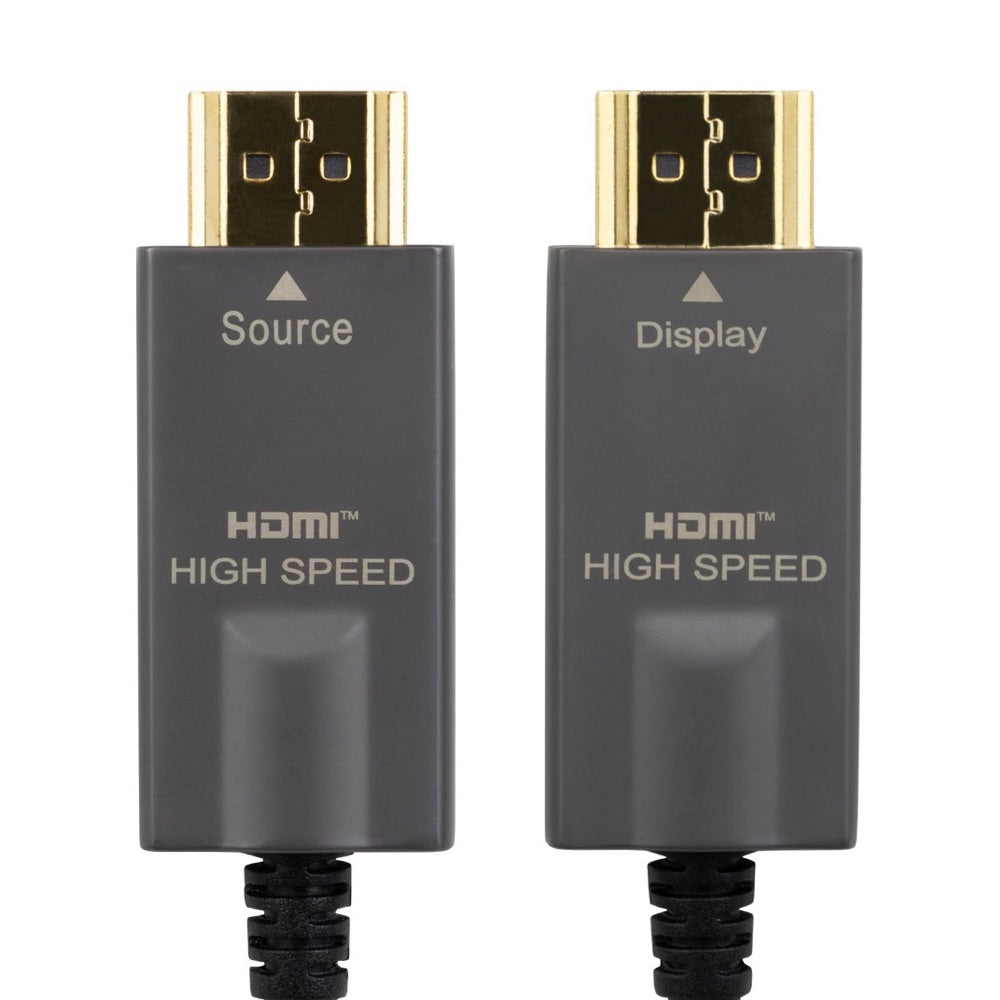

The connectors are labeled Source and Display to aid in proper connection during installation. Both the cable and connector were designed to easily fit within a one inch conduit.
The hybrid fiber/copper cables deliver a speed of 18 Gbps video bandwidth. The advanced technology doesn't stop there using four glass fibers, seven copper wires, and supplying the necessary power to the embedded circuitry at both ends of the cable - saving space and money.
Features
• HDMI with 4k@60Hz YUV 4:4:4 and supports all HDCP versions
• Supports DDC for HDCP, EDID, PCM, Dolby, DTS-HD and True HD audio
• UL Listed and Plenum Rated (Type CMP, CMR)
• Overcomes distance limitations of conventional HDMI cables
• Hybrid fiber/copper cables deliver a speed of 18 Gb/sec video bandwidth
• Cable and connectors easily fit within a 1-inch conduit
• ARC compatible
