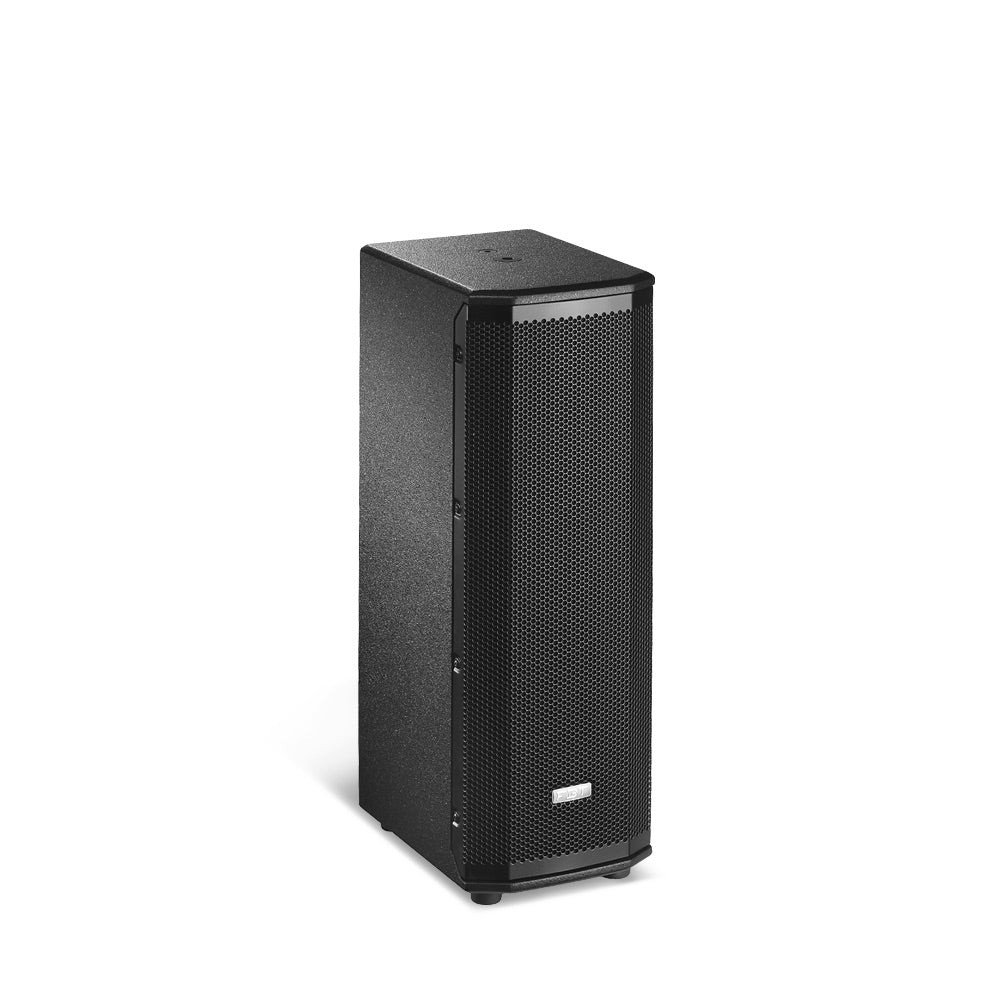

The multi-purpose FBT Ventis 206A 2-way processed active speaker can be deployed as a front fill, an under-balcony fill, as a main providing pristine speech intelligibility or simply as the full-range companion of a subwoofer. Constructed in 12mm birch plywood, the 206 has an integrated rear handle, an optional mounting bracket and, most importantly, an astonishing size-to-SPL ratio.
Power comes from a specially designed, Italian made switching mode amplifier module. Low frequencies are driven by a highly efficient 700W RMS (full bridge) Class-D topology, operating with extremely low THD. For the HF stage, a 200W RMS performance is delivered via a meticulously crafted Class-H/AB design.
The on-board DSP is both user friendly and powerful. Located on the rear, a menu-driven system is navigated via a single rotary control with push-to-select functionality. A total of 6 factory presets are available, plus 2 additional slots for custom presets, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 meters. Finally, users can choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance.
Features
• 2-way, bi-amplified, bass reflex design
• 2 x 6.5-inch Low Frequency Woofer with 1.5-inch voice coil
• 1-inch High Frequency Driver with 1.4-inch voice coil
• Fully rotatable constant directivity horn
• 0.47-inch birch plywood scratch resistant enclosure
• High efficiency switch mode power supply
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers
• Digital Signal Processor with 6 factory presets
• Control Panel features balanced XLR/Jack input, XLR link out, 2 x volume, RCA stereo input, DSP display with rotative encoder and push
• Designed, engineered and manufactured in Italy
