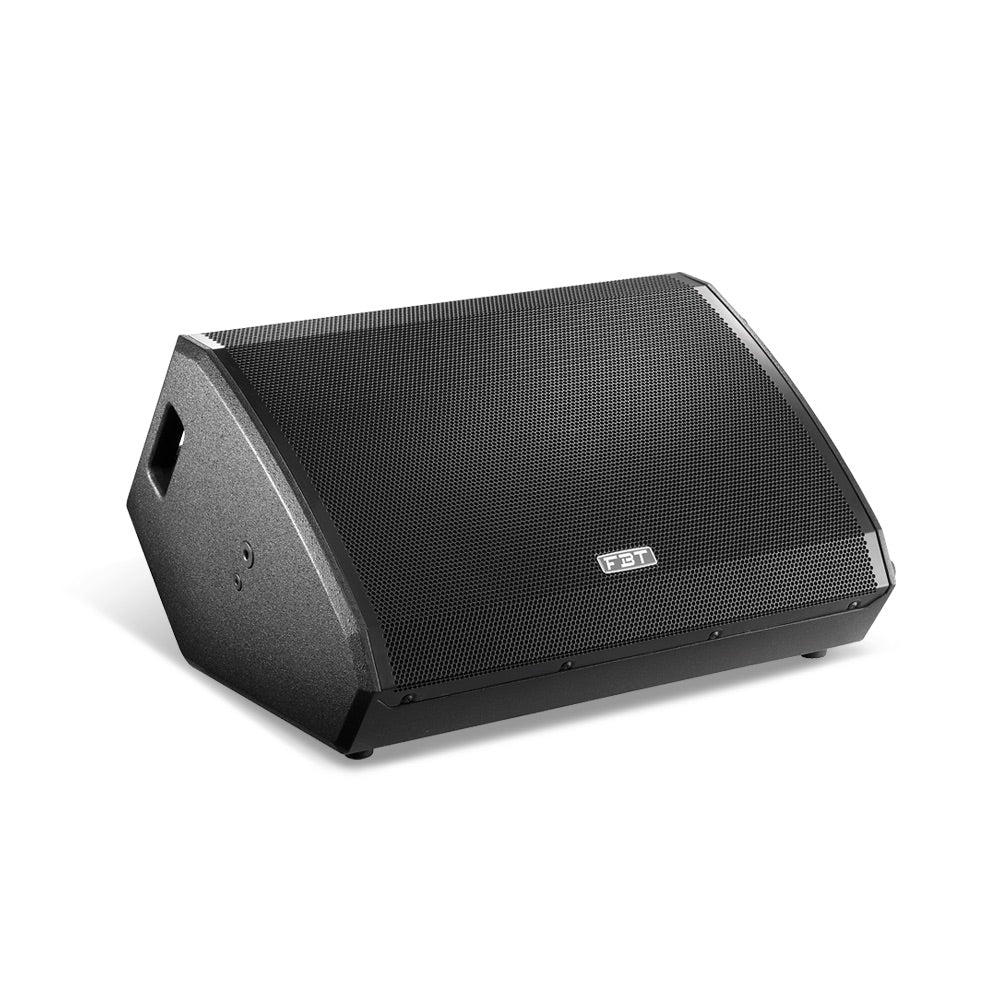

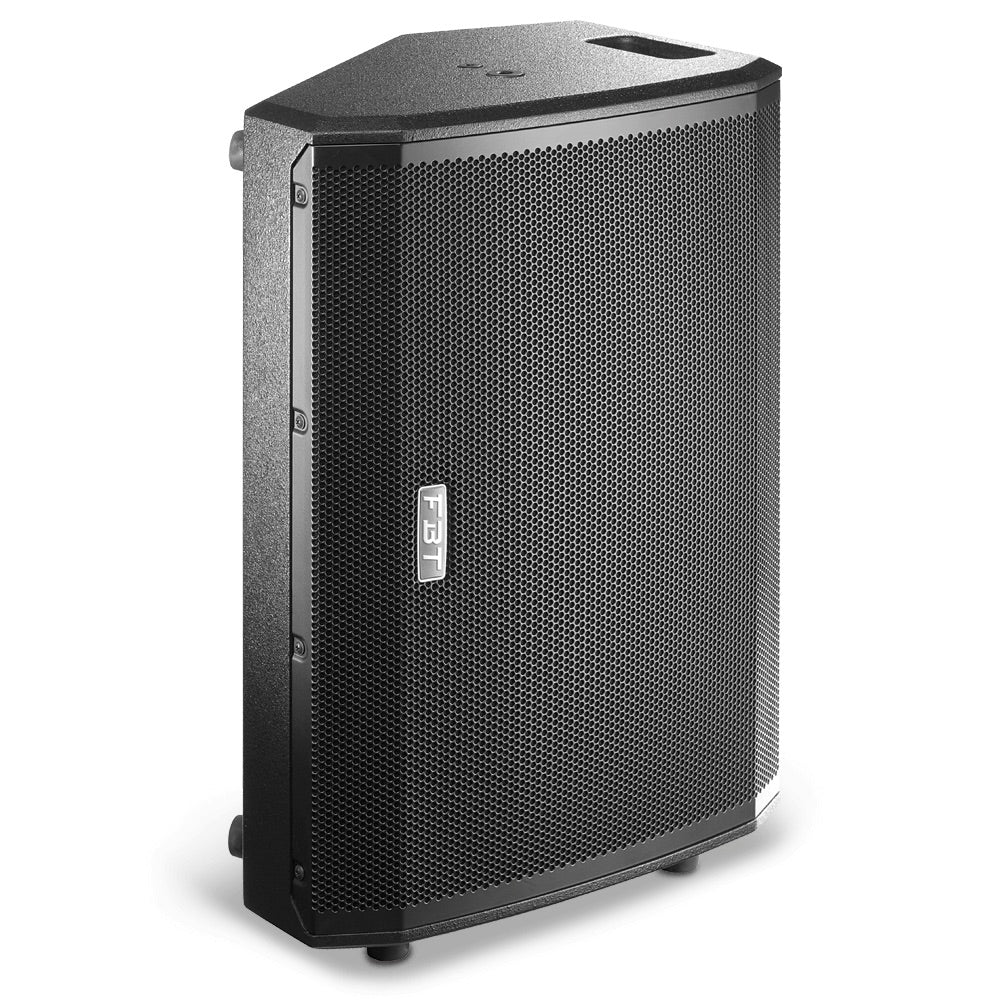

The FBT Ventis 112MA is a 2-way active coaxial stage monitor with bass reflex design. Thanks to custom B&C transducers it's capable of a 132dB SPL. The enclosure is constructed of 15mm birch plywood and can be used for fixed installation or FOH thanks to a 35mm pole mount socket and threaded inserts for an optional mounting bracket.
Power comes from a specially designed, Italian made switching mode amplifier module. Low frequencies are driven by a highly efficient 700W RMS (full bridge) Class-D topology, operating with extremely low THD. For the HF stage, a 200W RMS performance is delivered via a meticulously crafted Class-H/AB design.

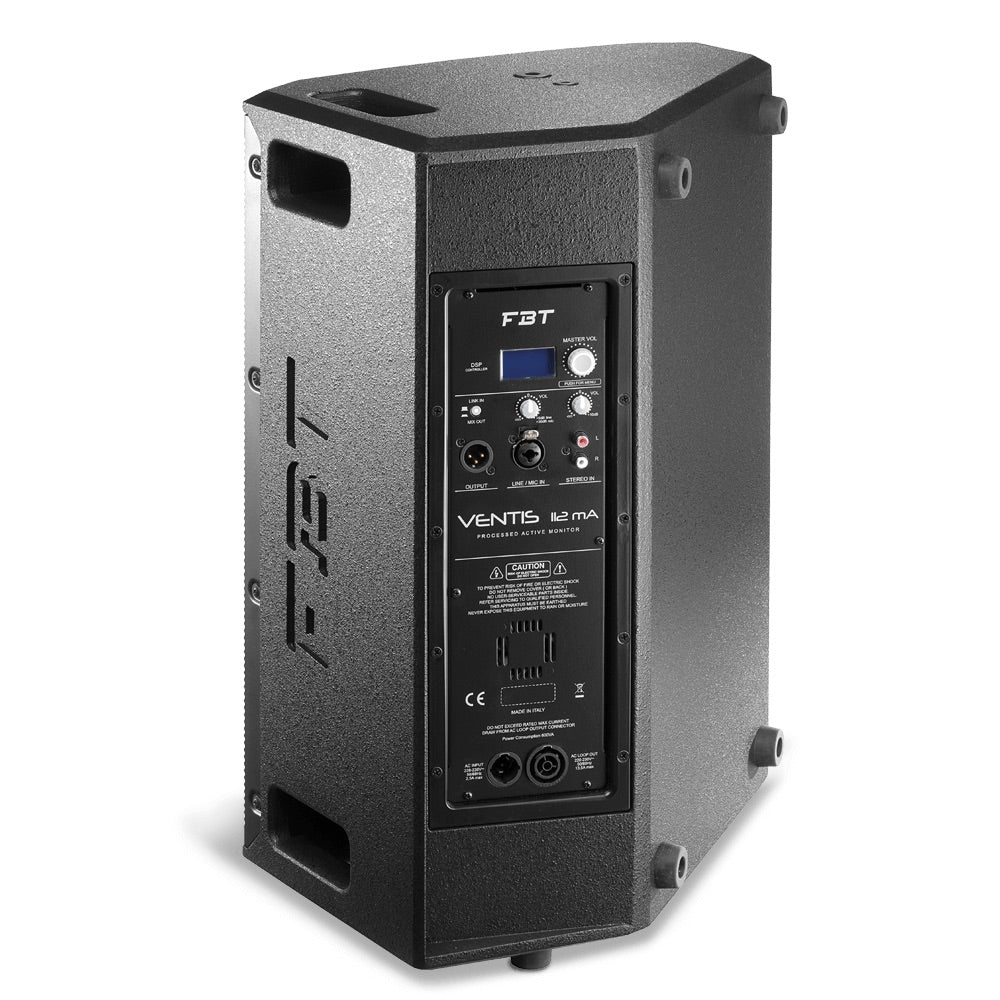

The on-board DSP is both user friendly and powerful. Located on the rear, a menu-driven system is navigated via a single rotary control with push-to-select functionality. A total of 6 factory presets are available, plus 2 additional slots for custom presets, using 5 parametric equalizers per slot. Also available is a high-pass filter, a mic/line selector, low, mid and high tone settings and an optional delay of between 0 and 3.5 meters. Finally, users can choose between two limiter modes, MAX-SPL or MAX-QUALITY, to best suit their performance.
Features
• 2-way, bi-amplified, bass reflex design
• 12-inch Low Frequency Woofer with 2.5-inch voice coil
• 1-inch High Frequency Driver with 1.7-inch voice coil
• 0.59-inch birch plywood scratch resistant enclosure
• 90-degree dispersion
• 2 integrated handles
• Wall bracket mount thread
• 35mm pole mount socket
• High efficiency switch mode power supply
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers
• Digital Signal Processor with 6 factory presets

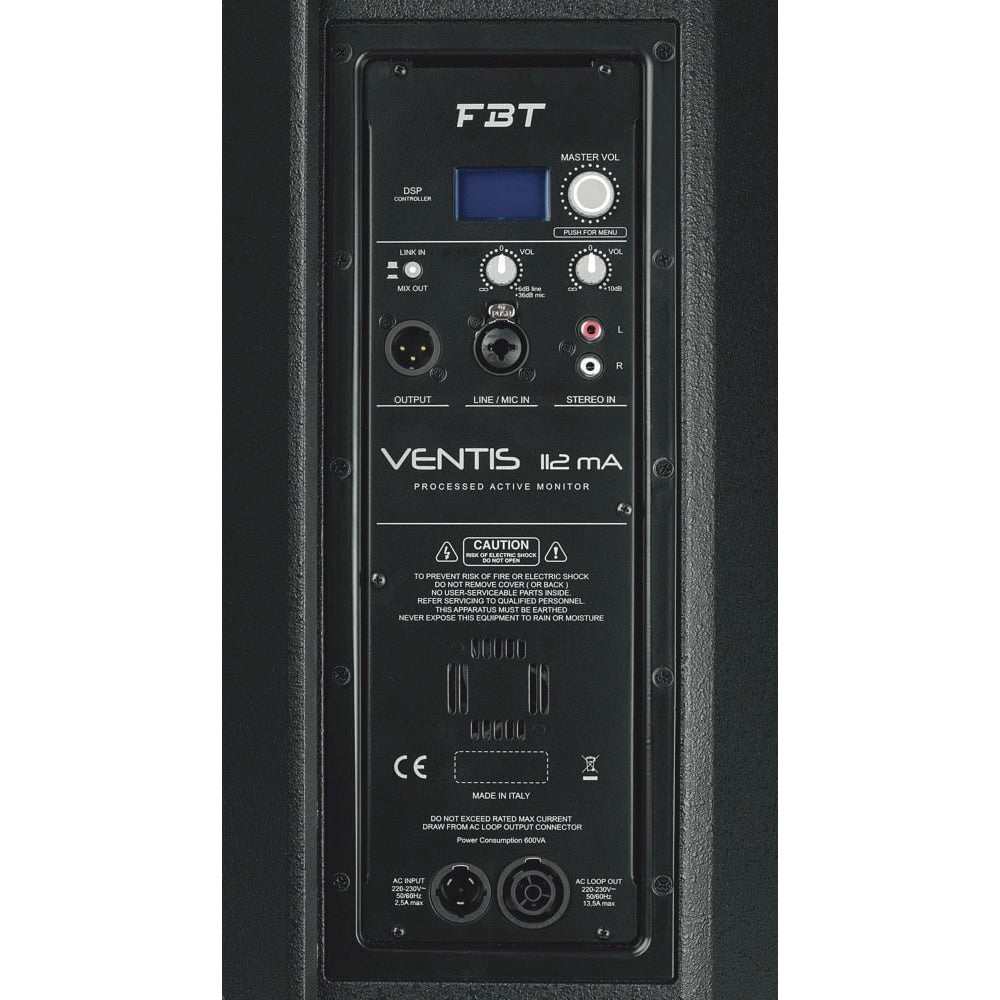

• Control Panel features balanced XLR/Jack input, XLR link out, 2 x volume, RCA stereo input, DSP display with rotative encoder and push
• Designed, engineered and manufactured in Italy
