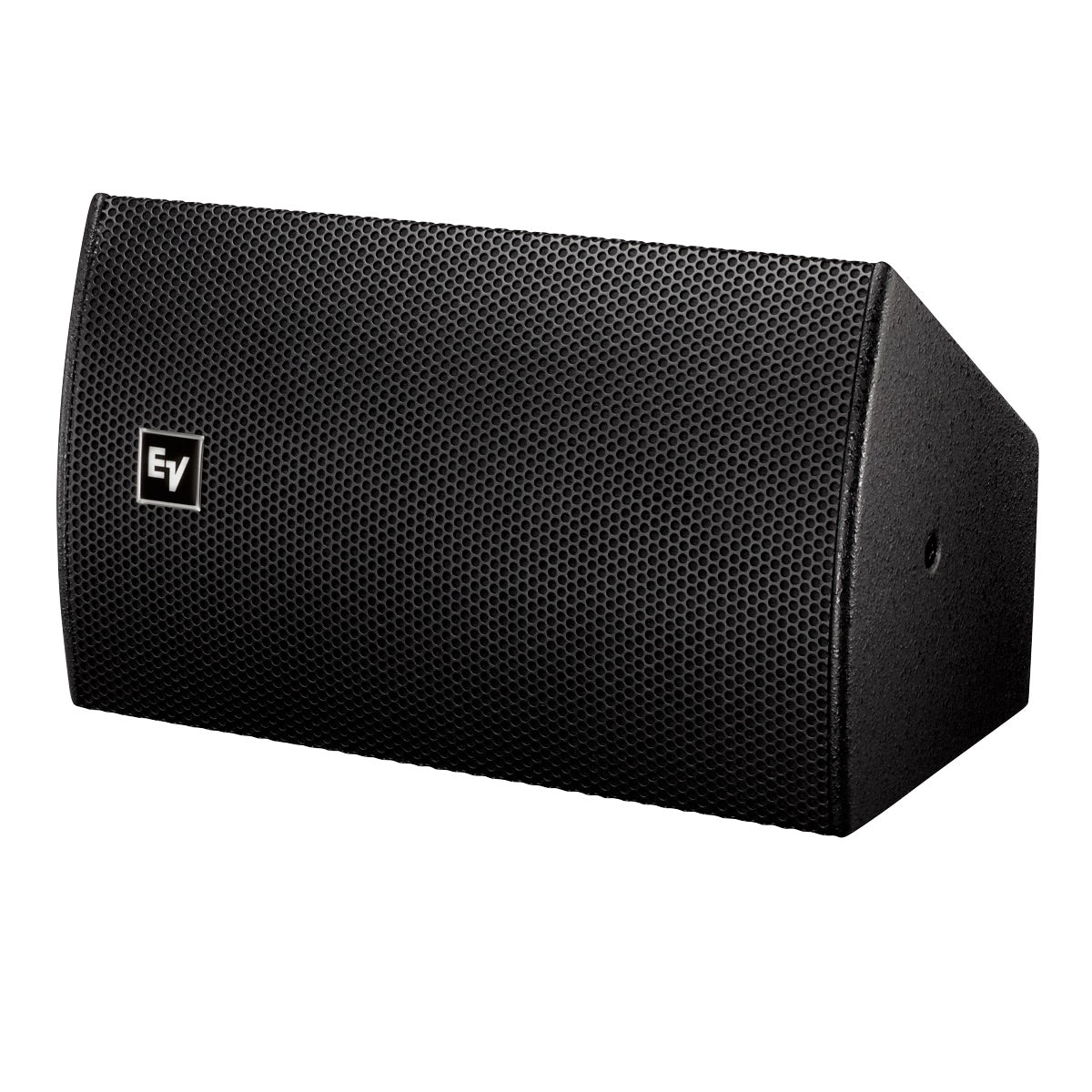

The Electro-Voice EVU-1082/95 brings ultracompact design to the EV Innovation family of installation loudspeakers and shines in applications including delay, under‑balcony fill, front‑fill, wall mounting and distributed audio. EVU loudspeakers feature a rotatable Constant Directivity waveguide that provides truly uniform sound dispersion while allowing the horizontal coverage pattern to be independent of enclosure orientation. Sonically matched to complement the other EV Innovation products, EVU helps make EV Innovation the industry's most comprehensive and versatile line of installed‑sound loudspeakers.
A fourth‑order, 90 Hz high‑pass filter is recommended for use with all EVU loudspeakers.
Features
• Sonically matched to all EV Innovation lines
• Sophisticated 18 dB octave passive crossover/EQ networks
• Asymmetrical enclosure for ideal under-balcony and stage-lip aiming
• Optional Neutrik Speakon connector panel
• One 1.3-inch diaphragm compression driver
• U-bracket included
• Optional 70 V and 100 V operation
• OmniMount-compatible rear mounting points

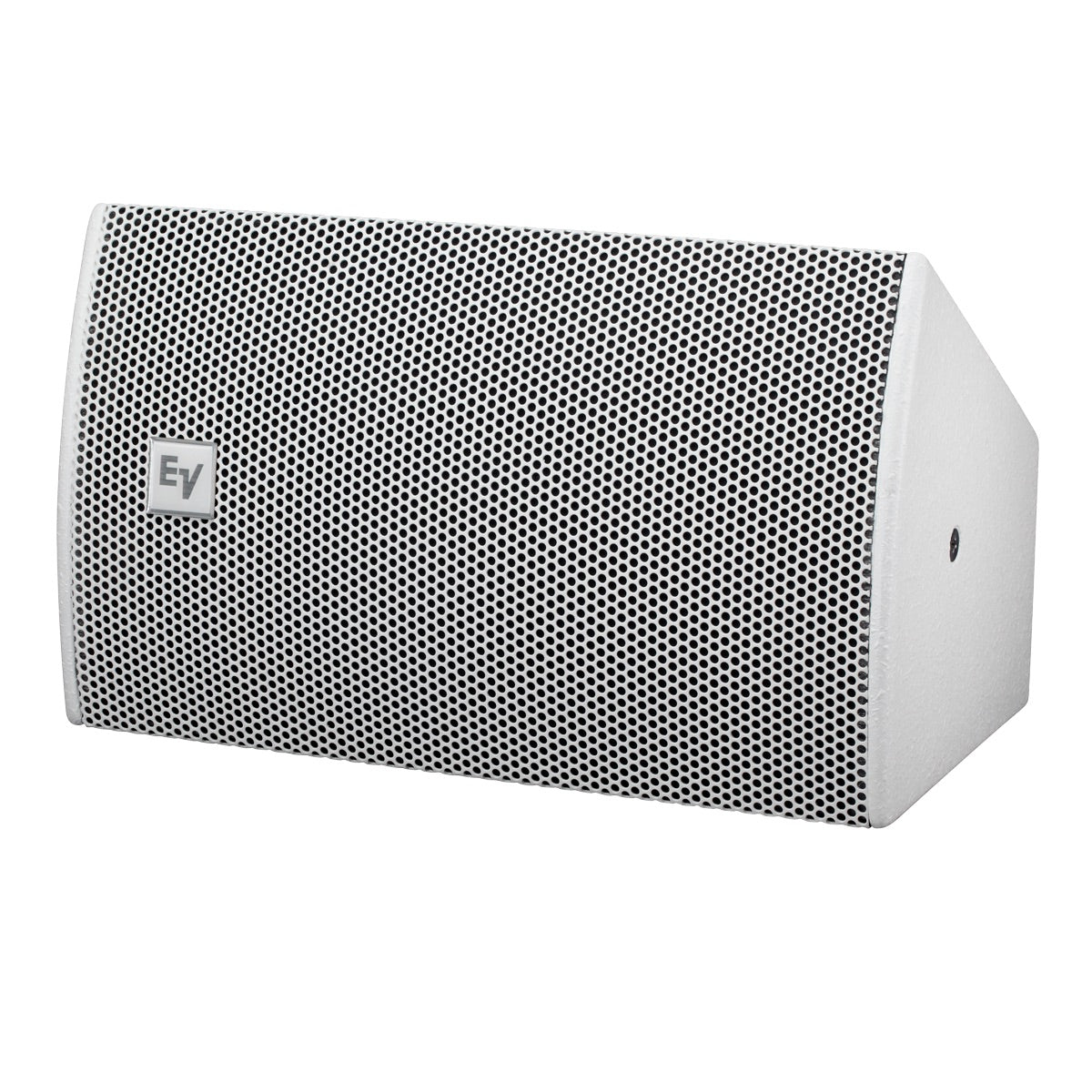

• Available in black or white (interior use)
• Ultracompact 10 x 16 inch enclosure
• 90º x 50º rotatable waveguide
• Ultra-high power handling for size: 175 W continuous
• 123 dB Max SPL
• Asymmetrical trapezoidal enclosure design
• Compatible with OmniMount
