Superior Electro-Voice sound quality and flexible functionality, combined in a very compact package
The EVOLVE 30M is designed to deliver a significant step up in all-around performance for a column system in its size/price category. It's equipped with the most complete feature set in its class, including an eight-channel digital mixer, studio-quality onboard effects, and remote control of all audio, effects and mix functions via the next-generation Electro-Voice QuickSmart Mobile application. High-resolution, low-latency Bluetooth streaming ensures excellent results for music playback or accompaniment.
Features
• Mix your show like a pro
• Optimize every detail of your sound
• Room-filling coverage
• Super-quick setup
• Single-trip portability
Refined industrial design and professional-grade EV-engineered components

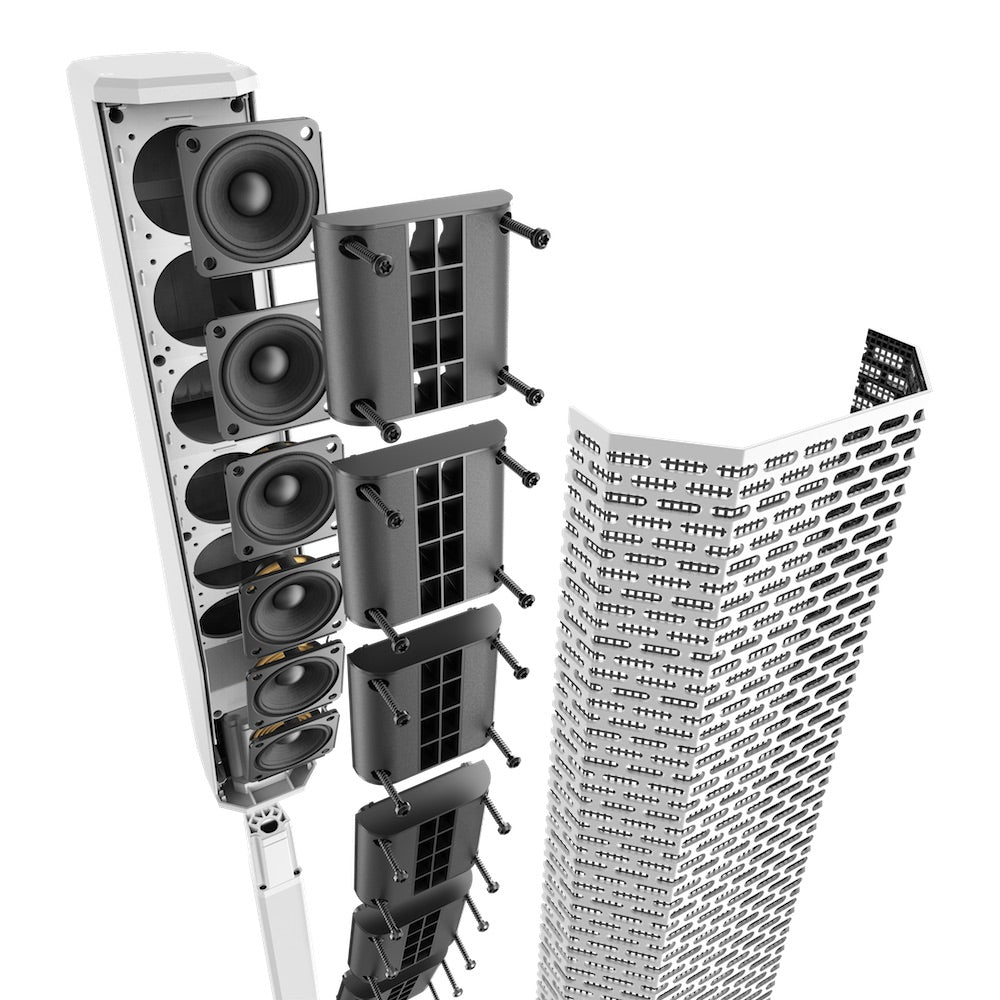

The EVOLVE 30M sounds as good as it looks. The full-range column array and its six lightweight 2.8" neodymium drivers provide ultra-wide 120-degree coverage via proprietary waveguides; array-formed 40-degree asymmetrical vertical coverage ensures acoustic output is directed towards both sitting and standing audience members.

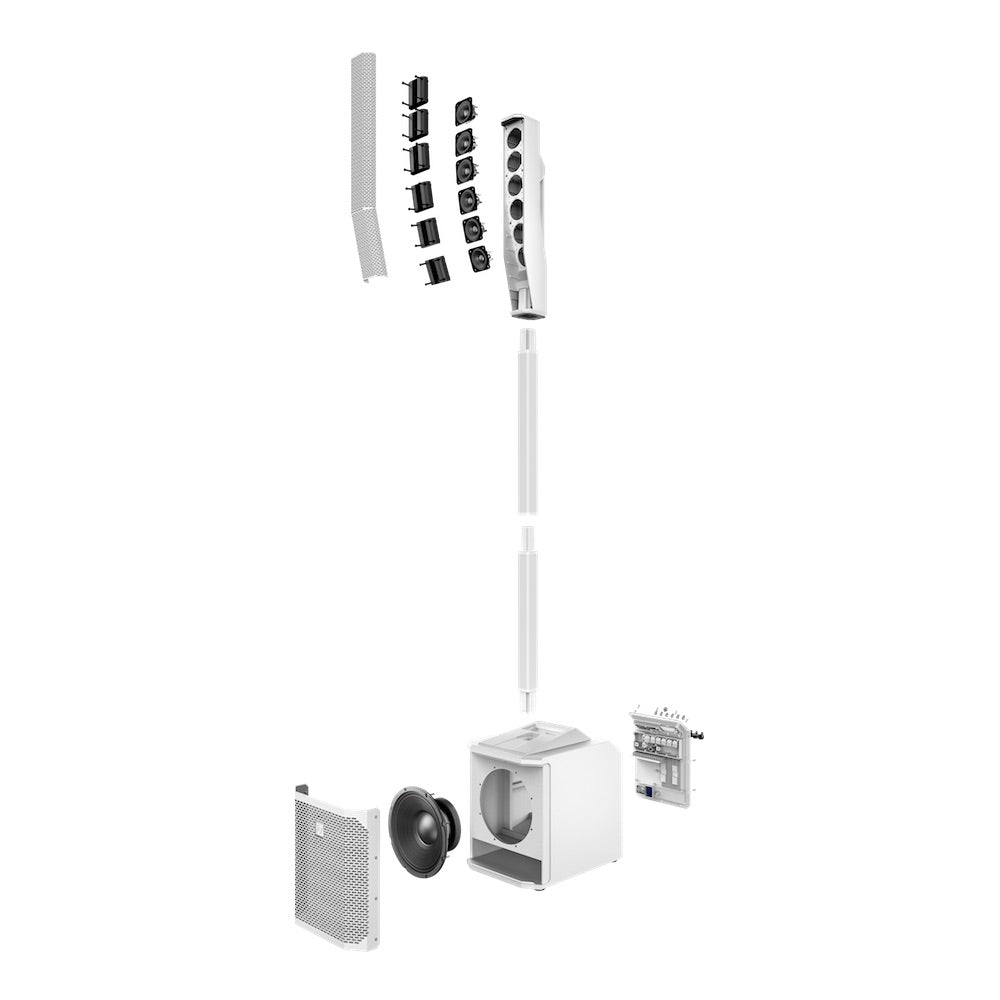

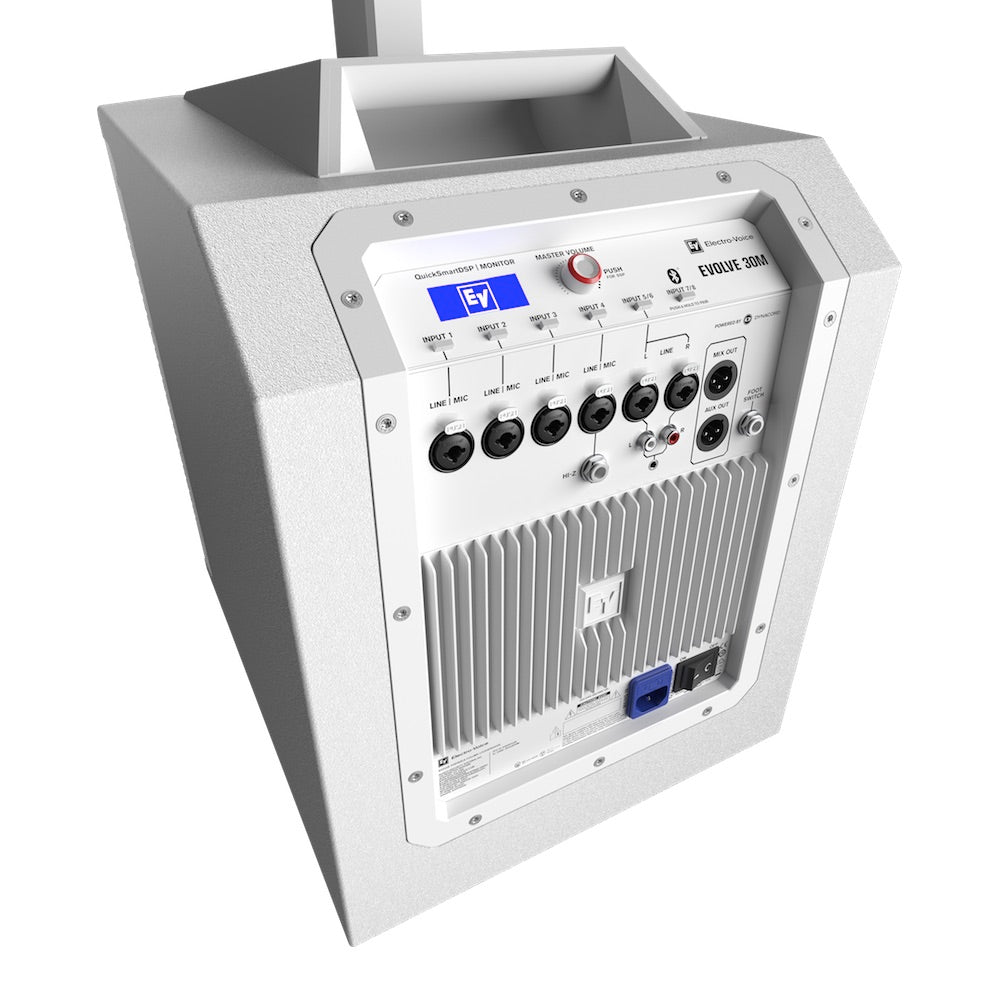

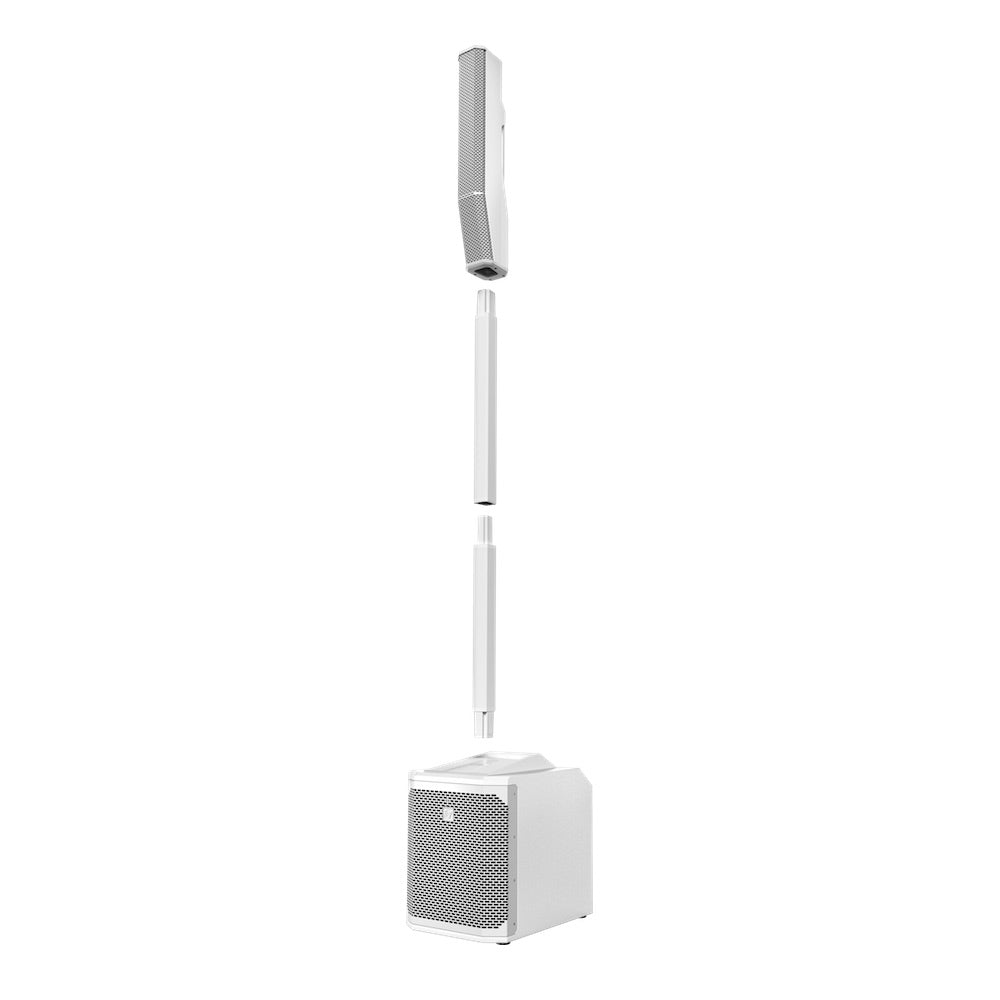

A 10" subwoofer is housed in a 15 mm wood enclosure for enhanced rigidity and acoustical performance. A Class-D amplifier provides up to 1000 W of output power. The array and sub are connected via a two-piece symmetrical aluminum pole with internal wiring and magnetically assisted latching.
Industry-leading QuickSmart DSP

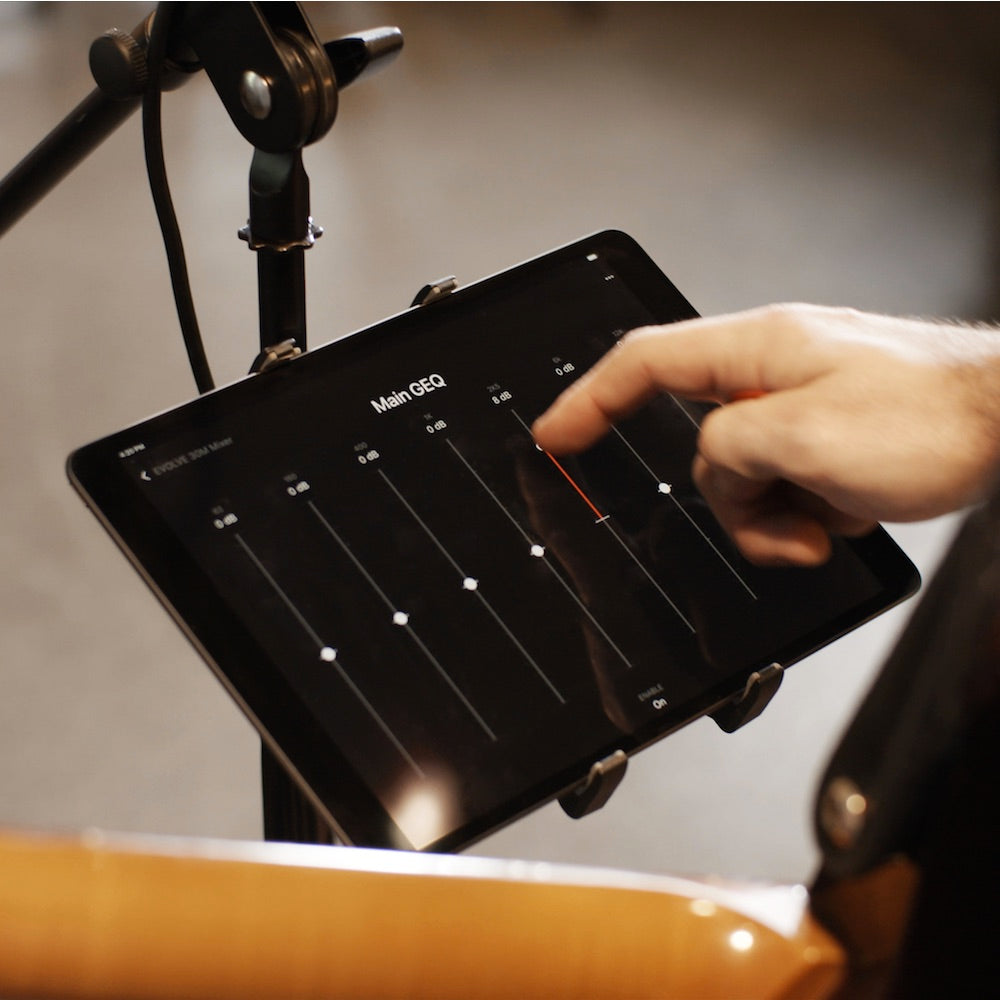

QuickSmart DSP allows navigation of system parameters via an LCD with single-knob control or via the app, as well as multiple options for signal routing and inputs. Functions include four presets (Music, Live, Speech, Club), three-band system EQ (low, mid, high), seven-band graphic EQ (in Mixer mode), five user-programmable presets (Store and Recall settings), phantom power, visual monitoring of limiter status, input level control and meters, and a master volume control to optimize gain structure.
Onboard mixer gives you best-in-class connectivity and control

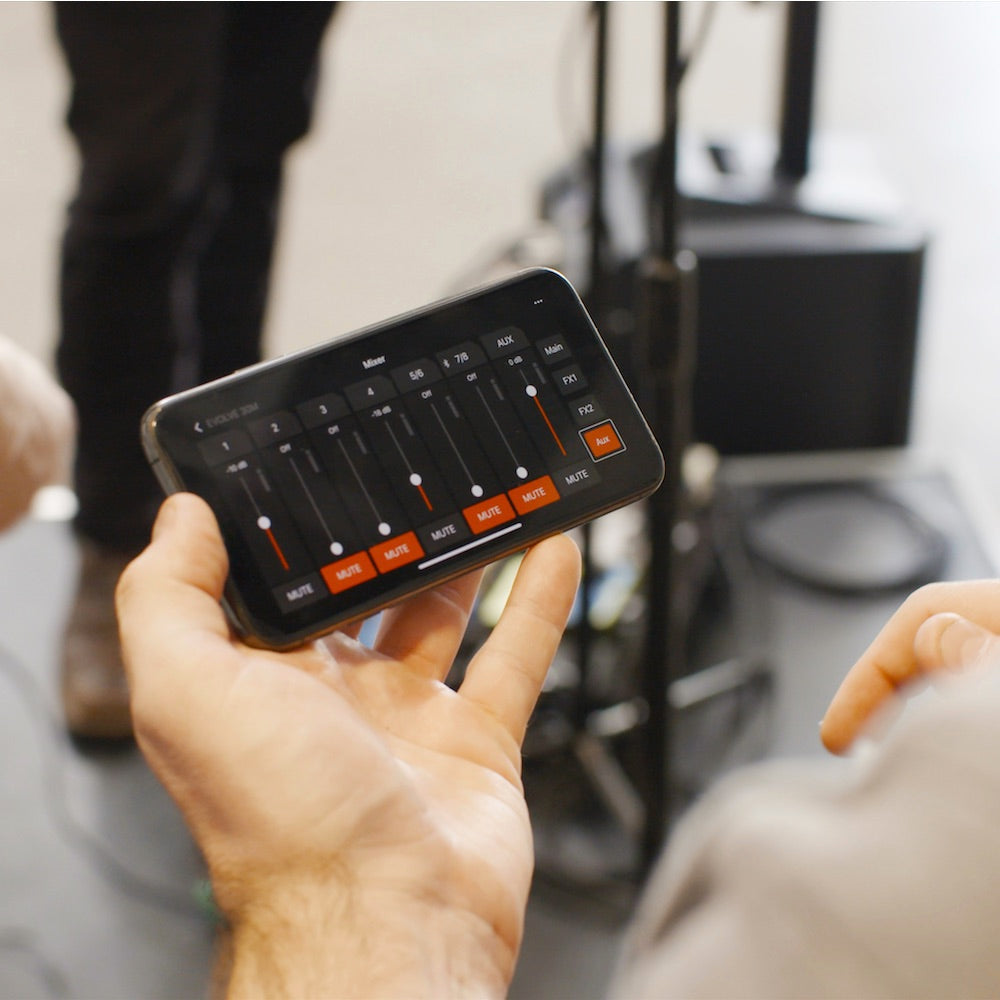

Developed in collaboration with the world-class audio electronics engineering team at EV's sibling brand Dynacord, the integrated fully featured, fully configurable digital mixer has multiple inputs with professional-grade preamps and mix functions. The mixer can be controlled via the QuickSmart Mobile app or via the LCD/single-knob interface.
Finesse your sound with musician-friendly features

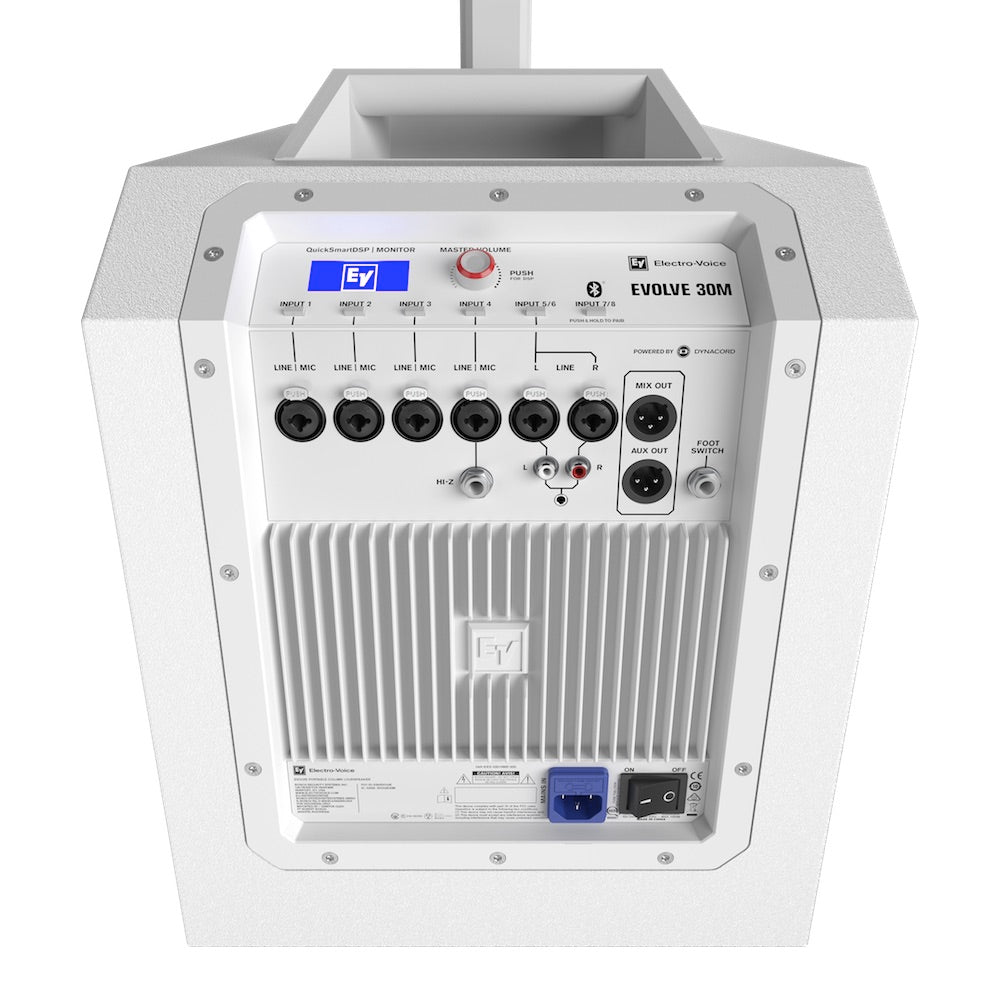

Independent channel aux sends and Hi-Z and foot switch inputs are included for flexible system configuration, and a range of onboard studio-quality effects (30 presets, including chorus, delay, flange and reverb, via two FX channels) add myriad options for musicians to fine-tune their tone – and reduce the amount of gear they need to bring to the gig. The onboard effects can be controlled via the QuickSmart Mobile app or via the LCD/single- knob interface.
