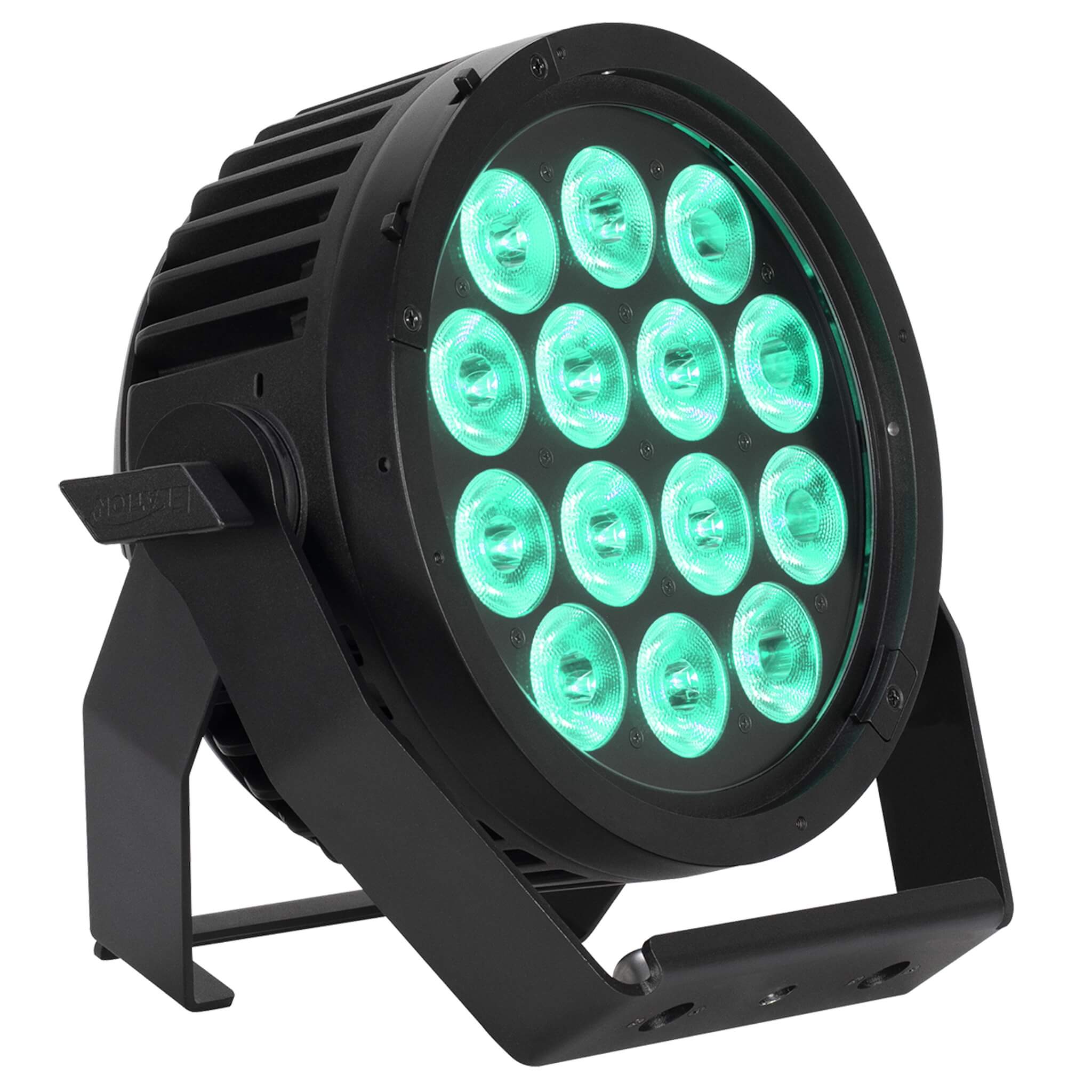

The Elation SIX+ PAR L is a compact and rugged LED fixture that features 14, 20W RGBLA+UV LED’s, which produce an ultra-wide color spectrum and high quality of light. The optical system has been carefully engineered to offer an even distribution of light and color homogenization within the beam. This fixture has been designed to offer ultimate flexibility, use it indoors or out, its IP65 rating can handle any environment. The fan-less cooling system ensures silent operation allowing it to be installed in the most noise sensitive environments.
With a six color LED array, the SIX+ PAR L is able to offer outstanding color rendering capabilities with a high CRI of 87. This, paired with its remotely variably LED refresh frequency allows it to be easily integrated into any TV and Film application.
To expand the control capabilities on the SIX+ PAR L, precise color temperature control via a dedicated variable CCT control channel has been integrated. Programming a six-color LED fixture can be complicated so, a CMY emulation mode has been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included.

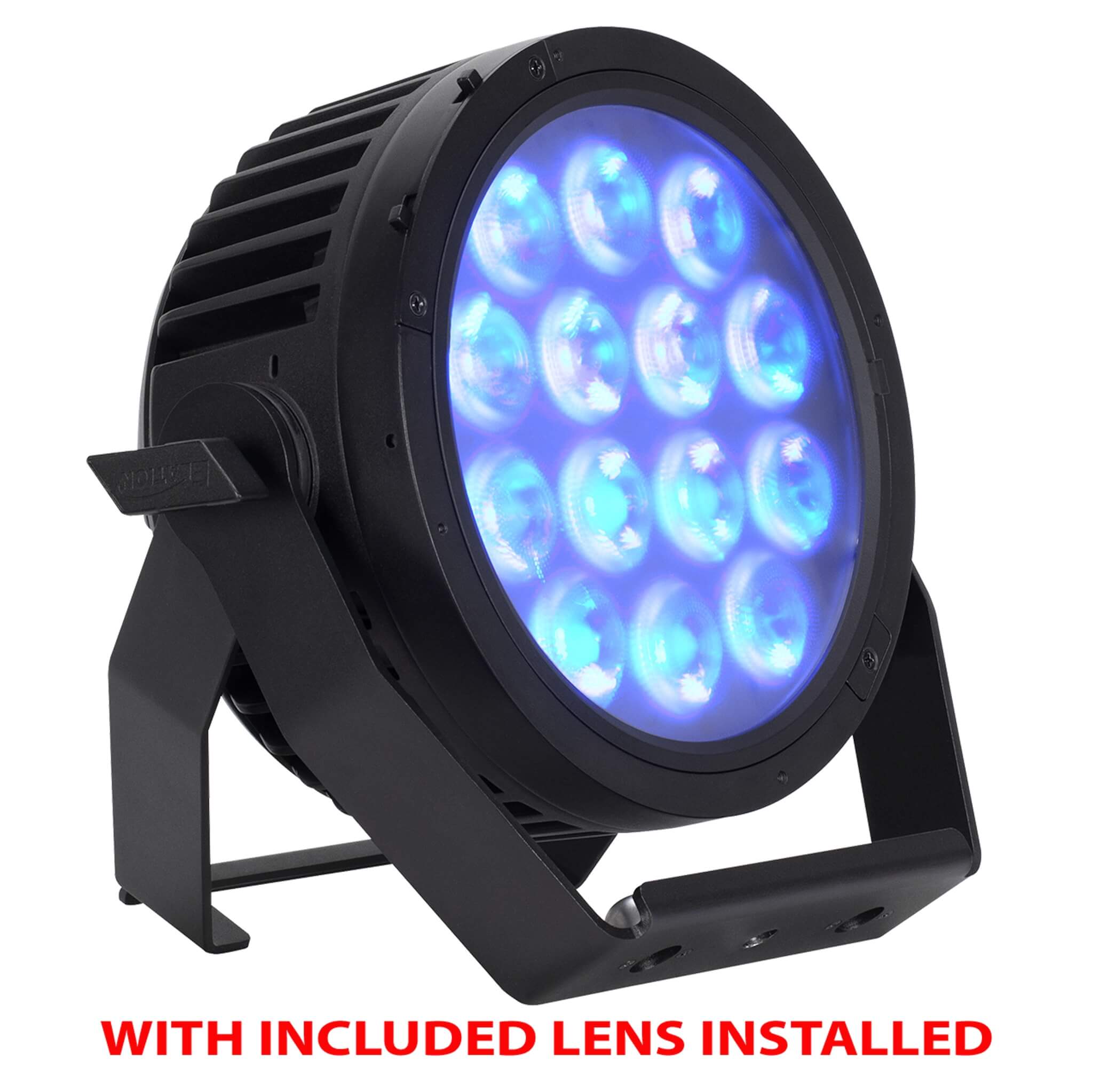

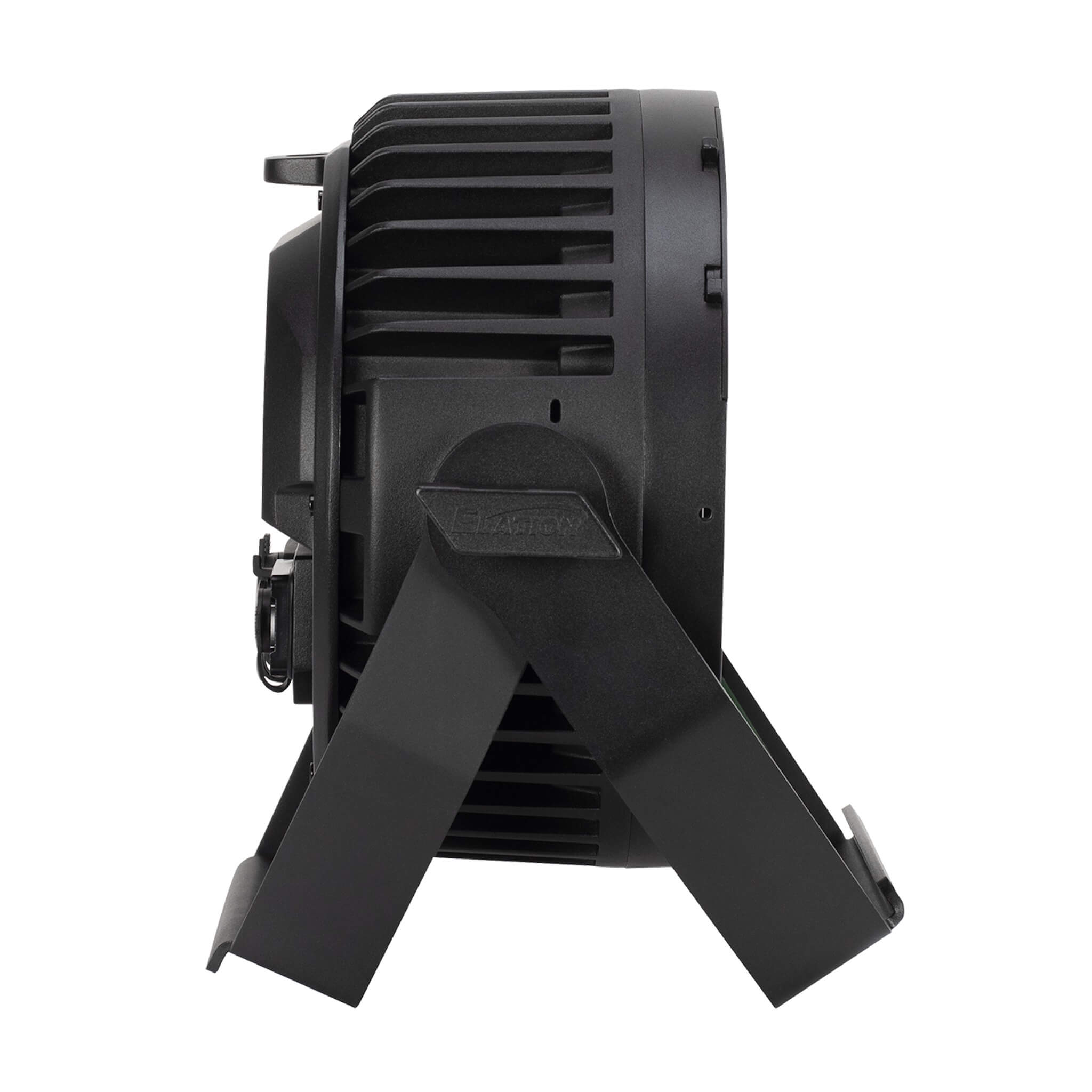

The IP65 housing includes a dedicated diffusion lens holder and the optional gel frame holder can accommodate industry standard 10” accessories. One 22° lens is included with the fixture, and other optional lenses are also available. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.

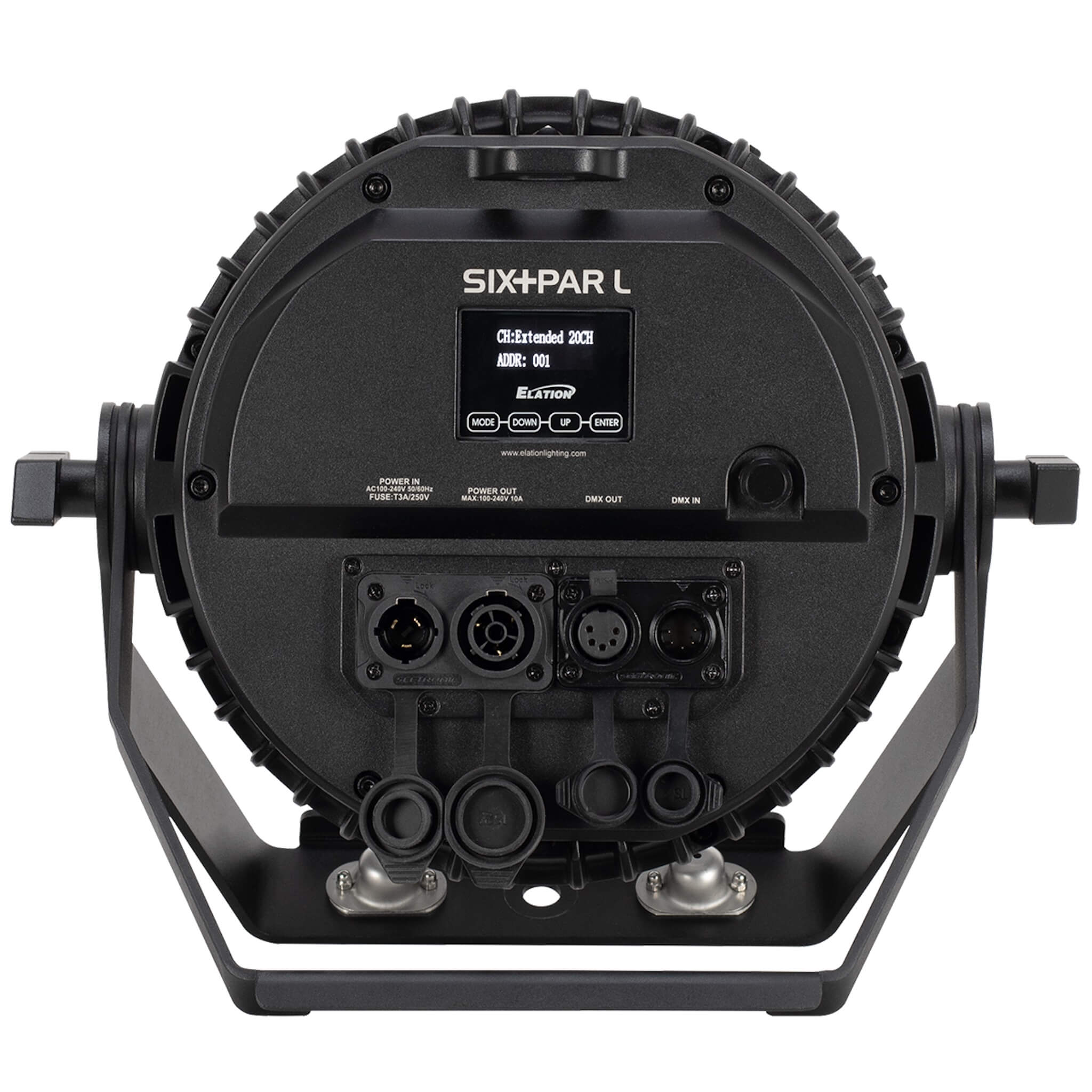

To ensure the SIX+ PAR L can be integrated seamlessly alongside original SixPar fixtures, great care has been taken to match the new LED array colors with the original. A unique SixPar Emulation DMX mode has been developed, so that the new fixtures can be controlled with the same DMX mapping as the original. The color mixing has also been calibrated to virtually emulate the White LED included in the SixPar array and an output limit master setting has been added so your new lights don’t overpower any older fixtures in the rig.
The SIX+ PAR L is an ideal fixture for theatre, houses of worship, live events, themed environments, hospitality or installations where high output, small form factor, simple design and easy deployability are required.
Features
• 14x 20W RGBLA+UV LED array
• 7000+ lumens, 87 CRI
• 12° beam angle, 22° lens included
• Completely fan-less cooling
• 16-bit selectable dimming modes and curves
• Remote LED refresh rate
• Flicker free operation for TV and film
• Optional 10” accessory holder
• IP65-rated for in or outdoors use
