The Elation PULSE PANEL is a multi-function strobe, blinder, high-output wash, and creative effects light all-in-one.

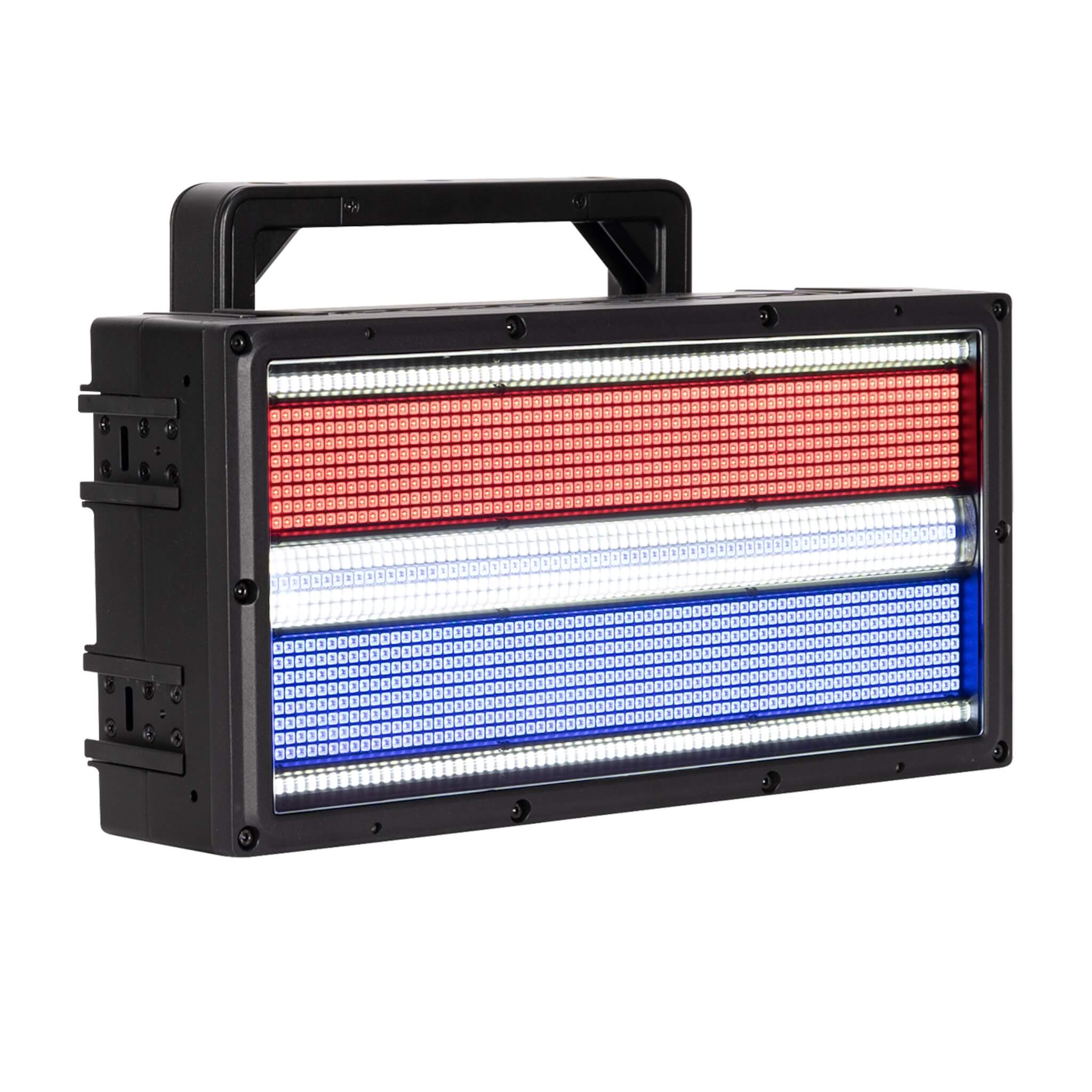

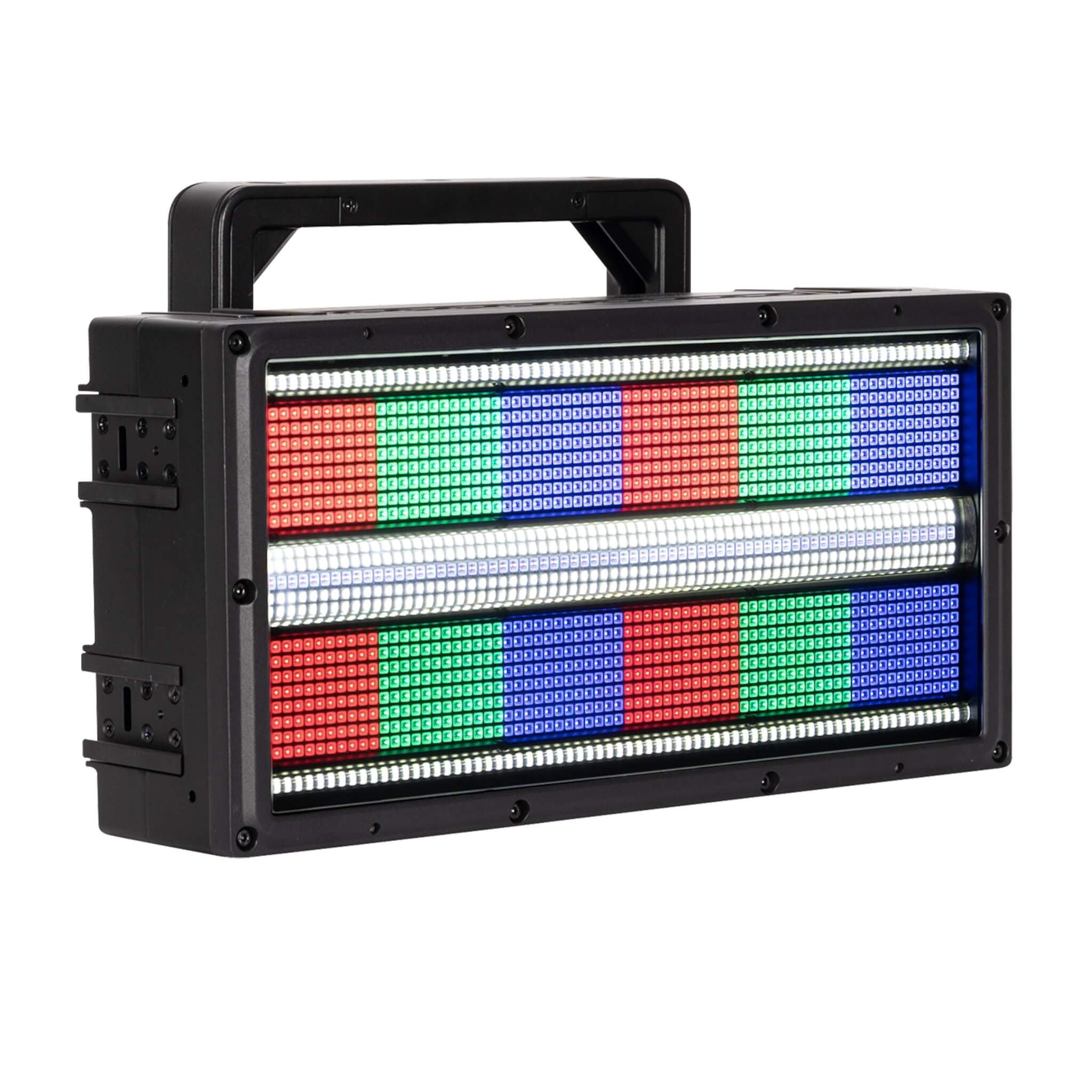

The Elation PULSE PANEL features 1,152 1.5W RGB LEDs spread across 24 zones around its perimeter, arranged in a grid of 6 zones wide and 4 zones tall. In addition to this, it includes a central strobe line comprising 288 5W cool-white LEDs organized into 24 zones, with 12 zones across and 2 zones tall. These are separated by a line of 96 1.5W RGB LEDs divided into 12 zones. Furthermore, there are 144 additional 5W cool-white LEDs divided into 24 zones, with 12 zones at the top and 12 at the bottom of the fixture's face. These outer LEDs utilize a linear prismatic lens similar to those used in Elation's Rayzor Blade fixtures. When combined, these components deliver an astonishing output exceeding 100,000 total lumens.
With fully variable color temperature adjustment (2400K - 8500K) and a virtual gel library, designers have immediate access to a diverse LED color array. The PULSE PANEL also includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming. The PULSE PANEL offers the ability to mirror control of the external strobe lines and center RGB strobe line via DMX control channel, or the menu to make cloning easier.

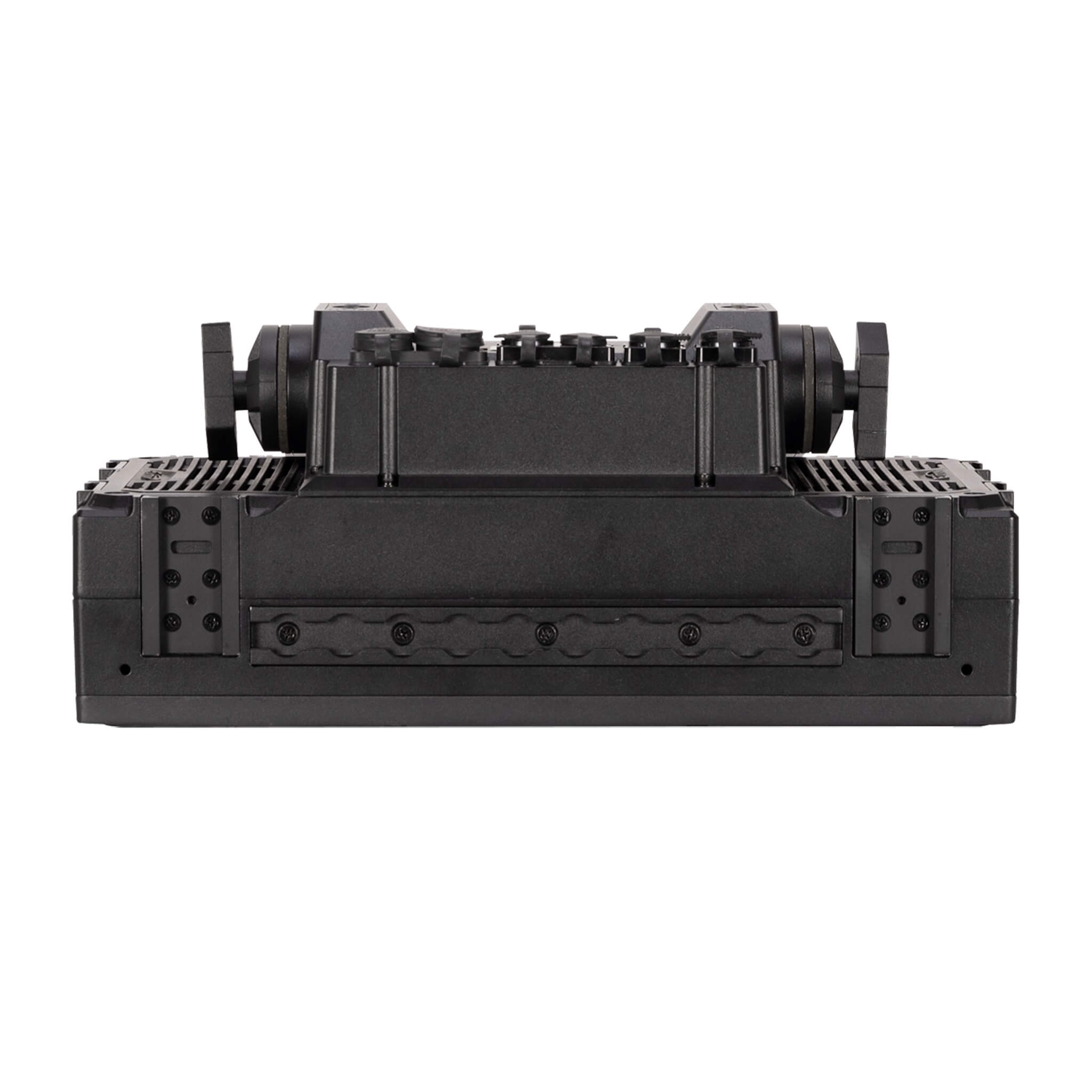

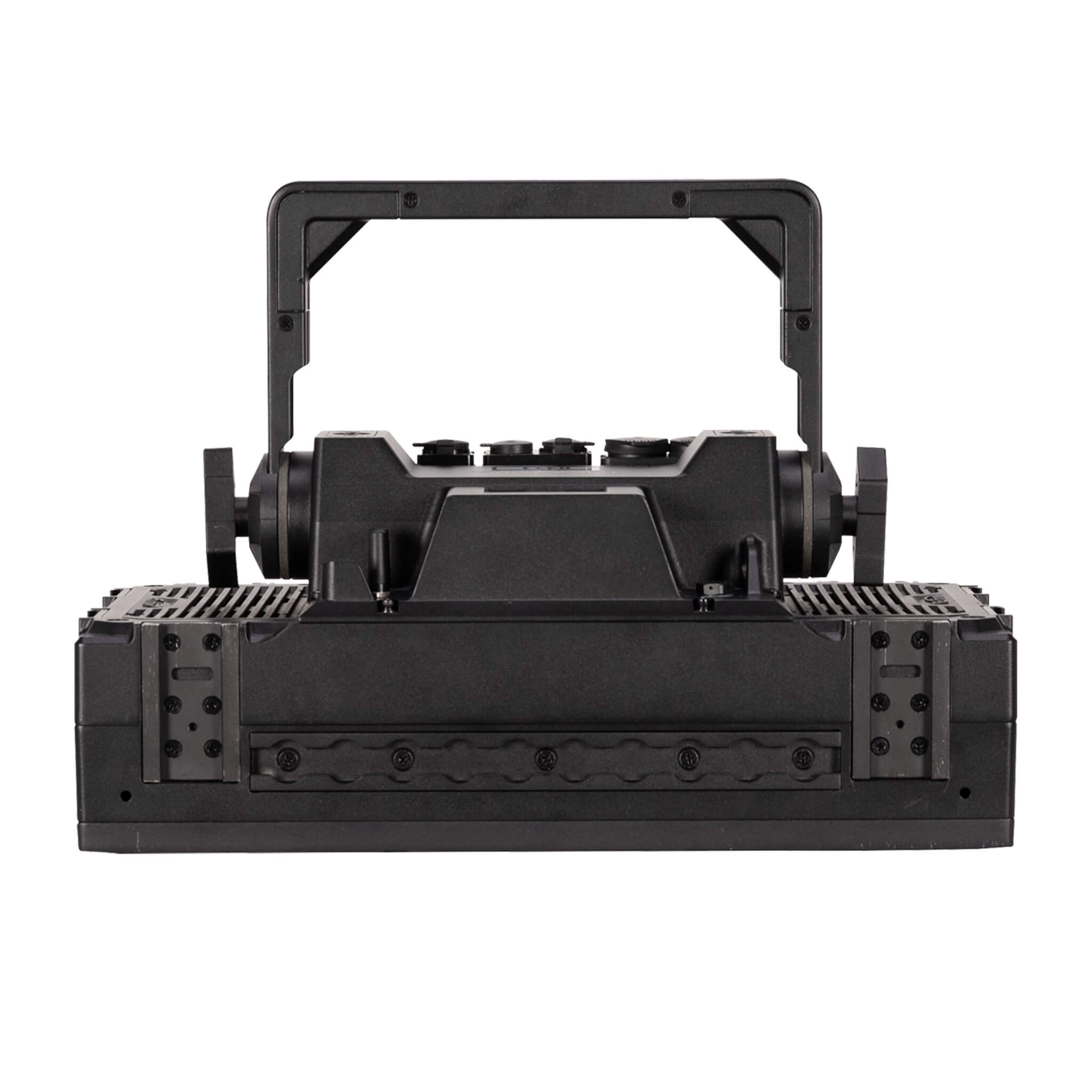

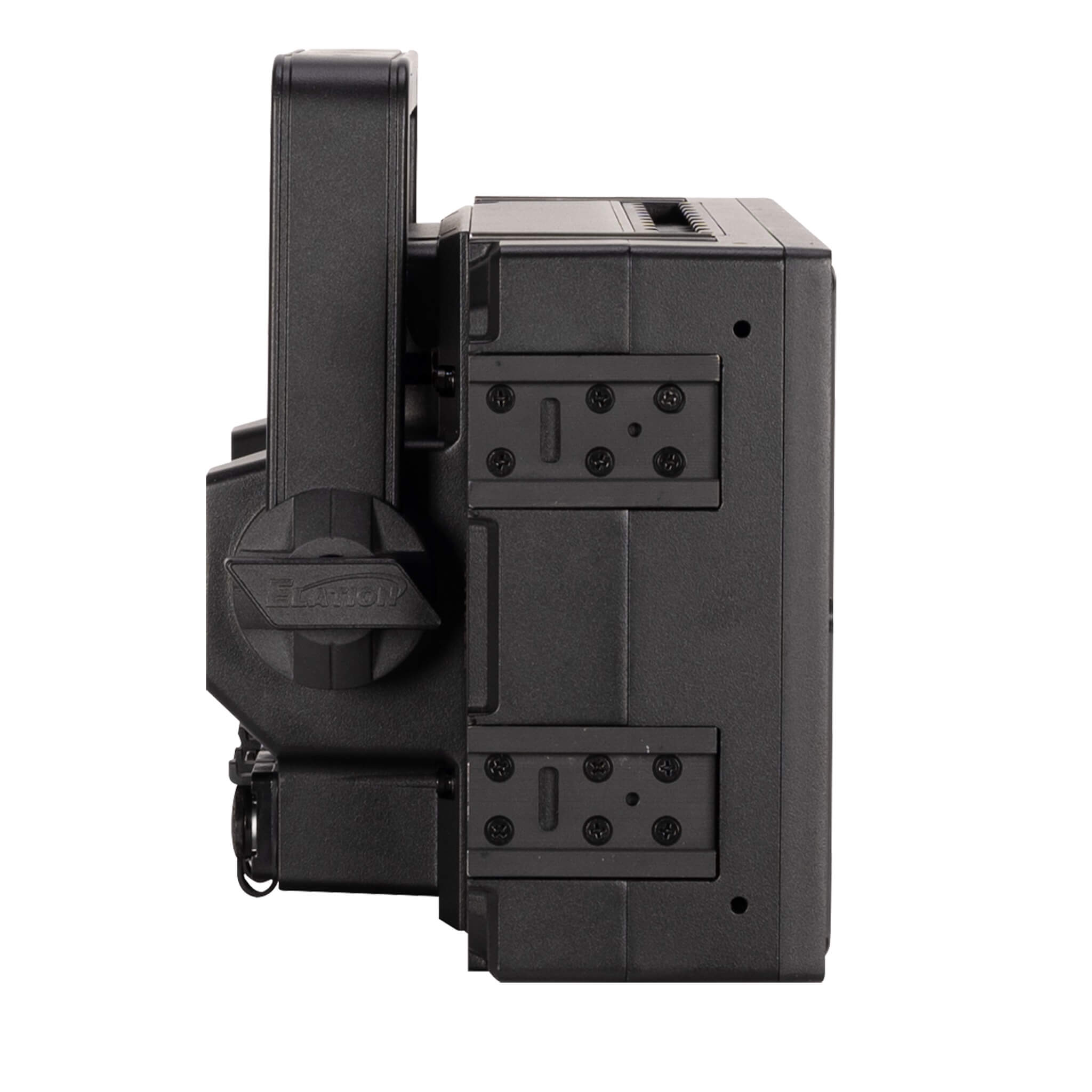

The PULSE PANEL is encased in a durable, fully IP65-rated housing, making it suitable for any environment, indoors or outdoors. The housing includes a unique interlocking mechanism to allow the unit to be hung vertically, or horizontally from other PULSE PANEL fixtures, or SŌL Blinder Frame arrays as well. The unit also integrates airline track on the top and bottom. The housing can accept optional diffusion filters, ND filters and other optics.

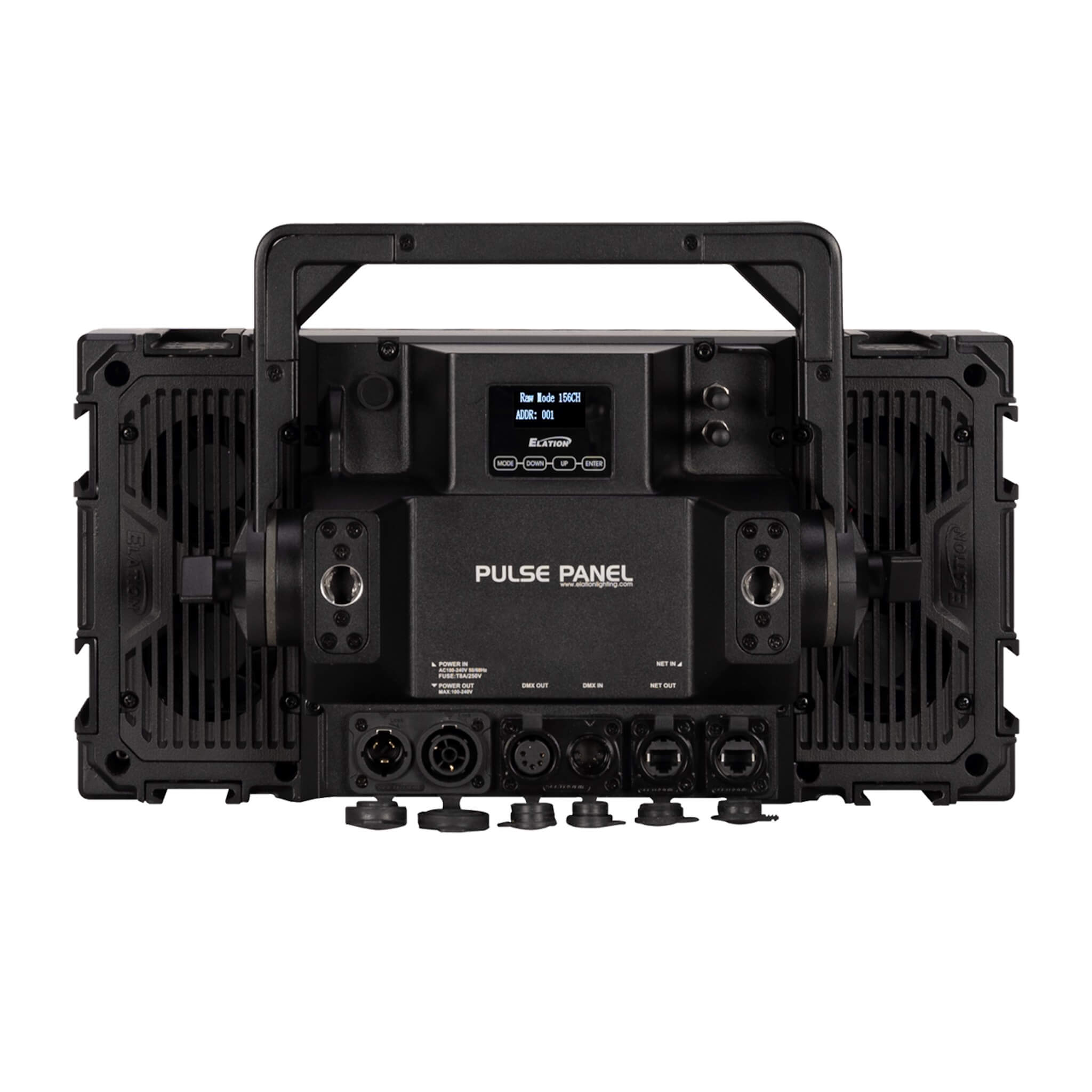

Controlled via DMX, RDM, Art-Net, sACN, and KlingNet protocols. It also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.
Features
• 1152 x 1.5W RGB LEDs in 24 zones
• 432 x 5W CW strobe LEDs in 48 zones
• 96 x 1.5W RGB central strobe line LEDs in 12 zones
• Unique array interconnection system
• Art-Net, sACN and KlingNet support
• IP65 rated
