The Elation PULSE PANEL FX is a multi-function strobe, blinder, high-output wash, and creative effects light all-in-one. It also has fast and continuous 360° pan/spin and 180° tilt to add an extra layer of dynamism.

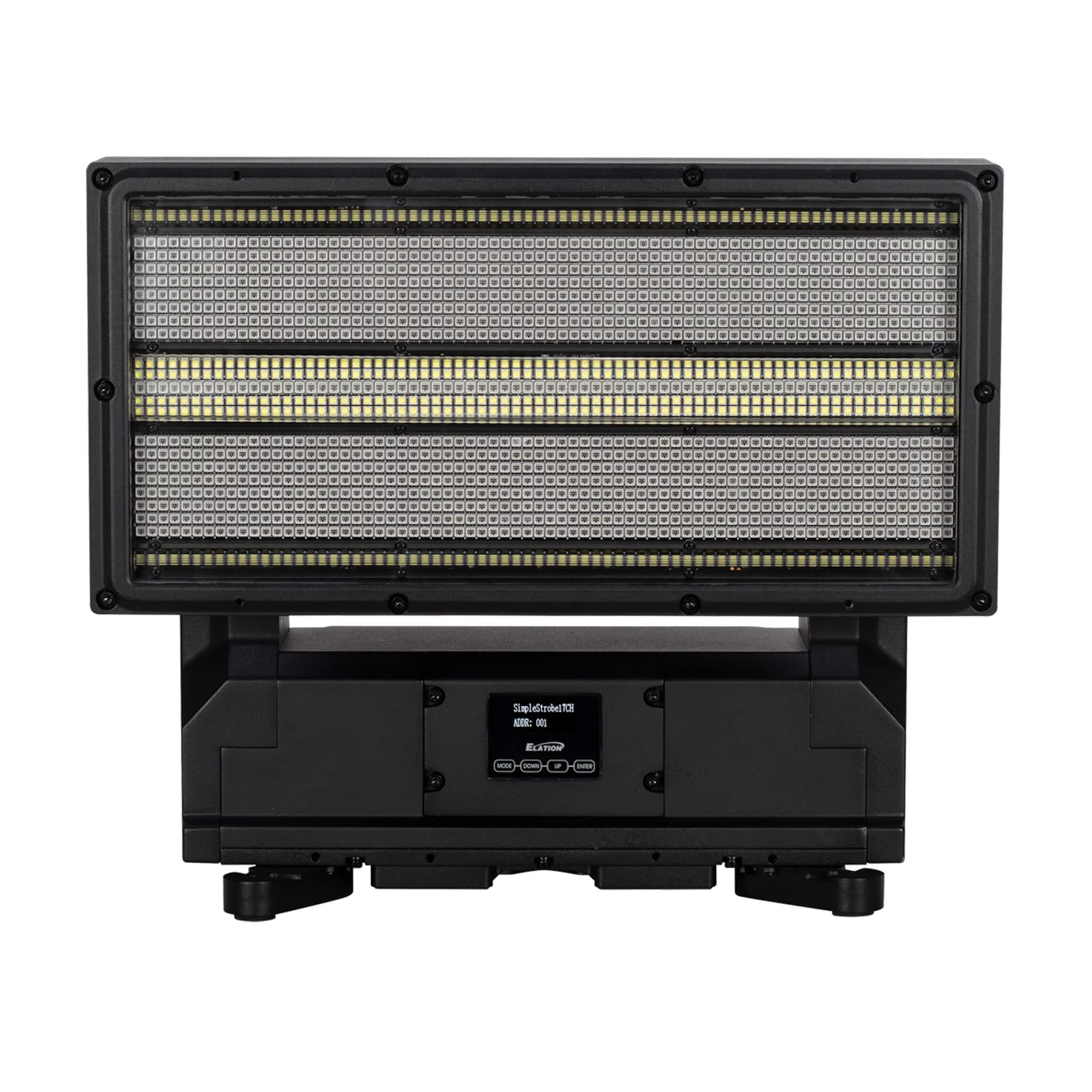

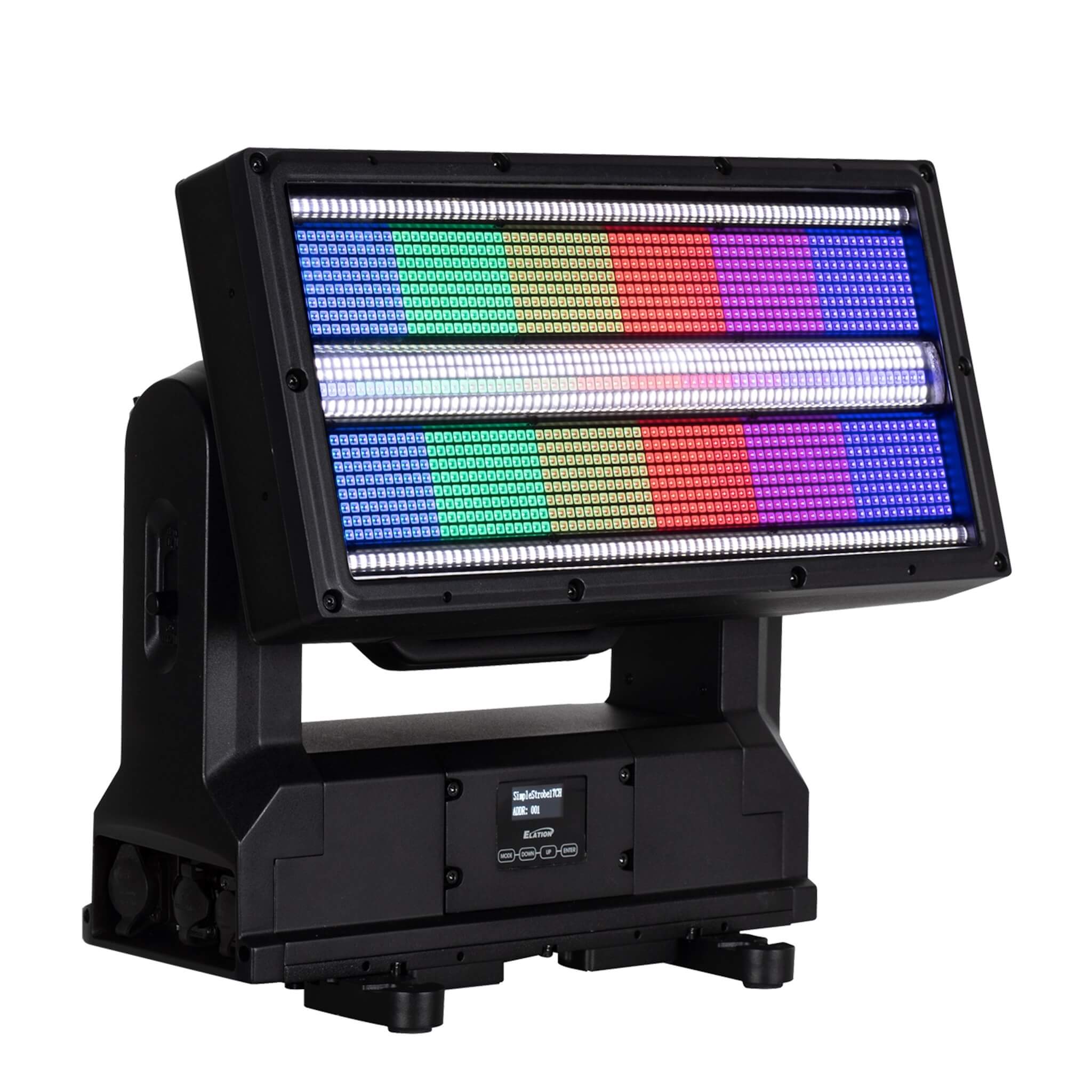

The PULSE PANEL FX features an array of 1,152 1.5W RGB LEDs spread across 24 zones around its perimeter, arranged in a grid of 6 zones wide and 4 zones tall. In addition to this, it includes a central strobe line comprising 288 5W cool-white LEDs organized into 24 zones, with 12 zones across and 2 zones tall. These are separated by a line of 96 1.5W RGB LEDs divided into 12 zones. Furthermore, there are 144 additional 5W cool-white LEDs divided into 24 zones, with 12 zones at the top and 12 at the bottom of the fixture's face. These outer LEDs utilize a linear prismatic lens similar to those used in our Rayzor Blade fixtures. When combined, these components deliver an astonishing output exceeding 100,000 total lumens.
With fully variable color temperature adjustment (2400-8500K) and a virtual gel library, designers have immediate access to a diverse LED color array. The PULSE PANEL FX also includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming. Cloning the PULSE PANEL FX is easy with the numerous control modes, and the ability to mirror control of the external strobe lines and center RGB strobe line via DMX control channel, or the menu. The unit also offers the ability to disable the pan/spin motor if that effect is not desired.
Controlled via DMX, RDM, Art-Net, sACN, and KlingNet protocols, the PULSE PANEL FX allows for the use of two separate universes to control the device, one for the fixture movement and another for the LED control. Allowing users to control the LEDs from a media server or separate content control device. It also features proprietary Aria x2 wireless device management for simplified system setup and maintenance. Wrapped in a durable, fully IP65-rated housing, the fixture is suitable for any environment, indoors or outdoors.
Features
• 1152 x 1.5W RGB LEDs in 24 zones
• 432 x 5W CW strobe LEDs in 48 zones
• 96 x 1.5W RGB central strobe line LEDs in 12 zones
• Fast and continuous 360° Pan/Spin and 180° Tilt
• Art-Net, sACN and KlingNet Support
• IP65 rated
