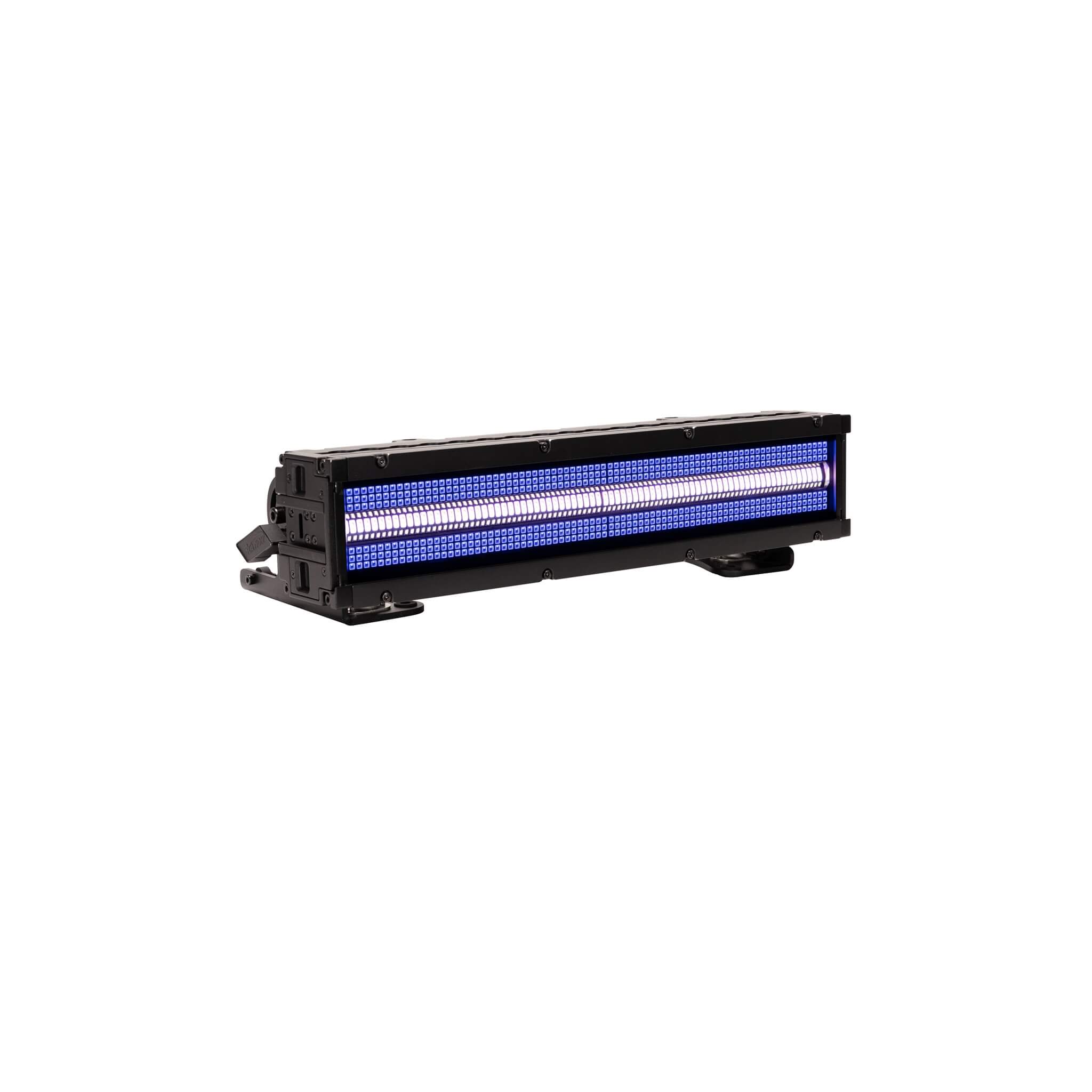

The Elation PULSE BAR S is a half meter long fixture that incorporates 480 1.5W RGB LEDs distributed across 20 zones along its perimeter. Additionally, it features a central strobe line equipped with 200 5W cool-white LEDs across 20 zones, complemented by 80 1.5W RGB LEDs arranged in 10 zones at its core.
The PULSE BAR S Includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming.
Wrapped in a durable, fully IP65-rated housing, the PULSE BAR S is suitable for any environment, indoors or outdoors, and its marine grade coating adds additional protection for harsher environments- even coastal locations.
The fan-less convection cooling of the PULSE BAR S guarantees silent operation, making it ideal for noise-sensitive environments. Designed for ultimate flexibility, an integrated accessory slot accommodates optional diffusion filters, ND filters and other optics.

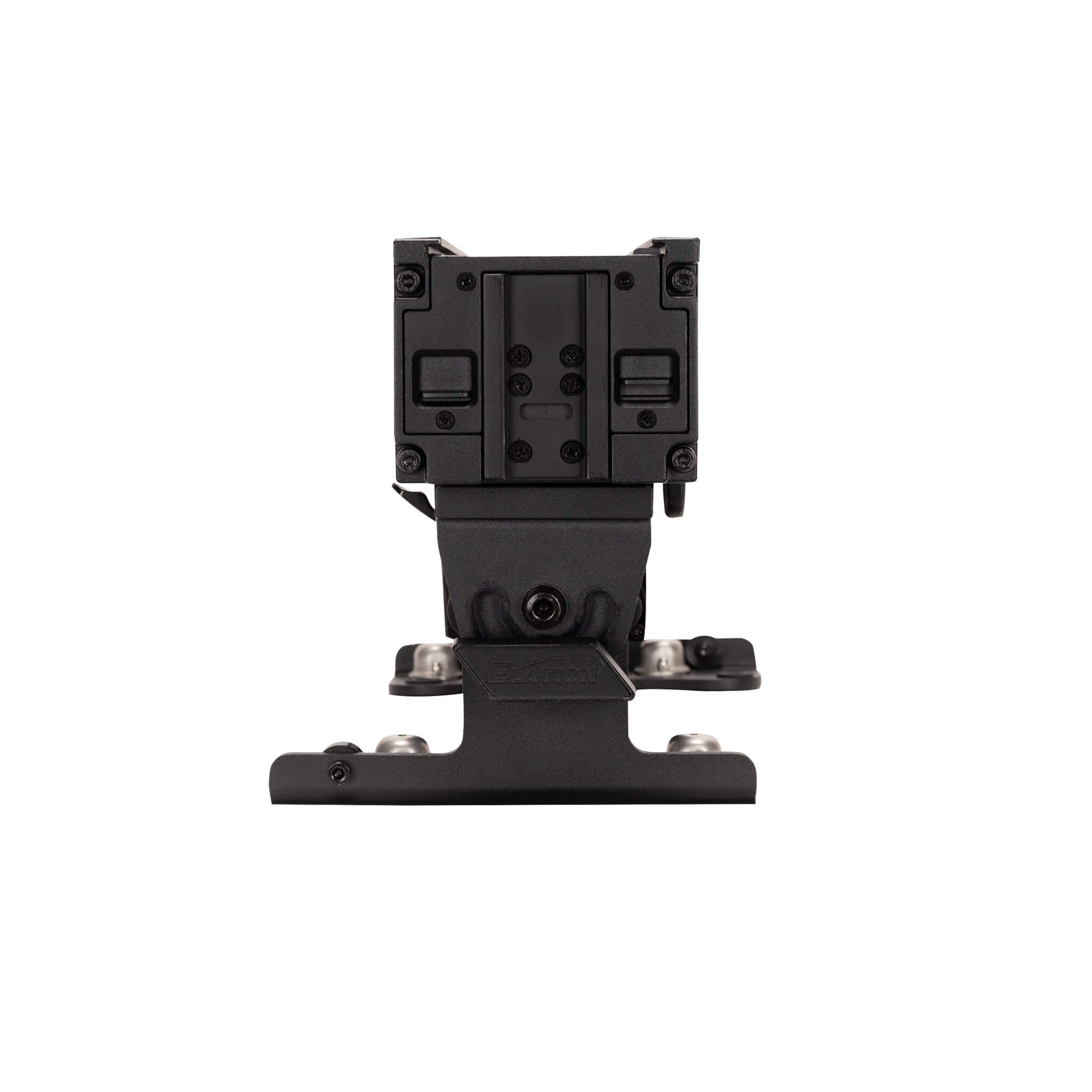

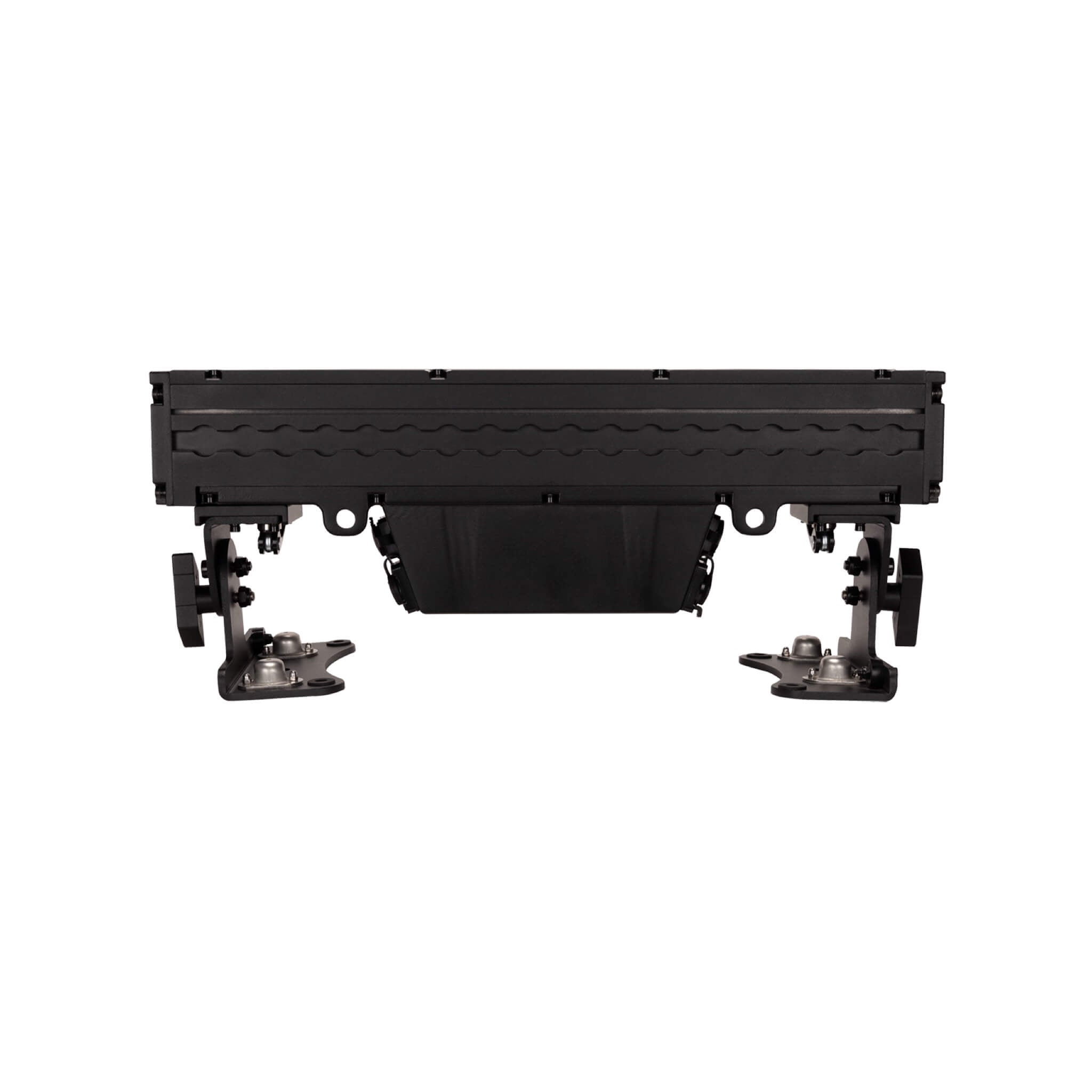

The PULSE BAR S’s innovative housing allows for end-to-end interconnection and includes integrated L track for flexible mounting and positioning. Trunnions designed for attachment to the L track can be fixed at multiple points to optimize positioning around objects or obstacles.

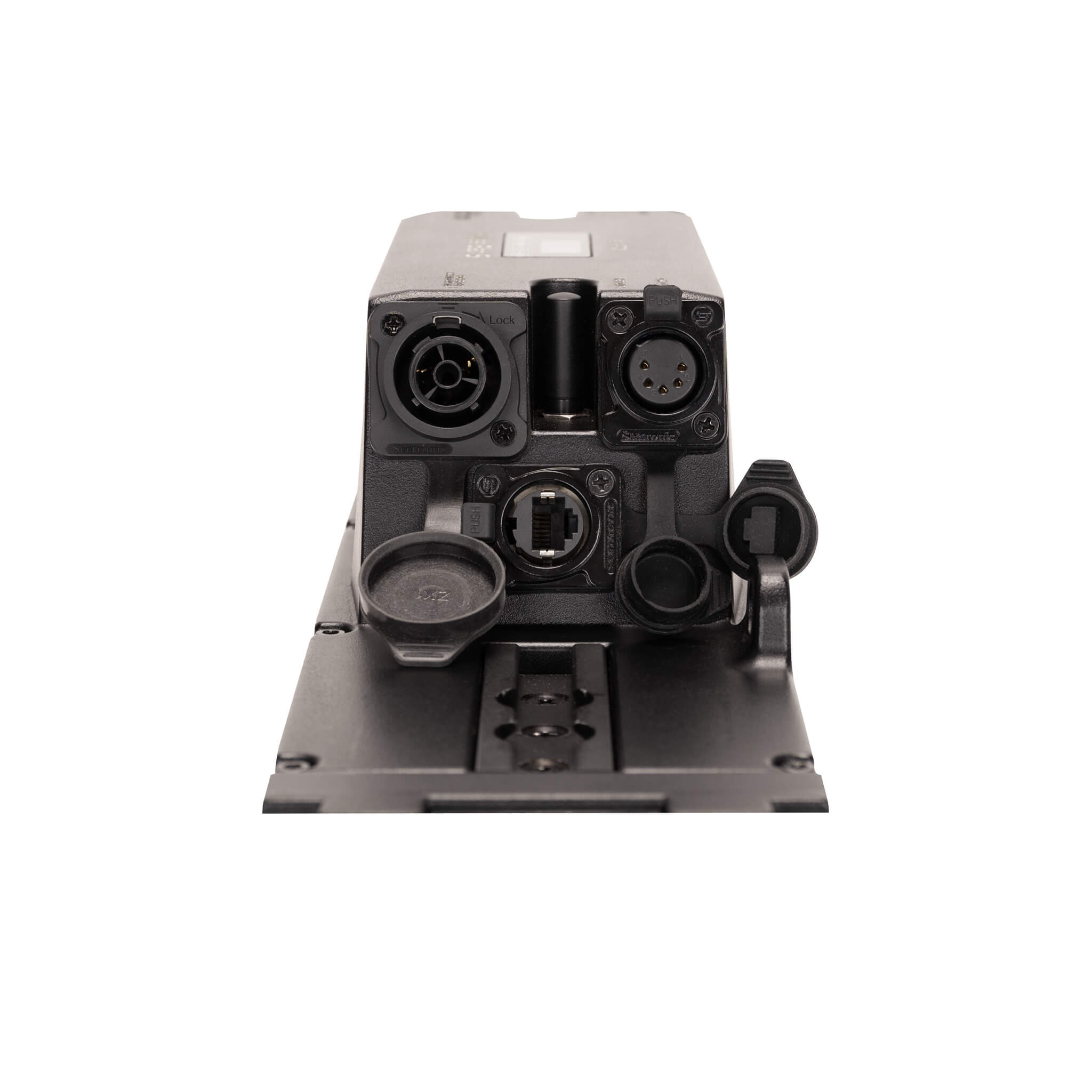

Controlled via DMX/RDM, Art-Net, sACN, and KlingNet protocols, the PULSE BAR S also features proprietary Aria x2 wireless device management for simplified system setup and maintenance.
When the moment calls for high-impact bursts of light and visually striking effects, look no further. The PULSE BAR S delivers.
Features
• 480 x 1.5W RGB LEDs in 20 zones
• 200 x 5W CW strobe LEDs in 10 zones
• 80 x 1.5W RGB central strobe line LEDs in 10 zones
• Completely fan-less cooling
• Integrated L Track for flexible mounting
• Unique end-to-end interconnection system
• Art-Net, sACN and KlingNet support
• IP65 rated
