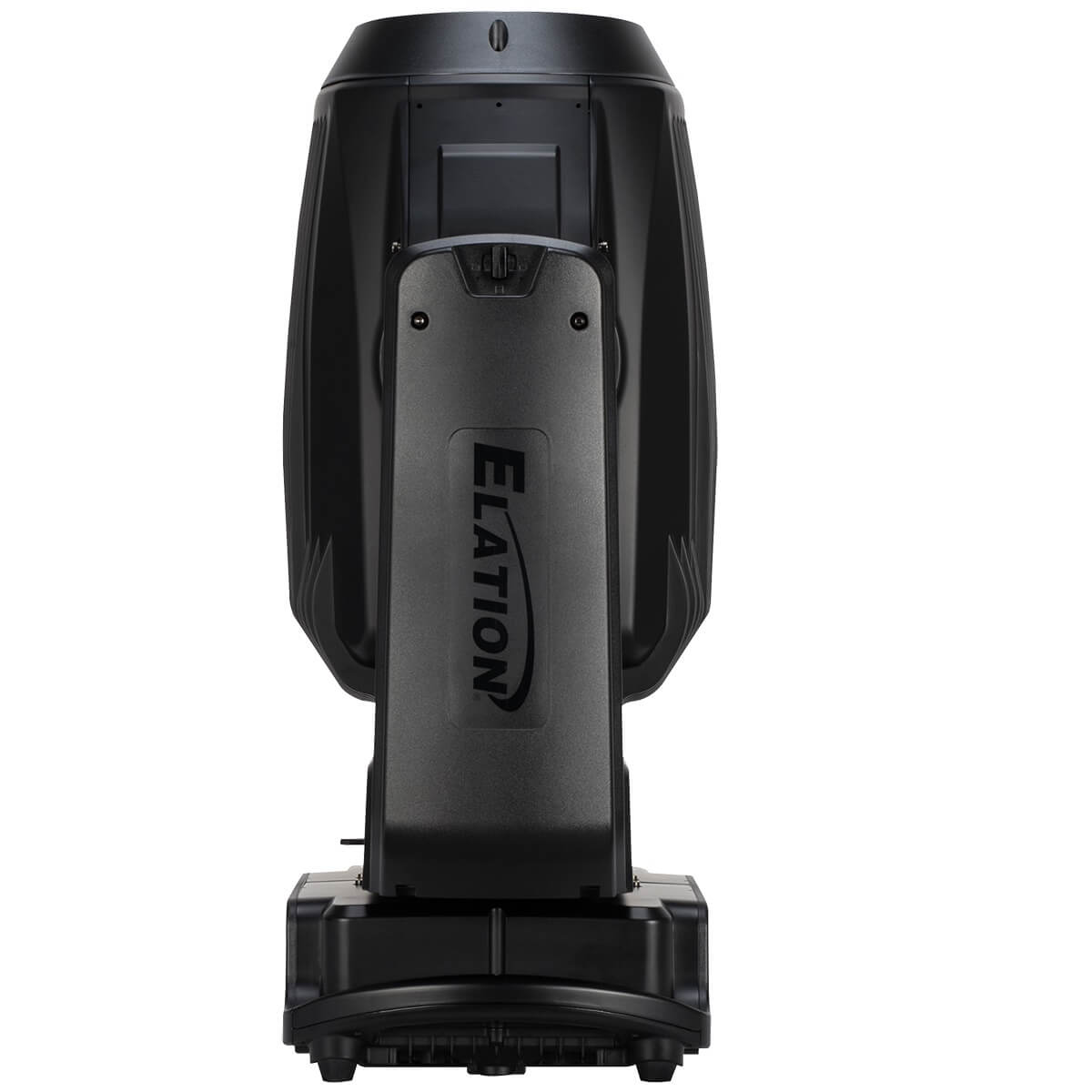

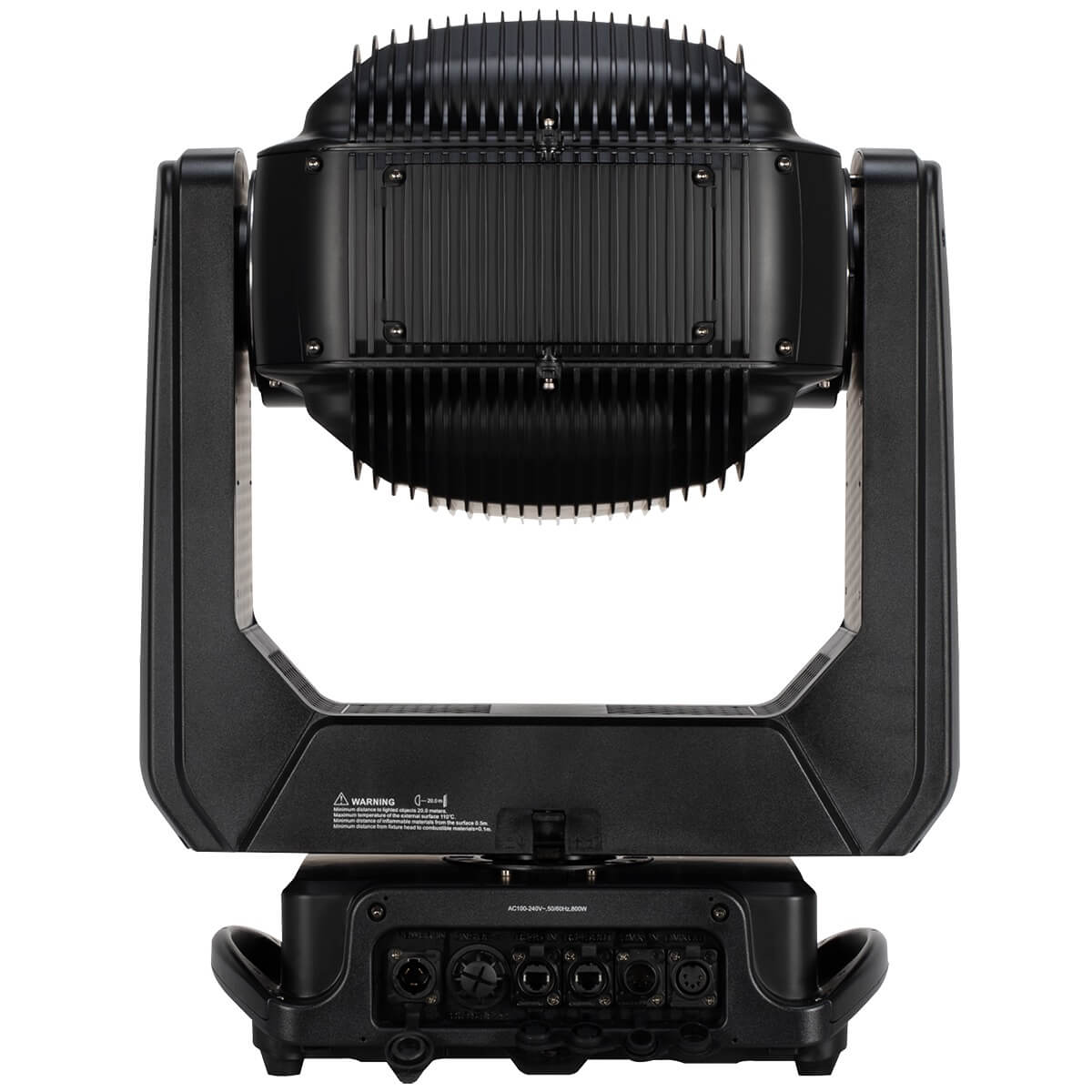

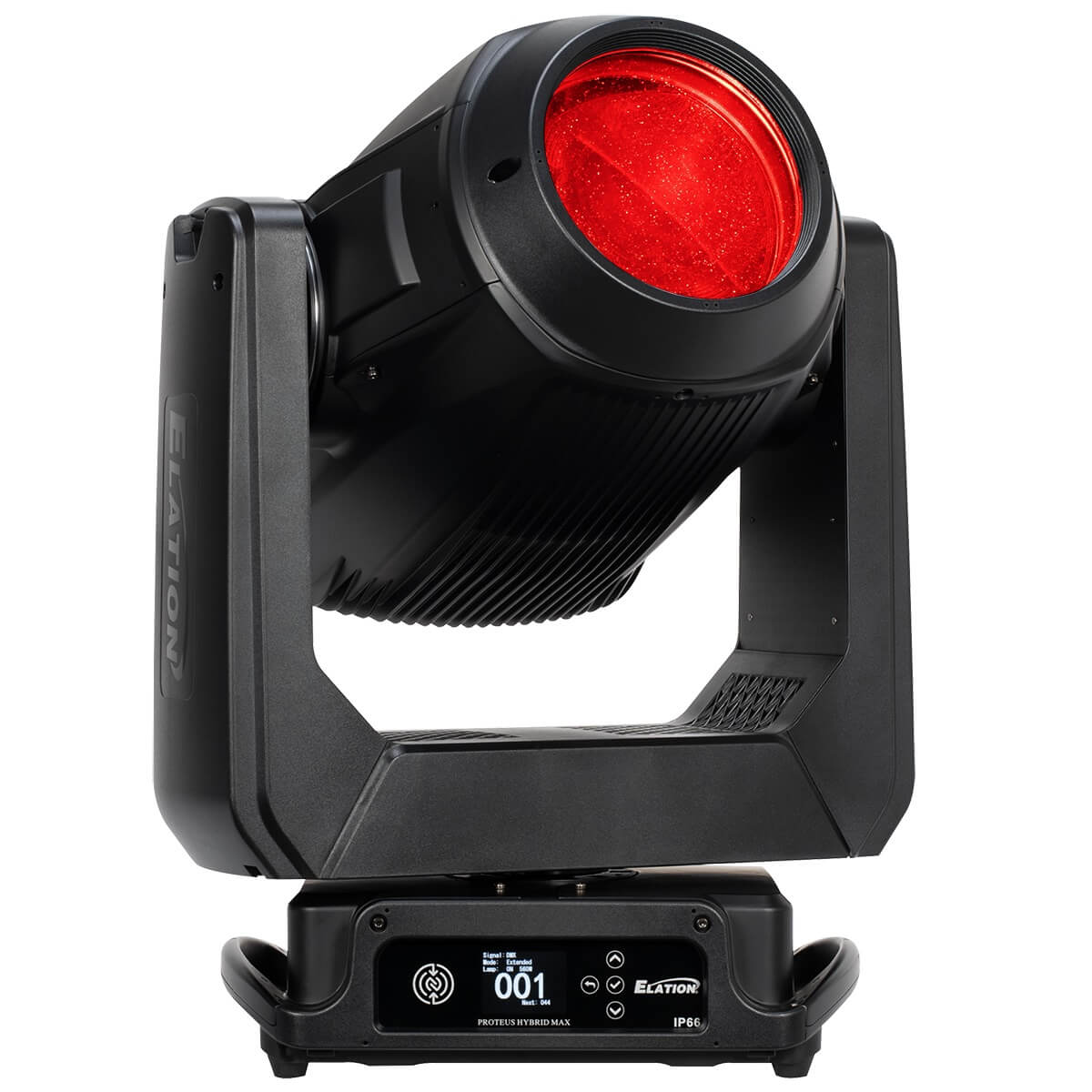

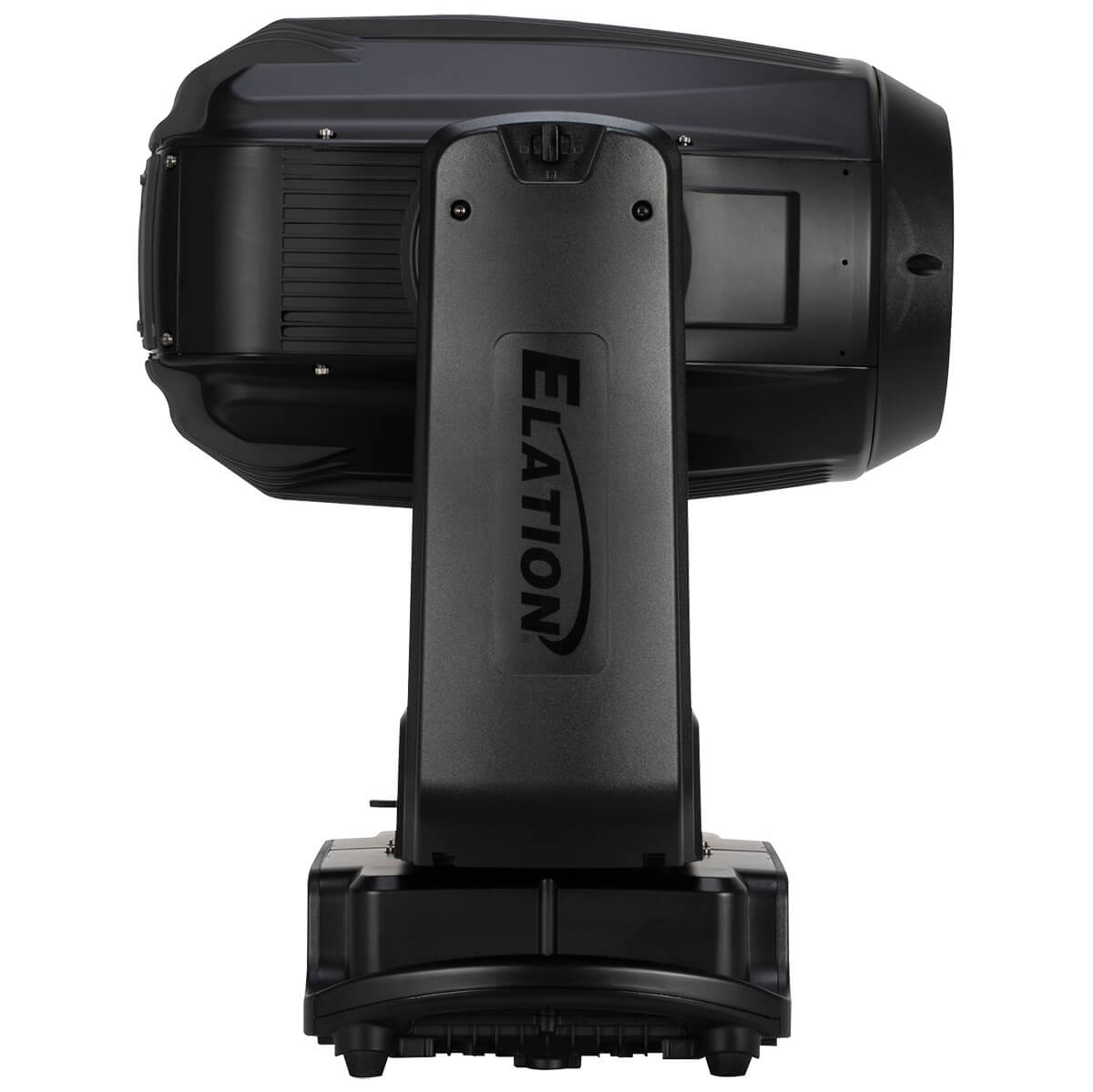

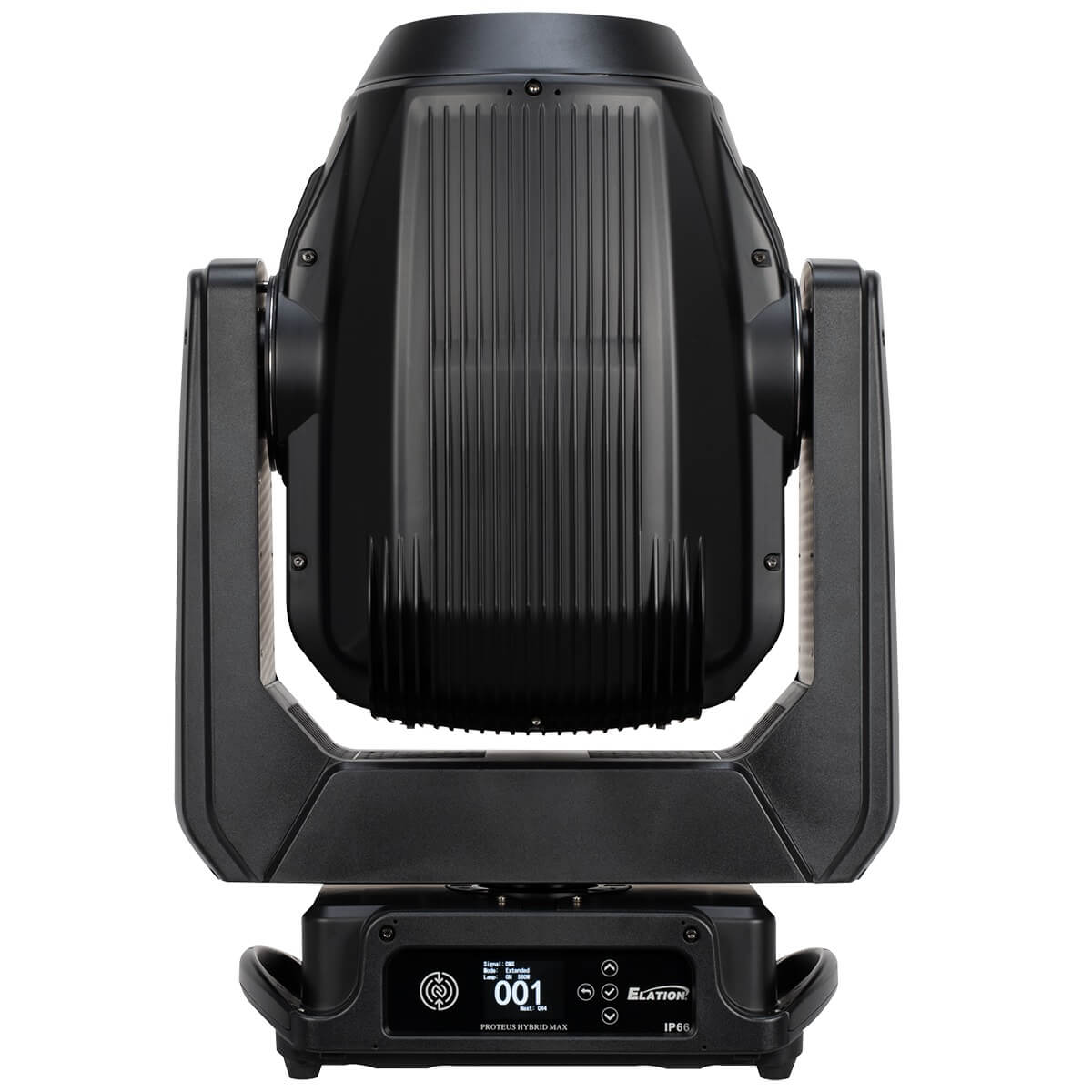

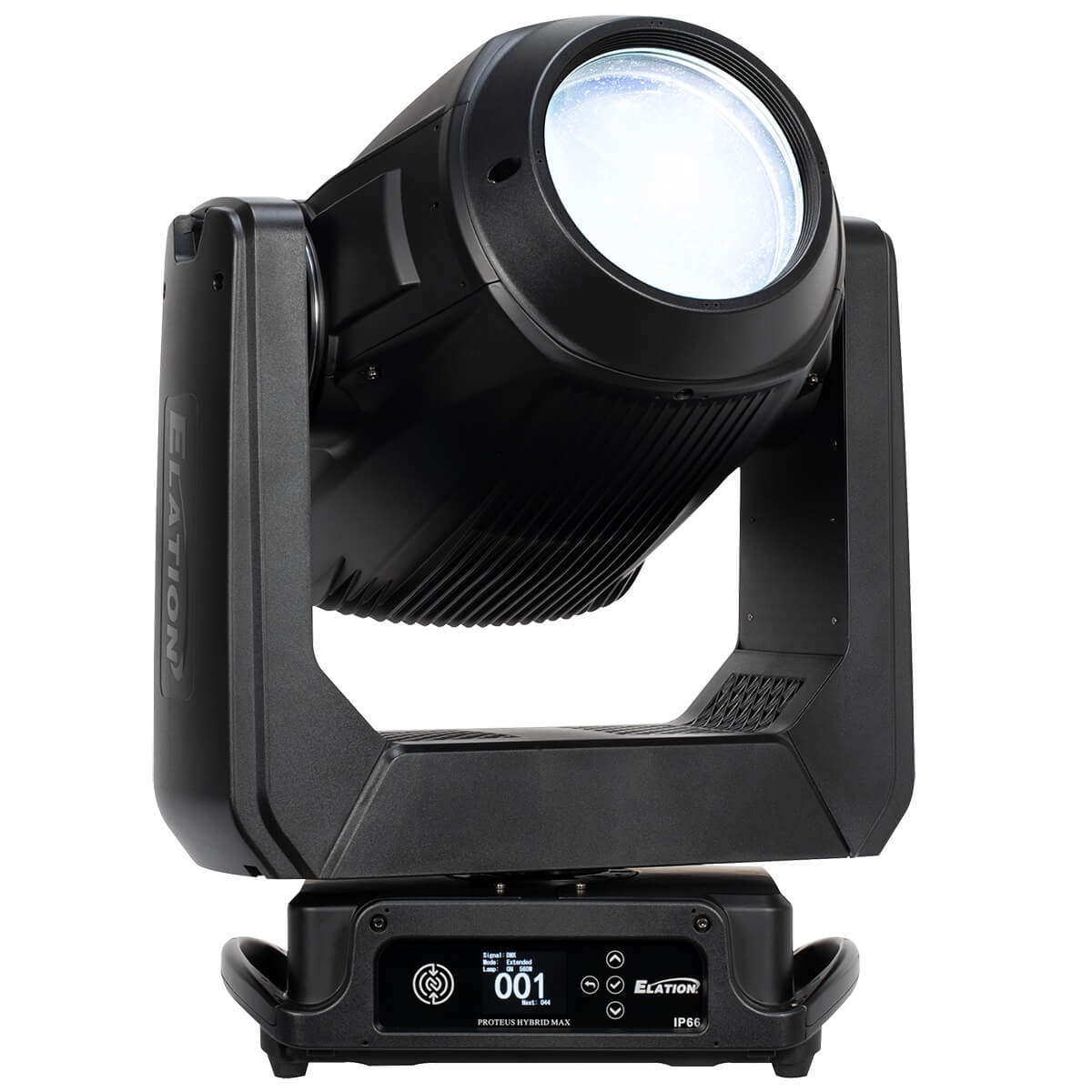

The Elation Proteus Hybrid Max combines high output and long lamp life in a feature packed compact IP66 Hybrid fixture. Proteus Hybrid Max is the Extreme Output Hybrid featuring the innovative Philips MSD Platinum FLEX 500 lamp.
Rated at 550W and up to 4,000 hours smart lamp life the HYBRID MAX includes CMY and variable CTO plus a full complement of projection and effects options. Four prisms on two planes, dual frosts plus dual gobo wheel and three tracks of animation patterns round out the comprehensive FX package in a compact and lightweight housing. For extra impact the fixture features a fast continuous pan rotation. Delivering 22,000 lumens from its large 170mm front aperture, the Proteus Hybrid Max has a crisp output for extremely powerful beams, sharp gobos and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.
The Proteus Hybrid Max includes the innovative Sky Motion system to operate the fixture as an impactful searchlight effect without the need for a dedicated lighting controller. Multiple fixtures can be interconnected, and with the simple assignment of IDs the fixture provides immediate access to a variety of movement patterns that are easily adjustable in size, speed, and color directly from the display. Comparable in output to large format Xenon fixtures, the Proteus Hybrid Max operates at a fraction of the power, supports a wide range of 100-240V, has a much smaller footprint, lower weight, and is fully IP66 rated. The Sky Motion system allows standalone operation for events and applications and is easy to set up and adjust directly from the display of the fixture even for "non-lighting" users and expands the usability of the fixture beyond traditional show lighting applications.
Features
• Extreme output 3-in-1 Beam, Spot, Wash Hybrid fixture
• 22,000+ lumen total fixture output
• 550W Philips MSD Platinum 500 Flex lamp with variable lamp power
• Flex Lamp Technology 550W plus Smart Hibernation with up to 4,000 hour lamp life
• Full CMY Color Mixing System, Variable CTO, Color Wheel
• Ultra-Fast Zoom
• 360˚ Endless Pan Motion

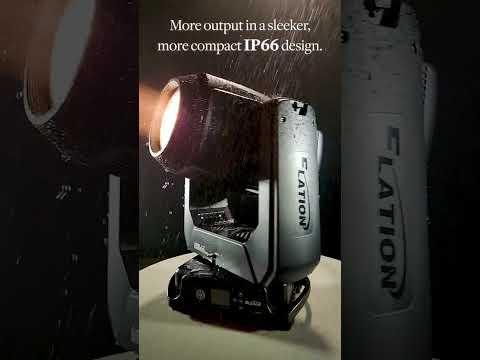

• IP66 rating protects from water and dirt
• Sky Motion System for powerful searchlight and skytracker animations
• Creative FX Package: 8 Rotating and 16 Static Gobos, Dual and Single-Track Animation, Iris, 4x Prism on Dual Planes, 2x Frost
