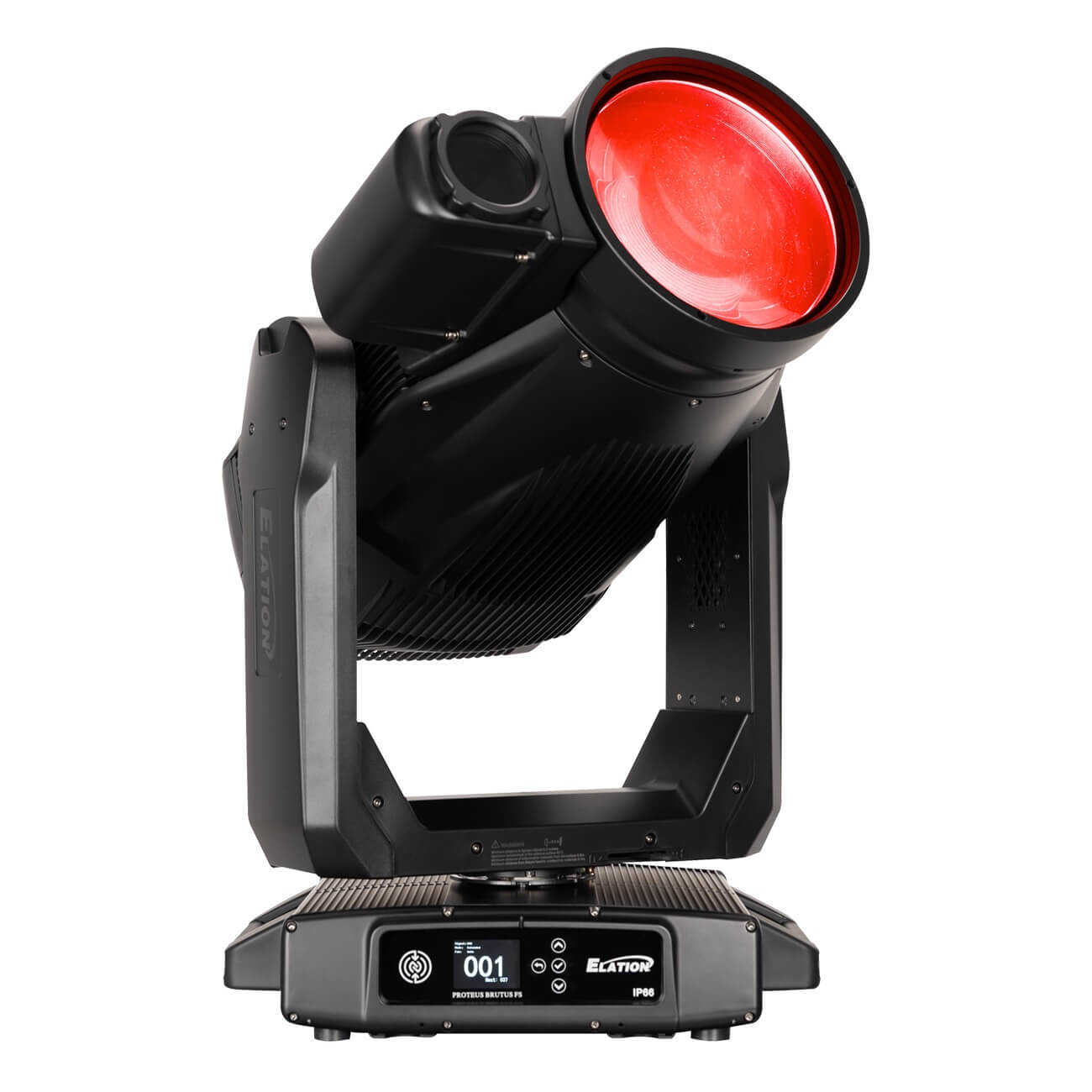

The Elation Proteus Brutus FS is an extremely bright IP66 rated LED Follow Spot fixture offering high intensity and excellent color quality at long distances. Operated manually with removable handles or remotely through one of the many automated remote tracking systems in the market, this purpose build fixture is ideal for any indoor and outdoor application that requires precise and smooth operation, flexible color control and superior output in medium to long throw follow spot applications.

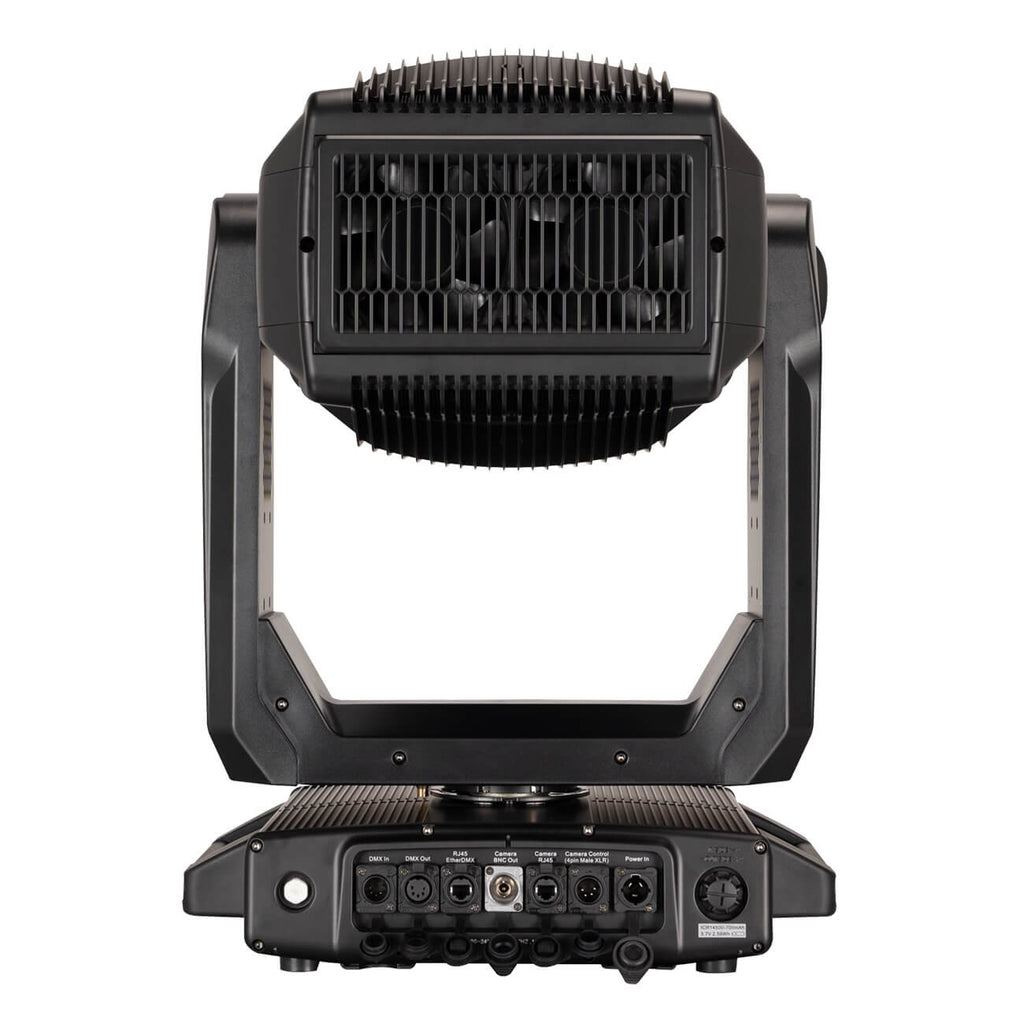

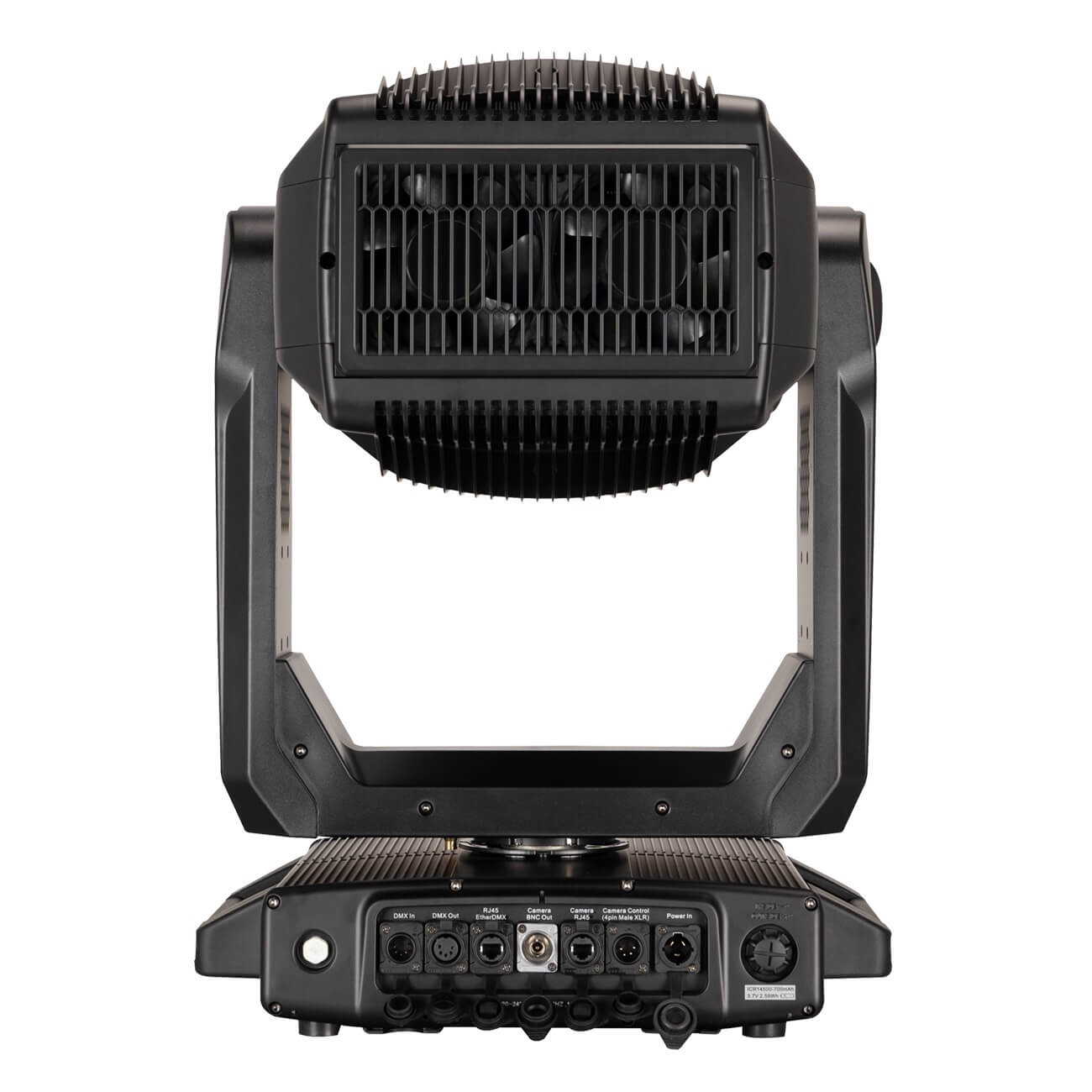

The Proteus Brutus FS provides a removable IP rated camera housing to attach all commonly used POE or SDI cameras. Cables and a variety of camera connections are all integrated into the chassis for easy customization. The fixture provides several ways of data and low voltage power connections for seamless integration. Camera choices vary for any of the different tracking systems, no camera is included with the fixture itself.
Proteus Brutus FS provides the user CMY color mixing, variable CTO and a variable CRI filter from CRI70 to CRI 90, allowing excellent color control essential for follow spot applications.
Zoom, Focus and Iris are all optimized for the unique requirements of follow spots, and a variable frost rounds out the beam control options. The fixture includes 5 indexable gobos, preloaded with a variety of beam shaping images.
With a narrow zoom range of 3° to 35° the Proteus Brutus FS has the power to cut through at great distances. The fully dust and waterproof design is well suited for a wide range of exterior or indoor applications.

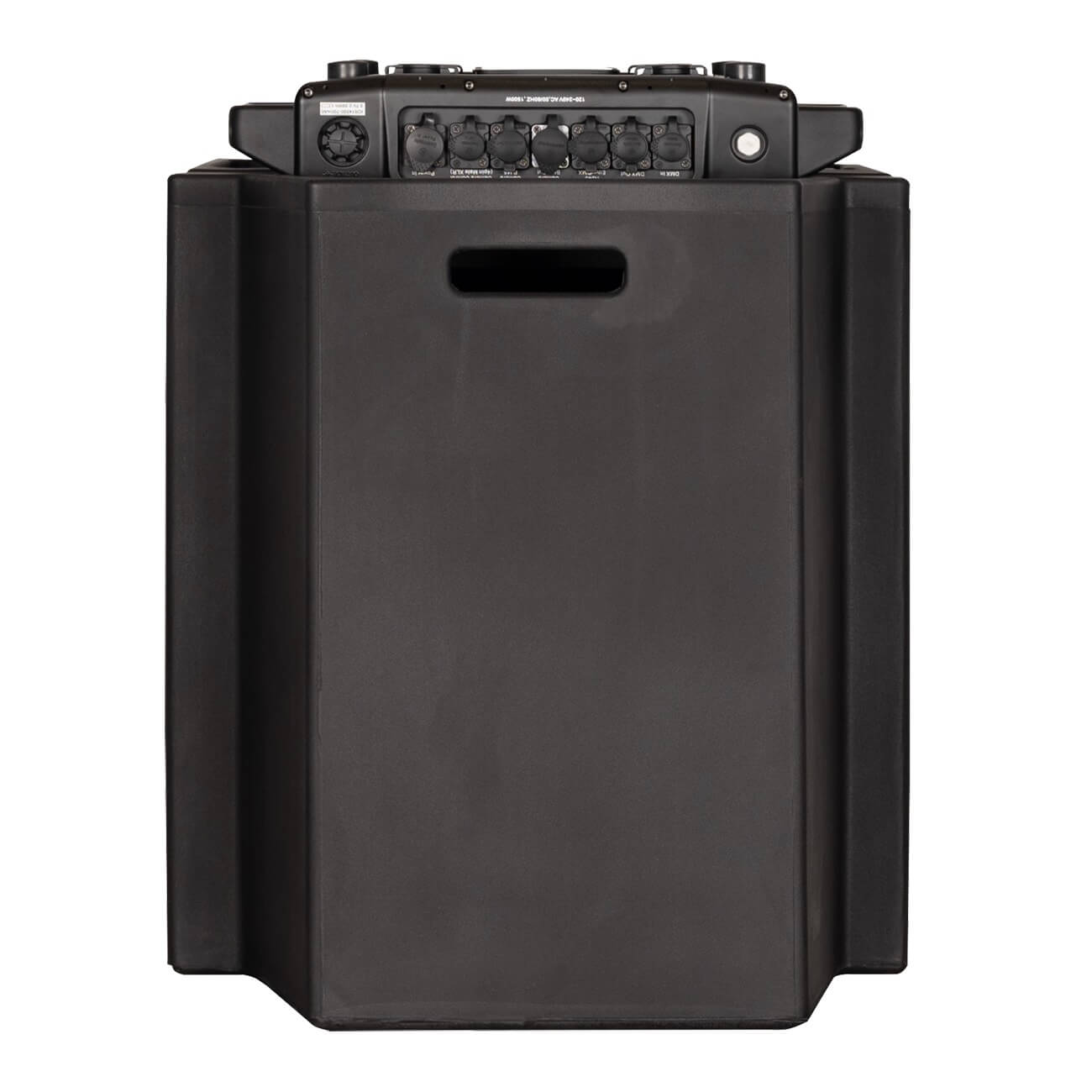

The Proteus Brutus FS ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included) and provides enhanced impact protection during transport.
Features
• High Efficiency 1200W 6,500K LED Engine
• 16,000 lx (1470fc) center intensity @ 20m
• CMY Color Mixing and Variable CTO
• Variable CRI Filter
• Precise Zoom, Iris and Frost control
• Long Throw Zoom Range from 3° to 35°
• Indexable Gobo Images for beam shaping or texture projection
• Manual Follow Spot Handle attachment points

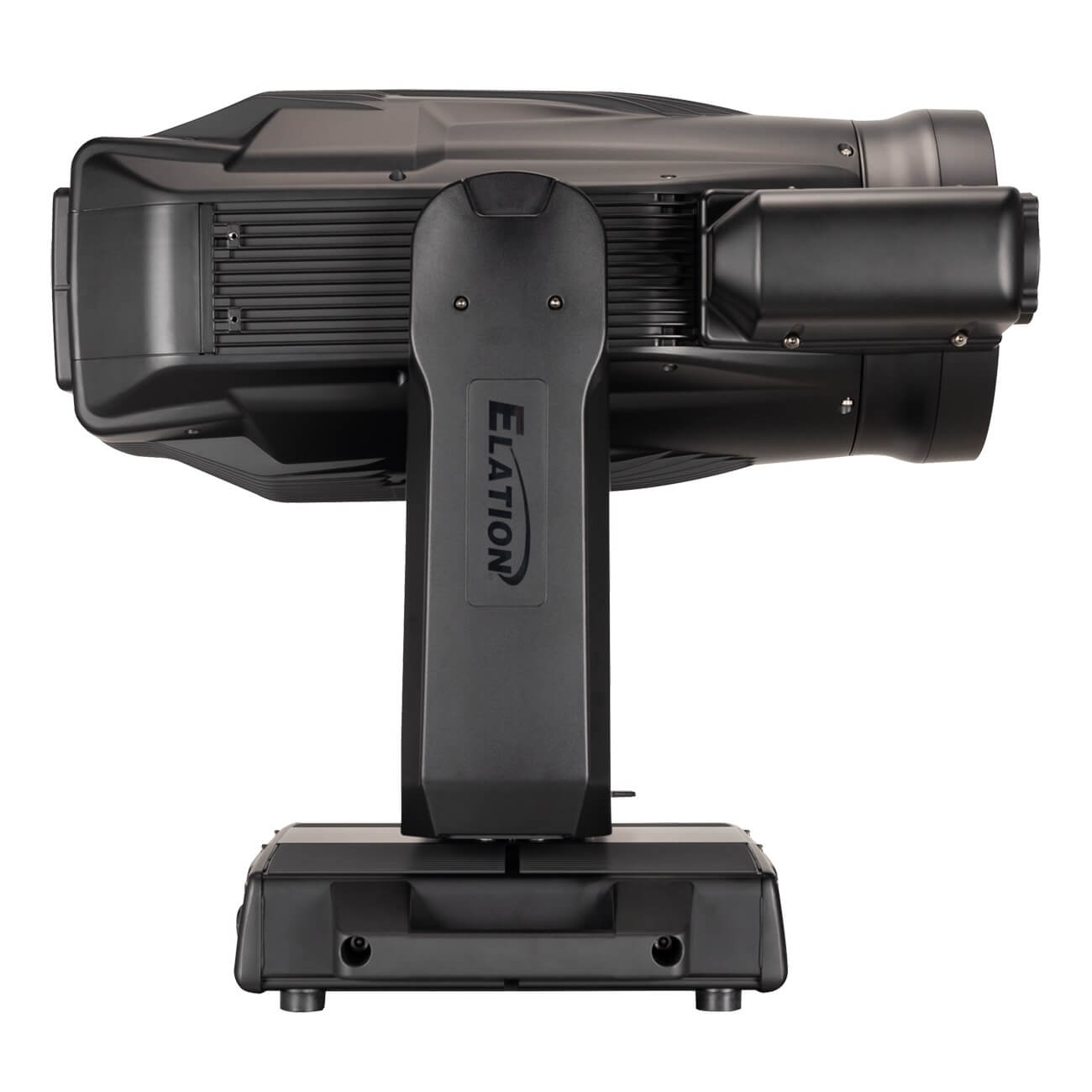

• Removable IP66 Camera Chassis
• NDI, POE, SDI and Camera Control pre-wired
• Optional Tripod Stand
• Optional Handles
No camera is included with the fixture.
