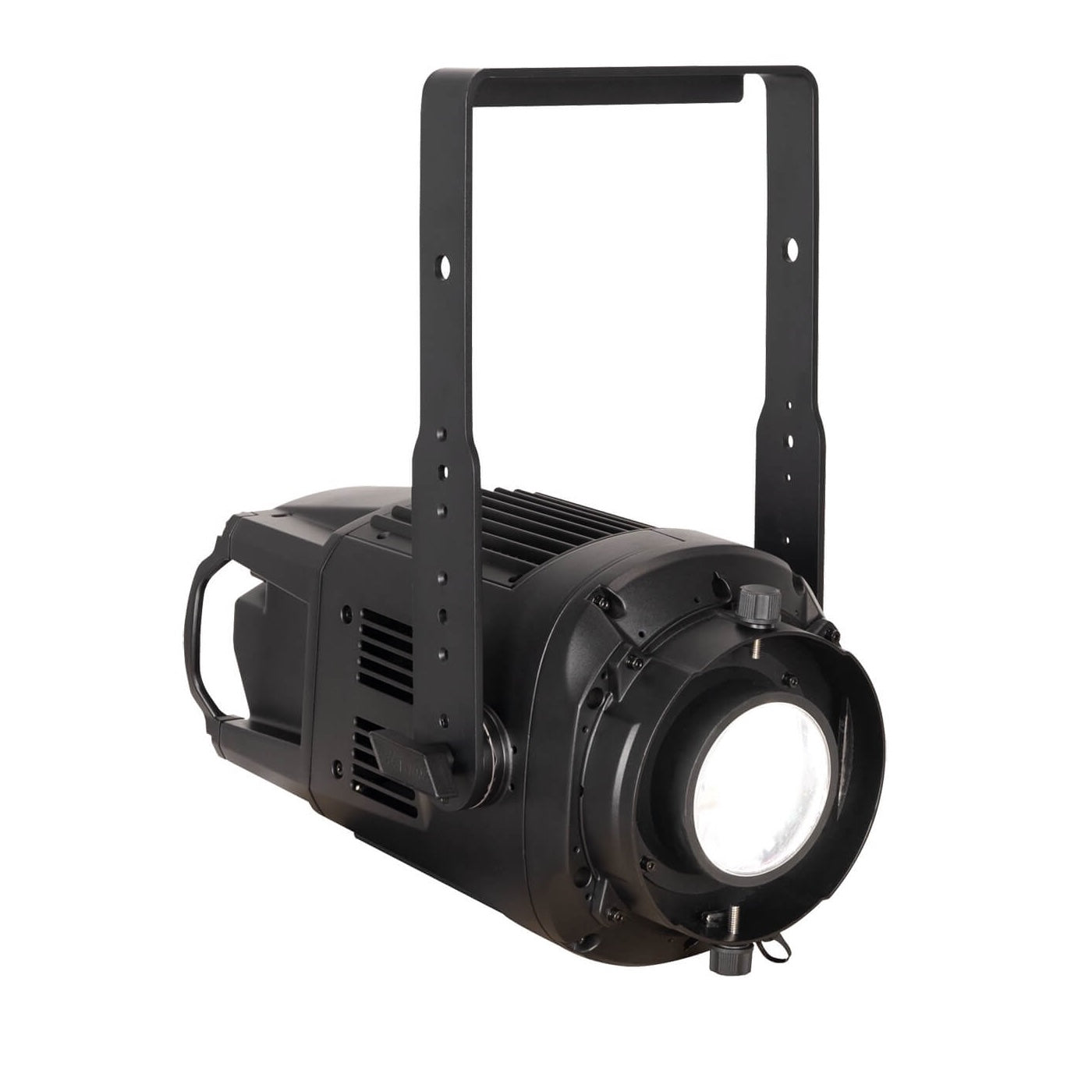

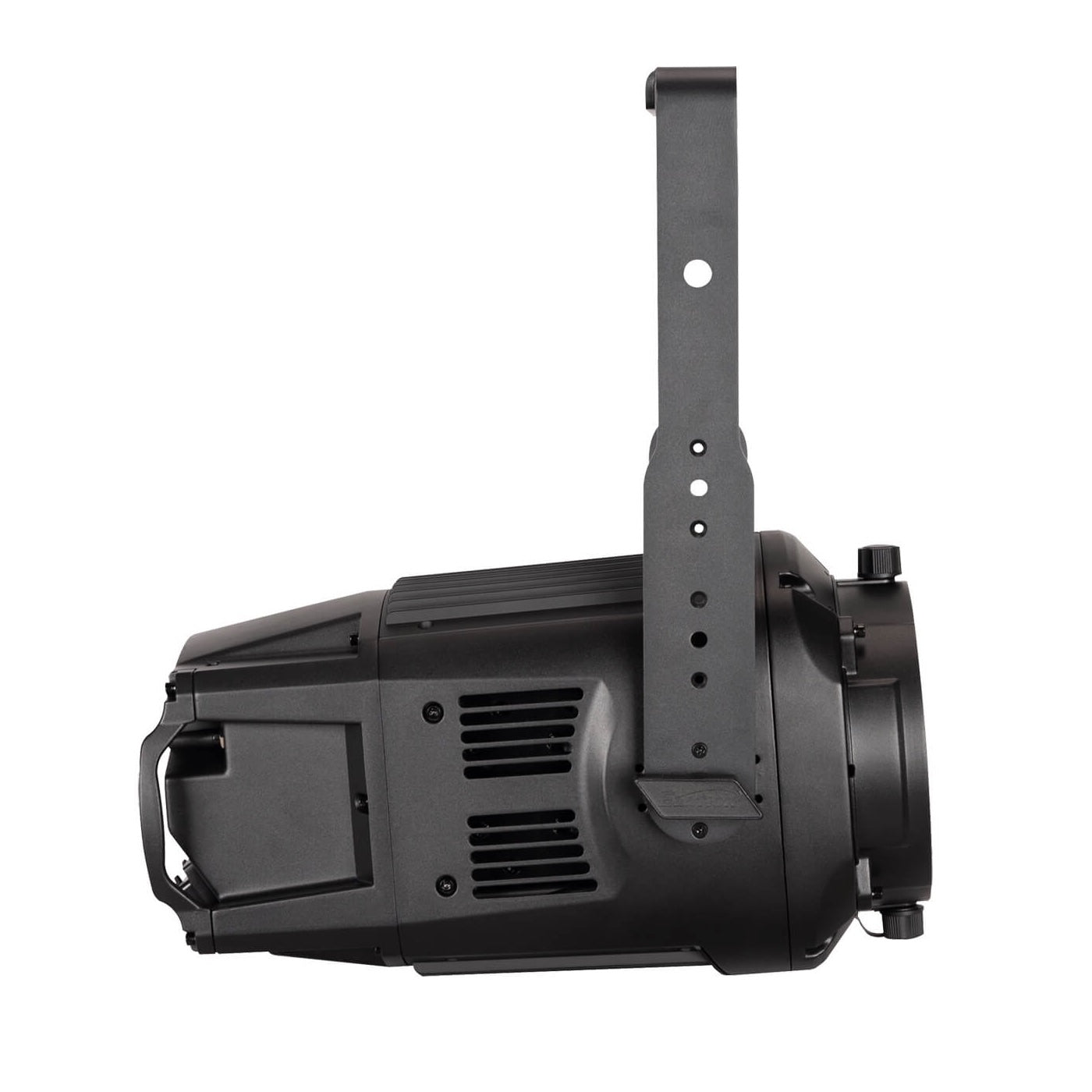

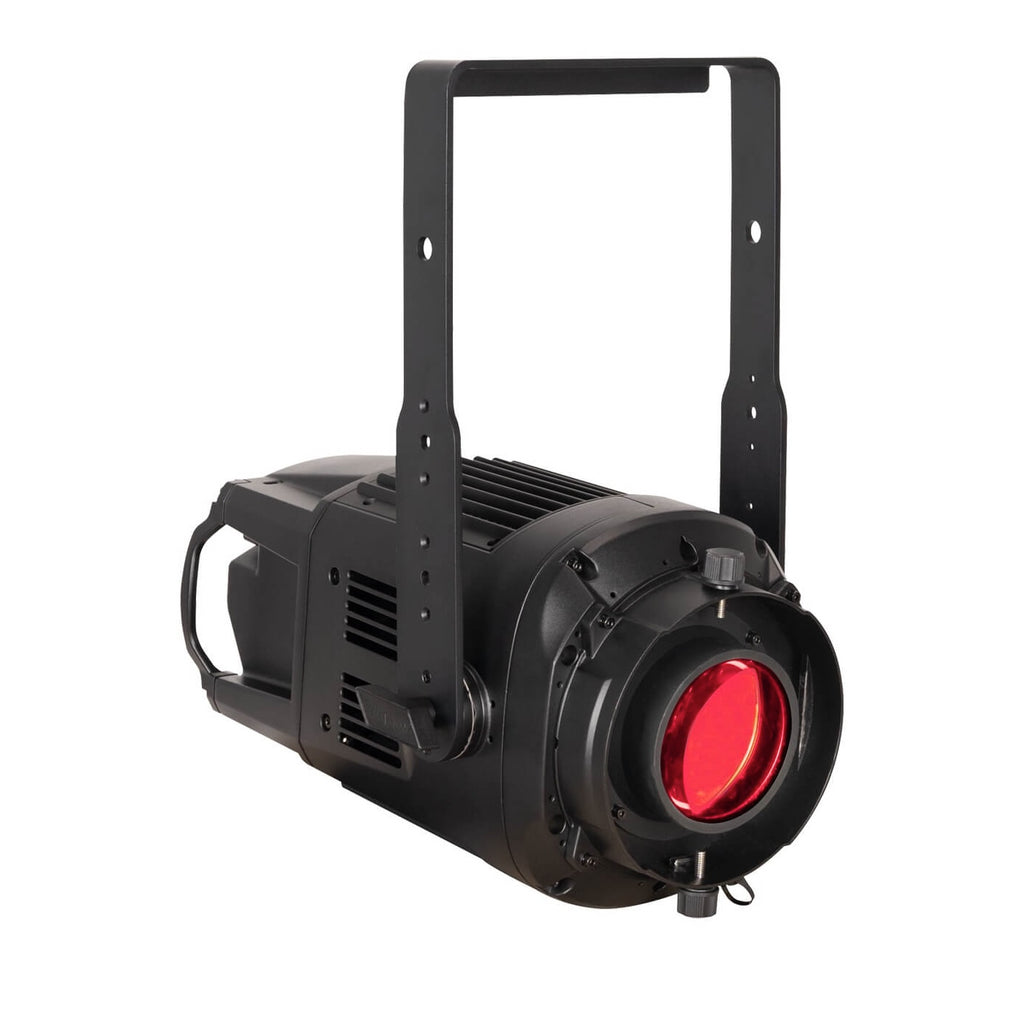

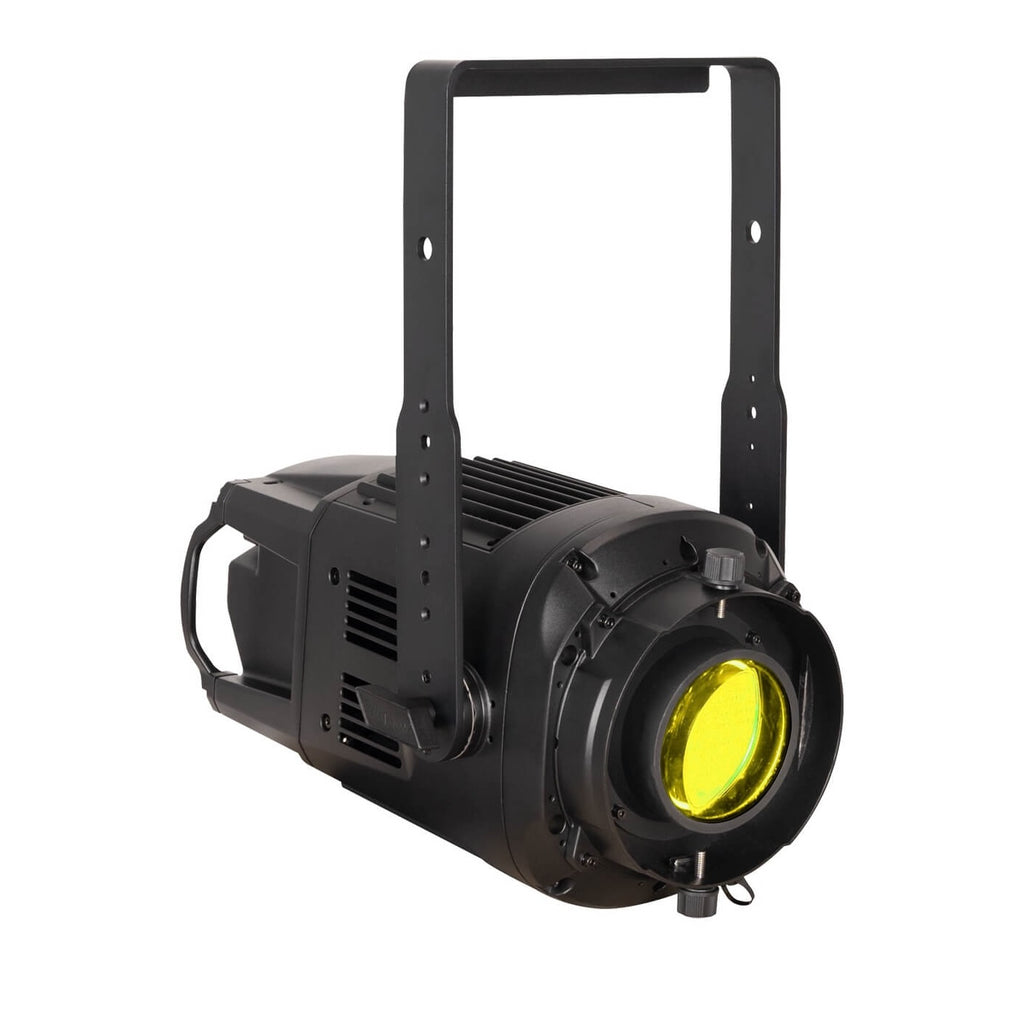

The Elation KL CORE IP LED engine is a 400W full color spectrum RGBMA LED light engine that delivers over 15,000 lumens of output in a rugged IP65 fixture.

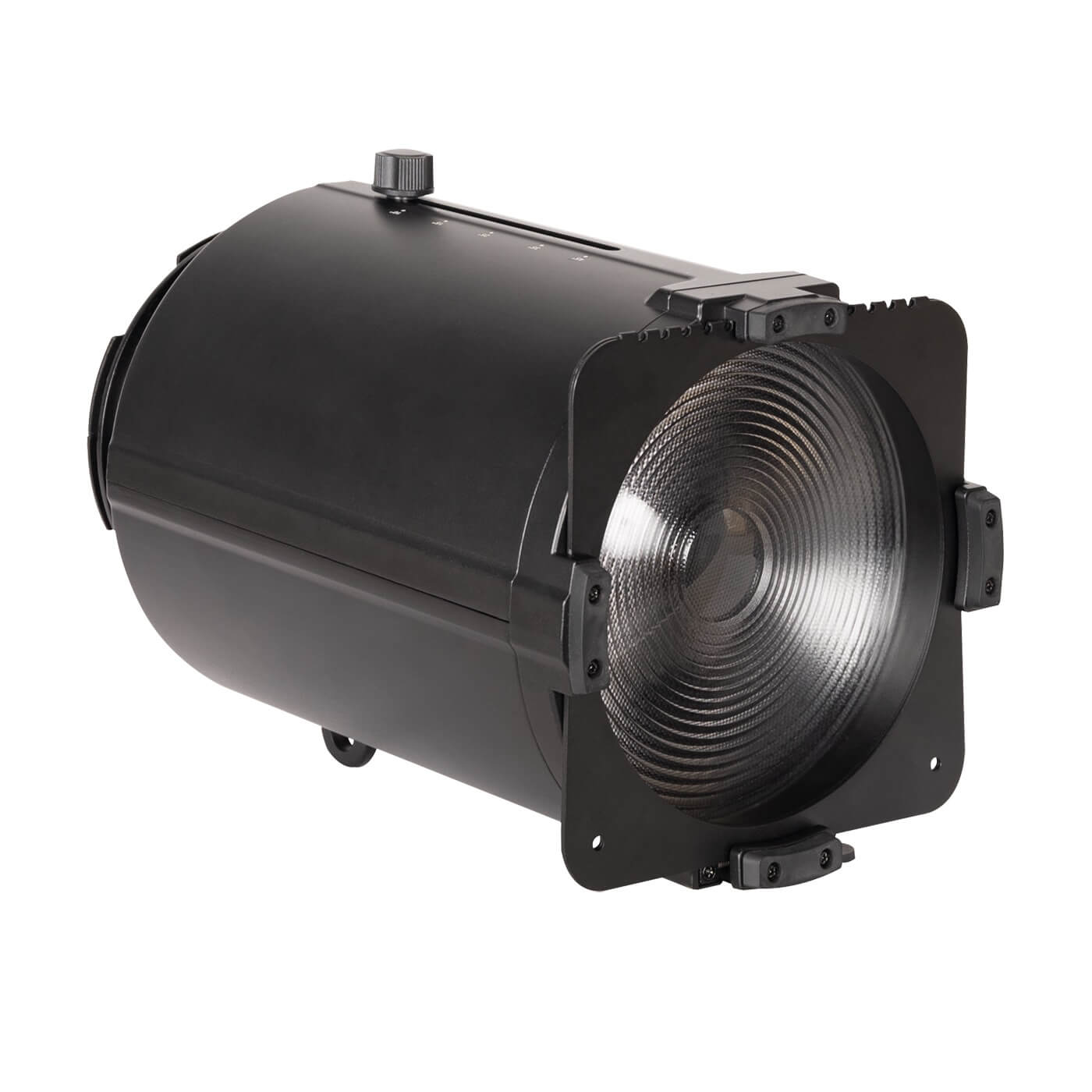

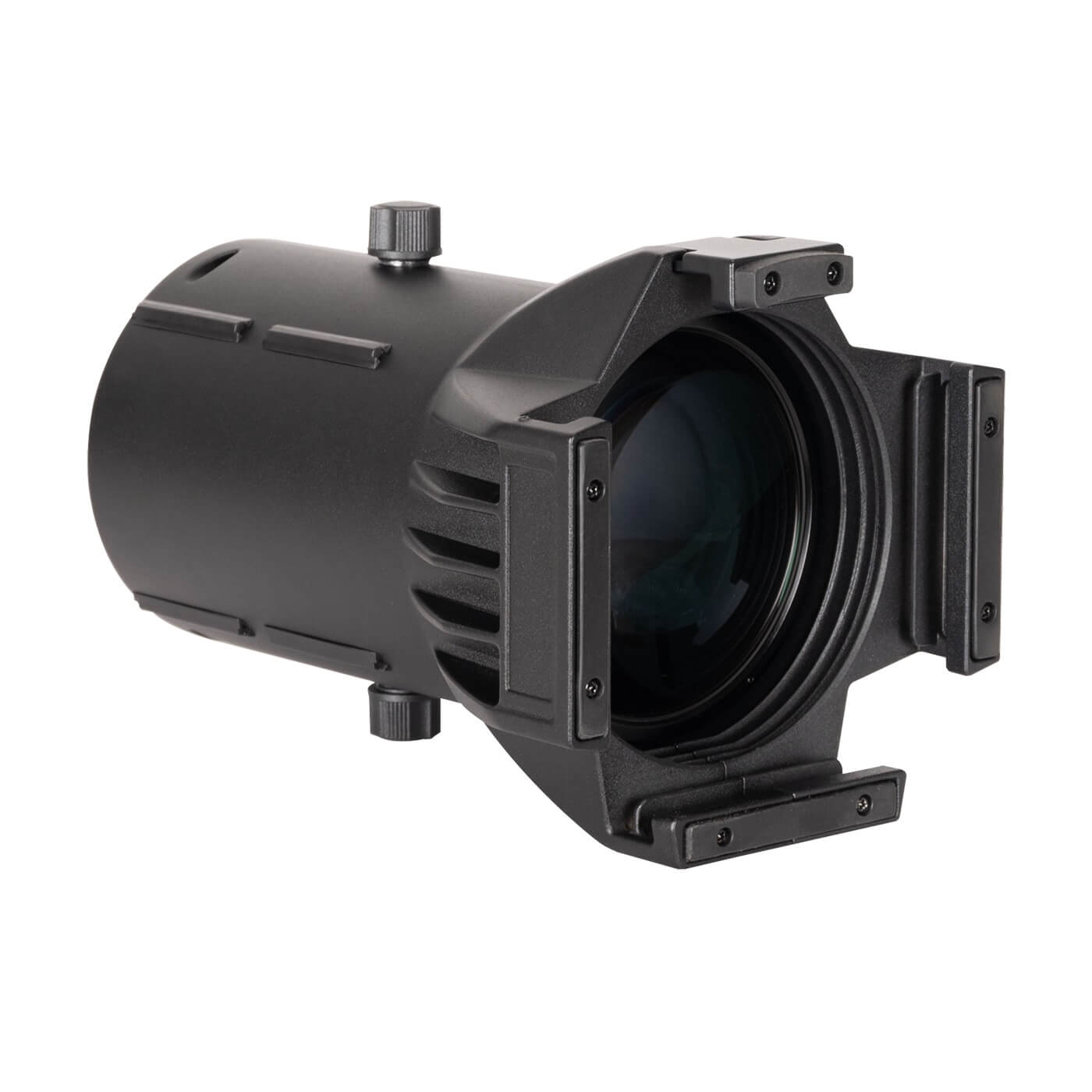

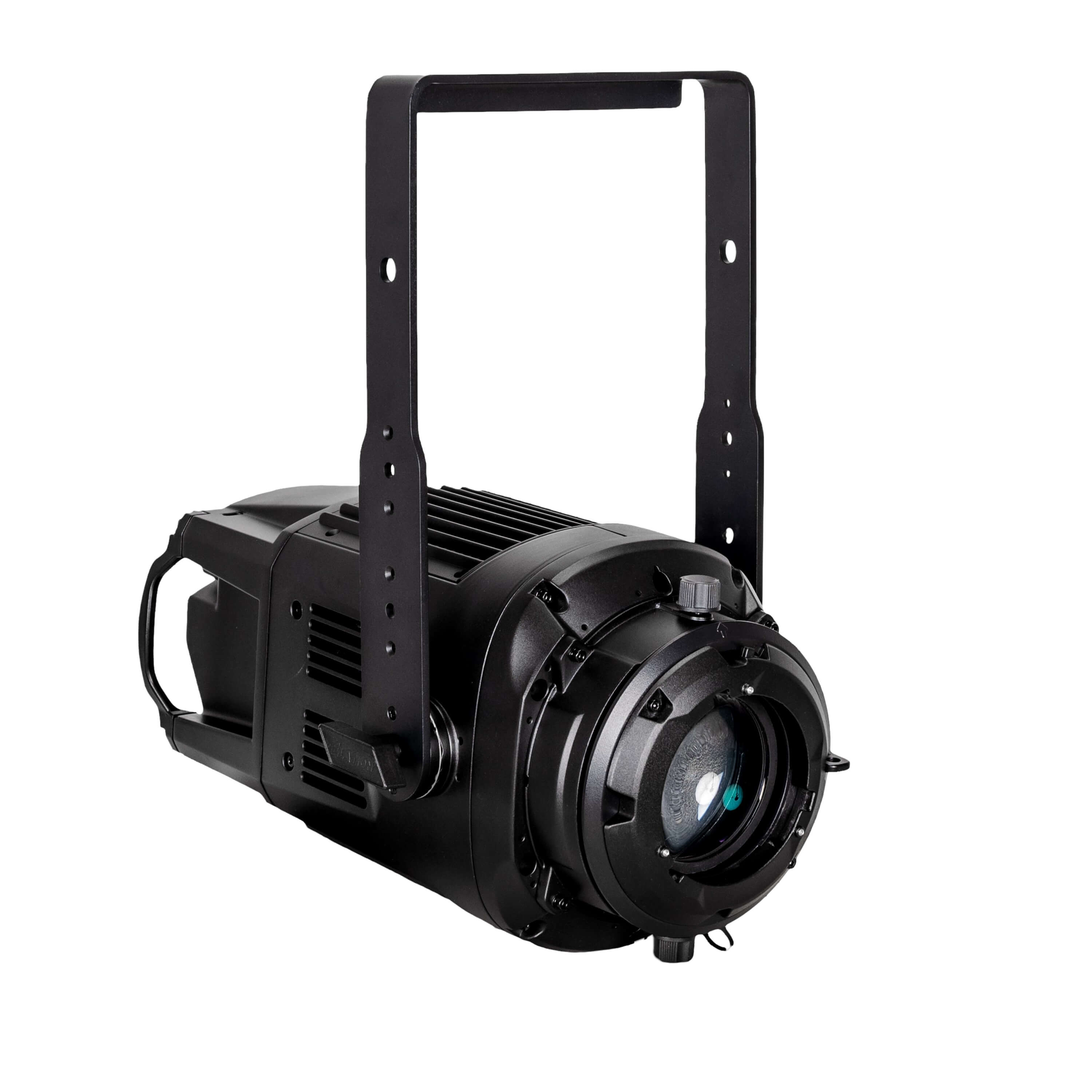

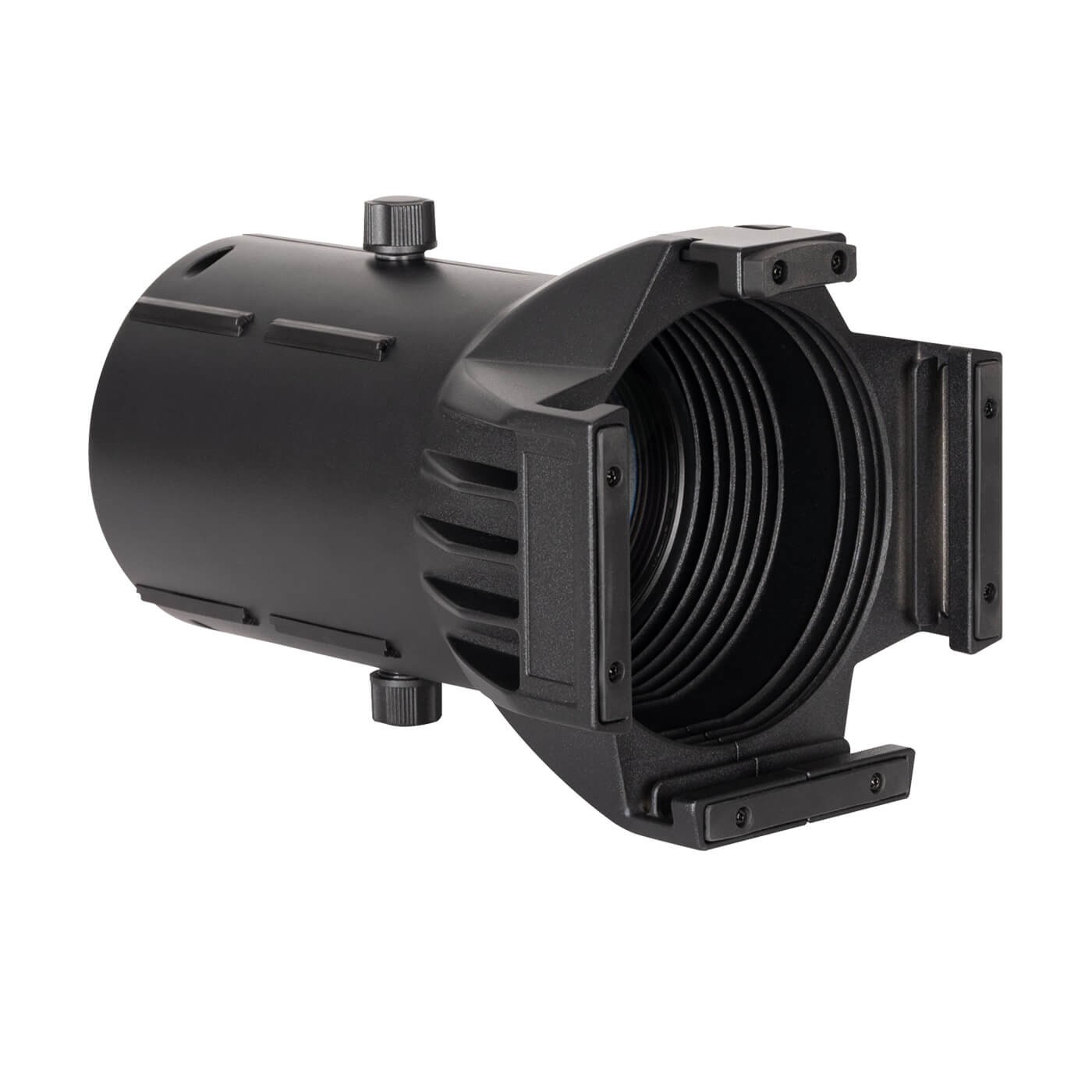

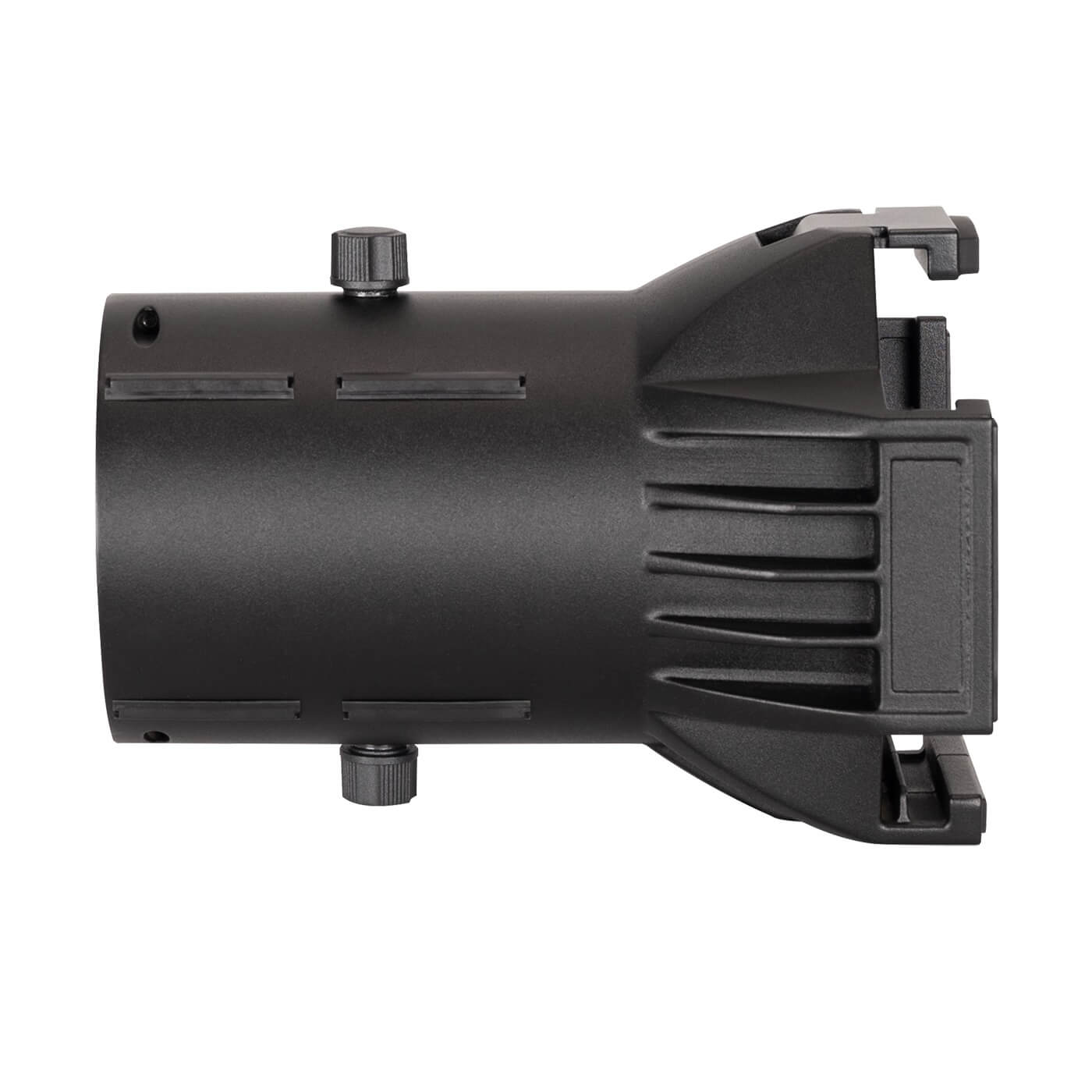

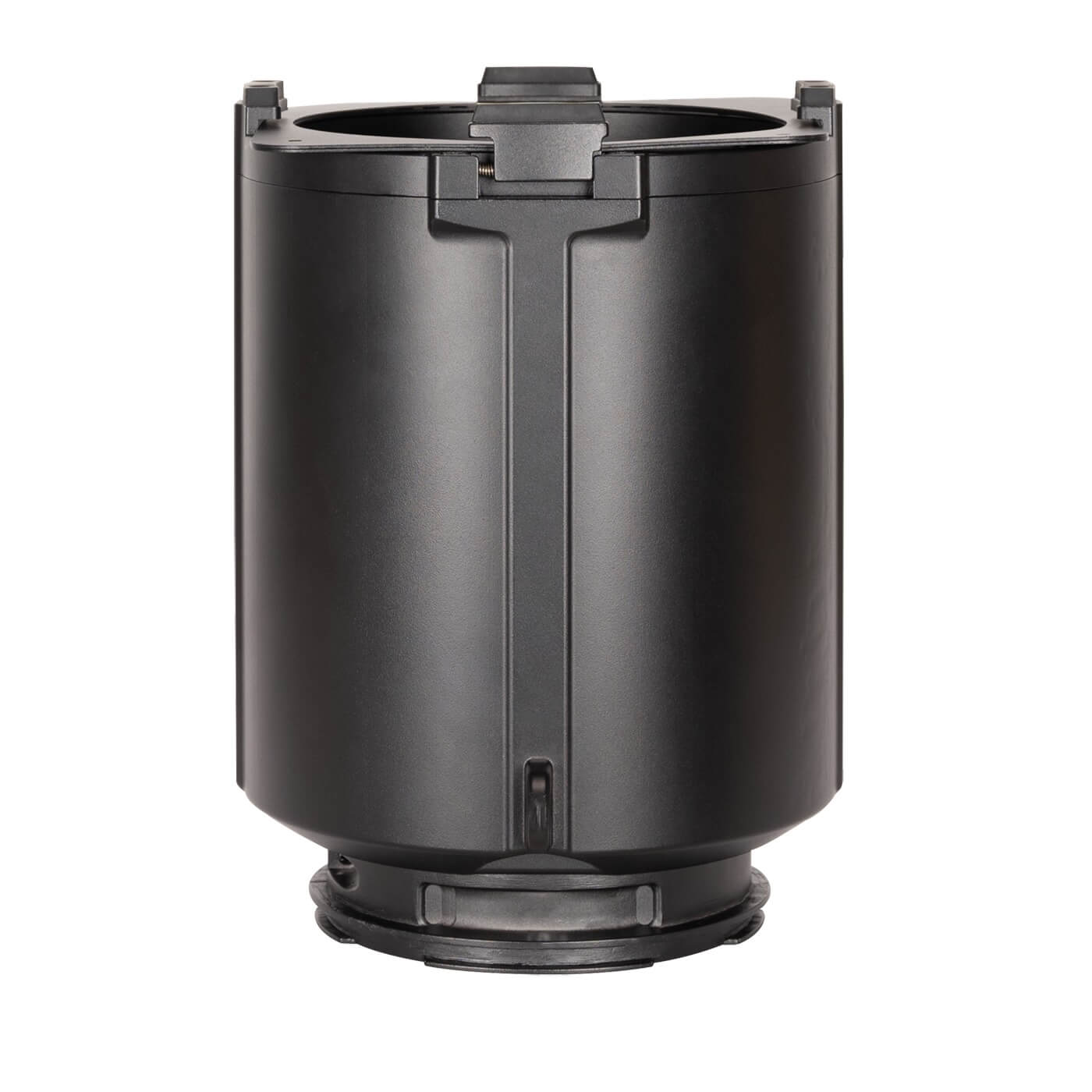

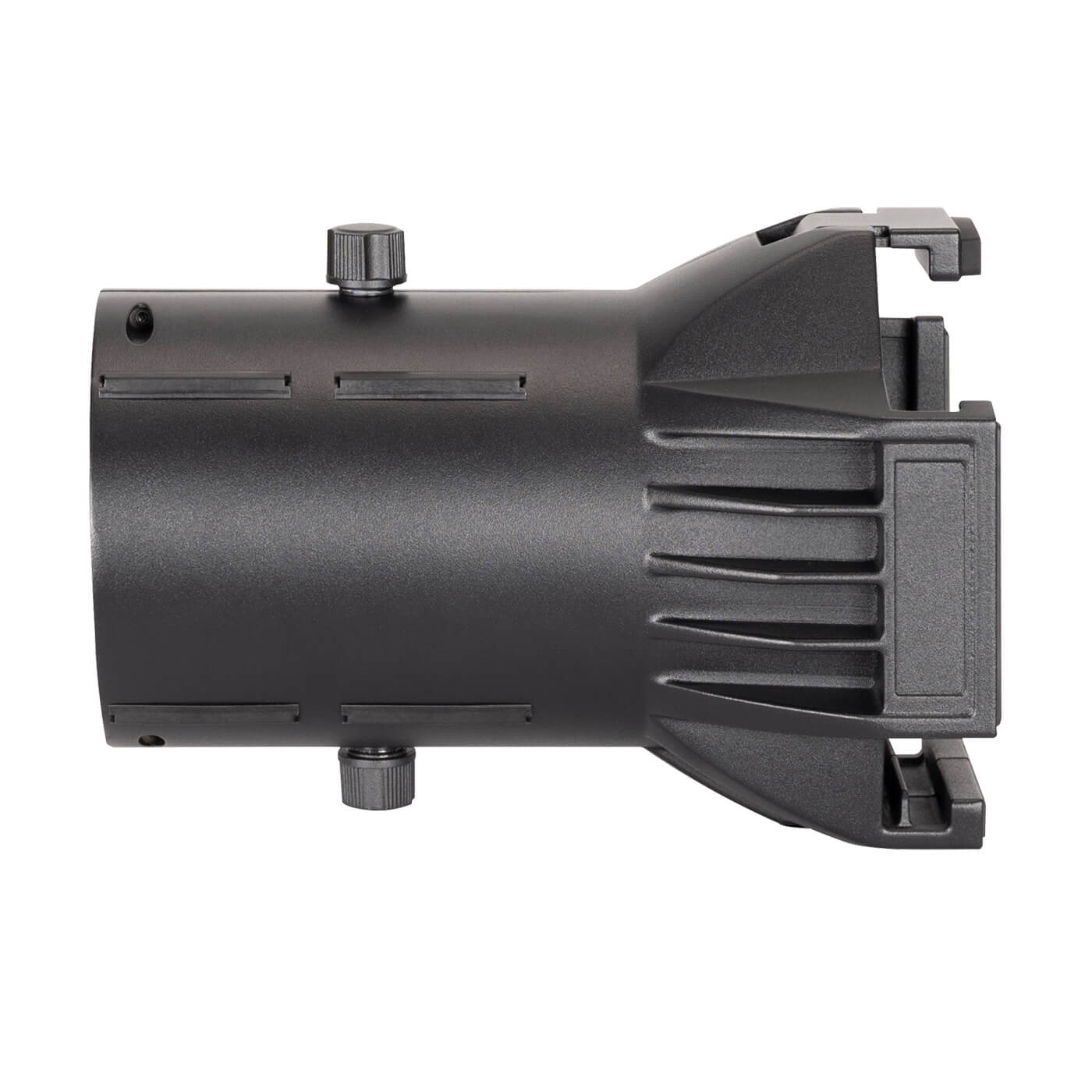

The KL CORE IP’s fully homogenized light source makes it incredibly adaptable. For ellipsoidal applications, the fixture can be paired with an optional KL CORE IP Shutter Barrel and used with any of the IP67-sealed lens tubes, functioning as a traditional LED ellipsoidal. The design is also compatible with most 3rd party shutter barrel assemblies, allowing seamless integration with existing setups. Further expanding its flexibility, the optional KL CORE IP Fresnel Lens transforms the fixture into a zoomable Fresnel, while the optional KL CORE IP Bowens Mount allows it to function as a mono light or lamp head for use with soft boxes, lanterns, open-face reflectors, or other beam modifiers, making it ideal for TV/film and broadcast applications.
With the new ColourTune Technology software the fixture offers outstanding color rendering with a high CRI of 94.9 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency. The integrated touch bar encoder allows the device to be easily controlled in stand-alone applications, and the Aria x2 wireless device management integration also offers additional control options. Configuration is made simple with the use of onboard NFC.
While the IP65-rating of the KL CORE IP keeps it safe in the harshest outdoor environments, it also ensures the device will work well for any indoor application too- helping to keep the fixture cleaner and dust free over long periods of time.
With its exceptional light quality, robust design, and unmatched flexibility, the KL CORE IP is the ultimate fixture for professionals who need a high-performance solution that adapts to a wide range of lighting requirements.
Features
• 400W RGBMA Full Color LED Engine
• ColourTune Technology Software Integration
• 15,588 Total Fixture Lumen Output (Sphere)
• Accepts 3rd Party Ellipsoidal Shutter Barrels

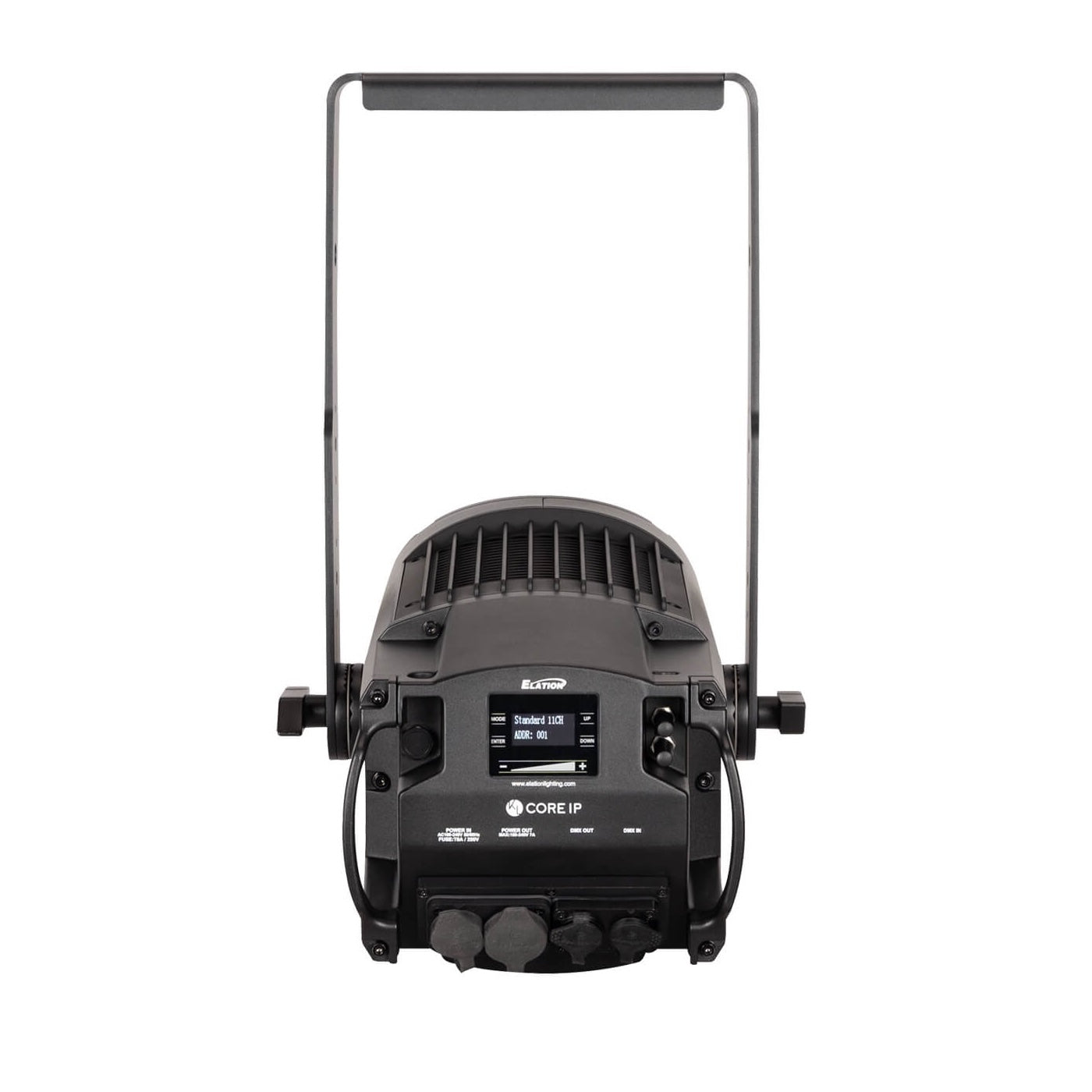

• Stand-Alone Control with Touch Encoder and OLED Display
• Direct Connection and Control for optional IP65 Gobo Rotator
• NFC and Aria x2 Wireless Device Management
• IP65 Rated
