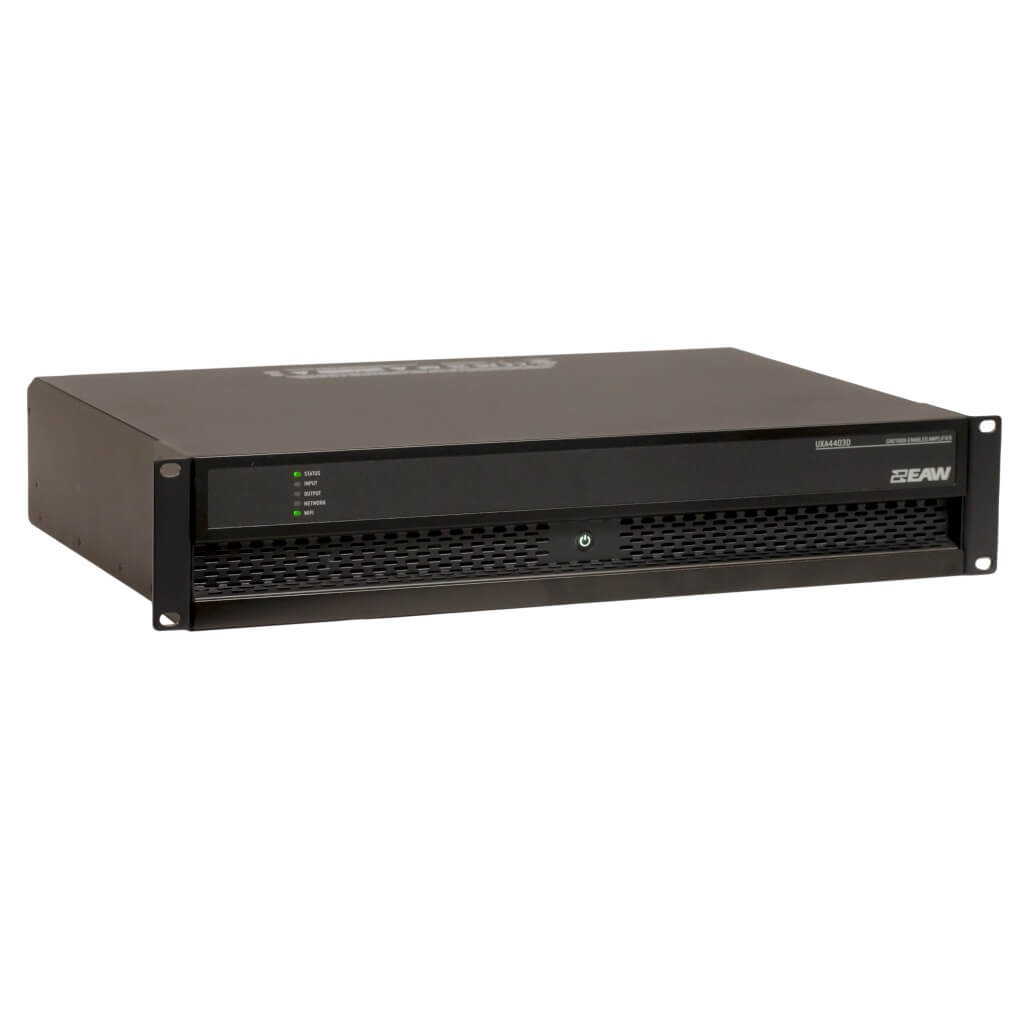

The EAW UXA4403D multipurpose installation amplifier with Dante has been designed to provide configurable, consistent and reliable high performance audio amplification for residential, commercial and entertainment applications.

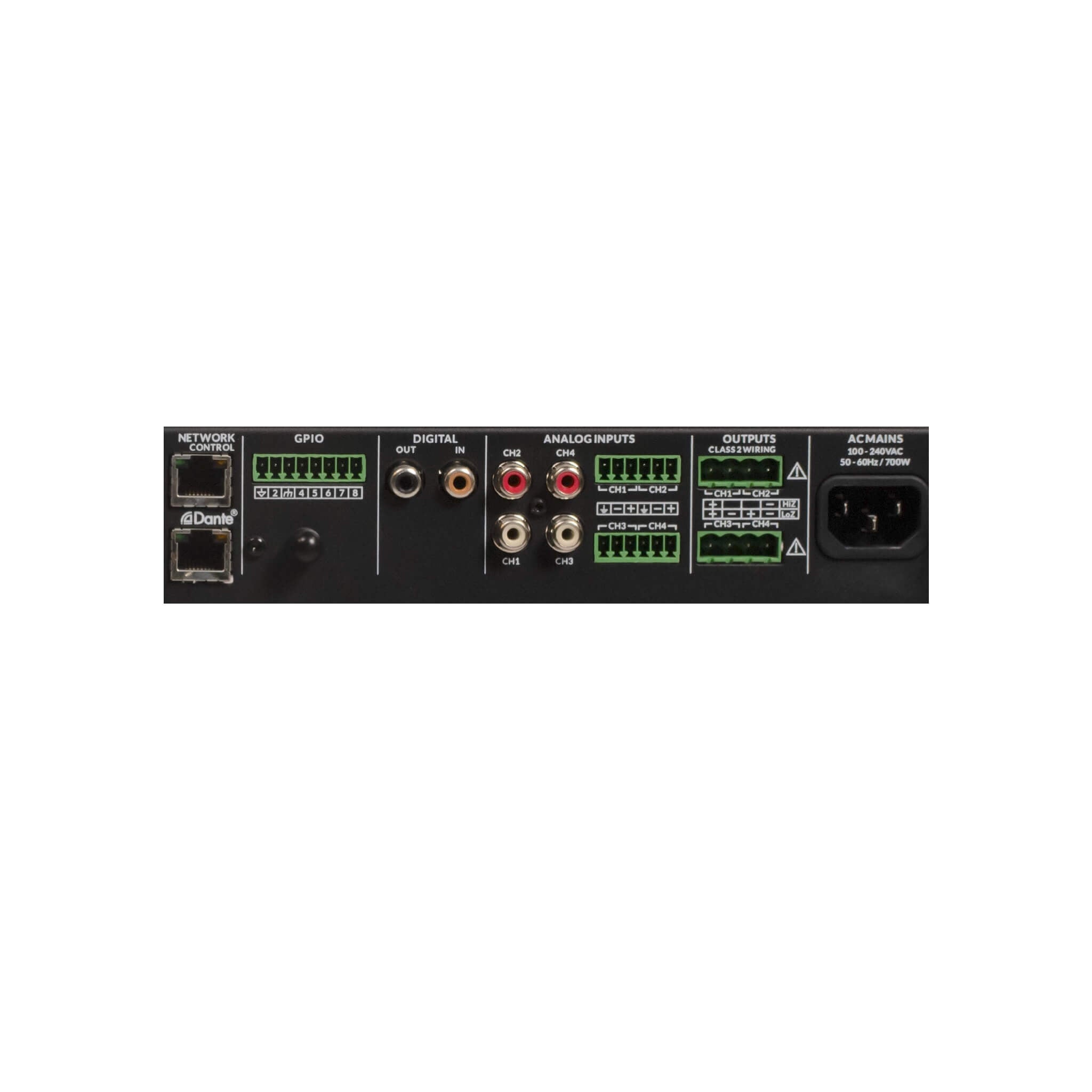

UXA4403 power amplifiers are a full rack width, 2U format power amplifiers that can drive both conventional low impedance (Lo-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers. They provide four analog inputs, one stereo S/PDIF digital input, and either two or four outputs (Lo-Z mode), or one or two outputs (Hi-Z or Lo-Z BTL mode).
Features
• 4 inputs and 4 outputs
• Pairs seamlessly with EAW installation loudspeakers
• Optional Sync Functionality by S/PDIF linking to multiple amps
• Connect wirelessly or direct to the amplifier via a web page interface
• Configurable GPIO for additional control
• Safety and EMC Certified. Compliant to ErP and EnergySTAR
• Includes rack ears for standard 19" equipment rack
• Dante Enabled - Digital audio and networking
