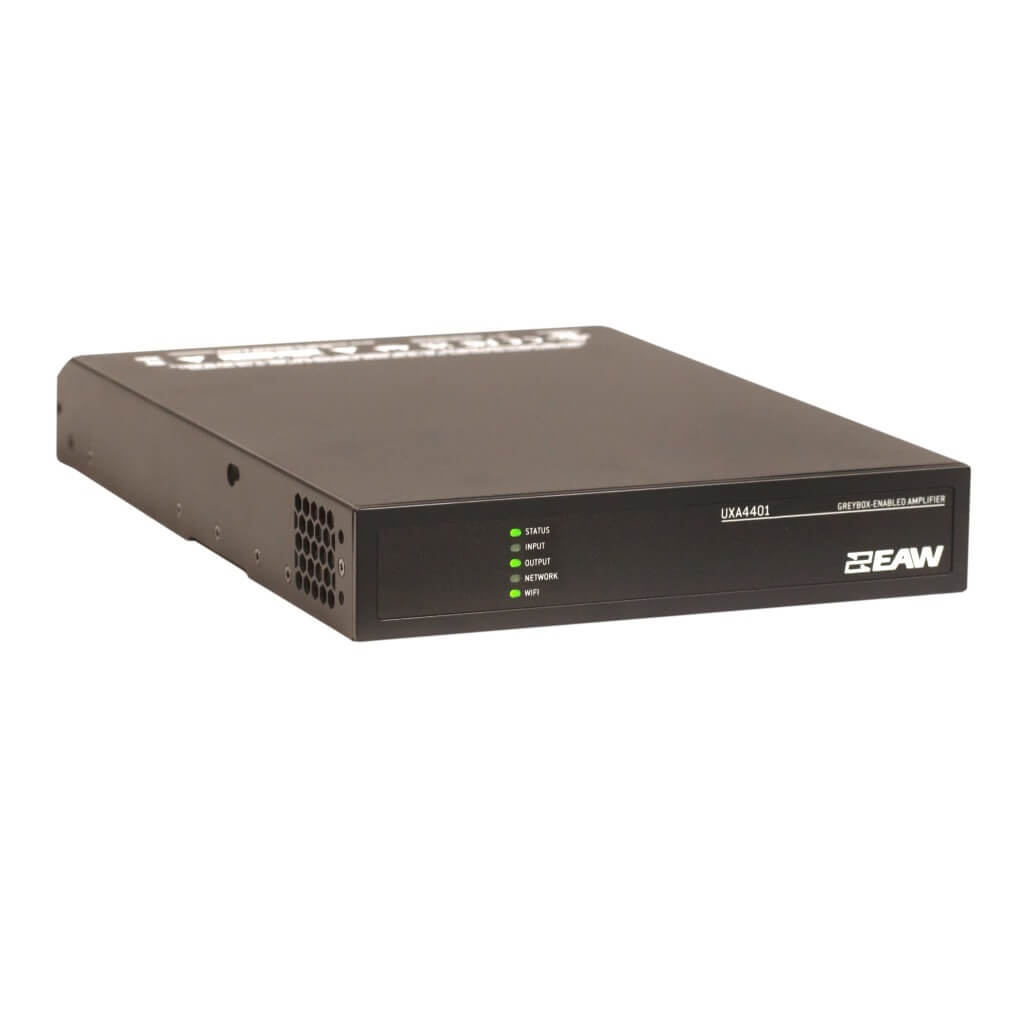

The EAW UXA4401 multipurpose installation amplifier has been designed to provide configurable, consistent and reliable high performance audio amplification for residential, commercial and entertainment applications.

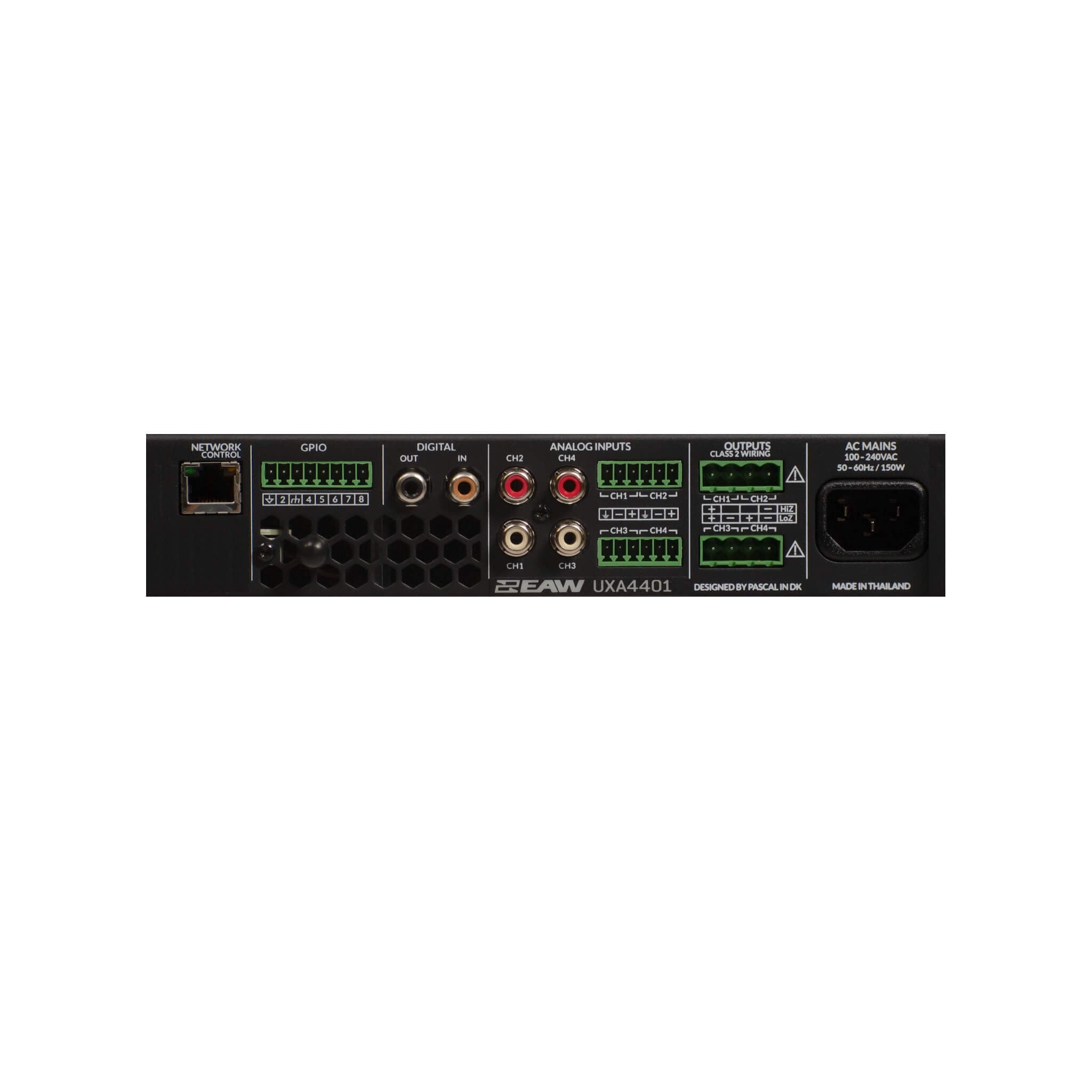

UXA4401 power amplifiers are half rack width, 1U format power amplifiers that can drive both conventional low impedance (Lo-Z, 4Ω to 16Ω) loudspeakers and high impedance (Hi-Z, 70V/100V) transformer coupled loudspeakers. They provide four analog inputs, one stereo S/PDIF digital input, and either two or four outputs (Lo-Z mode), or one or two outputs (Hi-Z mode). UXA4401 amplifiers also incorporate automatic power sharing technology that enables power to be shared proportionately as required between pairs of outputs in Lo-Z mode.
Features
• 4 inputs and 4 outputs
• Pairs seamlessly with EAW installation loudspeakers
• Optional Sync Functionality by S/PDIF linking to multiple amps
• Connect wirelessly or direct to the amplifier via a web page interface
• Configurable GPIO for additional control
• Safety and EMC Certified. Compliant to ErP and EnergySTAR

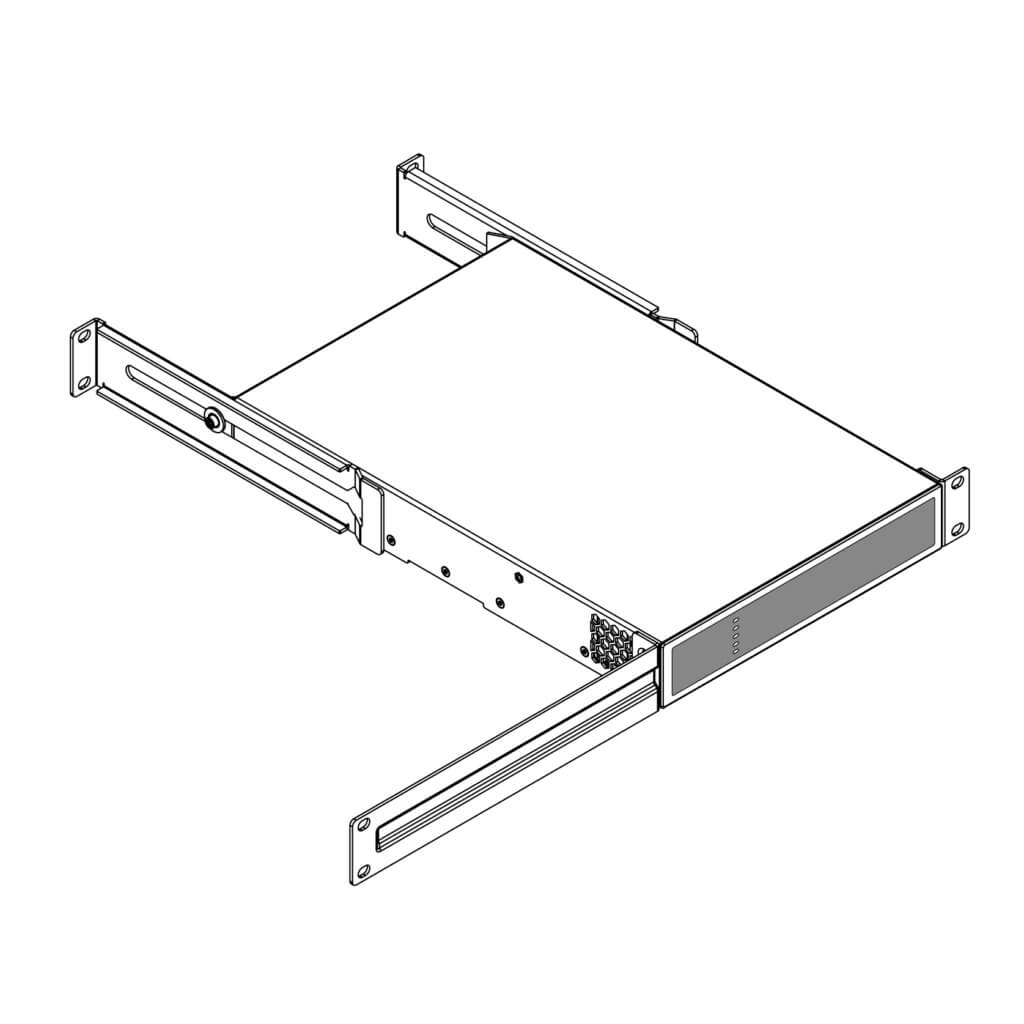

• Includes half-rack extension and rear support hardware
• Connection plate for 2x units and desk/wall mounting plate optional
