The DVDO Xtend-Pair150 18Gbps HDMI extender set can extend high definition video/audio signal, RS-232, bi-directional IR, and the distance is up to 492ft/150m between transmitter and receiver via a single CAT cable. It supports resolutions up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. The extender also supports de-embedded audio for L/R audio output. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.
Features
• HDMI 2.0b/HDCP 2.2 and 1.4/DVI 1.0 compliant
• Support 18Gbps video bandwidth
• The maximum extended transmission distance via a single Cat5e/6 cable
• 394ft/120m for 4K2K signals
• 492ft/150m for 1080p signals
• Support one HDMI loop output on the transmitter
• Extract audio to analog stereo output on receiver

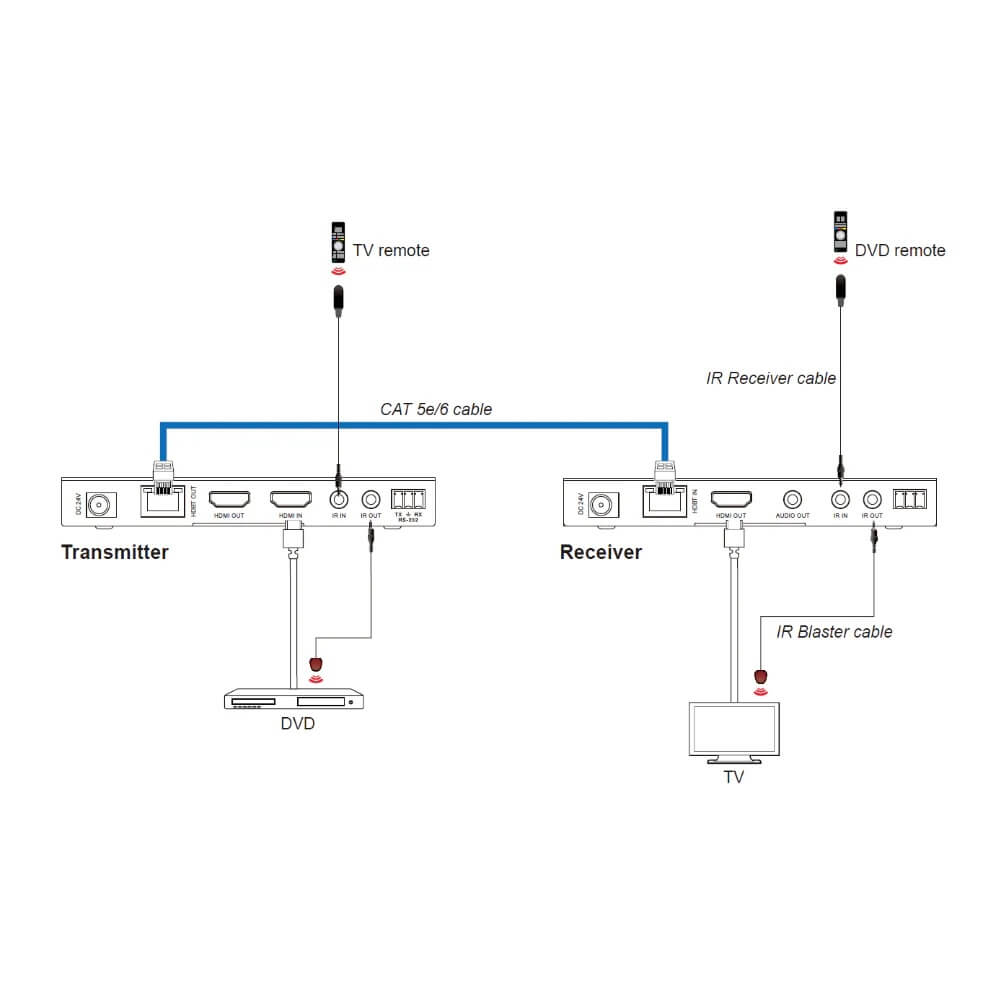

• Bi-directional IR, RS-232 and CEC pass-through
• HDR, HDR10+, Dolby Vision and HLG function supported
• Support PoC (Power over Cable) function
• Compact design for easy and flexible installation
