Description

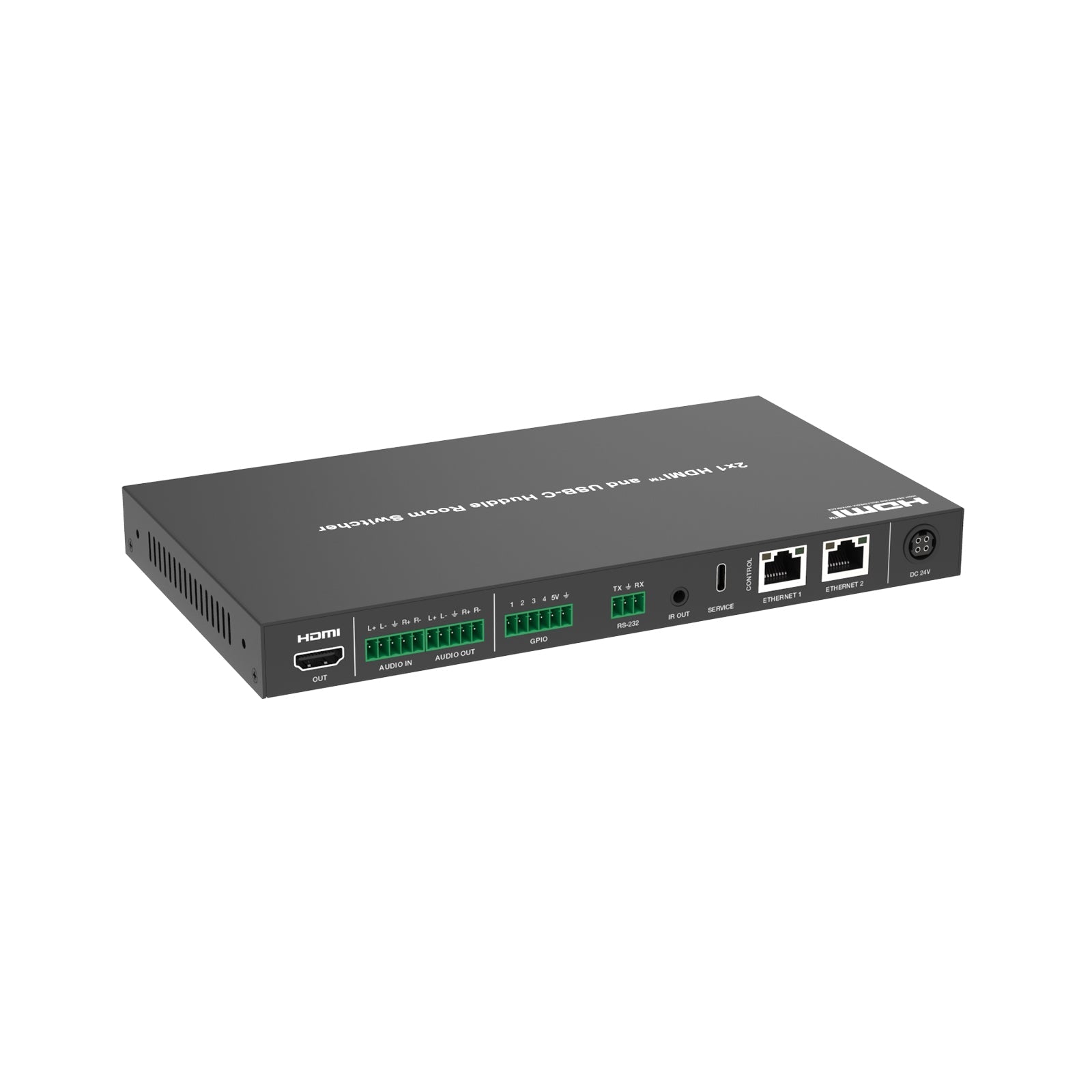

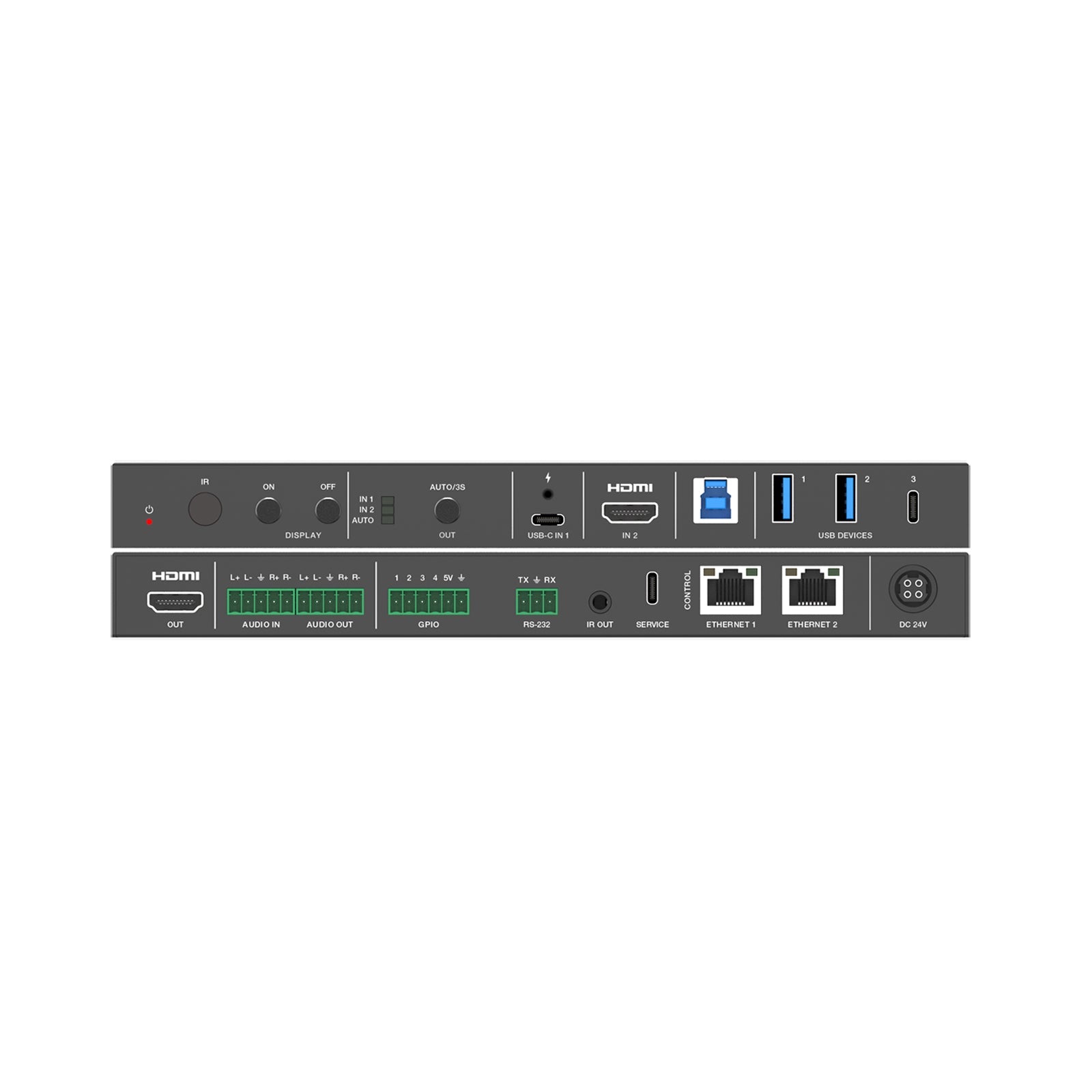

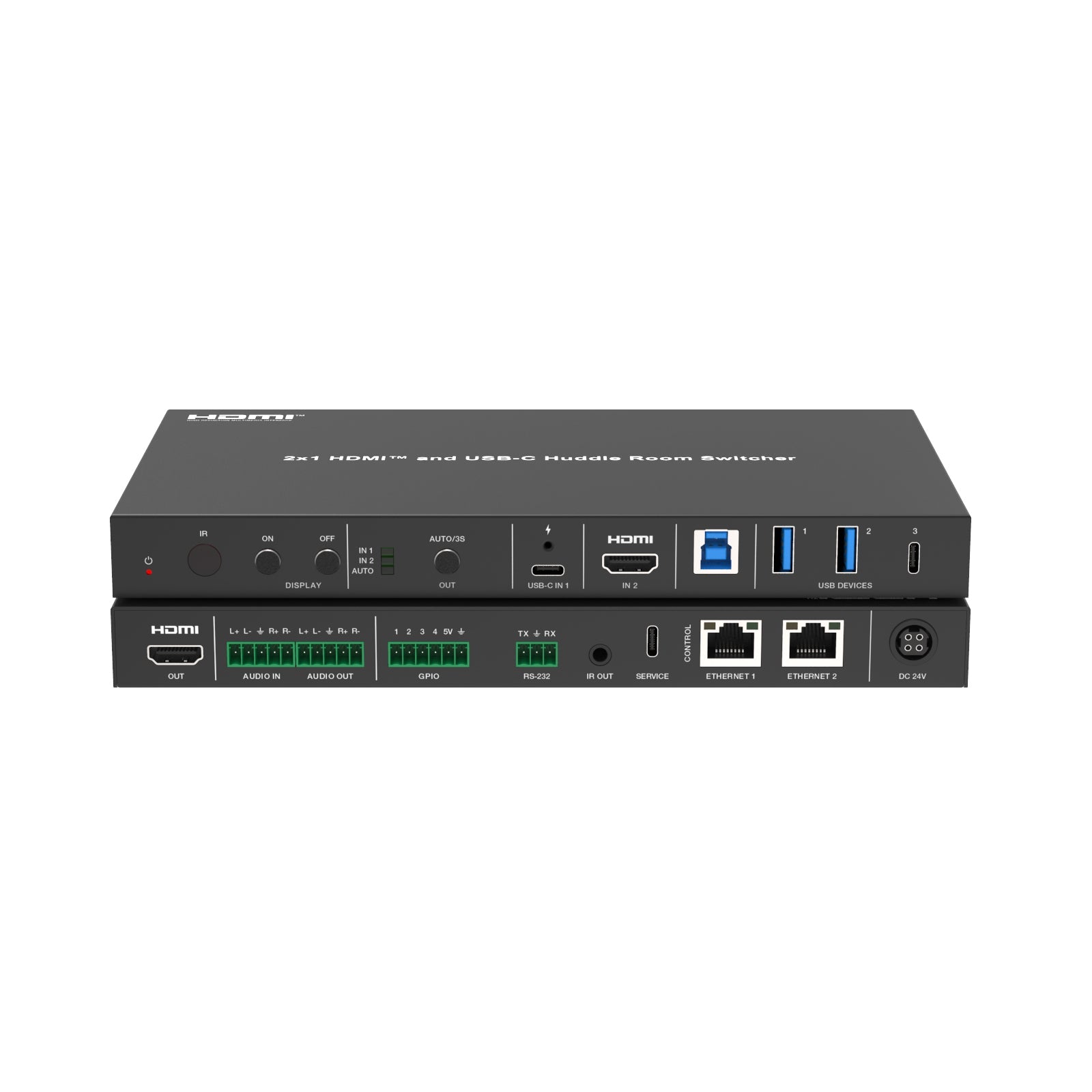

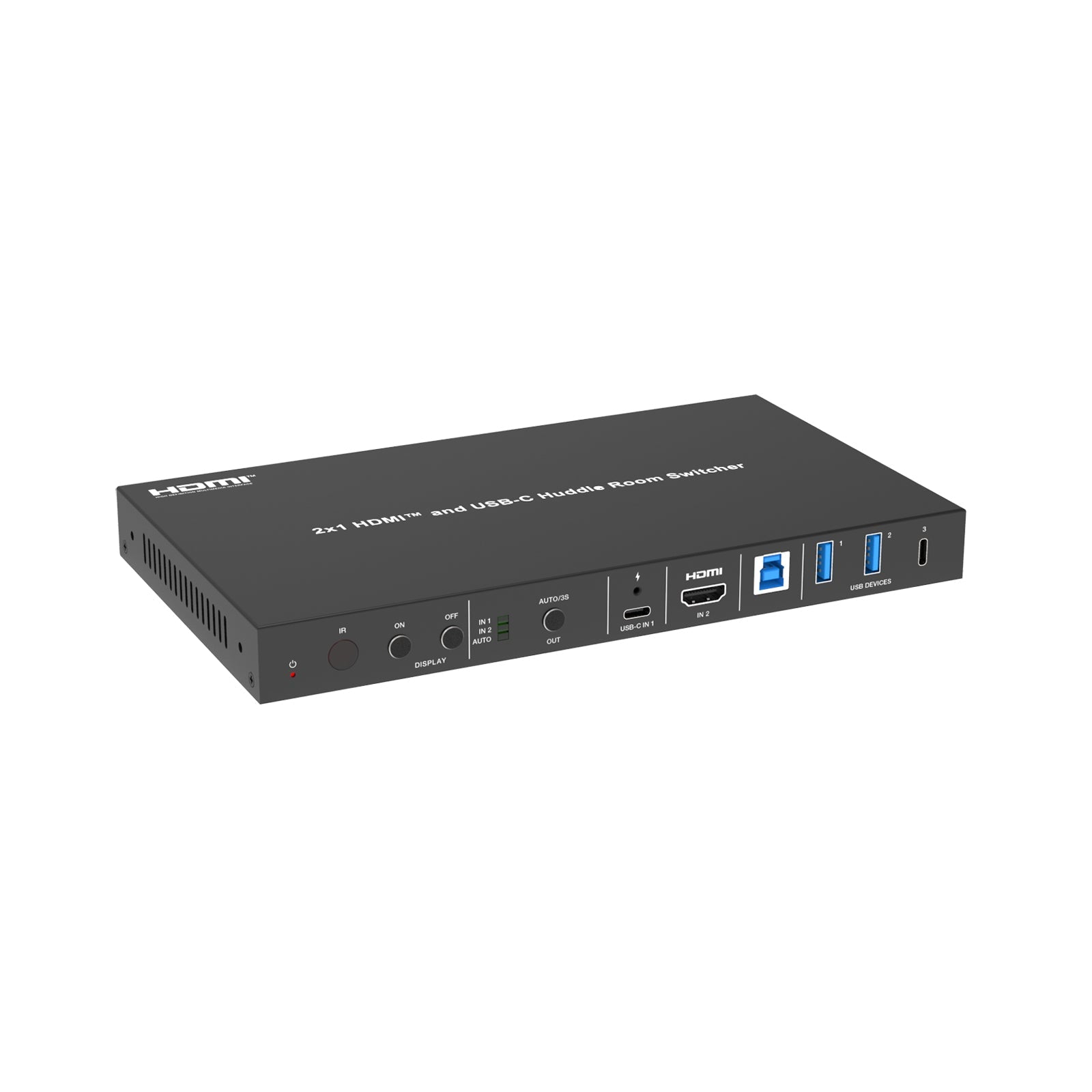

The DVDO USBC-HDMI-PS-21-XL is a 2x1 presentation switcher with 1 HDMI and 1 USB-C inputs, 1 HDMI output, 1 USB Host port, dual Ethernet ports and separate balanced/un-balanced analog audio input and output.
It supports video resolutions up to 4K60 at 18Gbps as well as HDR.
The USB-C input supports DisplayPort 1.4 Alt Mode up to 4K60 video, USB 3.2 Gen 1 up to 5Gbps data transfer, 1G Ethernet and up to 100W charging.
The unit also includes 3 USB 3.2 Gen 1 Device ports (1 USB-C + 2 USB-A) for peripherals such as camera, hard disk, keyboard and mouse that can connect to both inputs and host devices.
It features auto and manual switching as well as auto signal detection.
It can be controlled over TCP/IP, Web GUI, RS232, IR or via the front panel buttons.
Features
• HDMI 2.0b, HDCP 2.3 and DP 1.4a compliant
• 1 x HDMI + 1 x USB-C inputs and 1 HDMI output
• USB-C input supports DP Alt Mode up to 4K60 4:4:4, USB 3.2 Gen 1 (5Gbps), 1G Ethernet and 100W charging
• HDMI input supports video resolutions up to 4K60 4:4:4
• Fast switching including auto and manual switching
• Auto switching with signal detection and 5V detection
• USB 3.2 Gen 1 (5Gbps) host and local hub
• USB 3.2 Gen 1 (5Gbps) device with 5V/1.5A power output
• Balanced/un-balanced analog audio embedding to USB or HDMI audio
• Balanced/un-balanced analog audio de-embedding from USB or HDMI audio
• Advanced EDID management
• User defined welcome screen and no signal display image
• Dual 1G Ethernet ports with 802.1x and VLAN
• IR eye for IR learning and control
• Auto display on/off control
• External device control via CEC/IR/RS232/LAN/GPIO
• Control via front panel buttons, RS232, TCP/IP and Web GUI
