Description

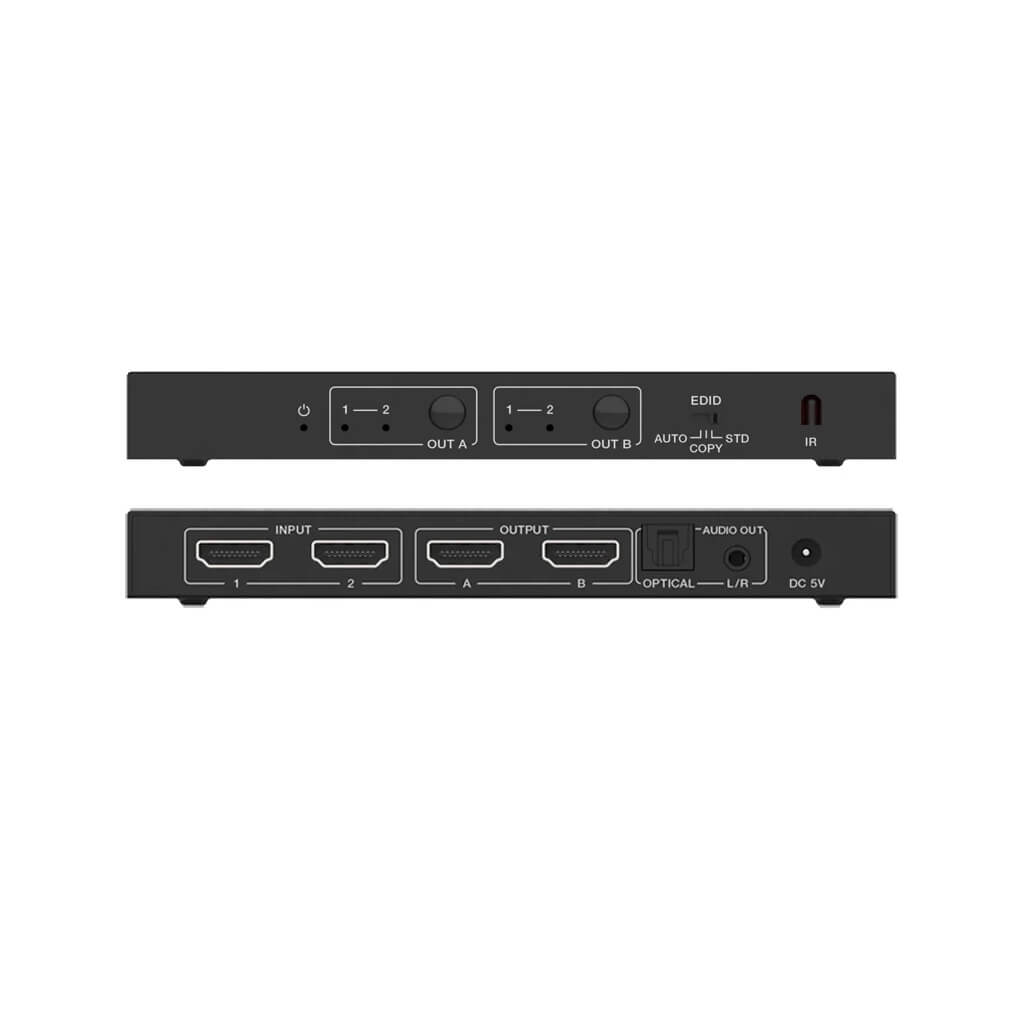

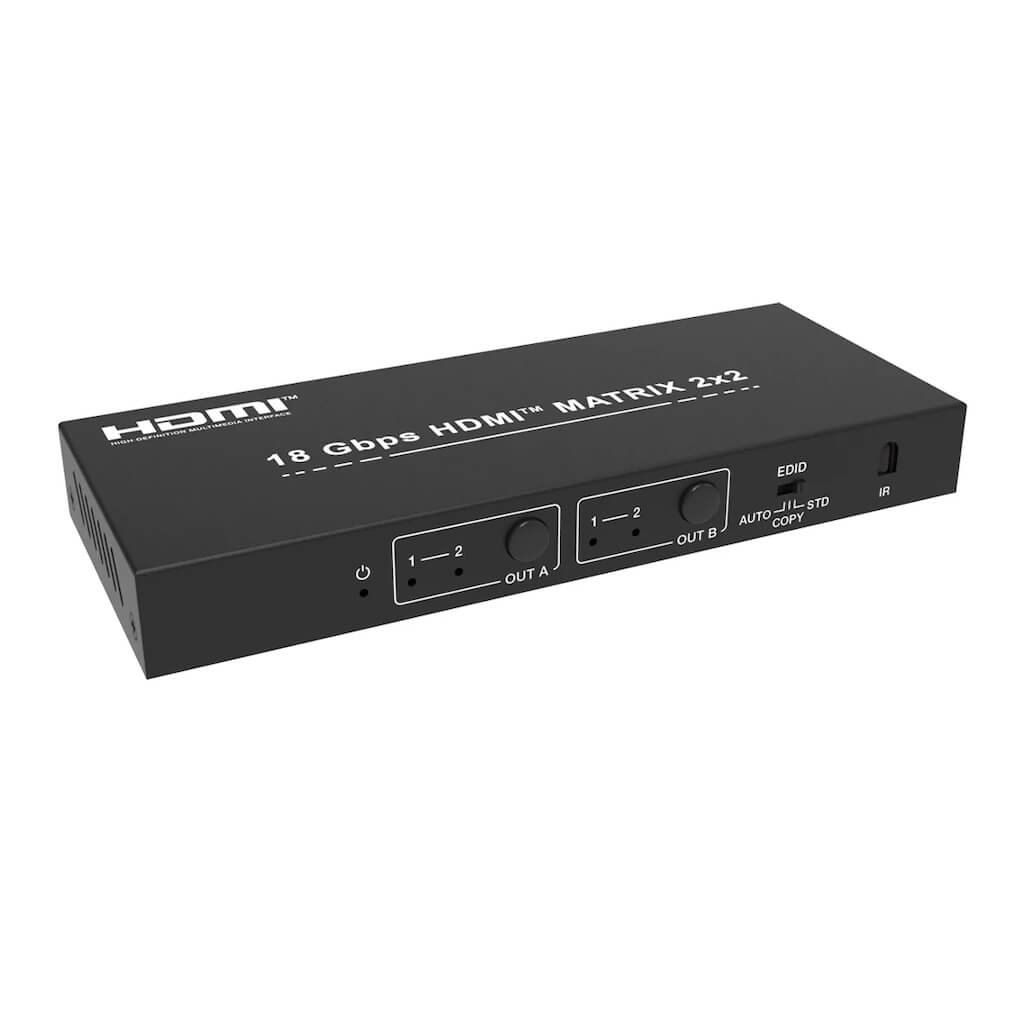

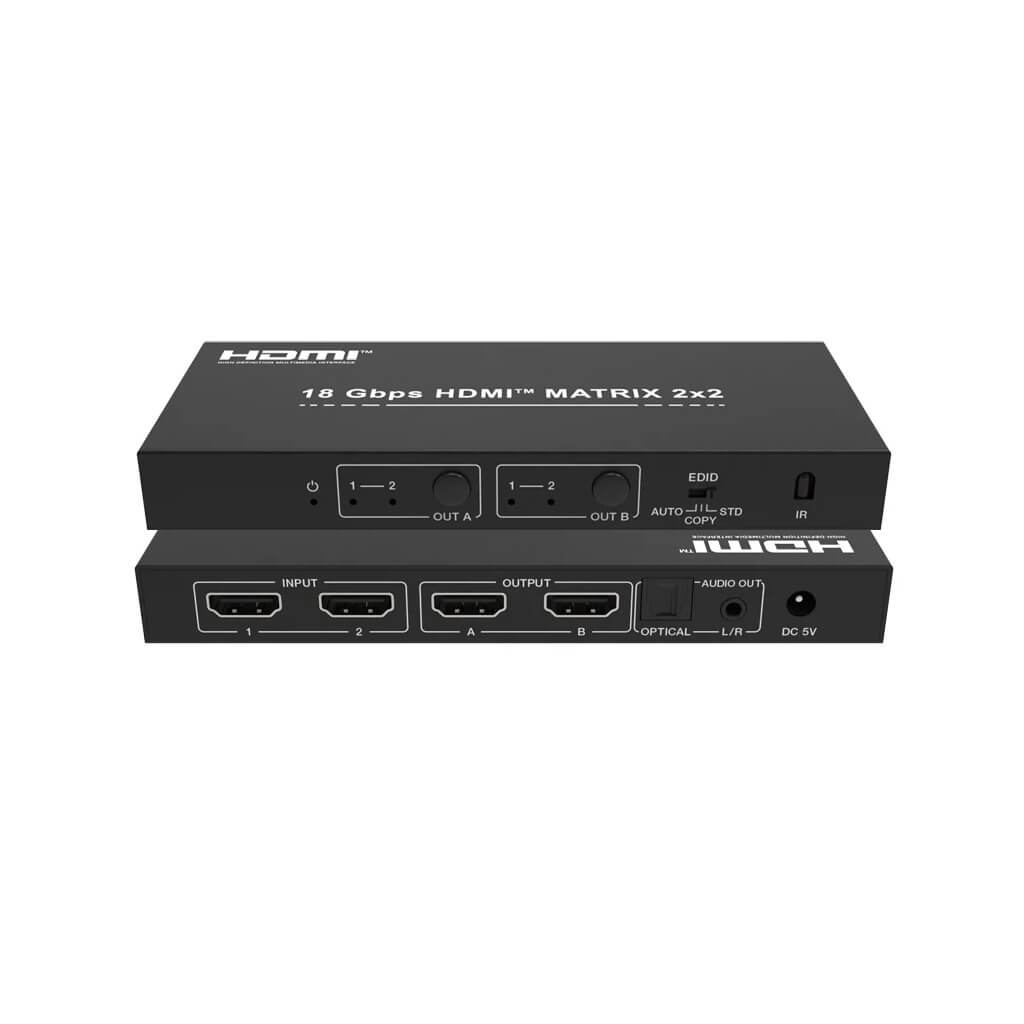

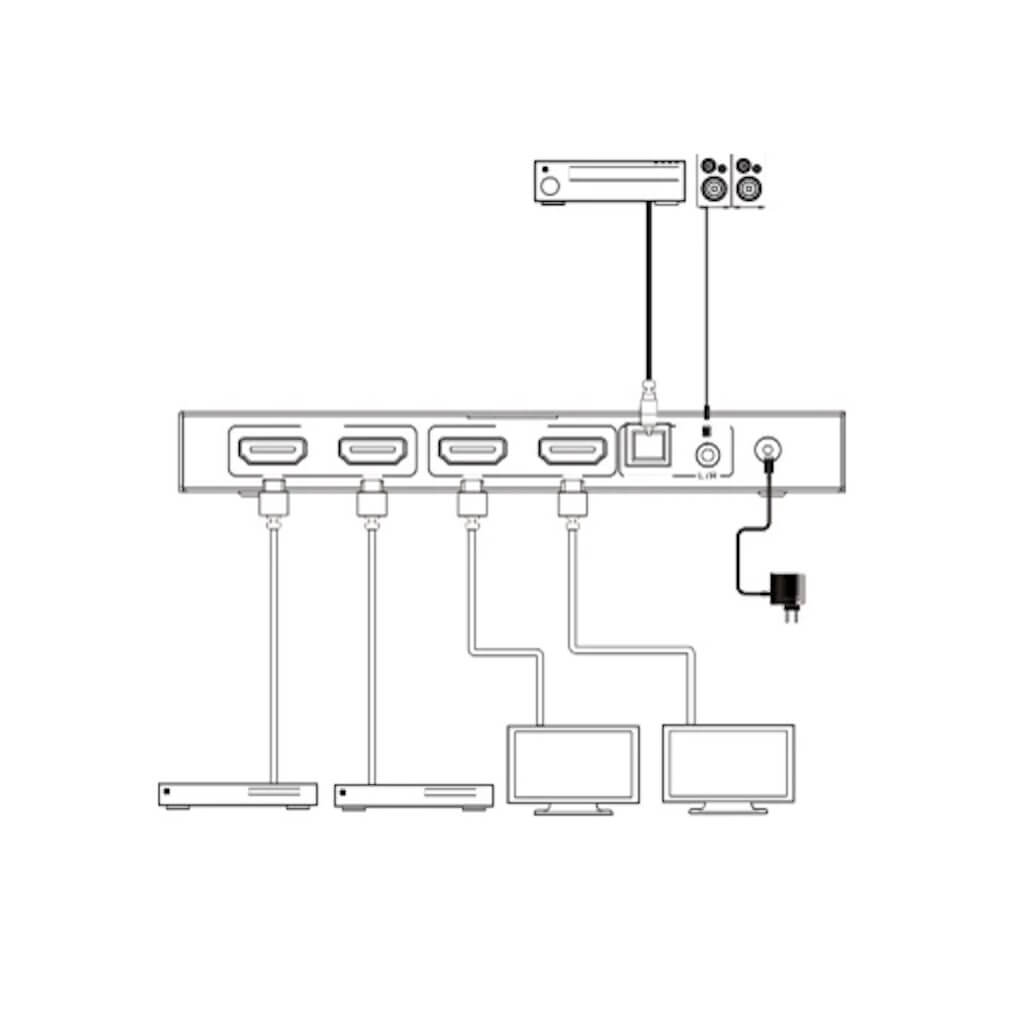

The DVDO Matrix-22 is a compact 2x2 HDMI matrix switcher that allows independent routing of two HDMI sources to two separate displays. It supports video resolutions up to 4K60 4:4:4 with 18Gbps bandwidth, ensuring high-quality signal transmission. The device also features audio de-embedding from HDMI Output A, providing separate optical and analog L/R audio outputs. Additional capabilities include HDR support and flexible EDID management. Control is simple via front panel buttons or the included remote control.
Features
• HDMI 2.0, HDCP 2.2/1.4, DVI 1.0
• Video resolutions up to 4K2K@50/60Hz (YUV 4:4:4)
• Supports 18Gbps video bandwidth
• Audio de-embed from HDMI Output A with separate optical and analog L/R outputs
• Analog audio formats: PCM 2.0
• Digital optical audio formats: LPCM2.0/2.1CH, Dolby 5.1, Dolby True HD, Dolby DD+, DTS 5.1, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
• Supports Dolby Vision, HDR and HDR 10+
• EDID management (AUTO/COPY/STD)
• Control via front panel buttons and IR remote control
• Compact design for easy and flexible installation
