Description

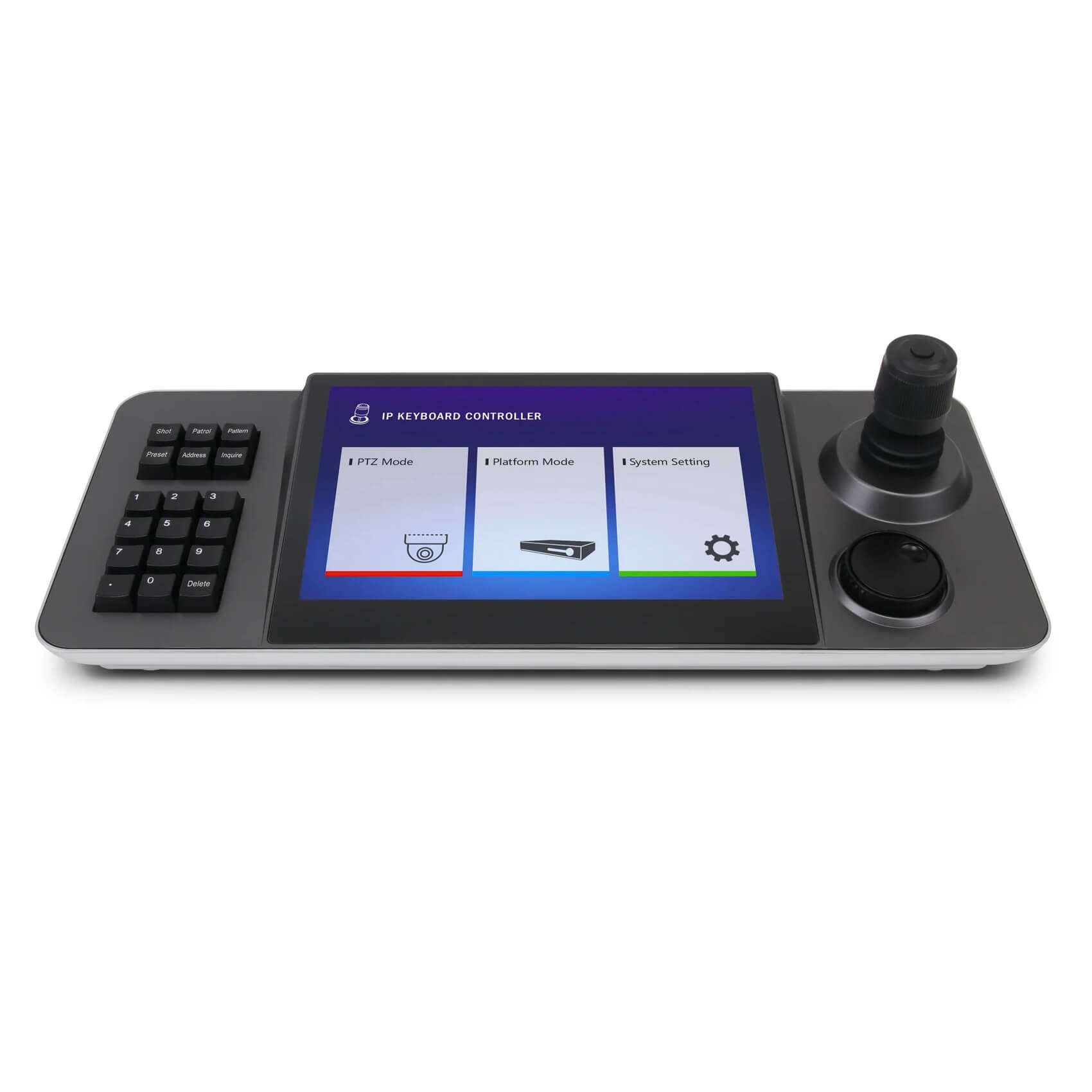

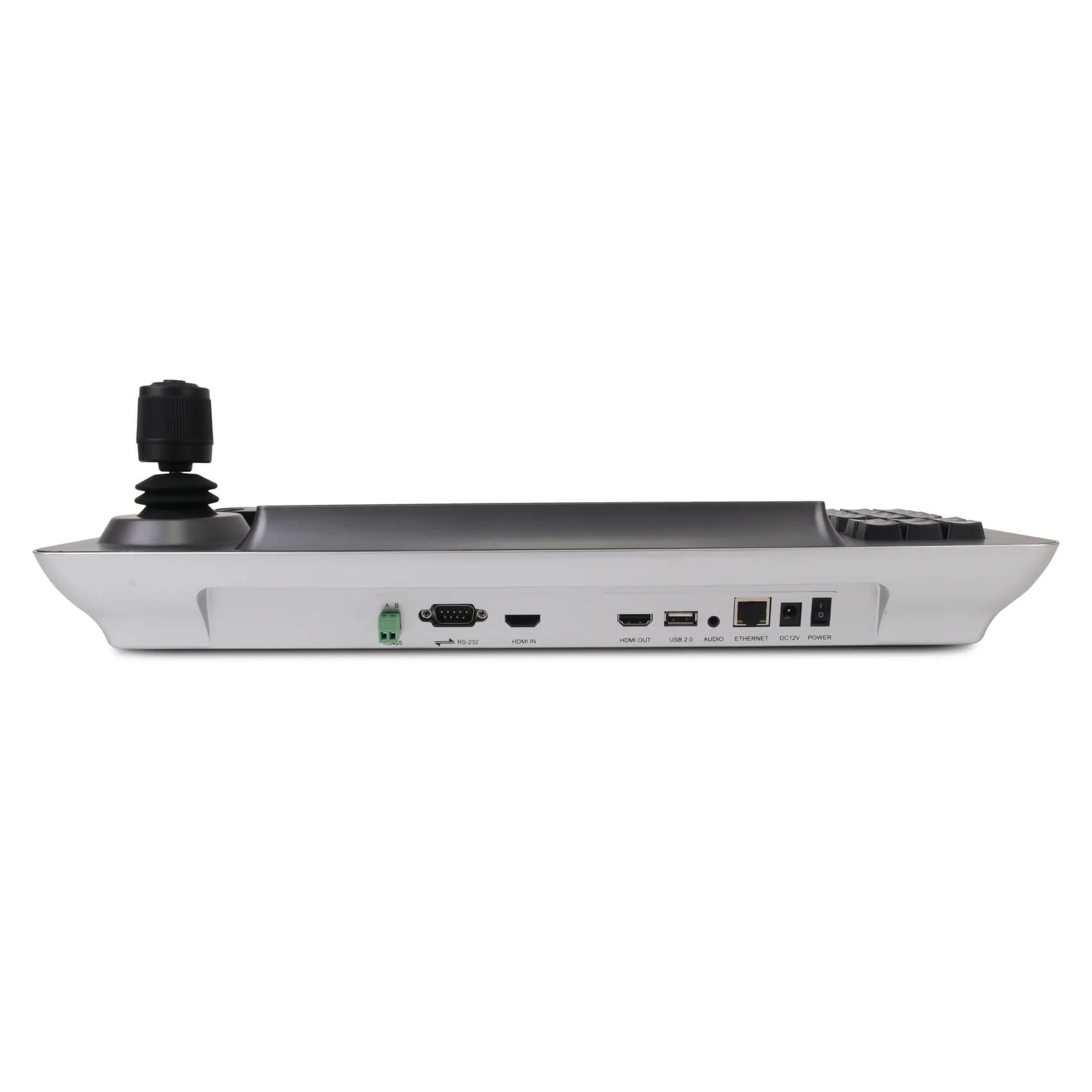

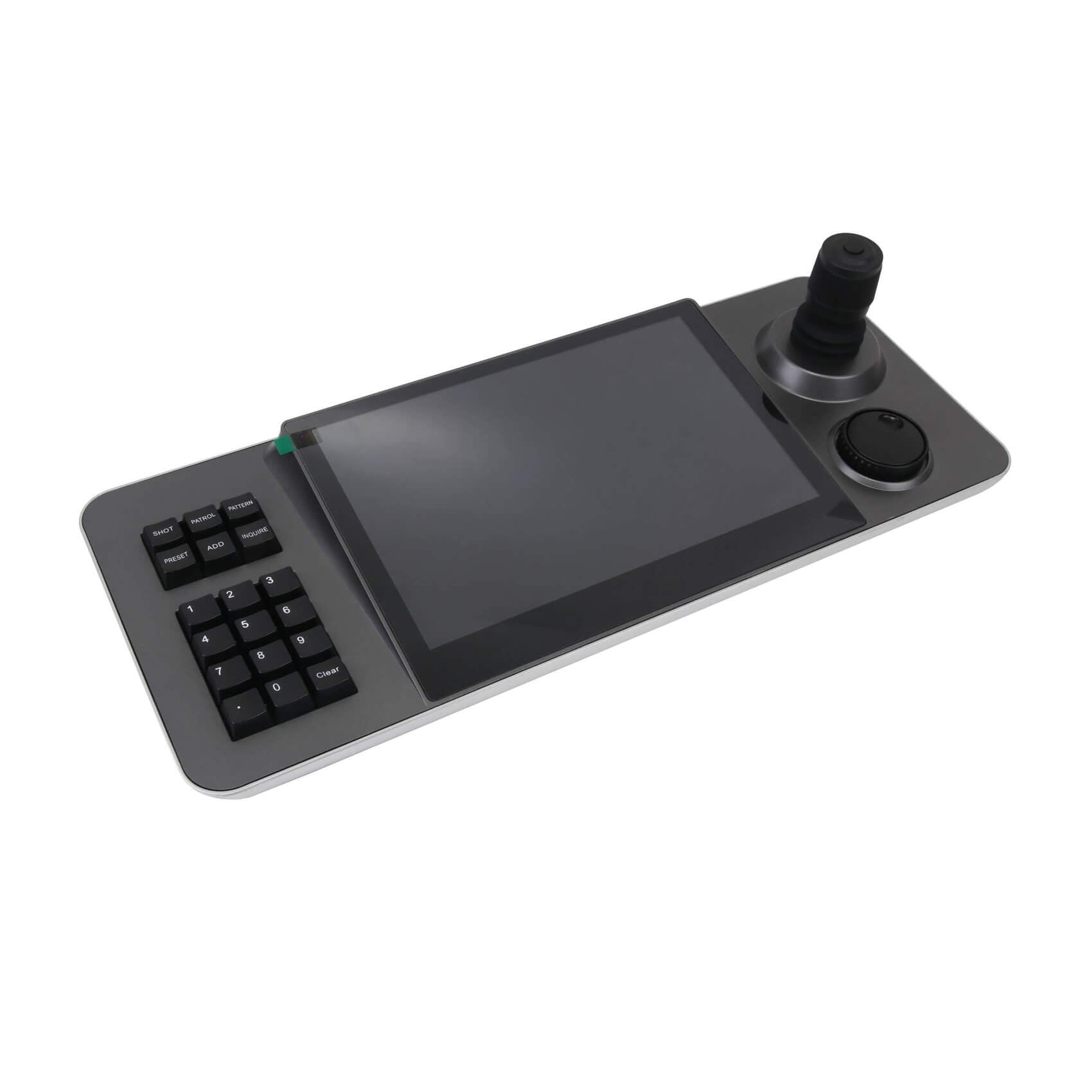

The DVDO Camera-Ctl-1 is a network based PTZ camera controller that features a 10.1-inch capacitive touch screen and an intuitive user interface. The touch screen provides real-time previews from camera feeds, and the system can output the image to an external display via HDMI. It supports single viewing of H.265 4K@30fps or H.264 1080p@60fps; and 4-channel 720p@30fps. The Camera-Ctl-1 includes a joystick for PTZ control and is suitable for unified control where multiple network cameras are installed such as schools, hospitals, hotels, businesses, etc.
Features
• 10.1-inch capacitive touch screen
• Android 6.0 operating system
• H.265/H.264 decoding, up to 4 screen partitions
• Supports viewing images on the touch screen or external display via HDMI
• Network access to full range of PTZ cameras
• PTZ control, preset, cruise, track setting and recall
• Supports ONVIF, Pelco-D, Pelco-P and Visca protocols
• Controls up to 1024 cameras
• Supports external mouse
