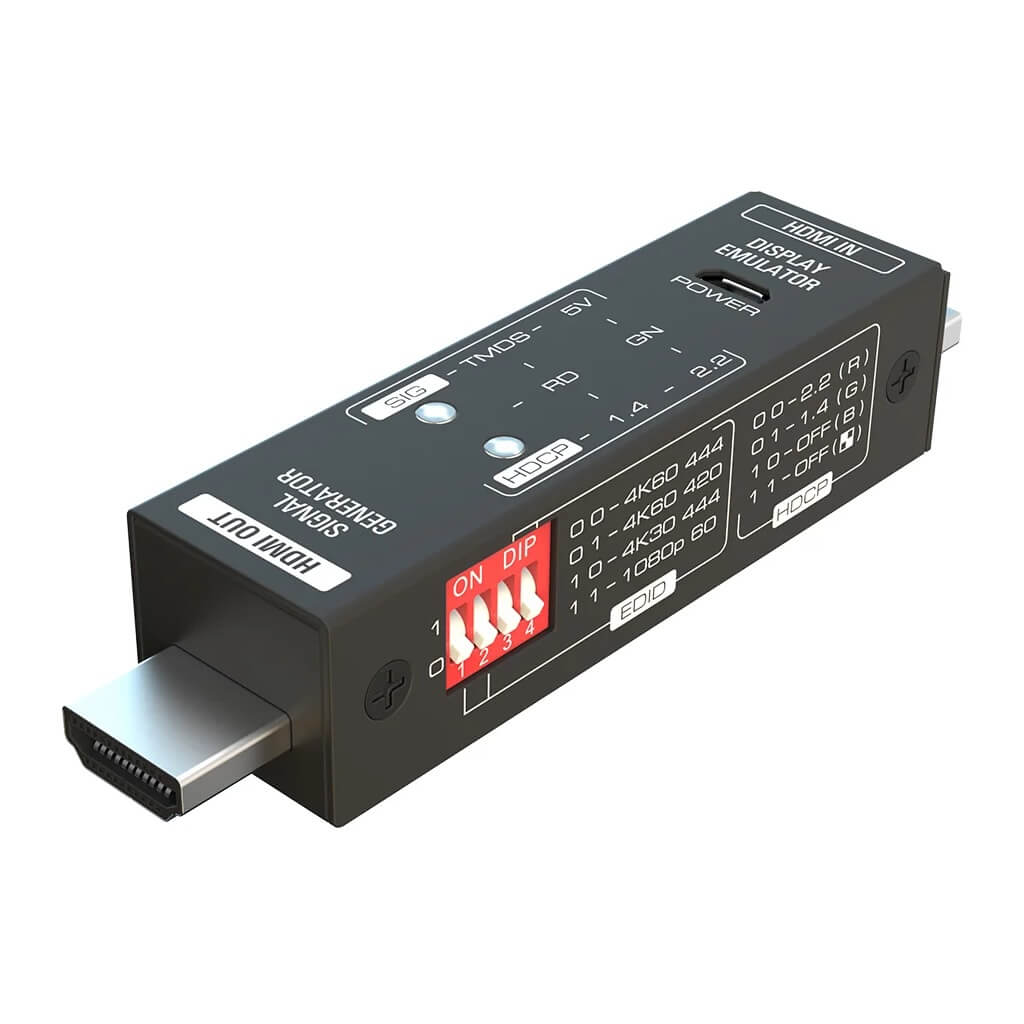

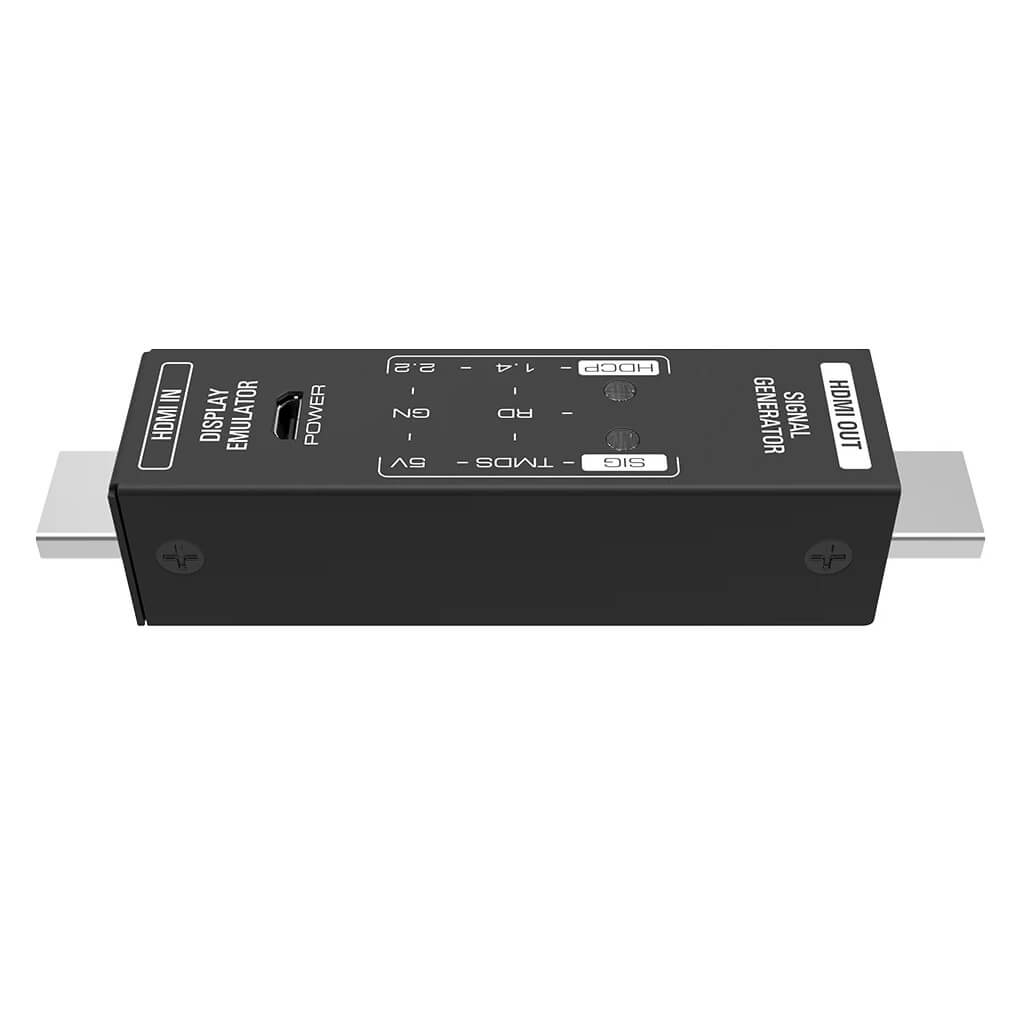

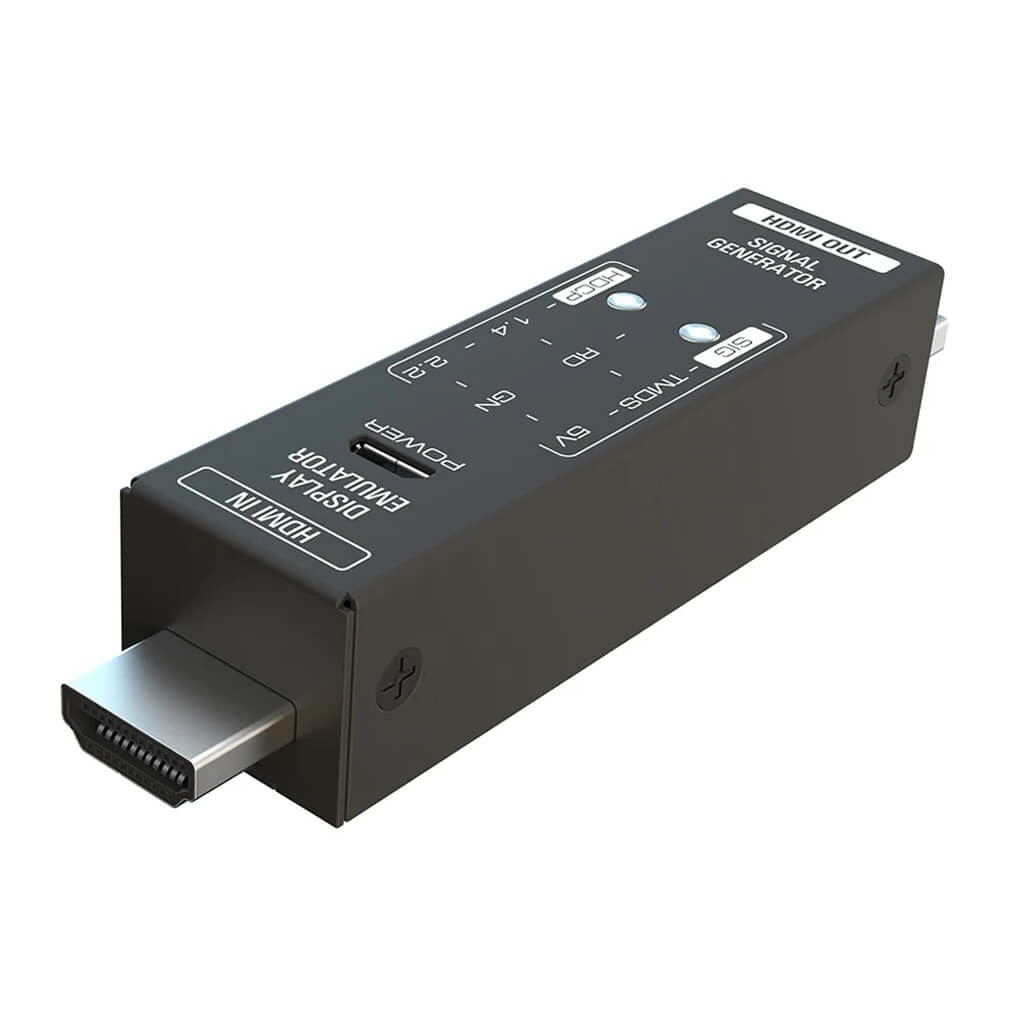

The DVDO 4KSGA-1 is a compact 4K HDMI signal generator and analyzer designed to test HDMI compatibility for both source and display devices. It supports resolutions up to 4K60 4:4:4 at 18 Gbps. When acting as a signal generator, its HDMI output can connect to a display to produce various video resolutions and HDCP configurations, enabling verification of the display’s capabilities. As a display emulator, its HDMI input connects to a video source to analyze the incoming HDMI signal, including HDCP status and signal parameters such as 5V and TMDS. The device features a 4-pin DIP switch for selecting video resolution and HDCP mode in signal generator mode, along with LED indicators to display HDCP and signal status during display emulation.
Features
• HDMI 2.0/HDCP 2.2 compliant, supports resolutions up to 4K60 4:4:4 at 18Gbps

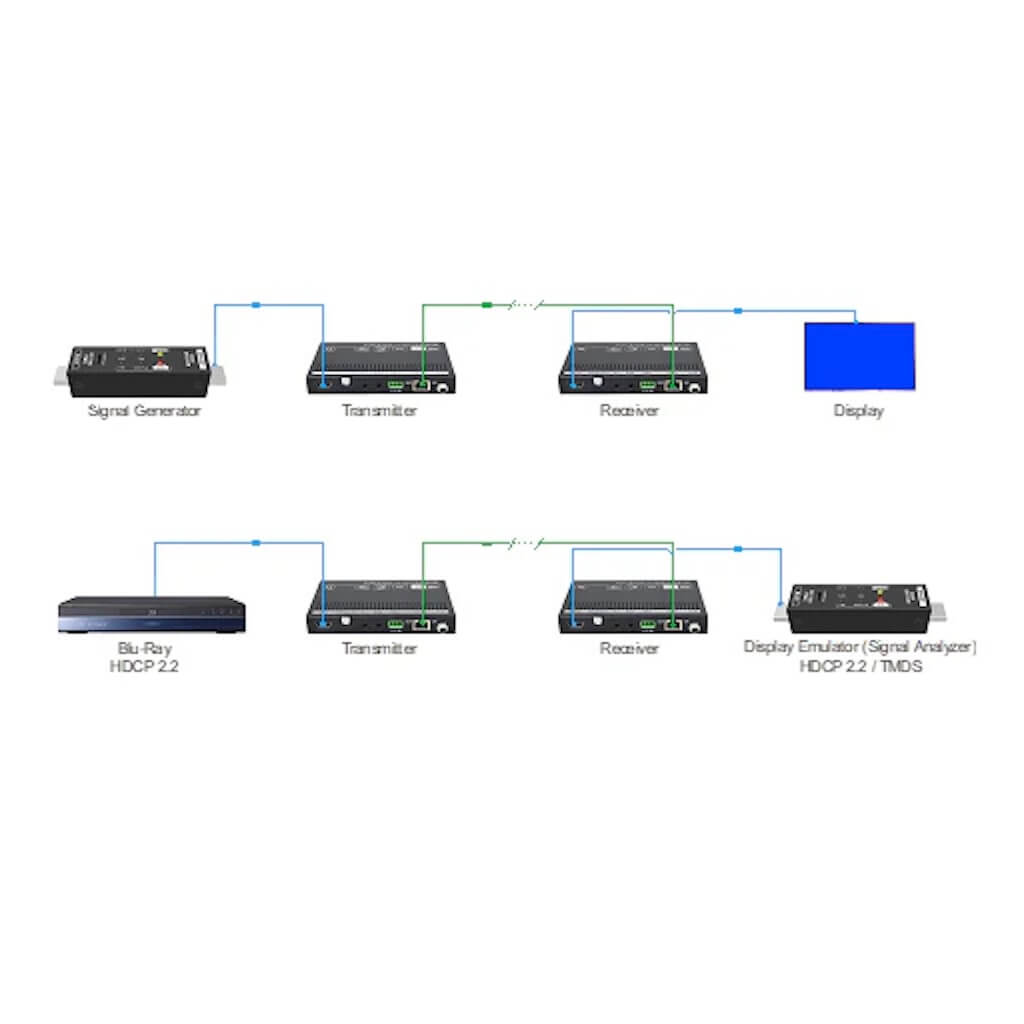

• 2 modes: signal generator through HDMI output and display emulator through HDMI
• Plug and play, no software or cables needed
• Extremely compact design
Signal Generator Mode

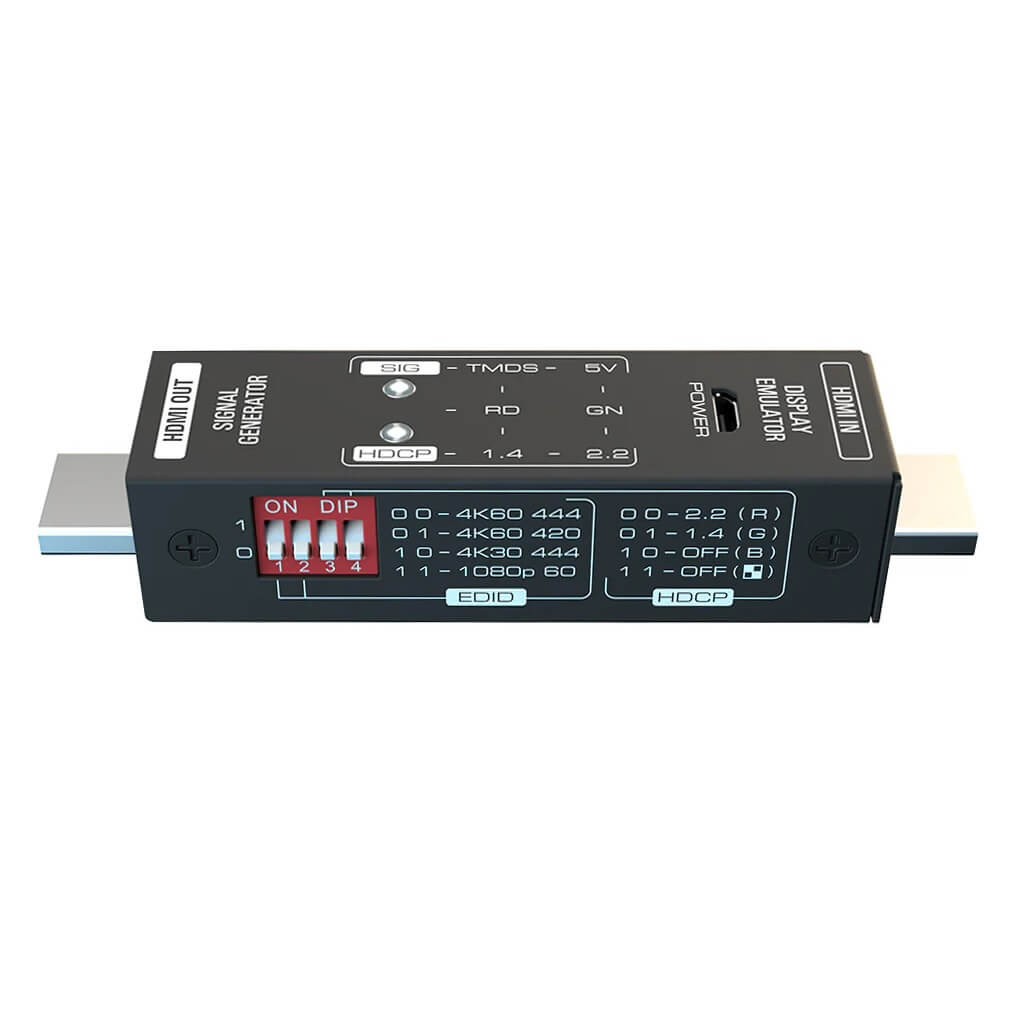

• Selectable video resolutions and HDCP modes with 4-pin DIP
• Output resolutions: 4K@60Hz 4:4:4, 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, or 1080p@60Hz
• HDCP modes: OFF, HDCP 1.4 or HDCP 2.2
• USB powered when in signal generator mode
Display Emulator Mode
• 2 LED indicators for signal link and HDCP status
• Powered by HDMI source when in display emulator mode
