DiGiCo Multi-channel Interface (DMI) cards allow you to create audio paths over your interface of choice. They are compatible with the Klang Konductor and the DiGiCo Orange Box DMI slots.
The Klang Konductor is equipped with three DMI slots, which provide unrivaled IO freedom and guarantee flawless integration into any setup. Paired with the included single channel routing capabilities, it also allows the user to freely route between the immersive mix engine and convert between different DMI formats, e.g. Optocore, Dante or MADI, with each DMI card offering up to 64 input and output channels at both 48kHz and 96kHz.

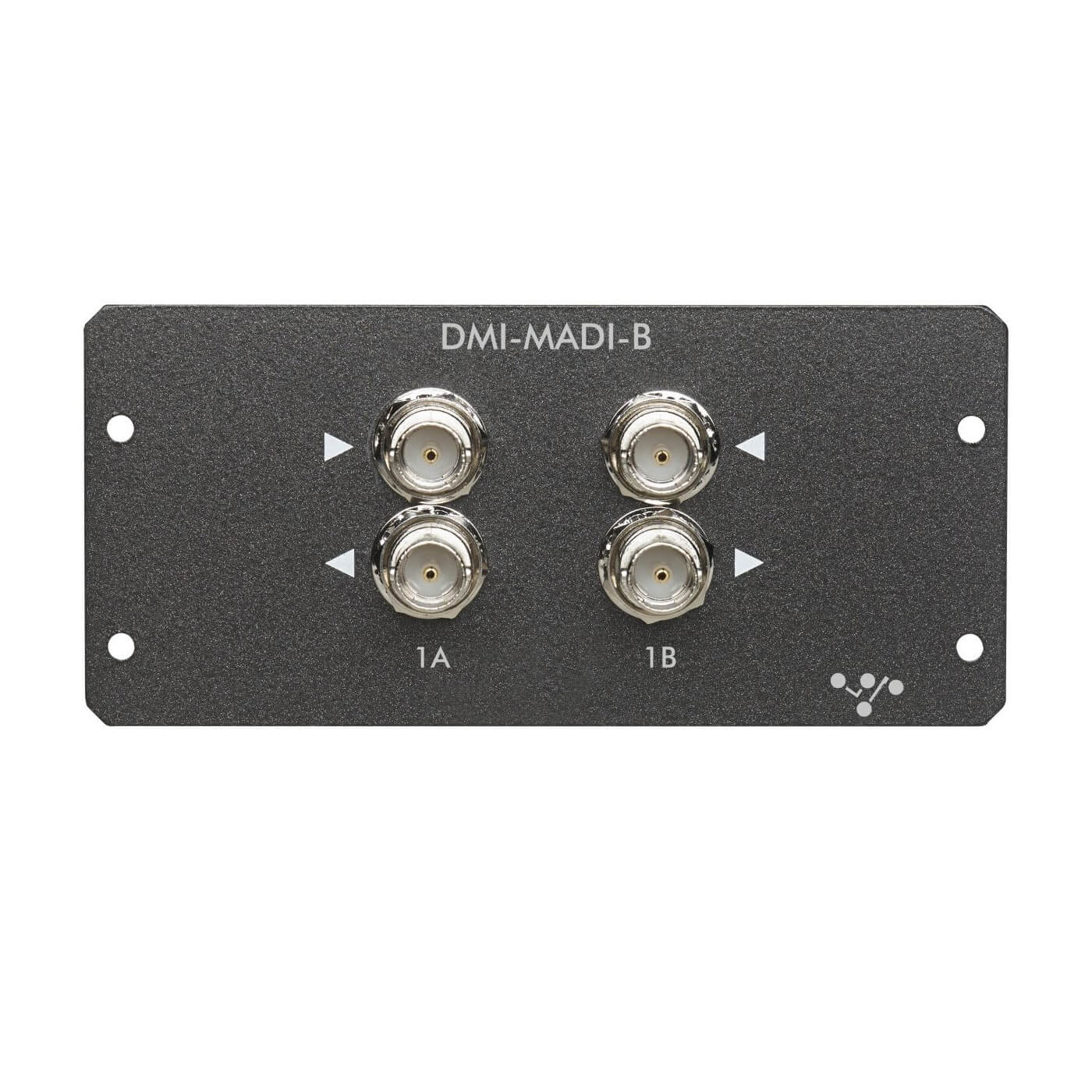

The DMI-MADI-B card can be used to connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D2-Rack, SD-Rack, SD-MINIRack).

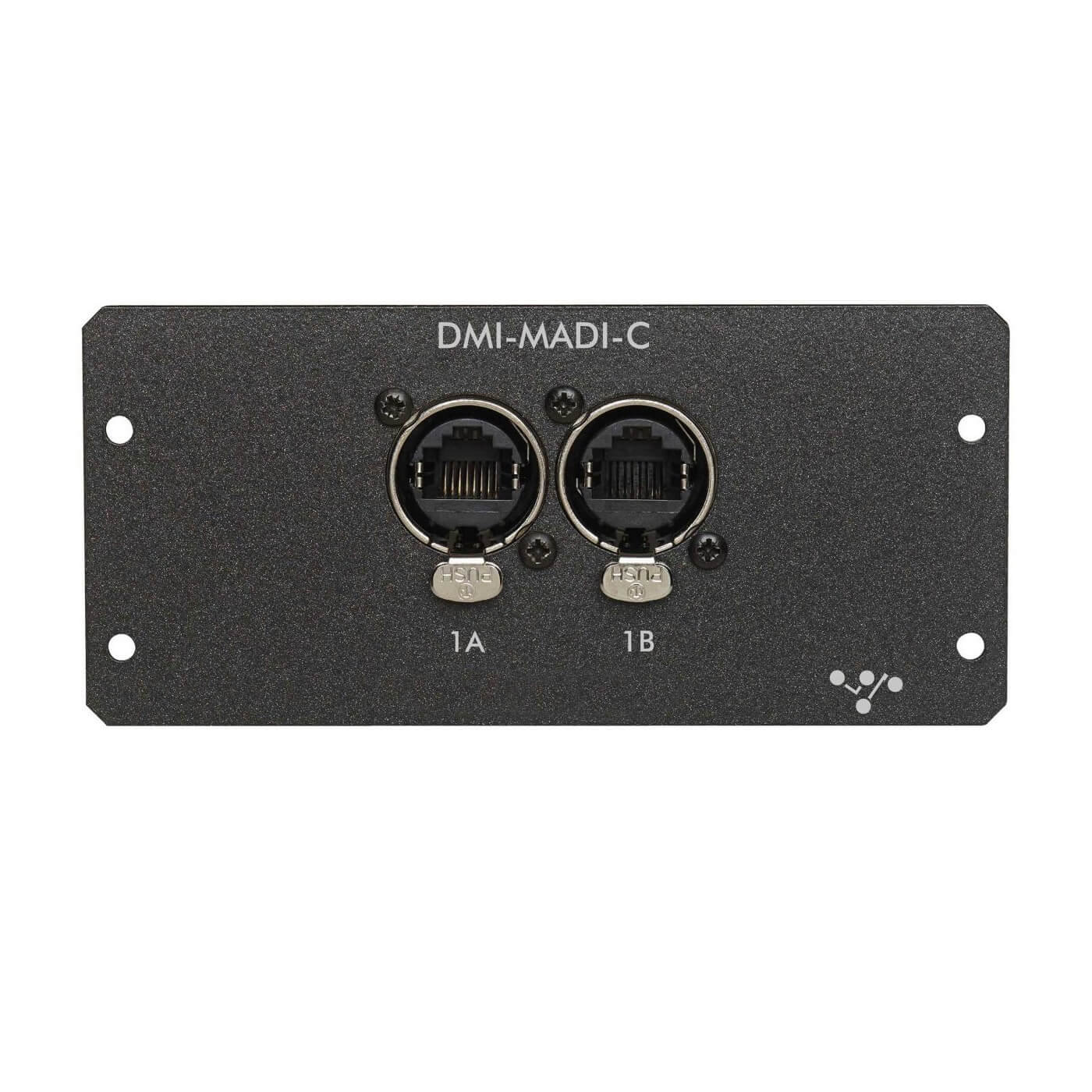

The DMI-MADI-C card can be used to connect another DiGiCo device that uses RJ45 Standard MADI (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D-Rack, D2-Rack).

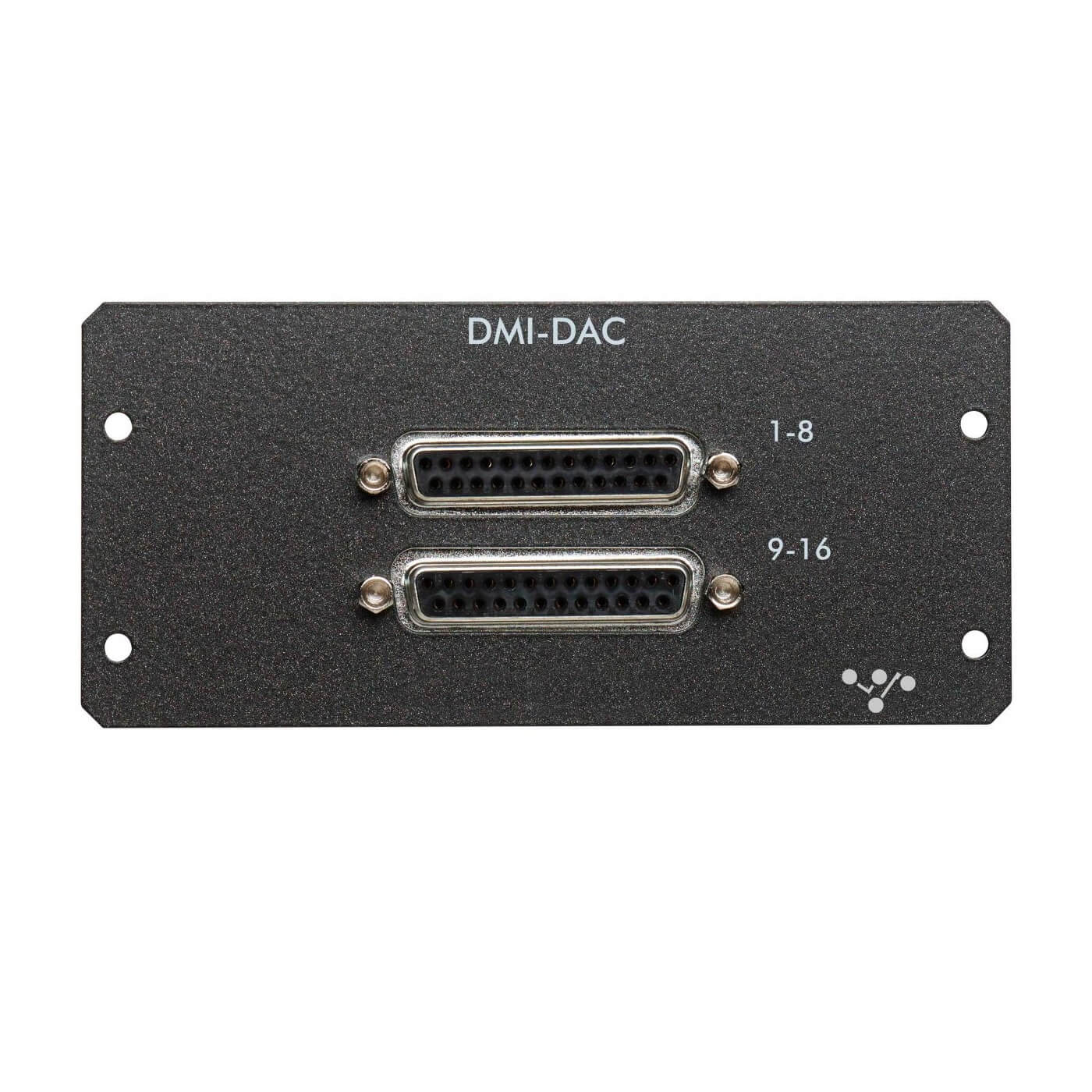

The DMI-DAC card provides 16 analog outputs on 2 x 25 way “D” connectors DAC card is line level only. Maximum output level +22dBu (Digital Full Scale).

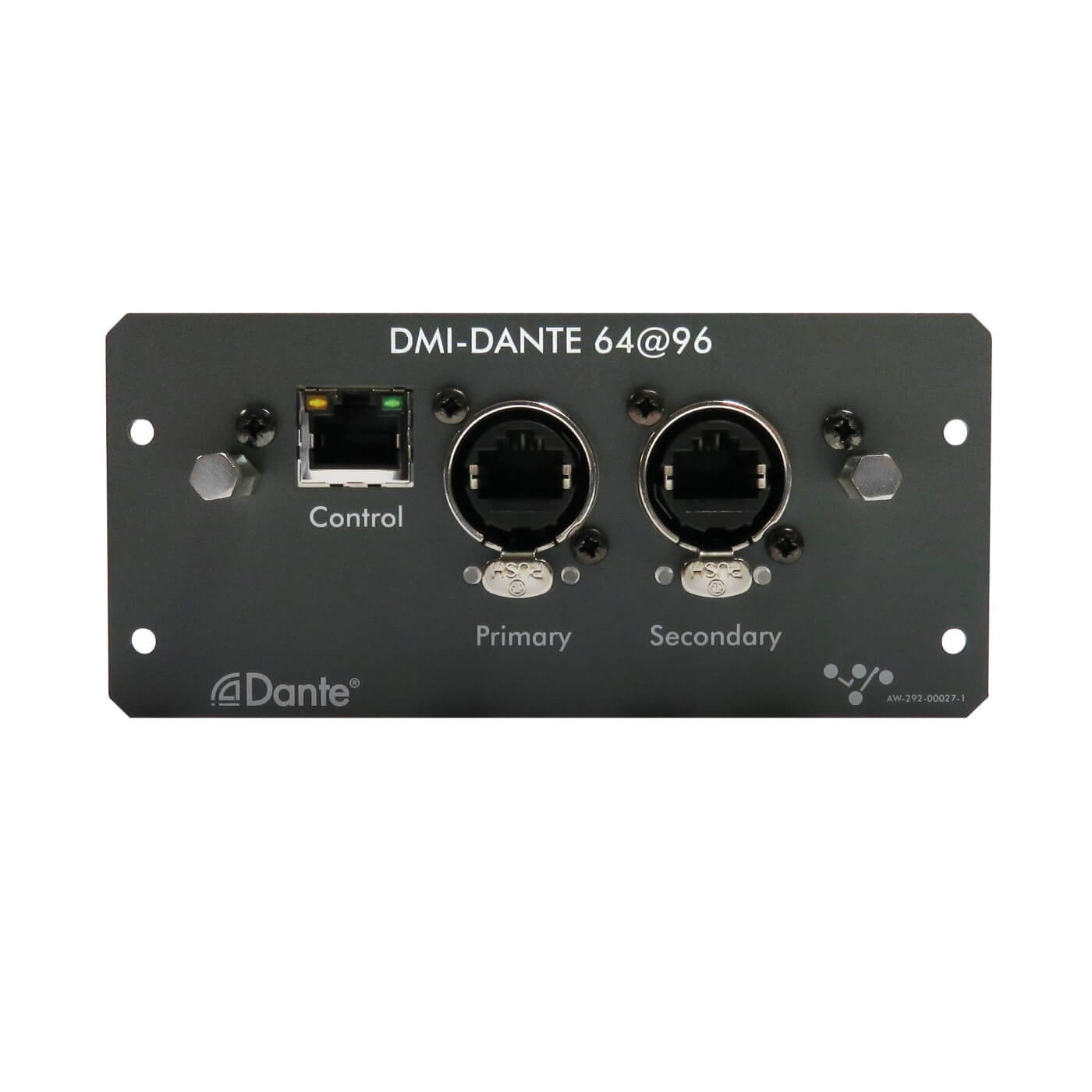

The DMI-DANTE2 card provides 64 inputs and 64 outputs to the Dante network at both 48kHz and 96kHz.

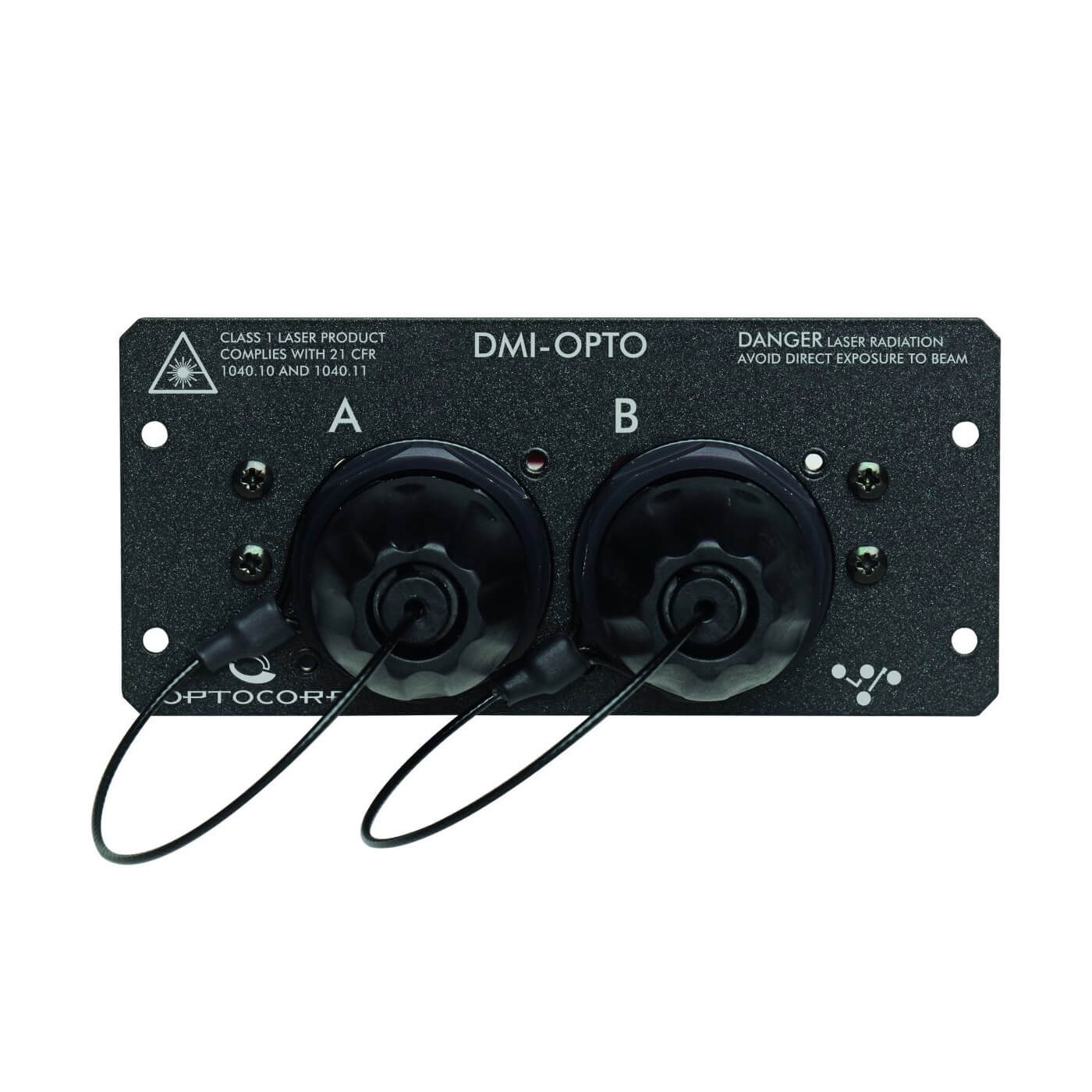

The DMI-OPTO card allows Optocore audio over HMA, OpticalCon or ST connectors.
