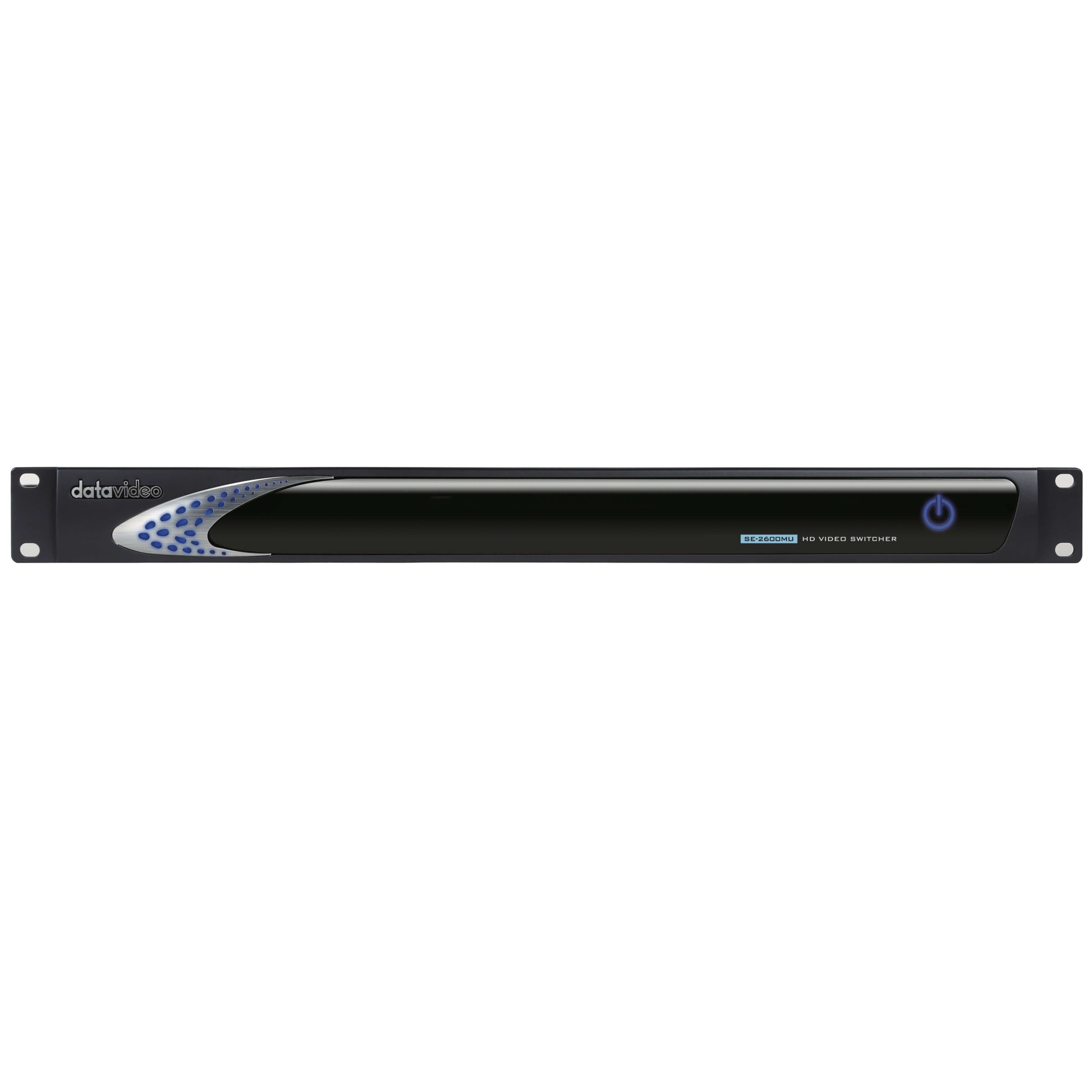

The DataVideo SE-2600MU Rackmount HD Digital Video Switcher is a versatile and powerful 8-input installation switcher, ideal for various AV application environments such as corporate conference rooms or school classrooms. Supporting 1080p/60 (3G) High Definition video resolution, it offers a mix of 4x 3G-SDI and 4x HDMI inputs, along with 6 outputs including 3x 3G-SDI and 3x HDMI. It also features advanced effects like Chroma Keyers, Luma Key, DSK, PIP, and DVE.
Additionally, it supports audio integration, logo insertion, title overlays, and offers a variety of transitions for a sophisticated production experience.
Features
• 1U rack-mounted installation switcher without a physical keyboard
• Connect and control through the network or via RS-232/422
• Full HD 1080p signals on input and output

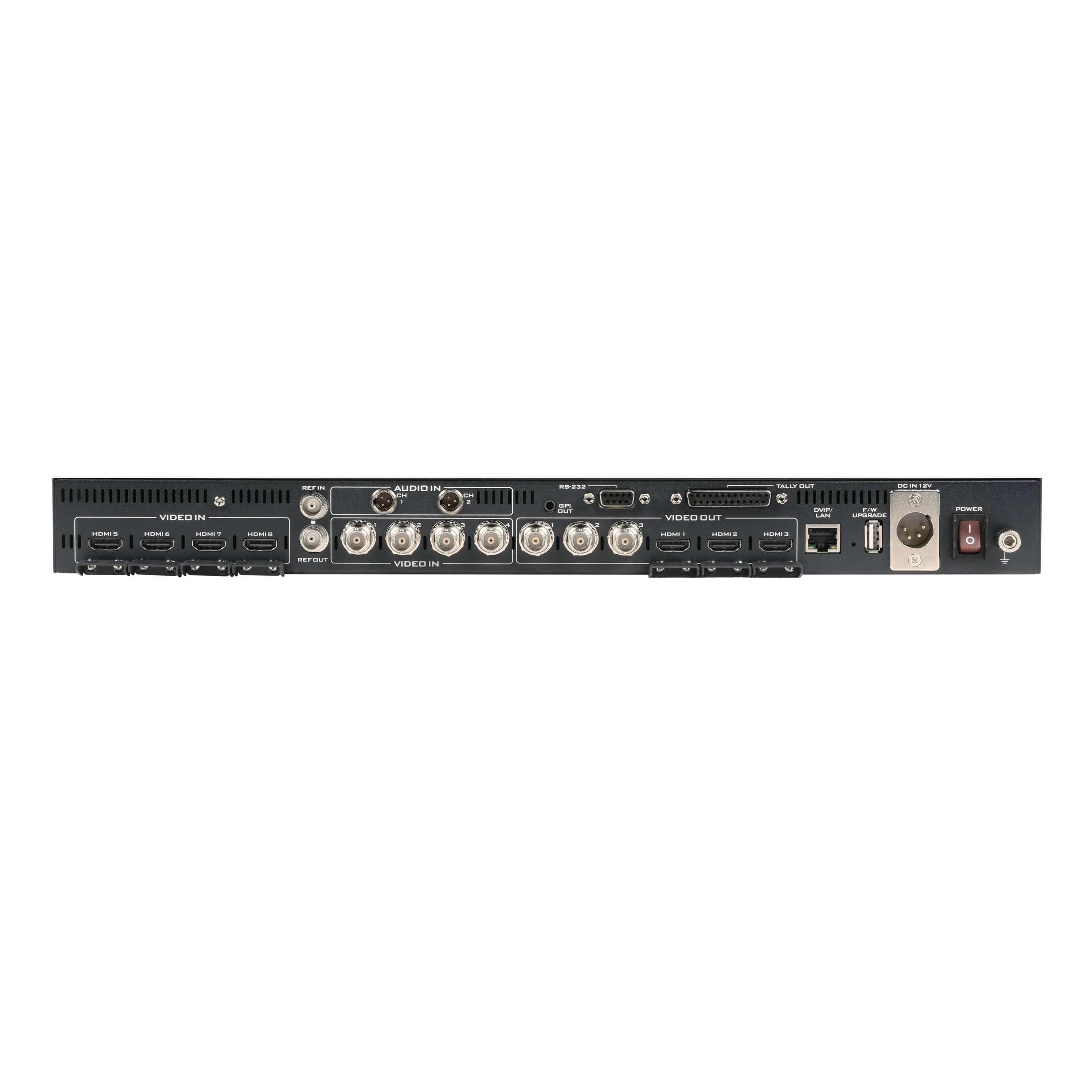

• 8 live channels: 4x 3G-SDI and 4x HDMI
• 6 outputs: 3x 3G-SDI and 3x HDMI
• Support 1080p SDI input Level A/B
• 2x audio XLR Combo Sockets
• Each output can be used as an AUX designated output signal
• 4x Upstream Keyers and 2x Downstream Keyers
• 4x Picture-in-Picture
• Built-in title overlay system
• 2 Logo insertion (Animation logo, X/Y size)
• Any Input (1-8) can be used as a Frame store (Stills Store)
• Crosspoint assignment (XPT)
• Wipe, Mix, DVE, Cut and Stinger Transitions
• Tally output
• Analog Gen-Lock (supports Black Burst and Tri Level cross reference)
