Description

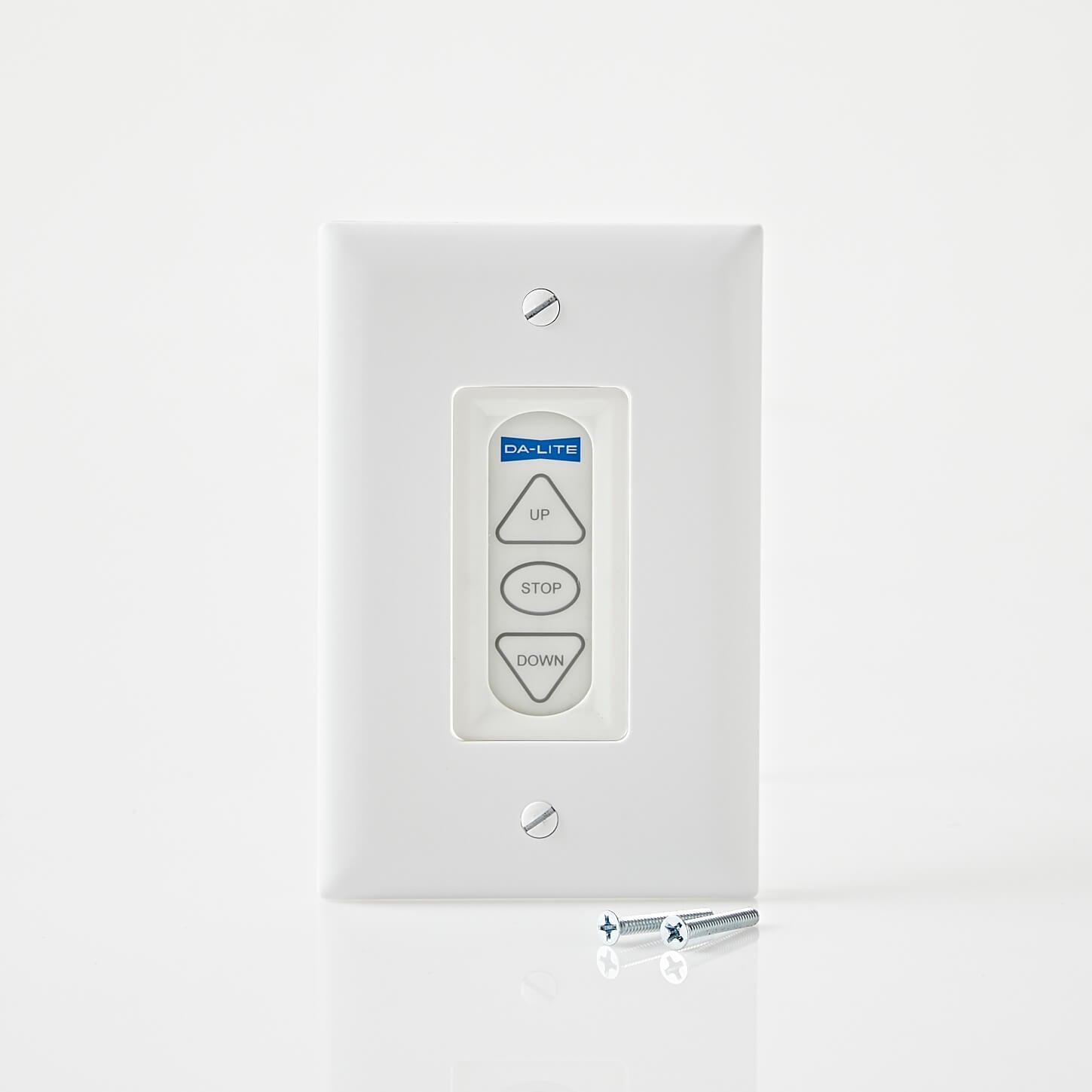

The Da-Lite DL16622 is an additional or replacement smart low voltage wall switch for screens that use the Da-Lite Smart motor shipped 12/11/2023 or later.
Features

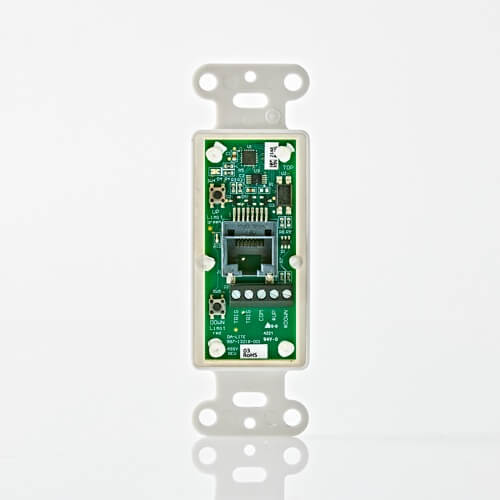

• Motor limit settings located on back of wall switch

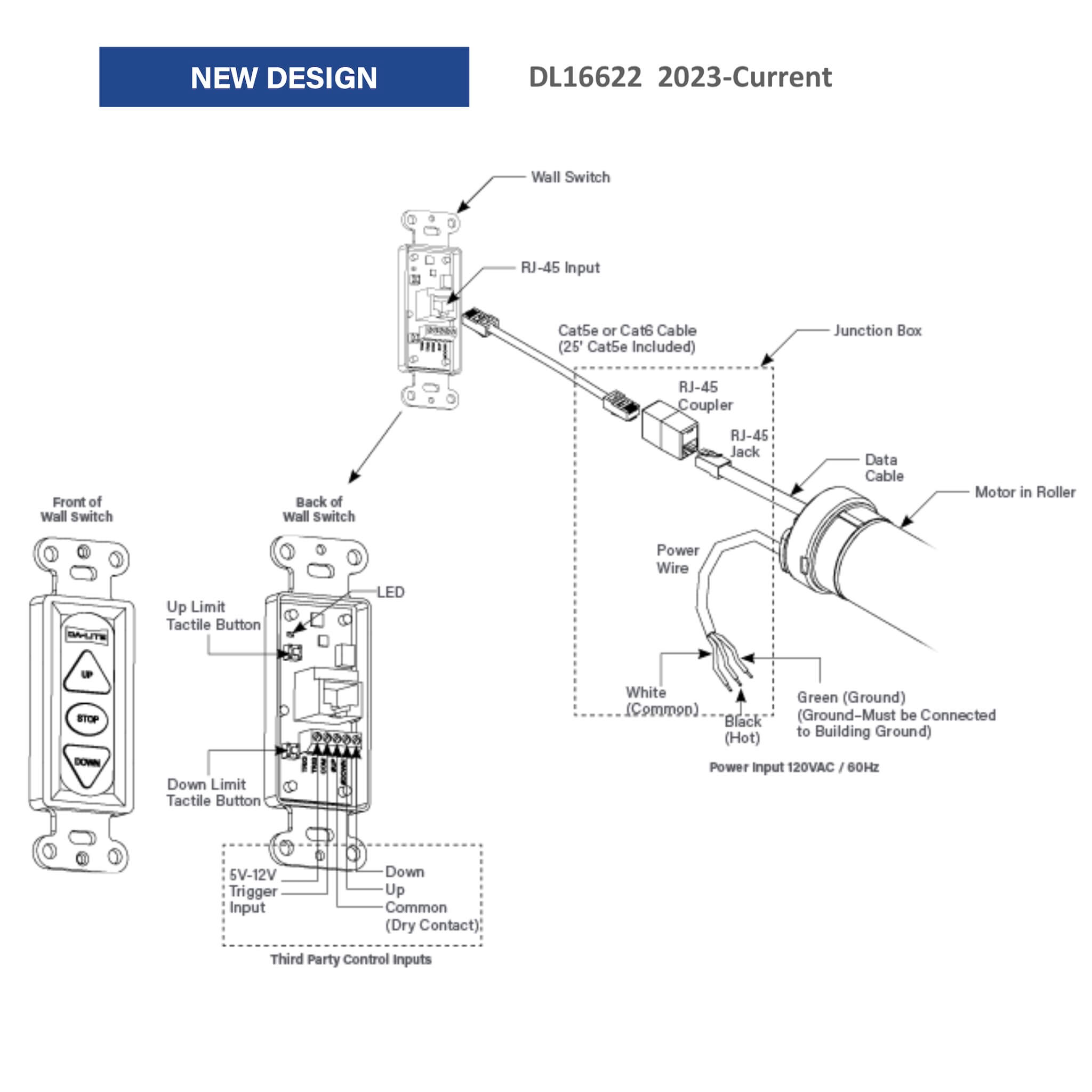

• Ethernet RJ-45 port to connect either directly to the screen or through the Screen Controller accessory using standard Cat5e or Cat6 cables
• Third-party control connections; Dry contact interface, Projector trigger (5-12V)
• Only one smart wall switch can be used per screen, or two switches through the Screen Controller accessory
• Multiple low voltage wall switches can be added by using the 40975 low voltage wall switch and wiring them in series to the dry contact connections on the back of the DL16622 smart wall switch
Compatible Products (tensioned and non-tensioned)
• Advantage
• Advantage with SightLine
• Contour Electrol
• Cosmopolitan Series with Optional Built-In LVC
