ClearSonic MP - MegaPac Drum Isolation Booth Package

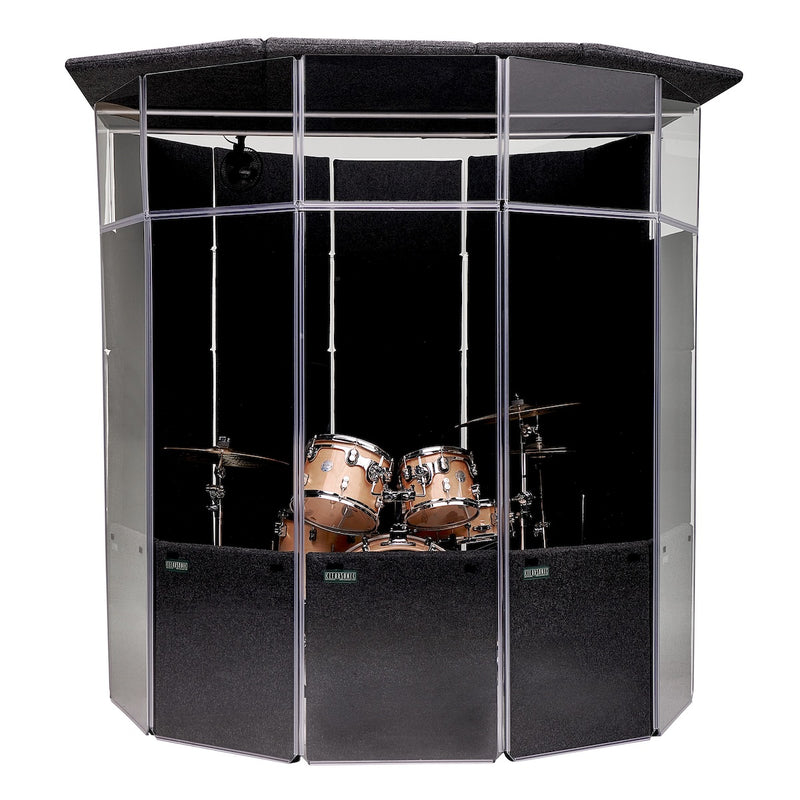

The ClearSonic MP MegaPac is one of the most complete drum isolation solutions available, built for teams that need serious volume control without banishing the drummer to another room. Measuring 7 feet wide, 8 feet deep, and 7 feet tall, this booth surrounds a full-size drum kit with 360 degrees of acrylic drum shield and adds a heavy dose of Sorber sound absorption to tame reflections and reduce overall volume. The result is up to a 60 to 70 percent reduction in drum sound reaching the room, which is a meaningful difference in a worship space, theater, or studio.

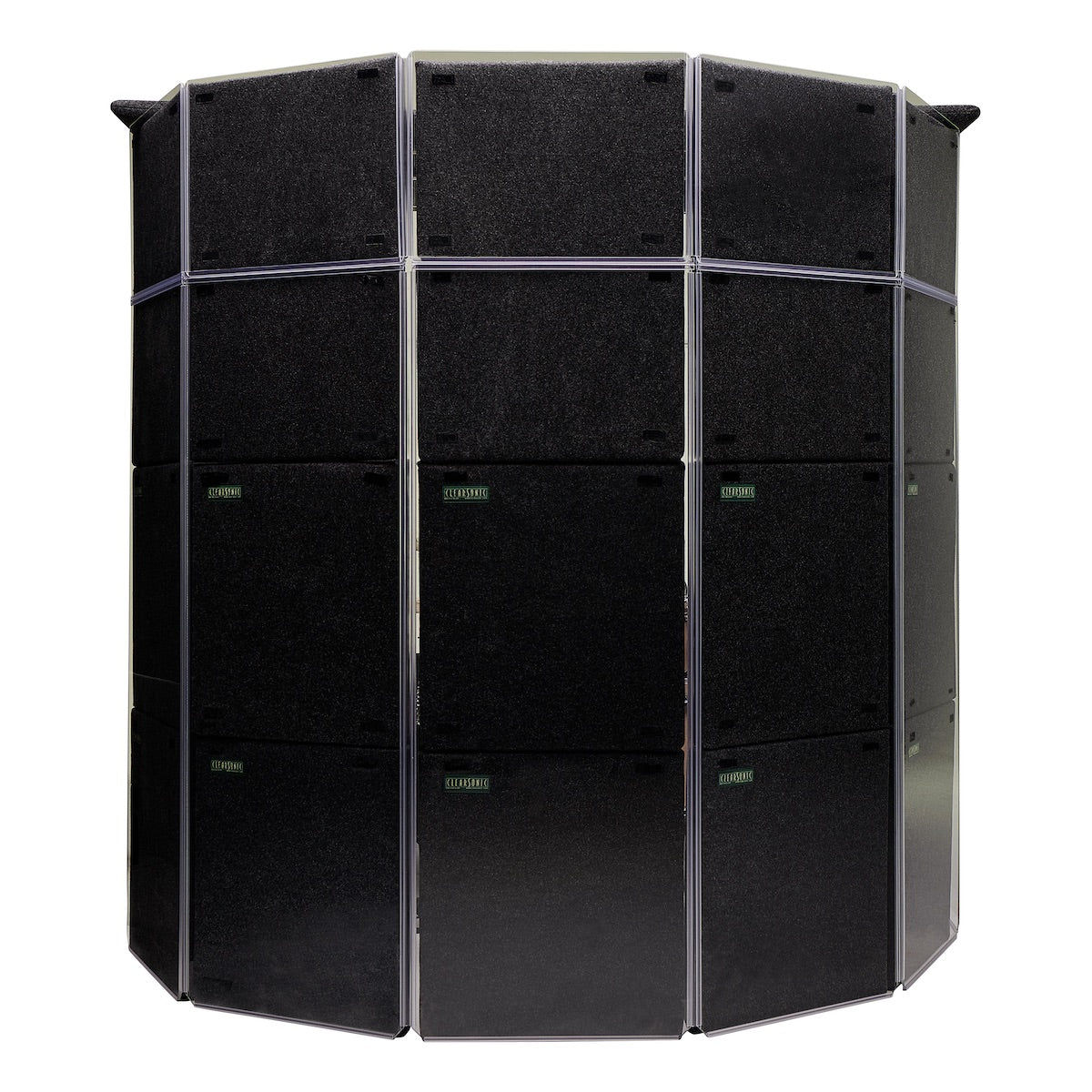

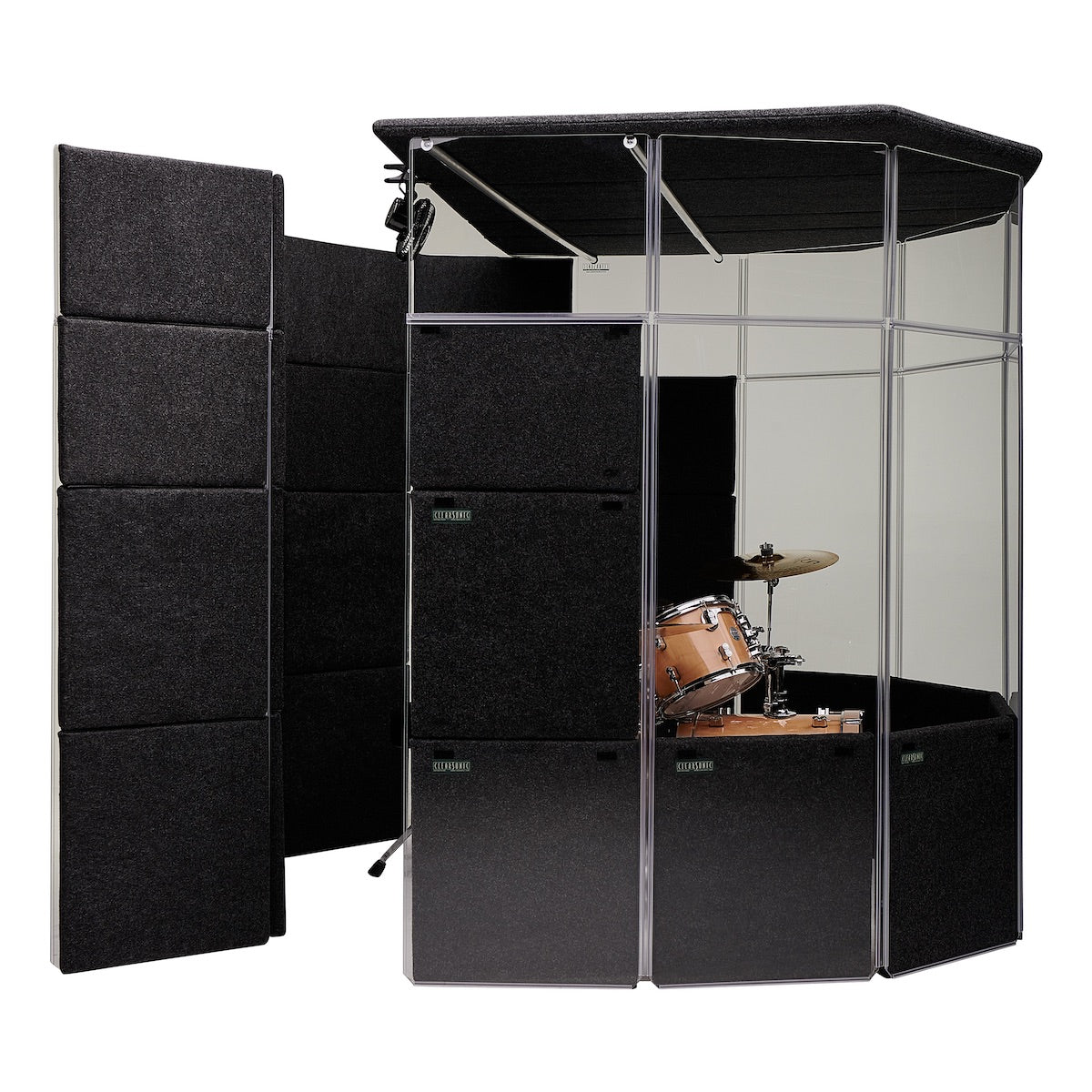

This package is designed for situations where maximum isolation matters. It uses an A2466x7 CSP acrylic system in front and an A2466x5 CSP in the rear, joined together on one side using included HCNL H-channel and BASE channel. The opposite side is intentionally left unattached so one of the end panels can swing open and serve as a booth access door. That means your drummer can get in and out easily without disassembling anything.

Headroom is often the first complaint drummers have about smaller shields, and the MP addresses that directly. Eighteen inch acrylic Height Extenders raise the walls to give a comfortable 7 feet of clearance inside, so tall cymbal stands and raised toms are not a problem. On top, the SL7266 LidPac measures 72 inches wide by 66 inches deep and caps the enclosure to trap sound that would otherwise escape upward. A 6 inch clip-on fan is included to keep air moving and the drummer comfortable during longer sessions.

For churches, schools, theaters, houses of worship, and live production teams fighting drum bleed into vocal and instrument mics, the MP MegaPac gives your engineer real control over the mix. Cable cutouts make it simple to route mic and monitor cables in and out, and the whole system is modular, so you can expand it later if your needs grow. It is a significant investment, but for the drummer who plays loud and the mix that needs to stay clean, it is one of the most effective tools available.

Technical Specs

• Overall dimensions: 7 feet wide x 8 feet deep x 7 feet tall
• Sound reduction: Up to 60 to 70 percent volume reduction
• Front panel system: A2466x7 CSP acrylic drum shield
• Rear panel system: A2466x5 CSP acrylic drum shield
• Sorber absorption: 138 square feet of Sorber baffles
• Lid: SL7266 LidPac, 72 inches wide x 66 inches deep
• Height Extenders: 18 inch acrylic extenders for 7 feet of headroom
• Cooling: Included 6 inch clip-on fan
• Connection hardware: HCNL H-channel and BASE channel included
• Cable cutouts: Yes, for easy cable routing
• Origin: Made in USA

Compatibility Guidance

The MP MegaPac is a self-contained isolation system, so compatibility is less about connectors and more about physical space and fit. Before ordering, confirm you have enough floor area for the 7 by 8 foot footprint plus a little room to enter and exit through the swing panel, and that your ceiling clears 7 feet with the lid in place.

This booth works well with any standard drum kit that fits within the interior space, including larger kits with multiple toms and cymbals. Because ClearSonic products are modular, panels and accessories from the ClearSonic line can often be added or adapted if your setup changes over time. The included fan uses a standard clip mount and typical household power.

Not sure which version or connector you need? Contact GearTechs before ordering and our team will help ensure compatibility with your exact system.
