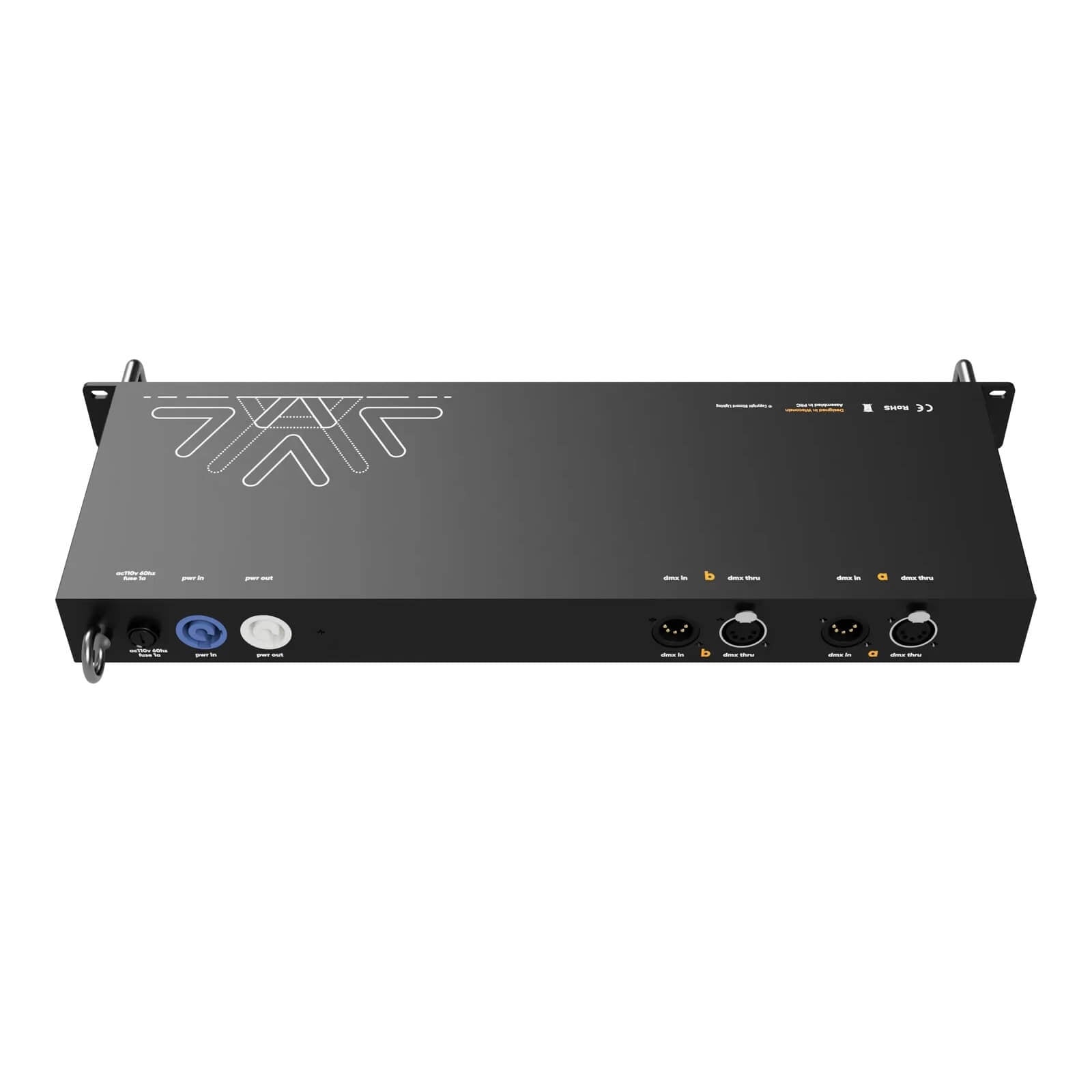

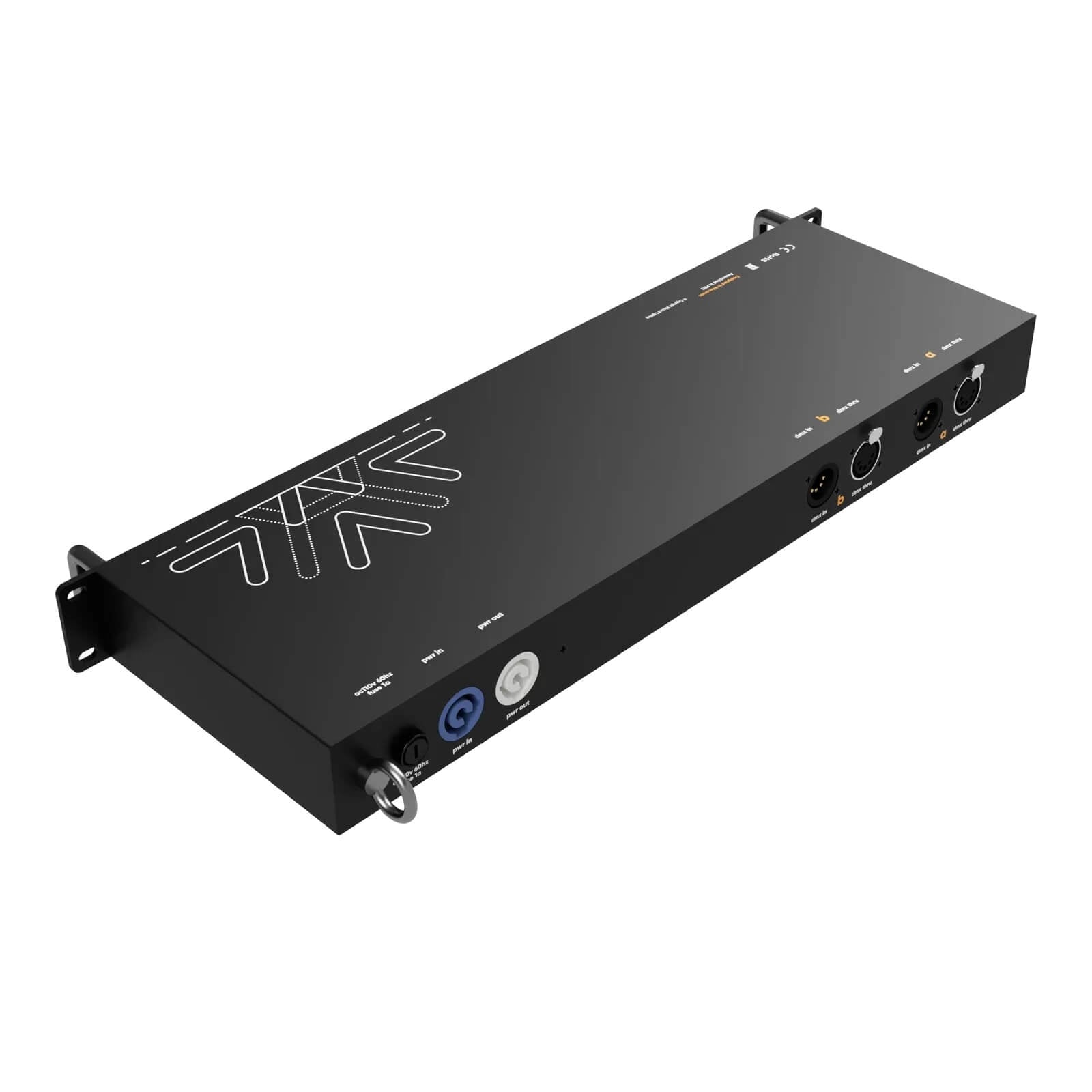

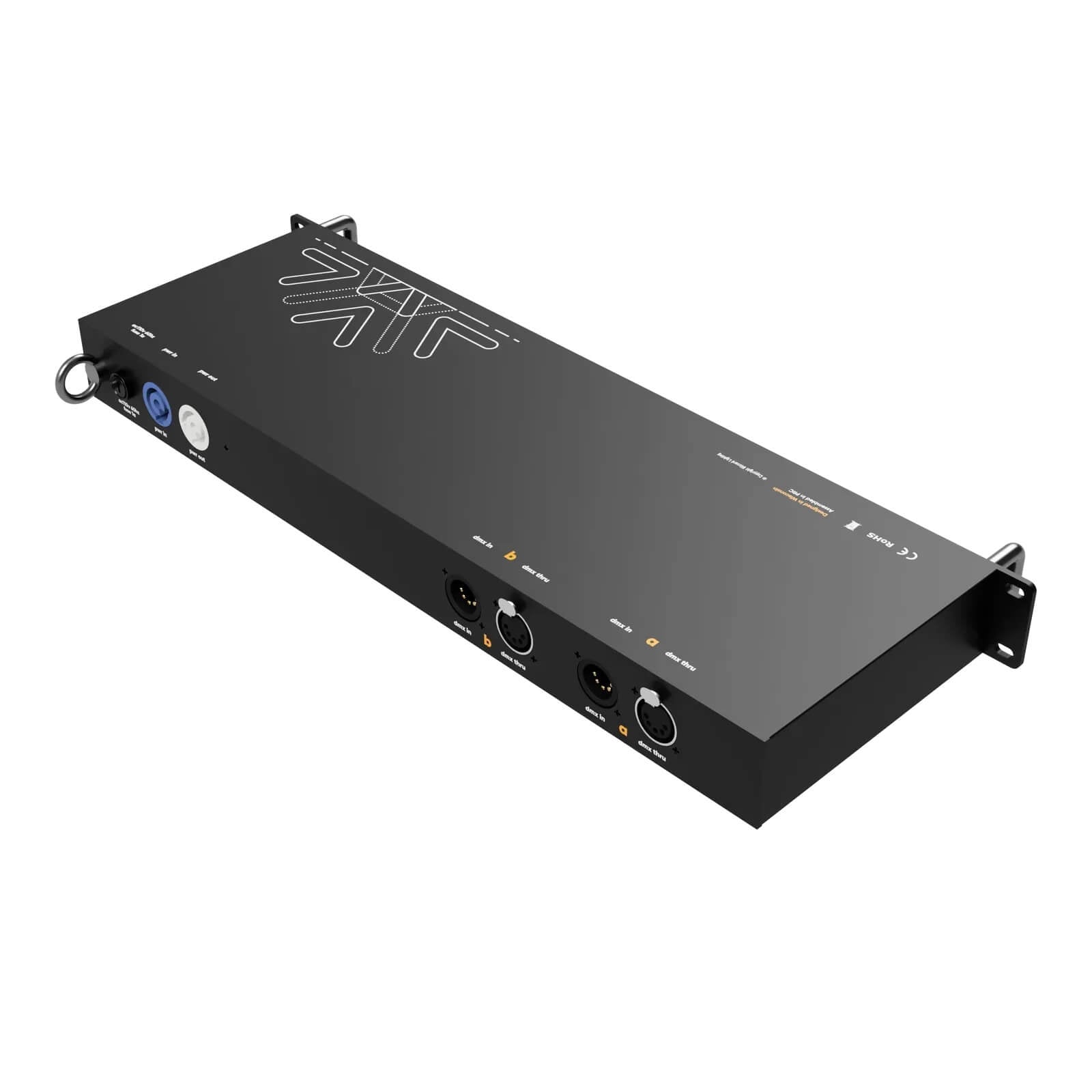

The Blizzard Lighting Pipeline Splitterally 8 is a rackmountable DMX splitter and booster. It offers dual modes with 1x8 (mode A) or 2x4 (mode B) operation, making it ideal for managing single or dual DMX universes. Dual DMX inputs with through outputs on the rear panel (A/B) provide raw pass-through connections for seamless integration into any DMX setup.

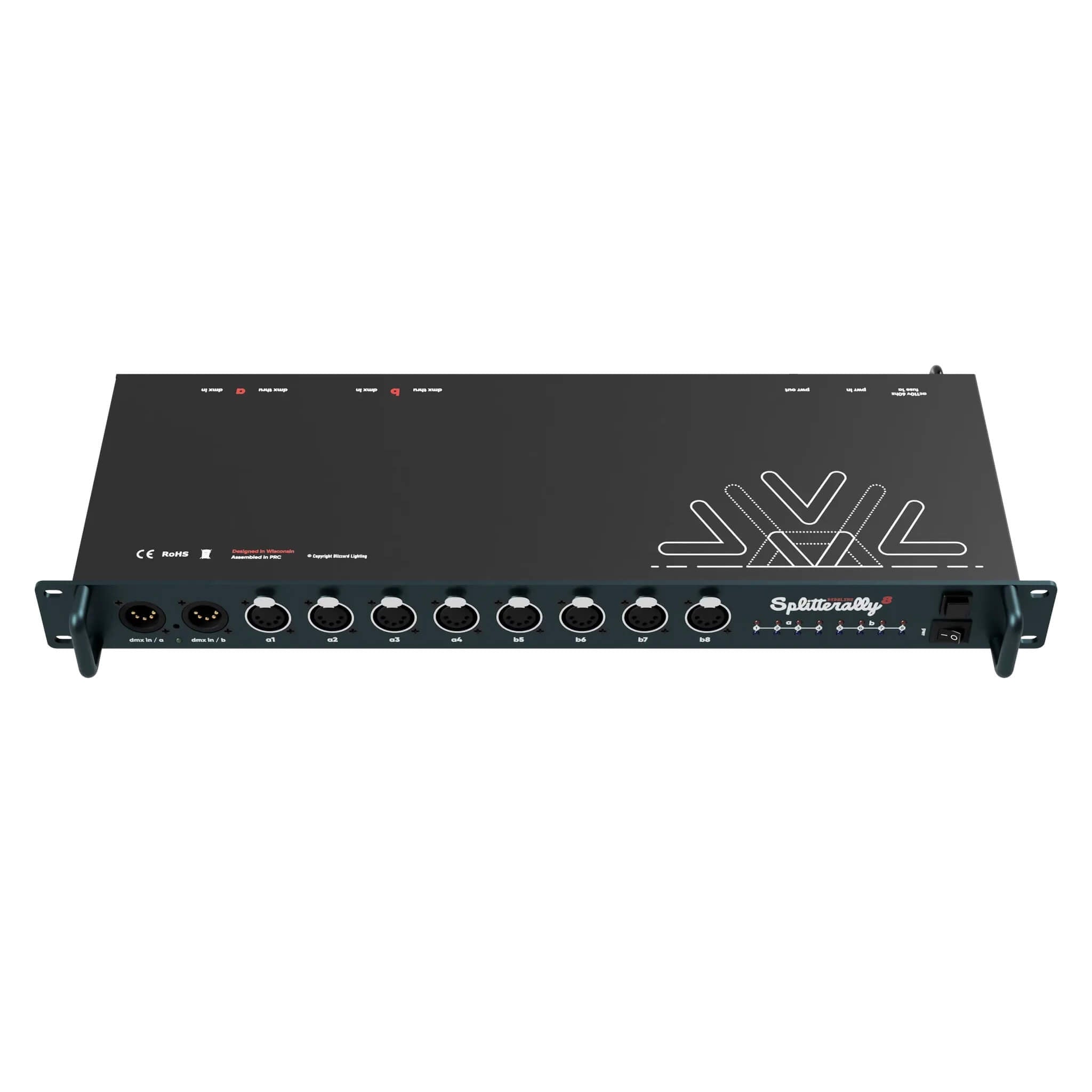

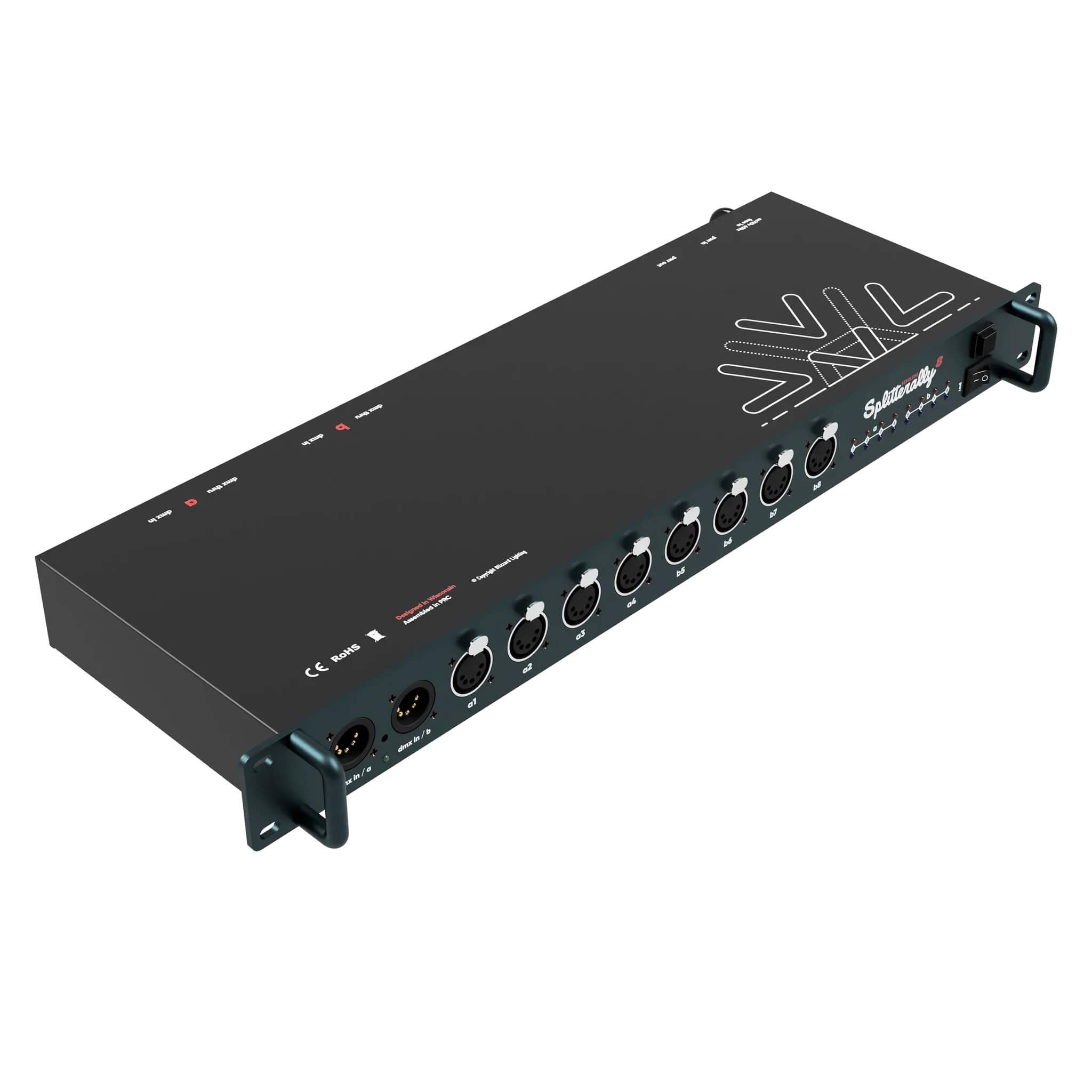

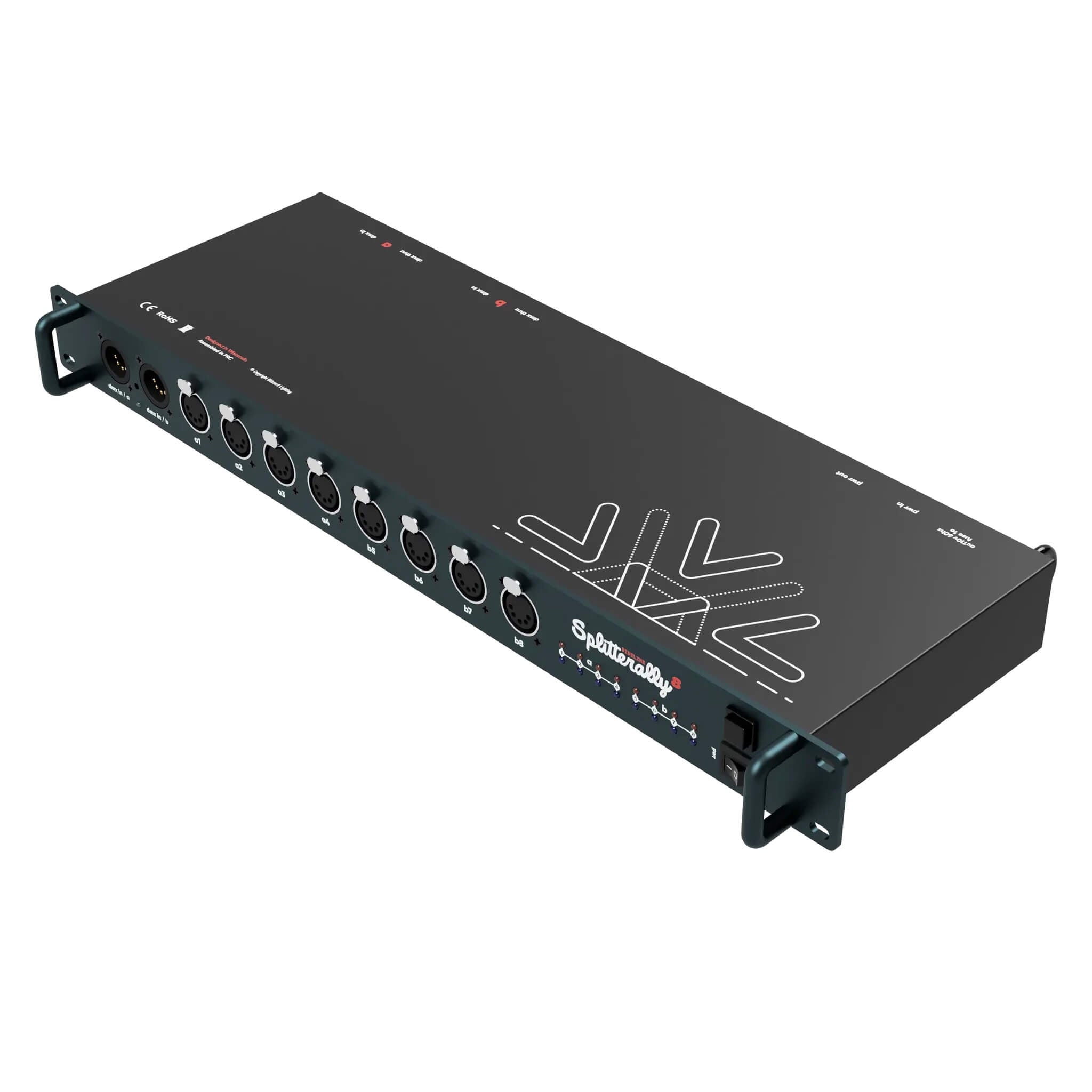

This unit is designed for simplicity and efficiency. The front panel features a power switch, a mode button, 5-pin DMX inputs (A/B), and eight 5-pin DMX outputs for versatile signal routing. In Mode A, all outputs distribute the same DMX signal. In Mode B, outputs 1-4 handle Universe A, while outputs 5-8 manage Universe B, ensuring flexible setup options for any lighting configuration.
Features
• 19-inch, 1U rack space DMX signal splitter/booster
• Dual operation modes: 1x8 or 2x4
• Rear DMX In (A/B) + thru connections
• 5-pin DMX inputs and outputs
• Front-panel mode selection switch
• LED indicators for quick signal monitoring
• powerCON TRUE1-compatible input/output
• Safety loop and fuse protection
• Front-panel handles for convenient installation
• Boosts DMX signal for long cable runs
• Works with all DMX512 equipment
• Electrical isolation between inputs and outputs
• Clearly labeled connections
• Rugged, durable housing
• Compact and lightweight for easy portability
