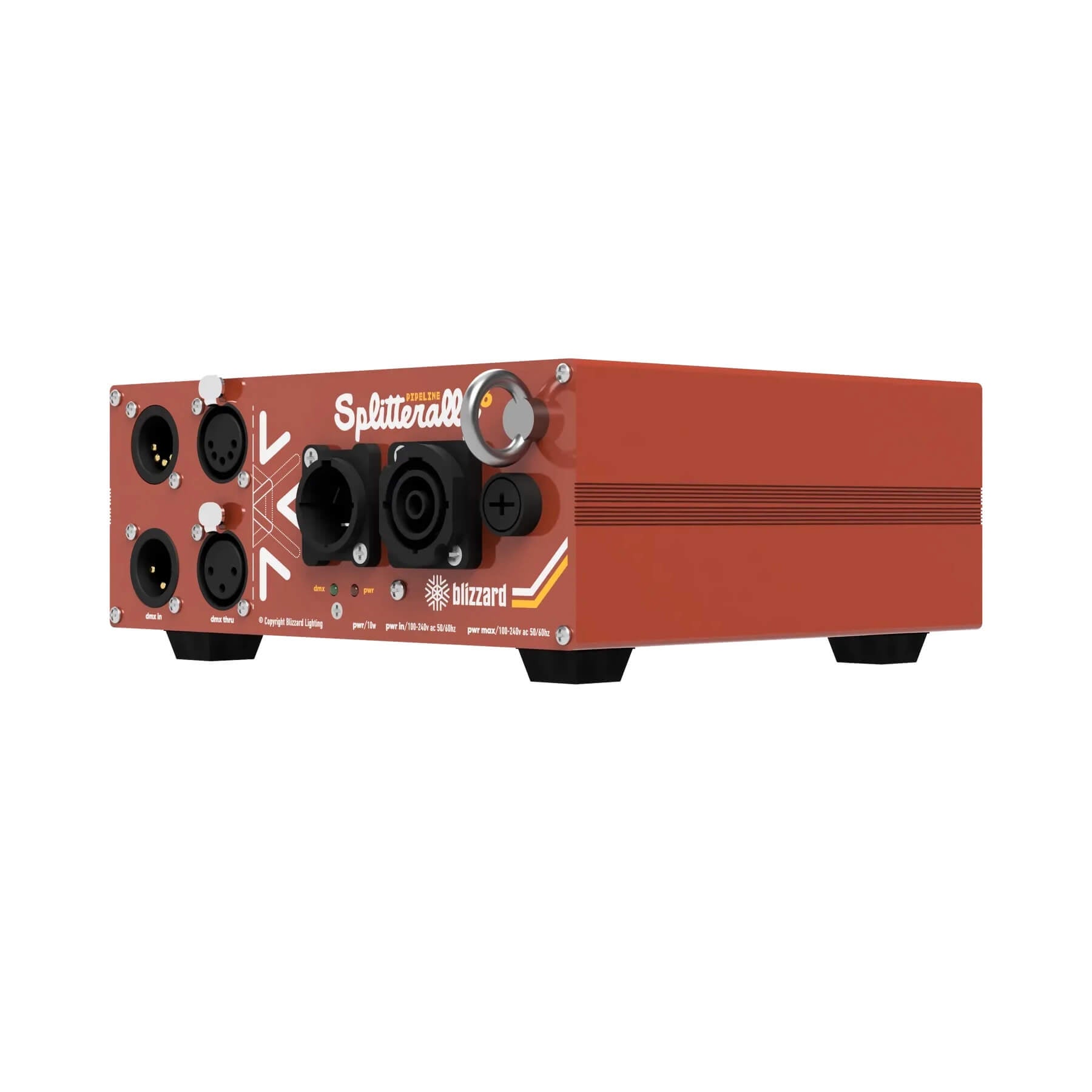

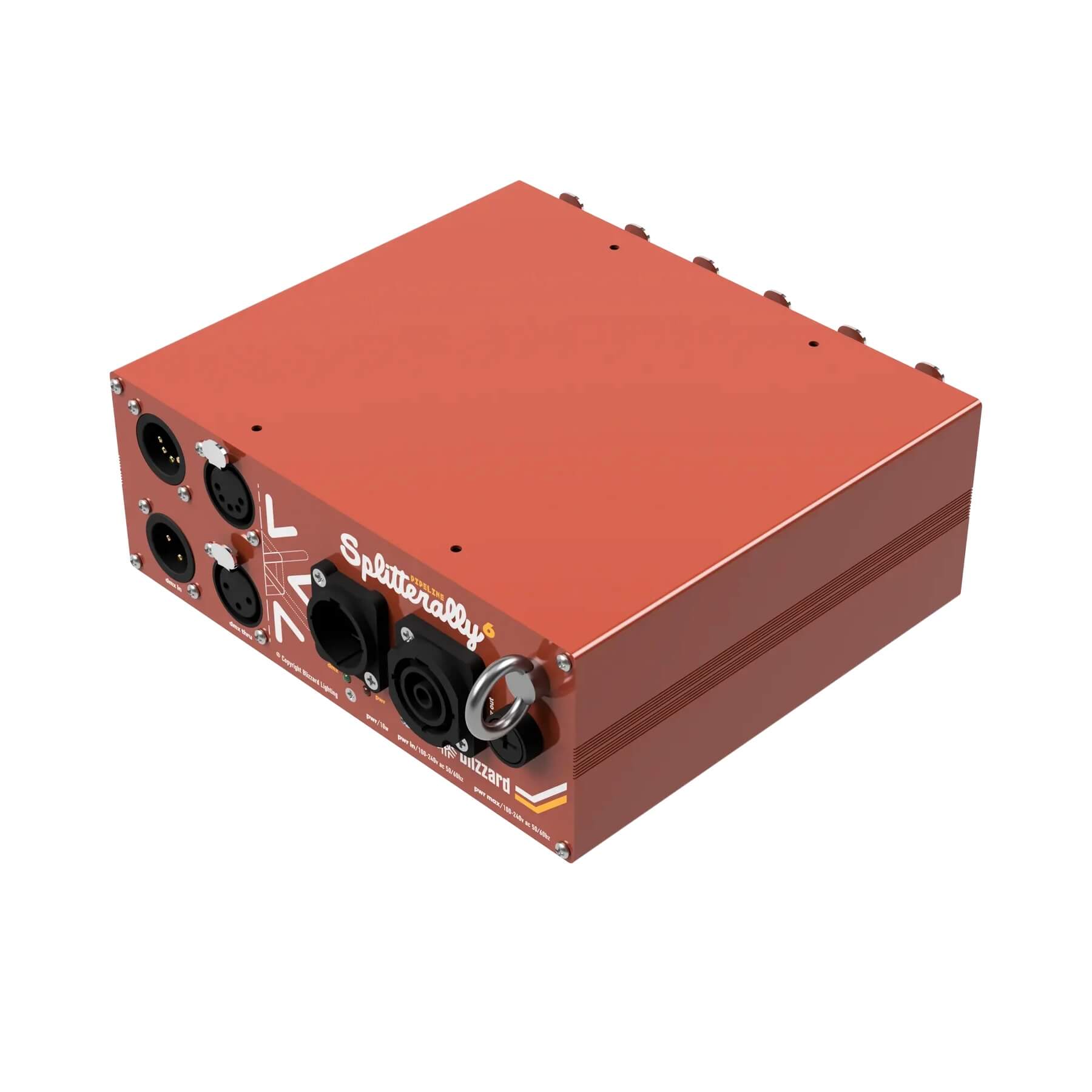

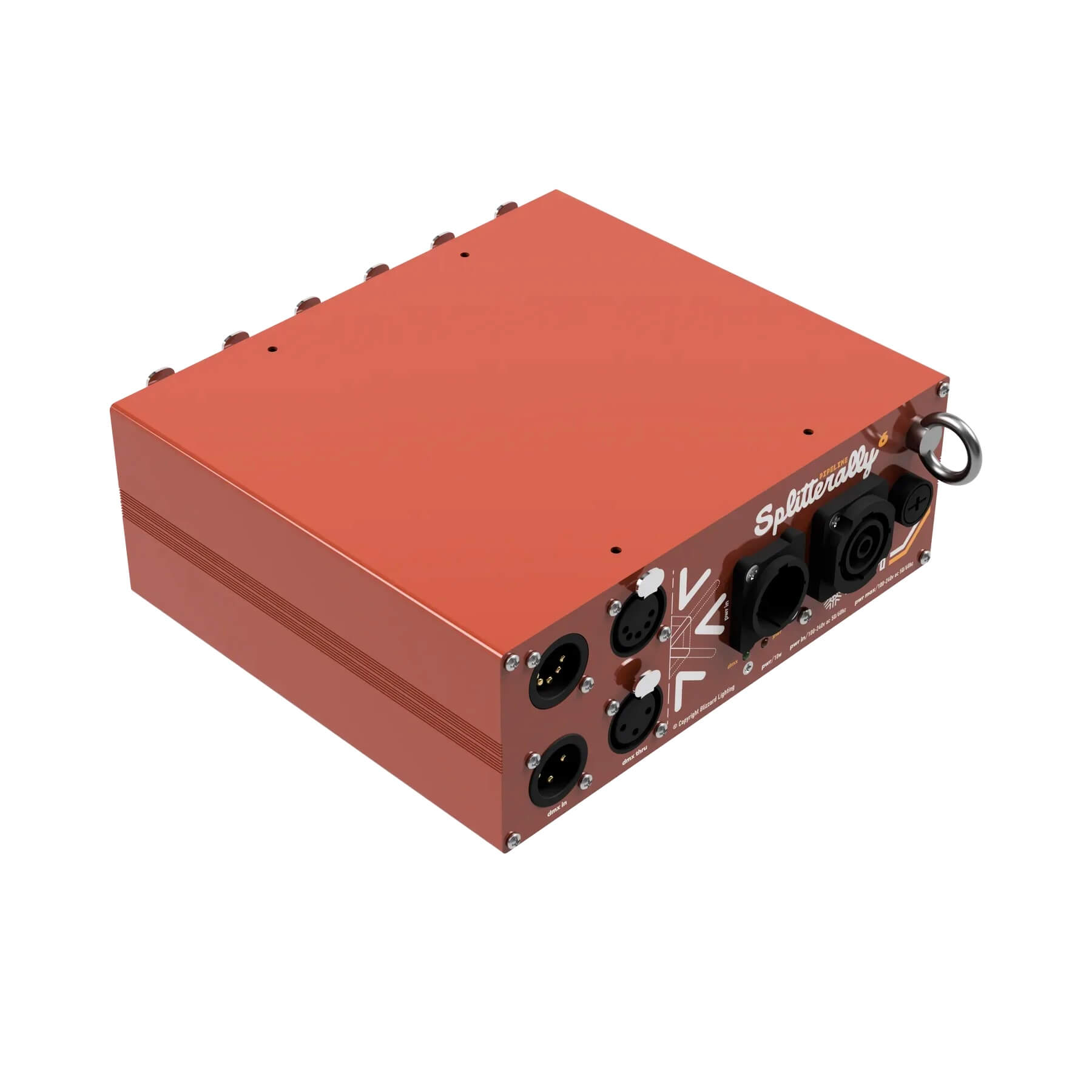

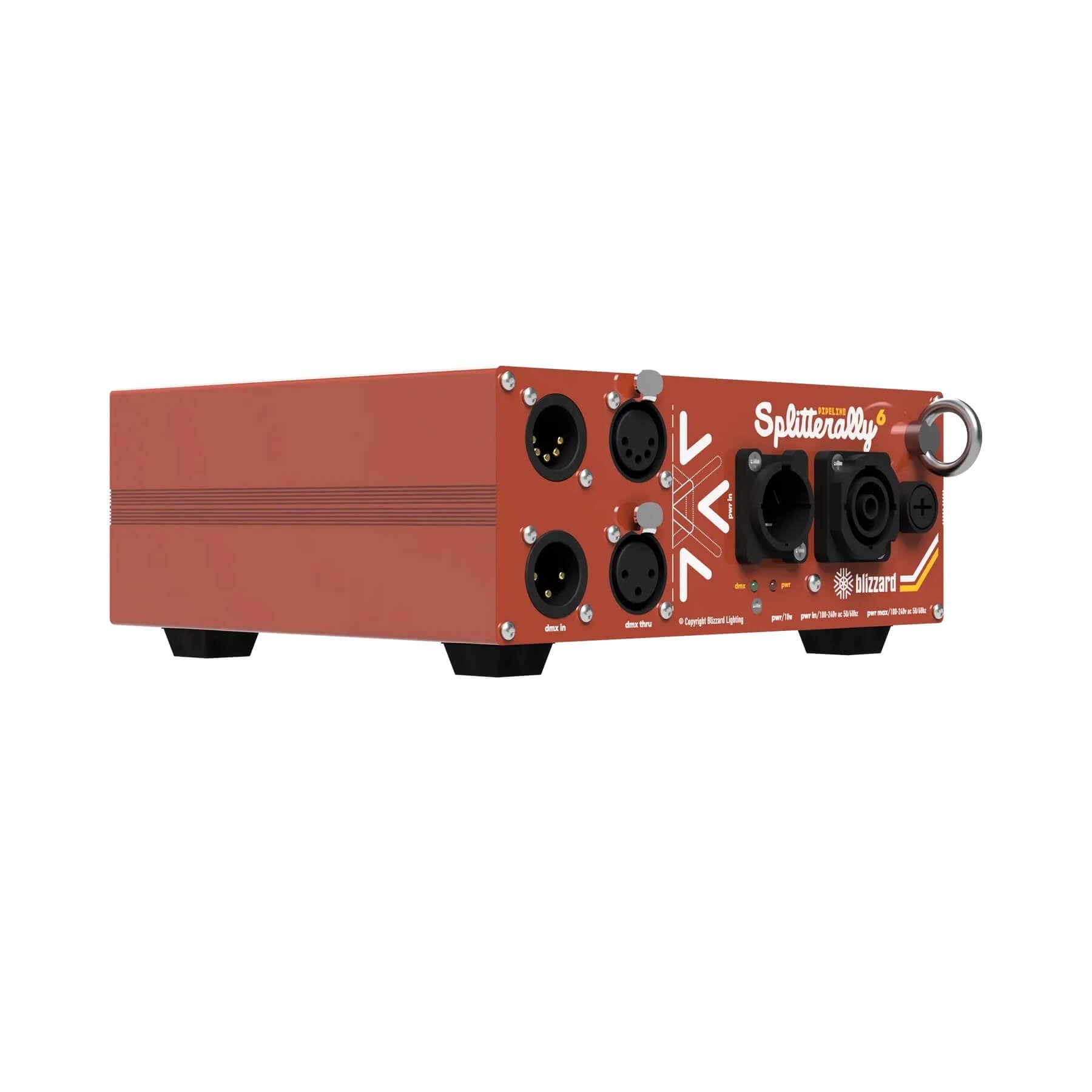

The Blizzard Lighting Pipeline Splitterally 6 is an RDM-capable DMX splitter/booster, ideal for reliable signal distribution. The front panel includes both 3-pin and 5-pin DMX input and thru ports, plus a powerCON TRUE1-compatible input and output.

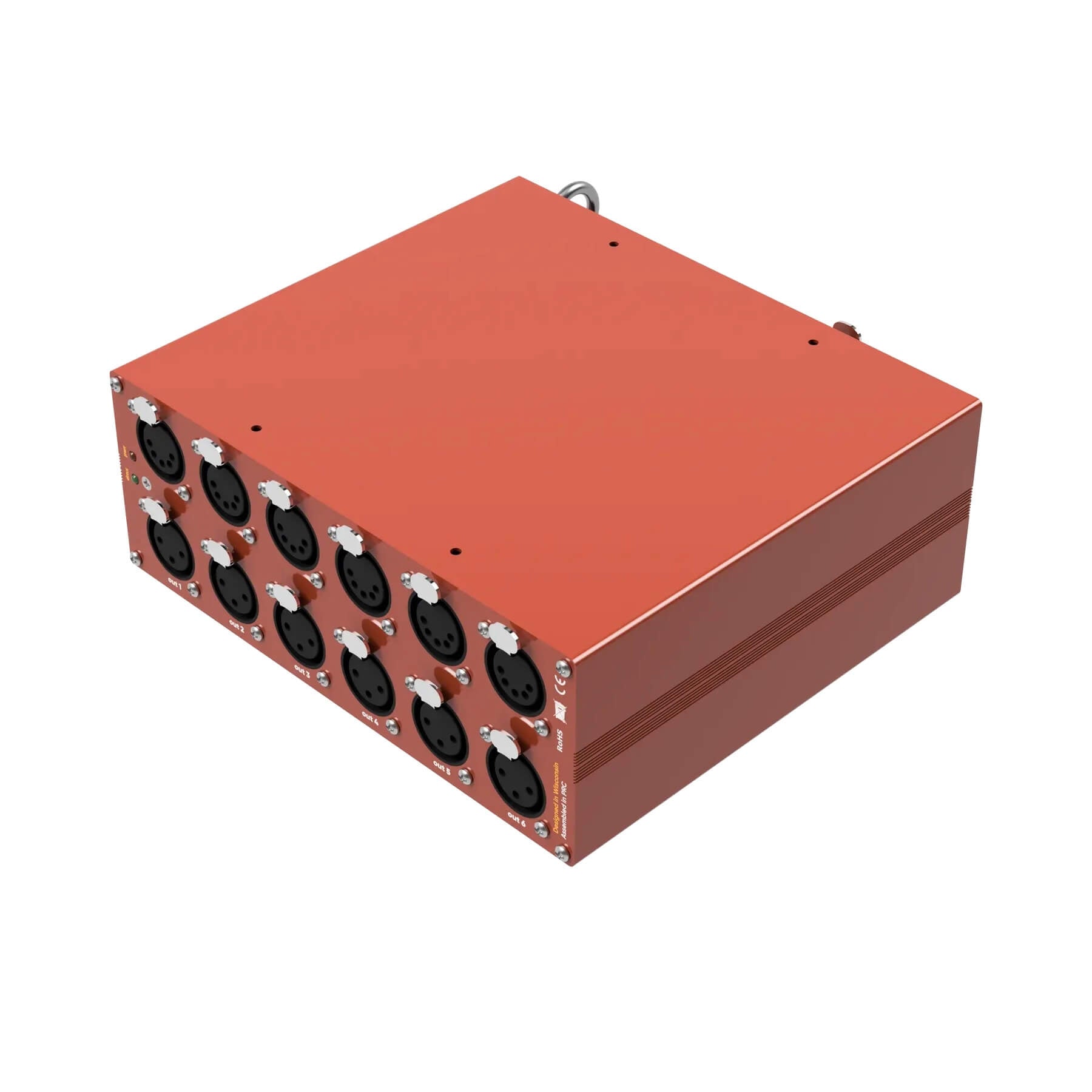

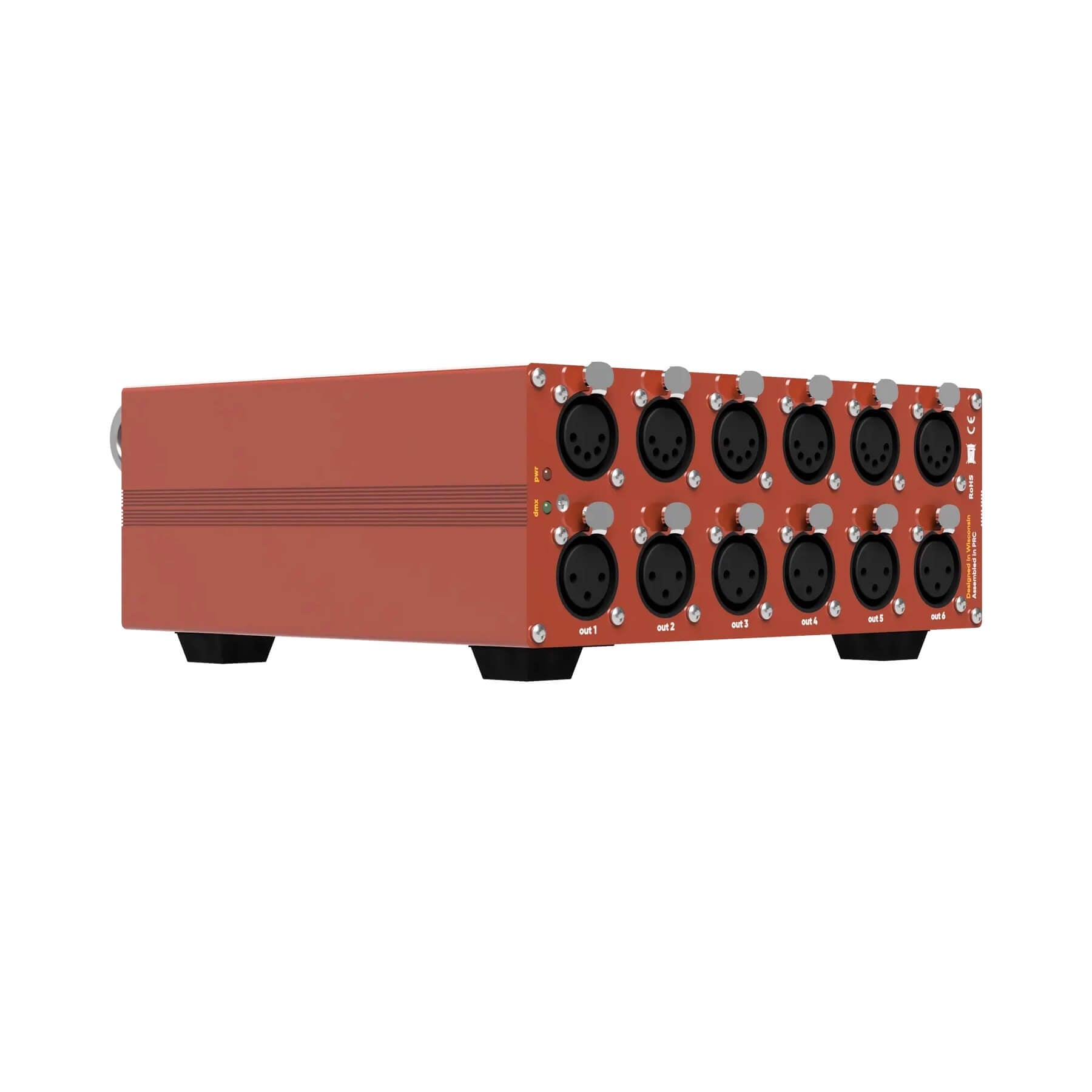

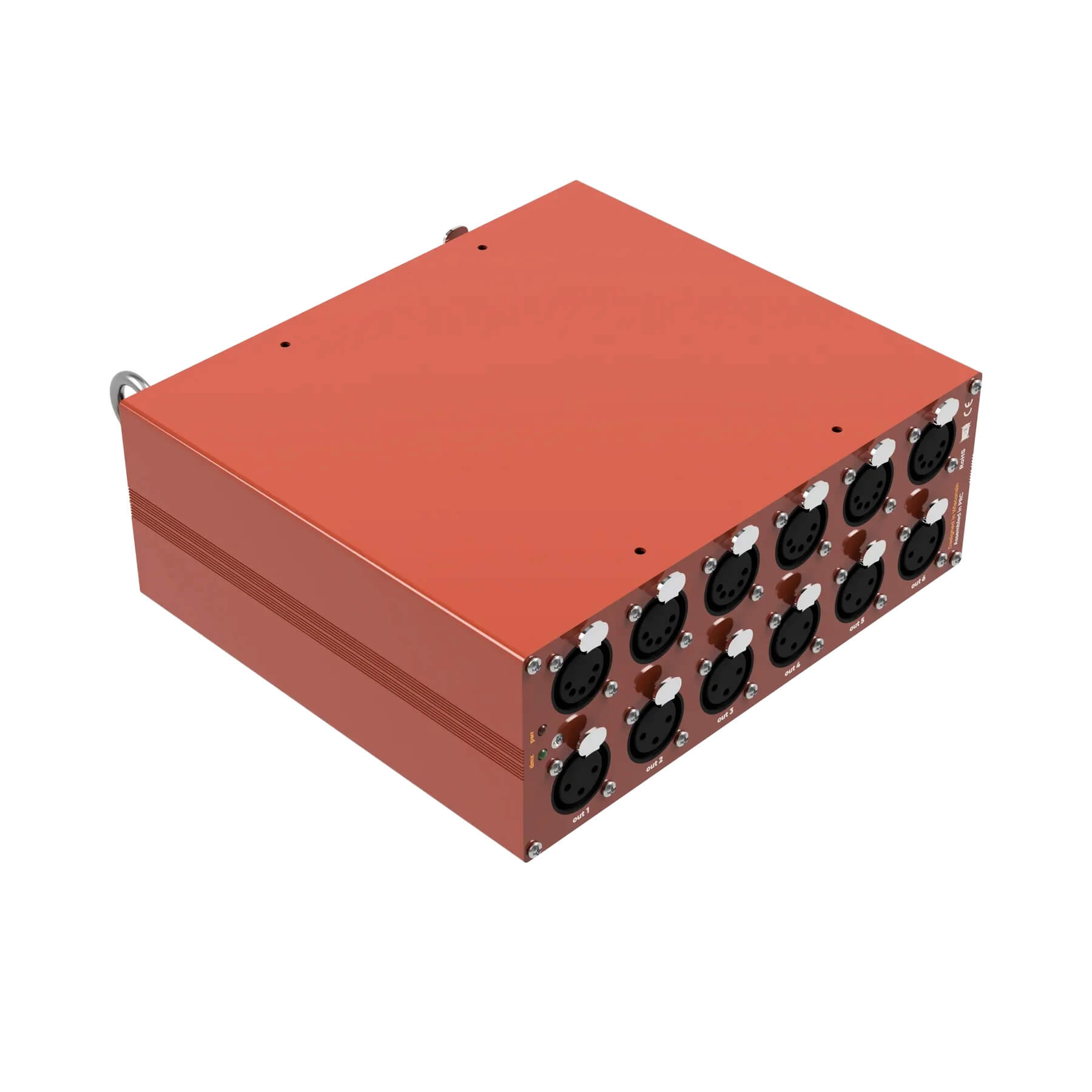

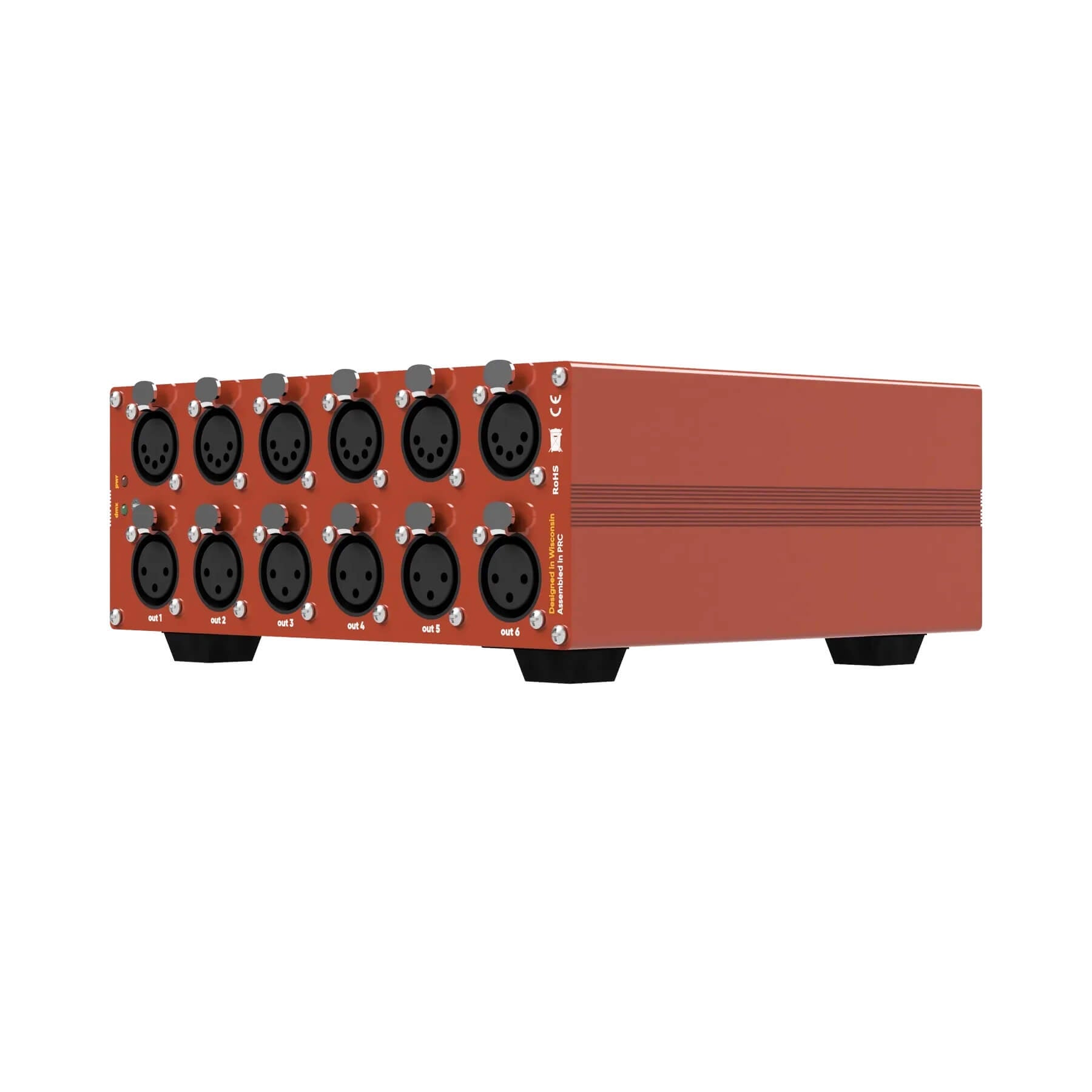

The back features six independent DMX outputs with 3-pin and 5-pin XLRs for versatile connectivity. It also includes three M10 mounting points for rigging, and 19” rackmount panel adapters are available (sold separately) for 1- or 2-unit installations.
Features
• Indoor-rated, 6-output DMX/RDM splitter/booster
• 3-pin & 5-pin DMX input + thru
• 6 optically & electronically isolated outputs (3-pin & 5-pin)
• powerCON TRUE1-compatible connectors
• 3x M10 threaded clamp mounts
• Power & DMX status indicators on front/rear
