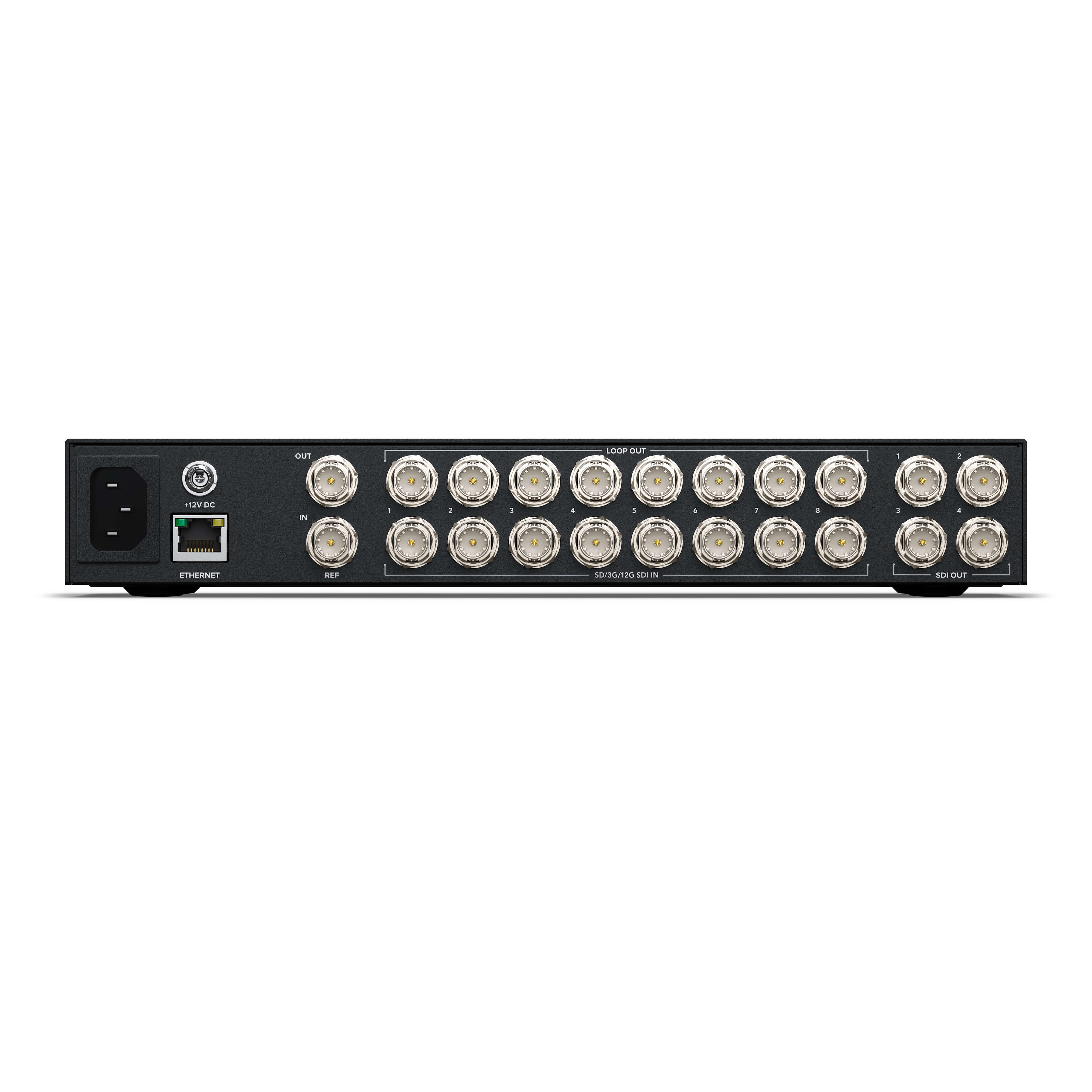

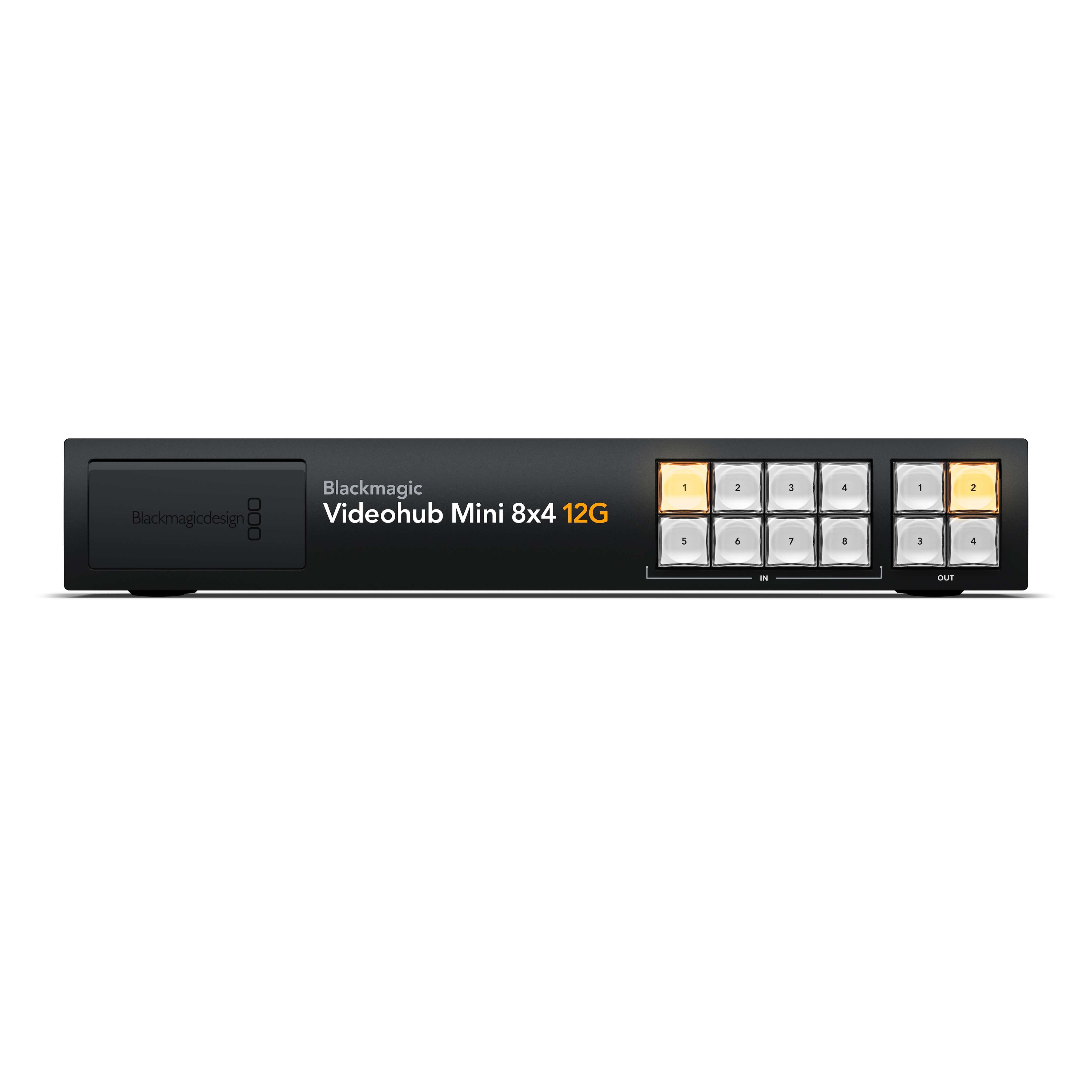

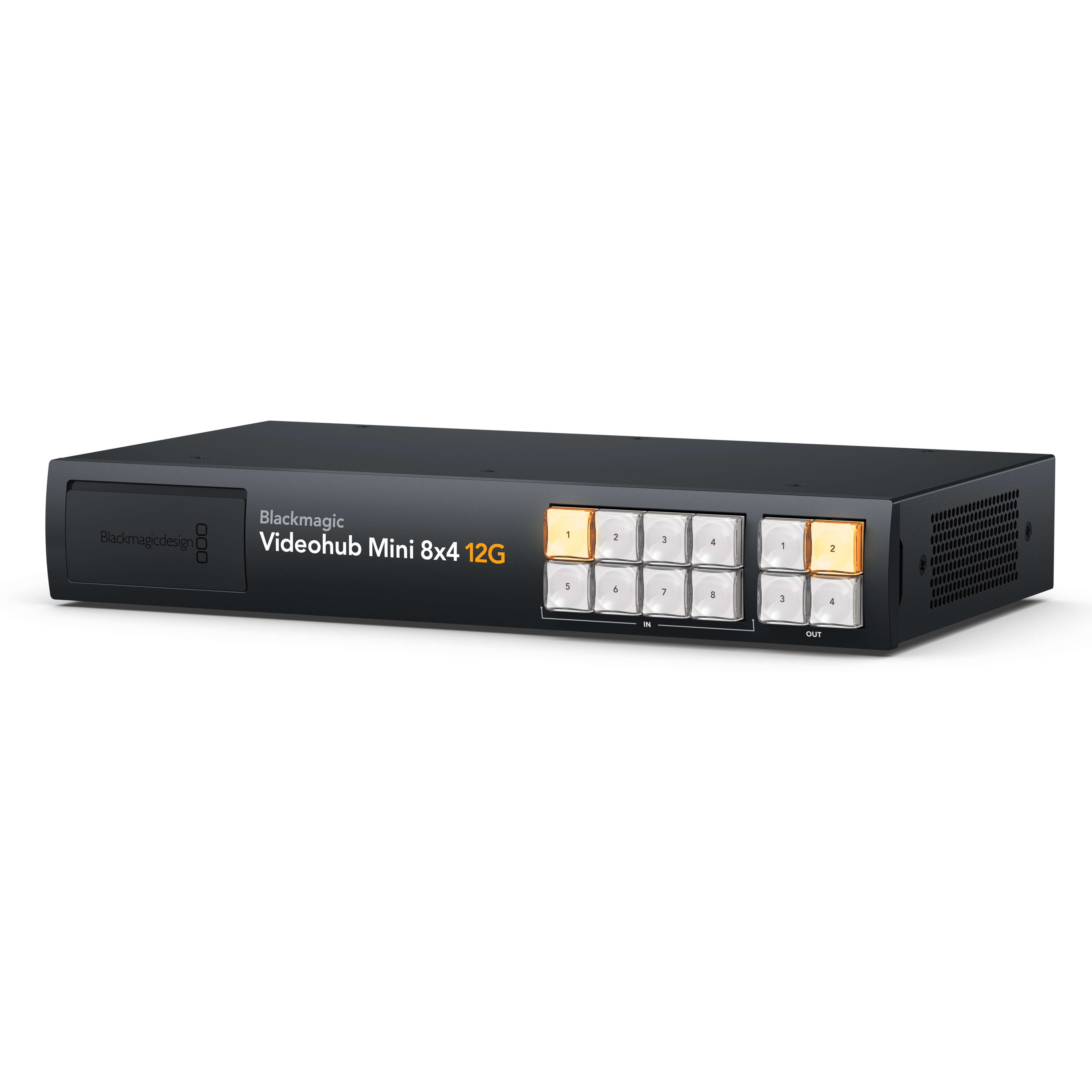

The Blackmagic Design Videohub Mini 8x4 12G is a compact zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. It has 8 12G-SDI inputs and 4 12G-SDI outputs plus reference connections for locking clean switch outputs in a compact 2/3 rack width size. The front panel control panel lets you quickly route a video connection and even includes an emergency 12G-SDI connection for patching in external gear and USB-C webcam video out. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Features
• Compact mixed format 12G-SDI video router
• Includes front panel 12G-SDI input for emergency patch connections
• Zero latency 12G-SDI supports SD, HD, and Ultra HD up to 2160p60
• Clean switch on each output
• SDI re-clocking on all 12G-SDI inputs
• Front panel USB-C webcam output
• Works with Videohub Master Control Pro and Videohub Smart Control Pro
• Supports Videohub Software Control for Mac, Windows and iPad
• Localized for 13 popular languages
• Includes free SDK for integration into broadcast automation systems
