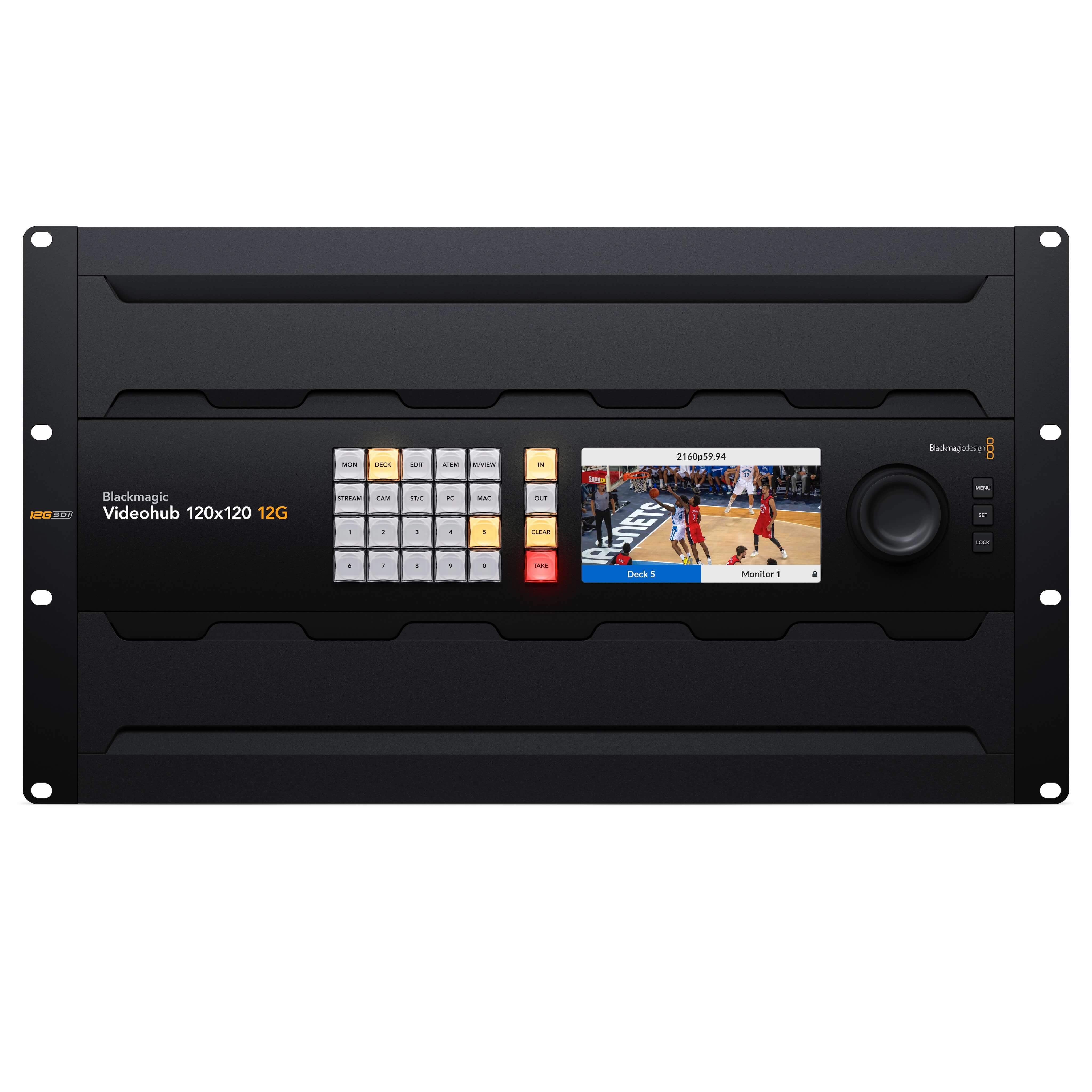

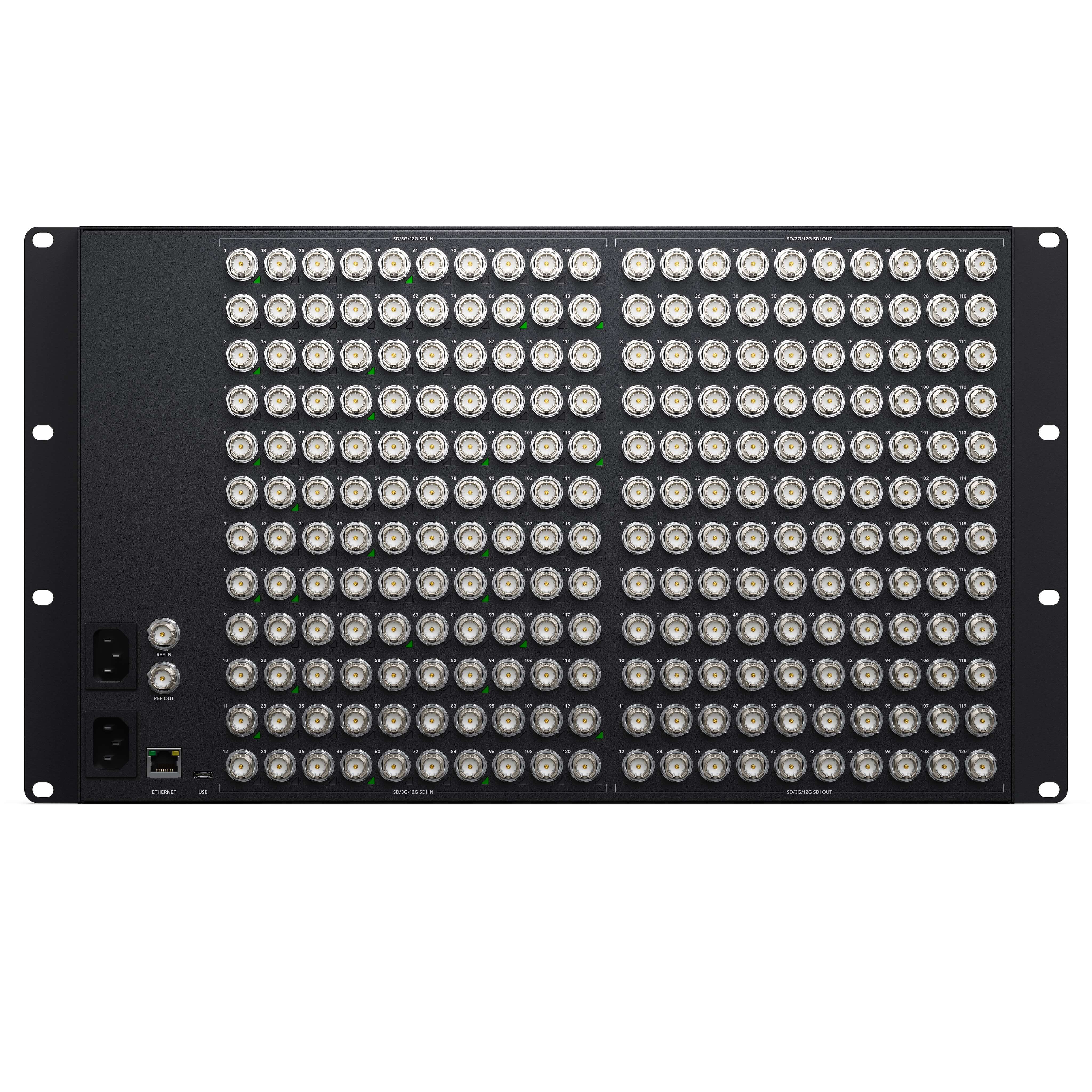

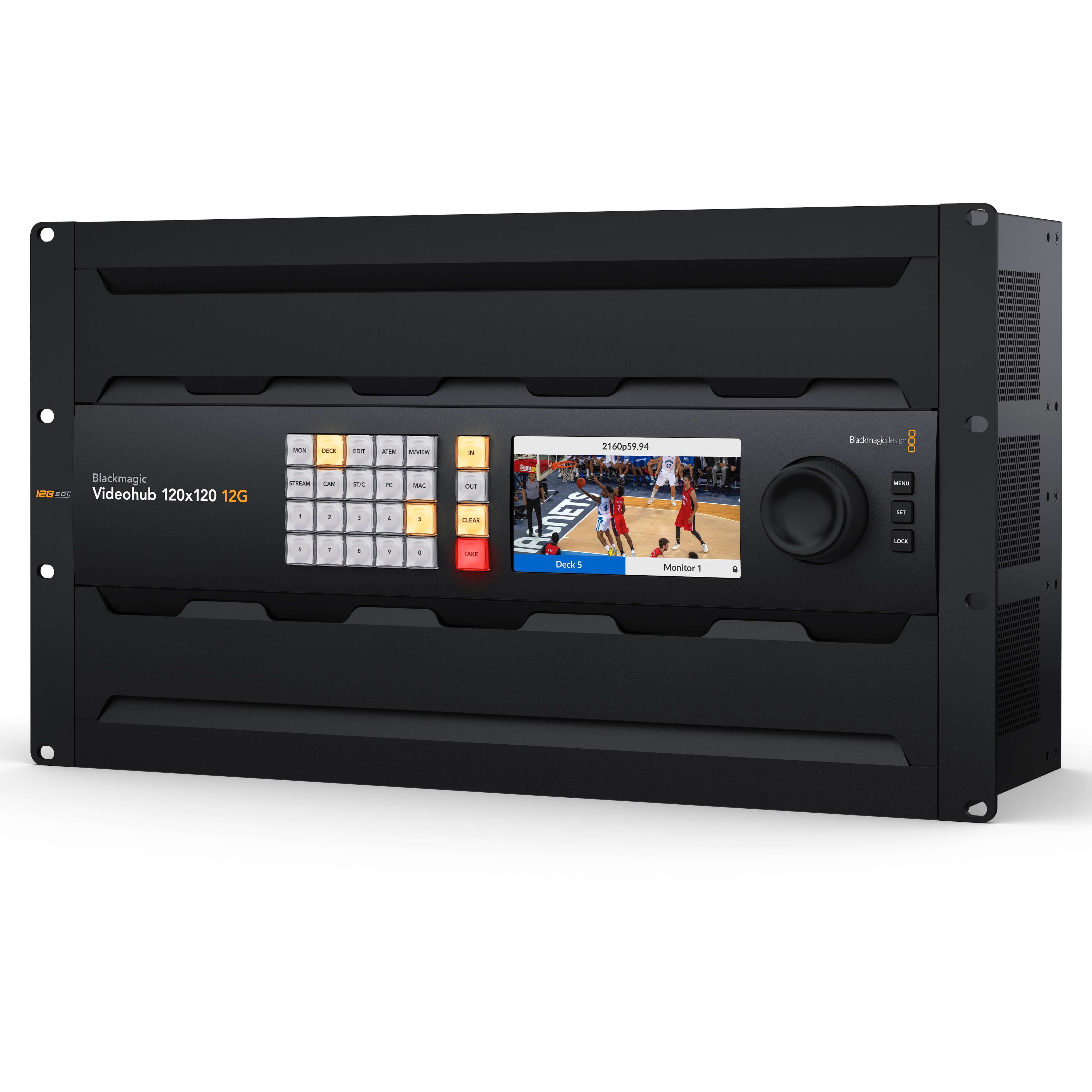

The Blackmagic Design Videohub 120x120 12G is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. The 12G-SDI inputs feature LEDs on each BNC that indicate an SDI signal, plus there are 12G-SDI outputs, redundant power and reference connections in a four rack unit design. The large HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, external Ethernet control and supports all SDI video standards up to 2160p60.
Features
• Massive mixed format 120x120 12G-SDI video router.
• Zero latency 12G-SDI supports SD, HD and Ultra HD up to 2160p60.
• Built in control panel with direct entry buttons and spin knob control.
• LCD monitor with live video and labels for visual routing.
• SDI re-clocking on all 12G-SDI inputs.
• Works with Videohub Master Control Pro and Videohub Smart Control Pro panels.
• Supports Videohub Software Control for Mac, Windows and iPad.
• Includes free SDK for integration into broadcast automation systems.
• 2 x 100 - 240V AC power connections for redundancy.
• Ethernet for remote control from external hardware or software control panels.
• Localized for 13 popular languages.
