Description

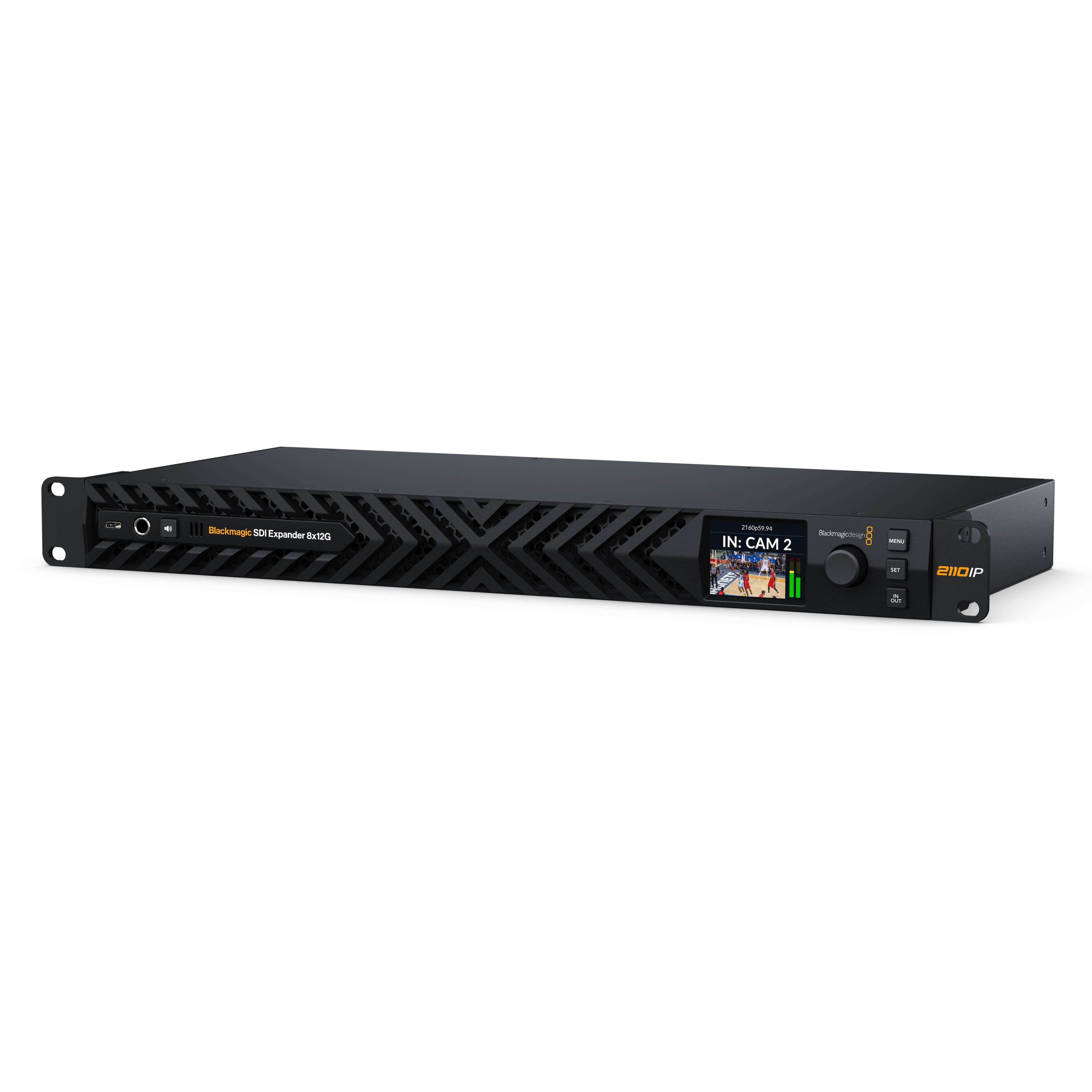

The Blackmagic Design SDI Expander 8x12G converts in 2 directions at the same time. It converts 8 independent channels of 12G-SDI to SMPTE-2110, while simultaneously converting a separate set of 8 channels of SMPTE-2110 back to 12G-SDI. That's 16 channels of conversion in a single rack unit. The SMPTE-2110 connections use two 100G Ethernet ports for full SMPTE-2022-7 redundancy. There is also a separate NMOS control Ethernet port and dual redundant AC power supplies for reliable broadcast operation.
Features
• Connect 12G-SDI gear to 100G Ethernet SMPTE-2110 IP systems
• Supports 8 bi-directional connections and SMPTE-2022-7 redundancy

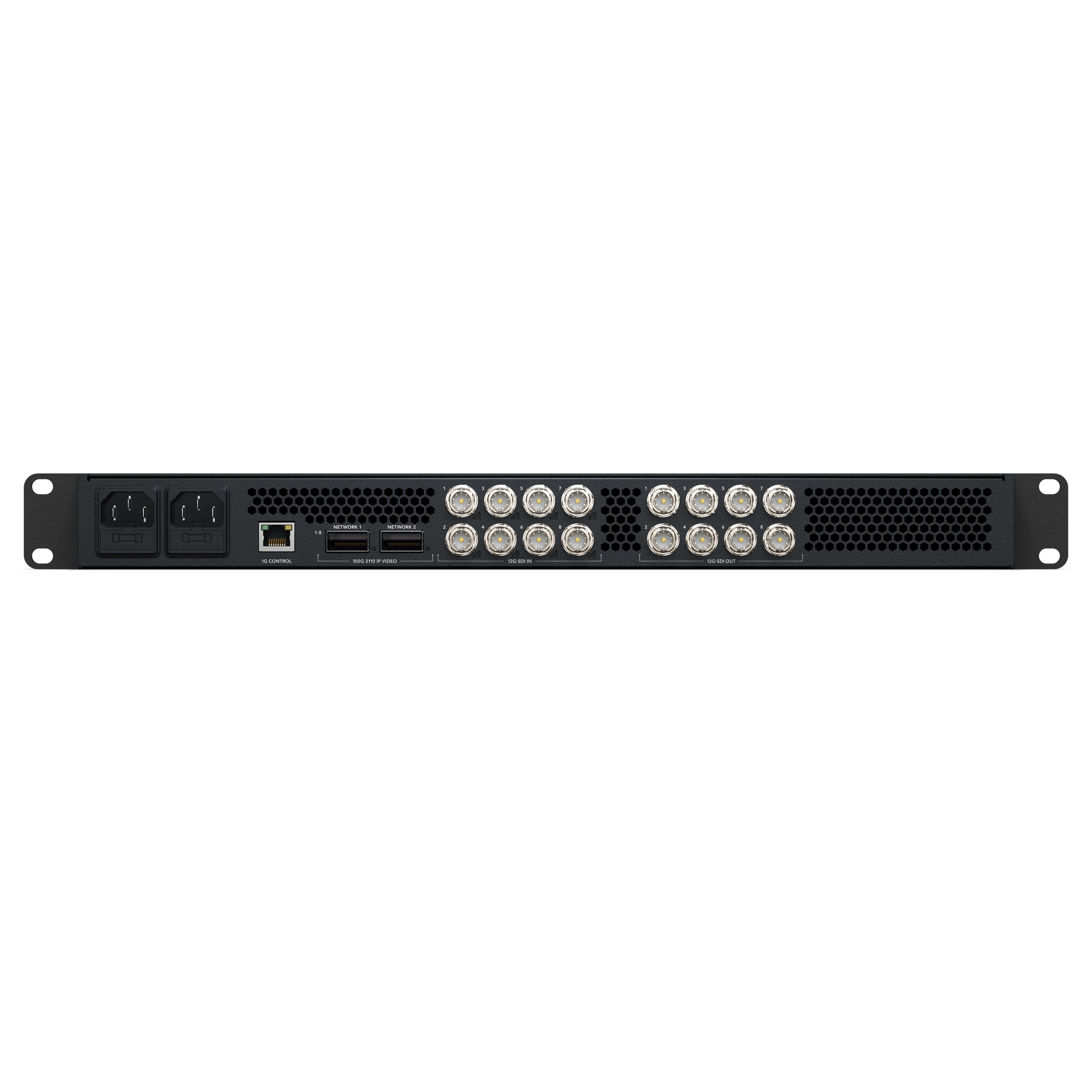

• 8 x 12G-SDI inputs and 8 x 12G-SDI outputs in a single 1RU design
• Redundant 100G Ethernet for full SMPTE-2022-7 compliance
• SDI connections switch between SD, HD, and Ultra HD
• Includes dedicated NMOS connection for routing IP sources

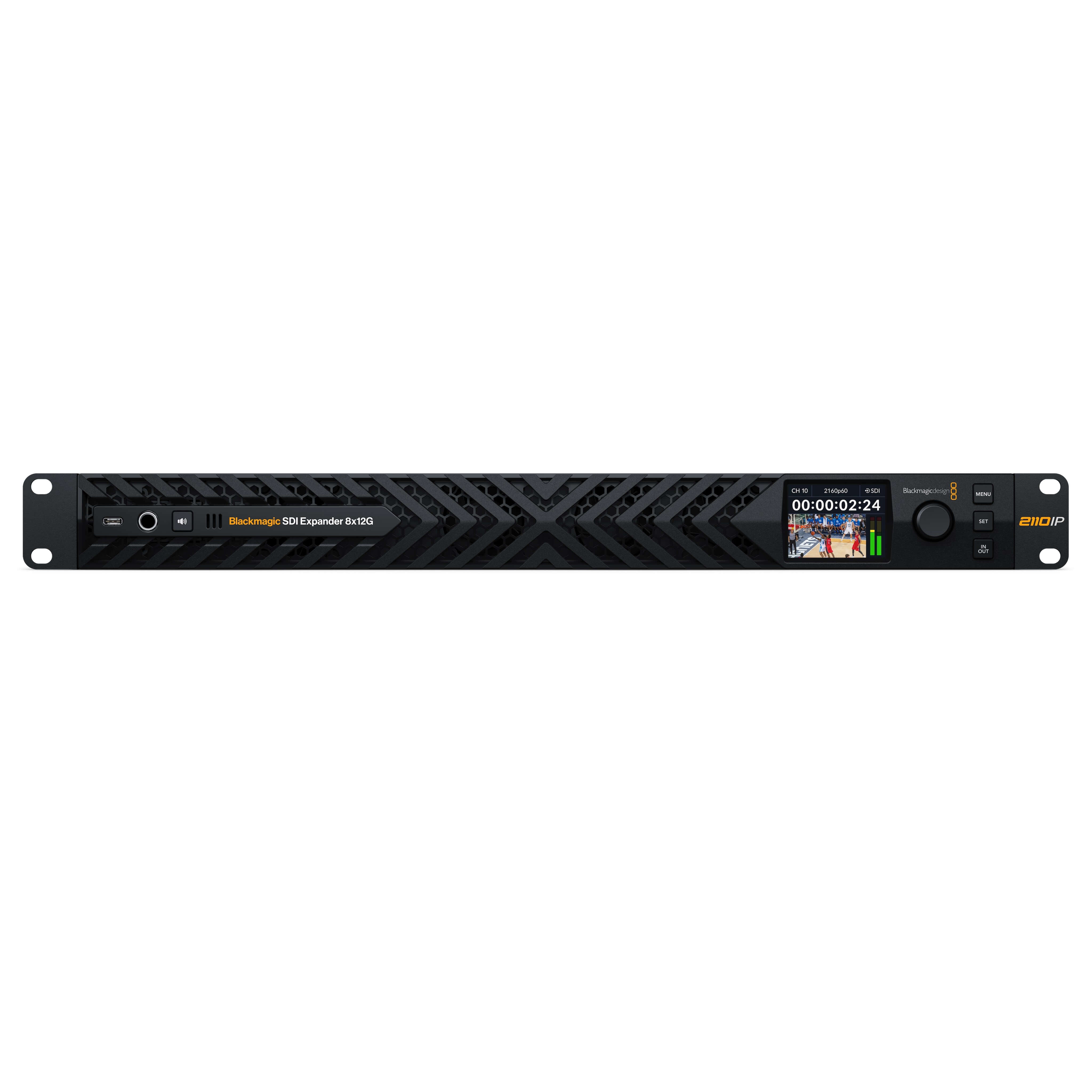

• Front panel LCD for monitoring of video inputs and outputs
• Front panel speaker and headphone for audio monitoring
• Dual redundant AC power supplies for broadcast reliability
• Localized for 13 popular languages allowing international use
