Description

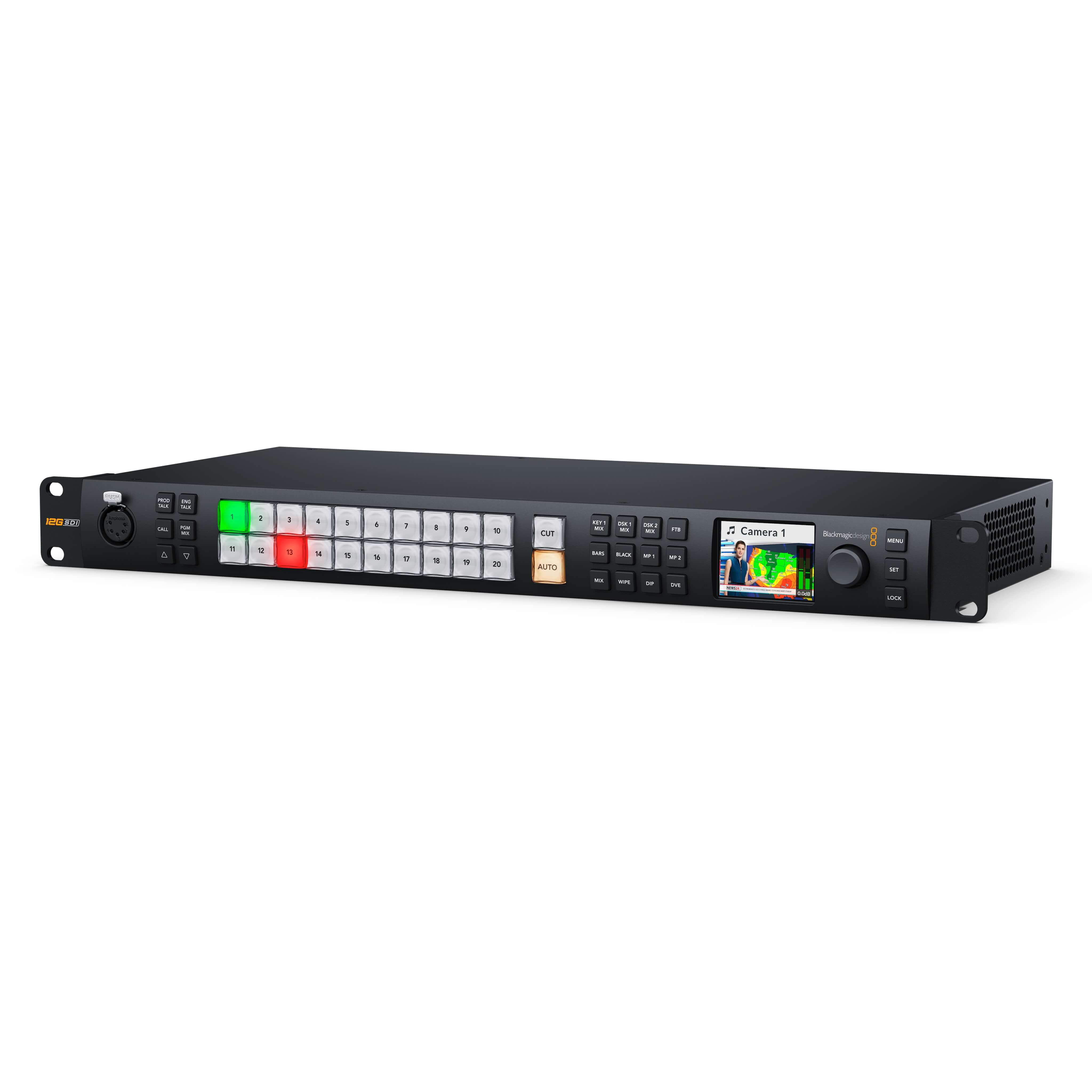

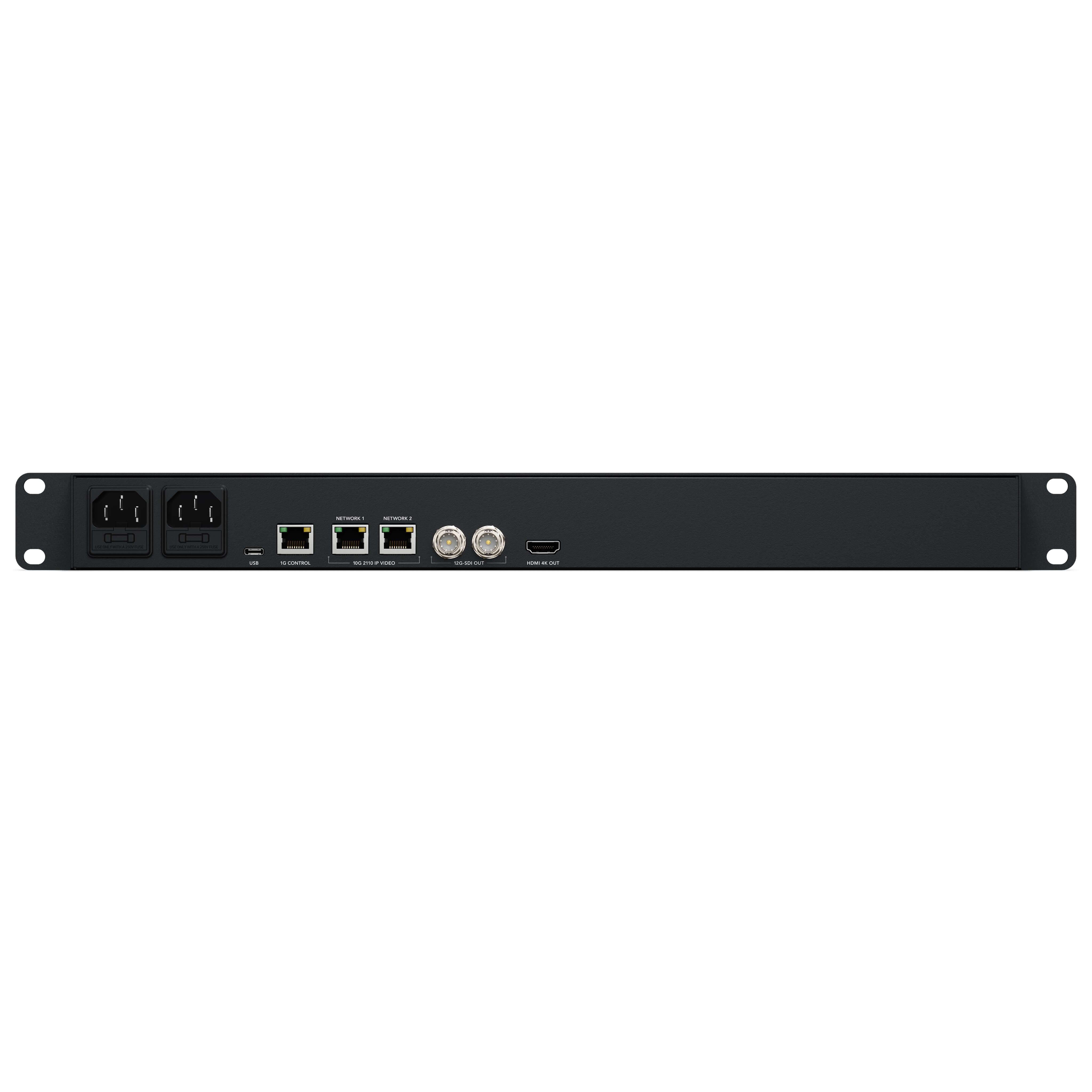

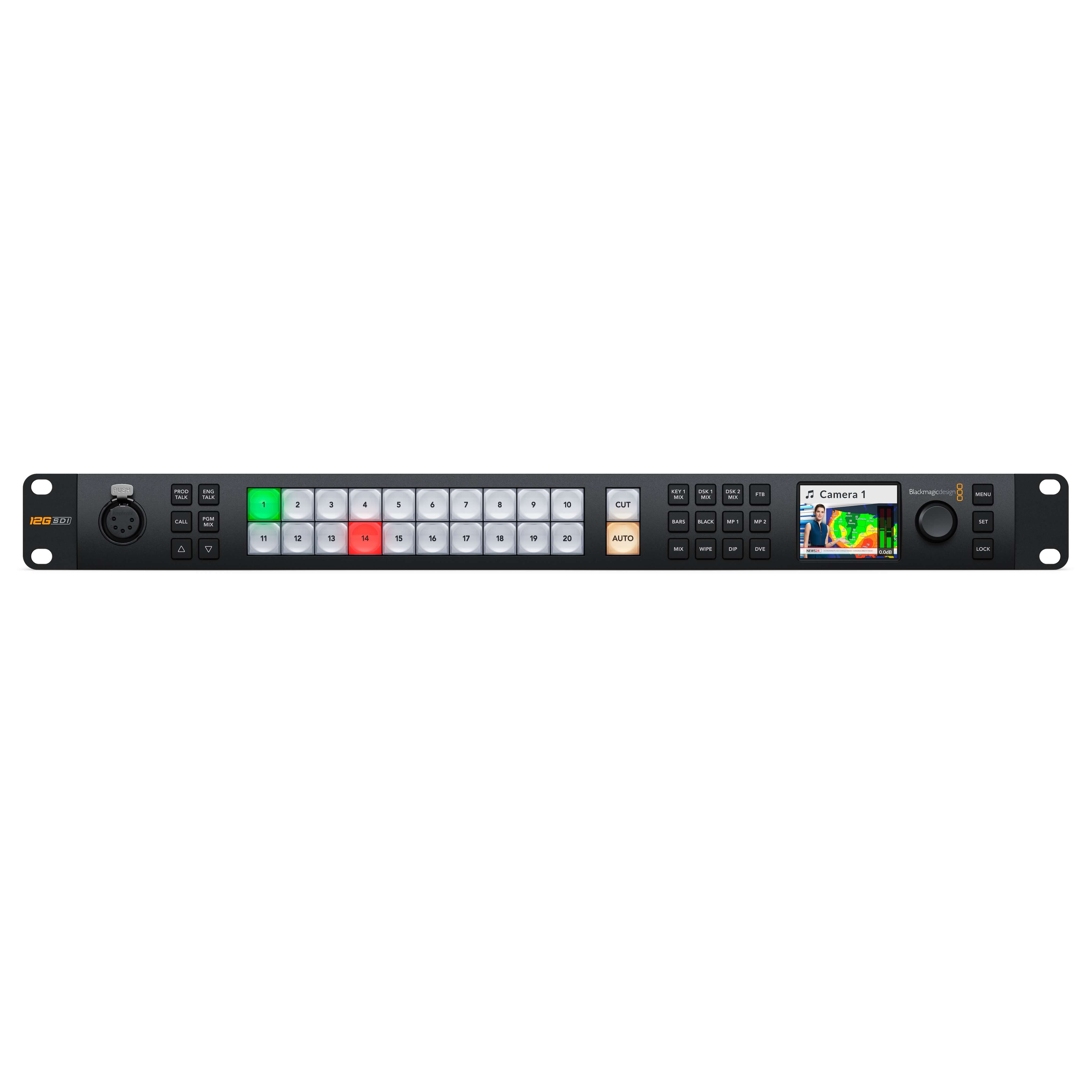

The Blackmagic Design ATEM Monitoring Rack Panel 20 is a video converter built into a 1RU rack-mount ATEM switcher control panel. It features 20 buttons for controlling a local ATEM switcher, plus a front panel talkback connection. The video converter has two redundant SMPTE-2110 10G Ethernet connections, which are converted to 2 x 12G-SDI outputs and an HDMI output. Video is also displayed on the converter's built-in LCD screen. Simply mount it in a rack and use it when setting up or monitoring a job.
Features
• Monitoring converter built into a rack mount ATEM control panel
• Converts 10G Ethernet SMPTE-2110 to 12G-SDI and HDMI outputs
• 2 redundant 10G Ethernet ports for SMPTE-2022-7 compliance
• Includes dedicated NMOS connection for routing IP sources
• Front panel LCD allows monitoring of video and audio meters
• Front panel includes a 5-pin broadcast talkback headset connector
• Dual redundant AC power supplies for broadcast reliability
