Description

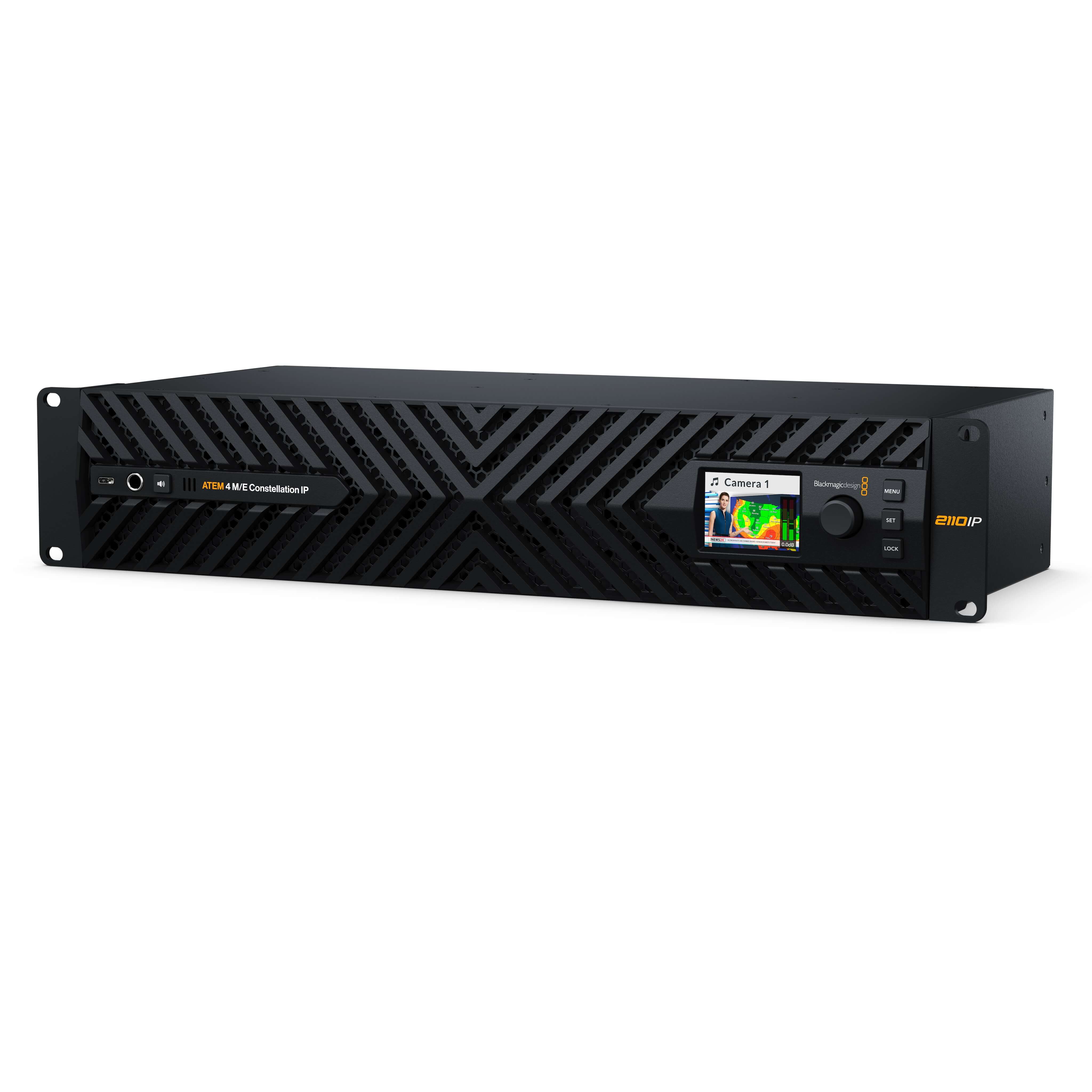

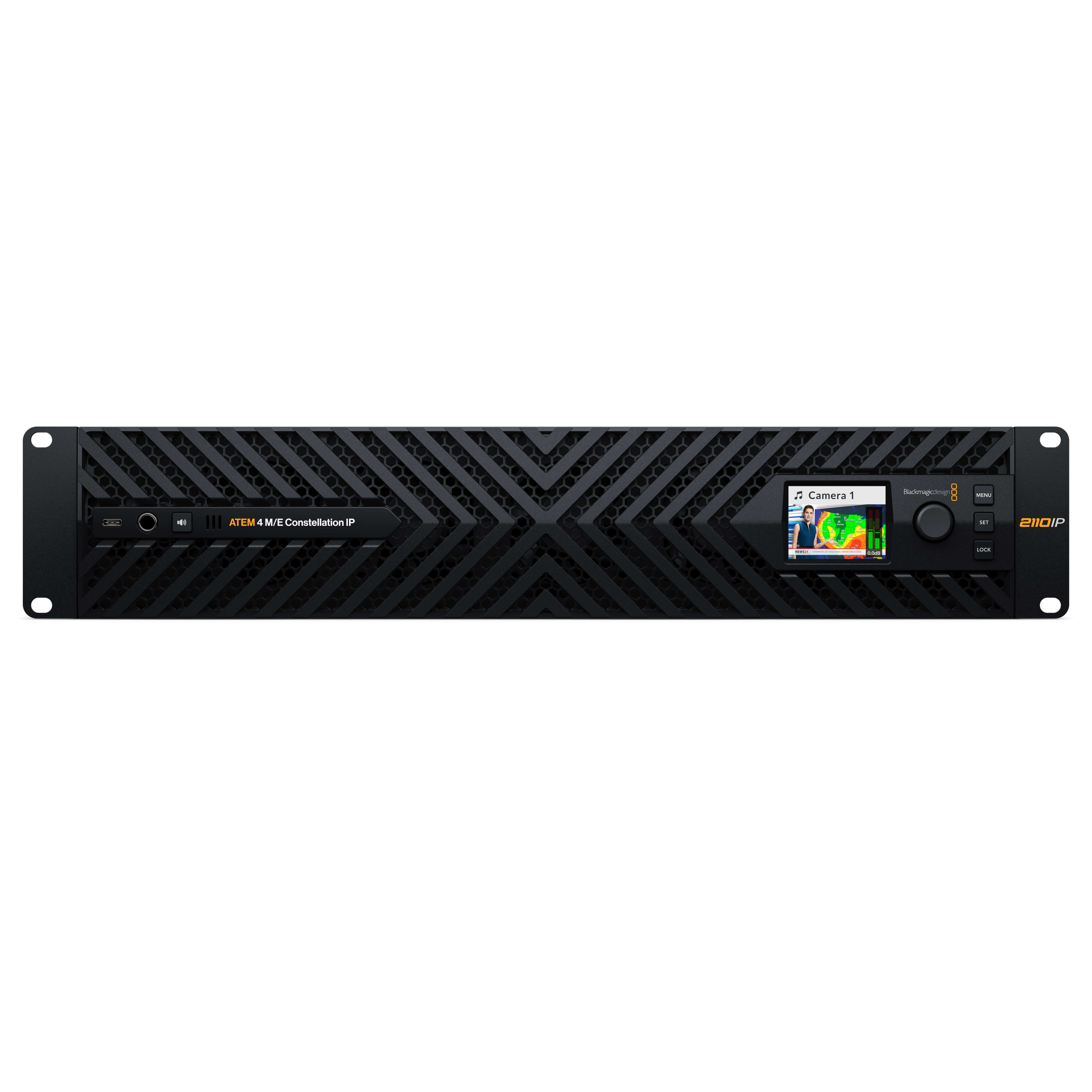

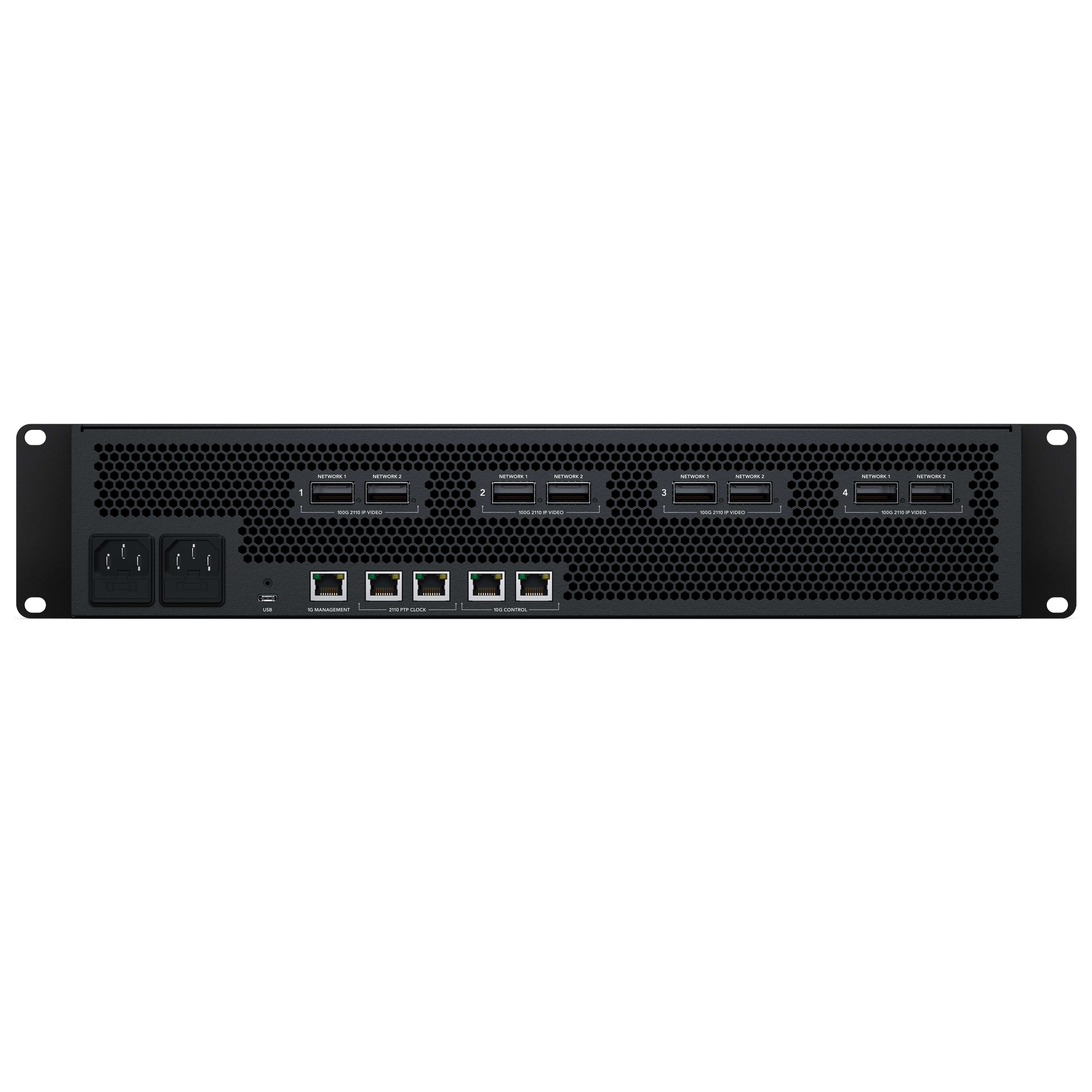

The Blackmagic Design ATEM 4 M/E Constellation IP is an advanced live production switcher with a powerful design that's fully SMPTE-2110 native and uses high speed 100G Ethernet connections. This makes it easy to add a converter for a mix of traditional 12G-SDI or modern SMPTE-2110 IP video connections. Plus, all IP video connections are fully redundant and SMPTE-2022-7 compliant. You get 32 inputs and 28 outputs, 16 ATEM Advanced Keyers, 4 multi-views and 2 SuperSource processors for a total of 12 DVEs.
Features
• Powerful native SMPTE-2110 live production switcher
• 32 inputs using 4 sets of redundant 100G Ethernet connections
• Works with 12G-SDI or SMPTE-2110 IP video
• Redundant 100G Ethernet for full SMPTE-2022-7 compliance
• Operates in cut-bus or professional mix effects switching styles
• Full standards conversion and re-sync on all inputs
• USB output operates as a webcam and supports all video software
• Supports all ATEM hardware and software control panels
• Includes up to 4 independent customizable multi-views
• Includes mix, wipe, DVE and stinger transitions
• Includes up to 4 DVEs
• Internal media for stills and motion graphics
• Includes 4 ATEM Advanced Chroma Key per M/E row
• Includes up to 2 SuperSource each with 4 DVEs
• Support for Fairlight Live audio mixing
• Professional talkback compatible with ClearCom and RTS
• Includes free ATEM Software Control for Mac and Windows
• Compatible with ATEM Monitoring Panel
• Compatible with ATEM Camera Control panel
• All features are included with no extra customer usage charges
