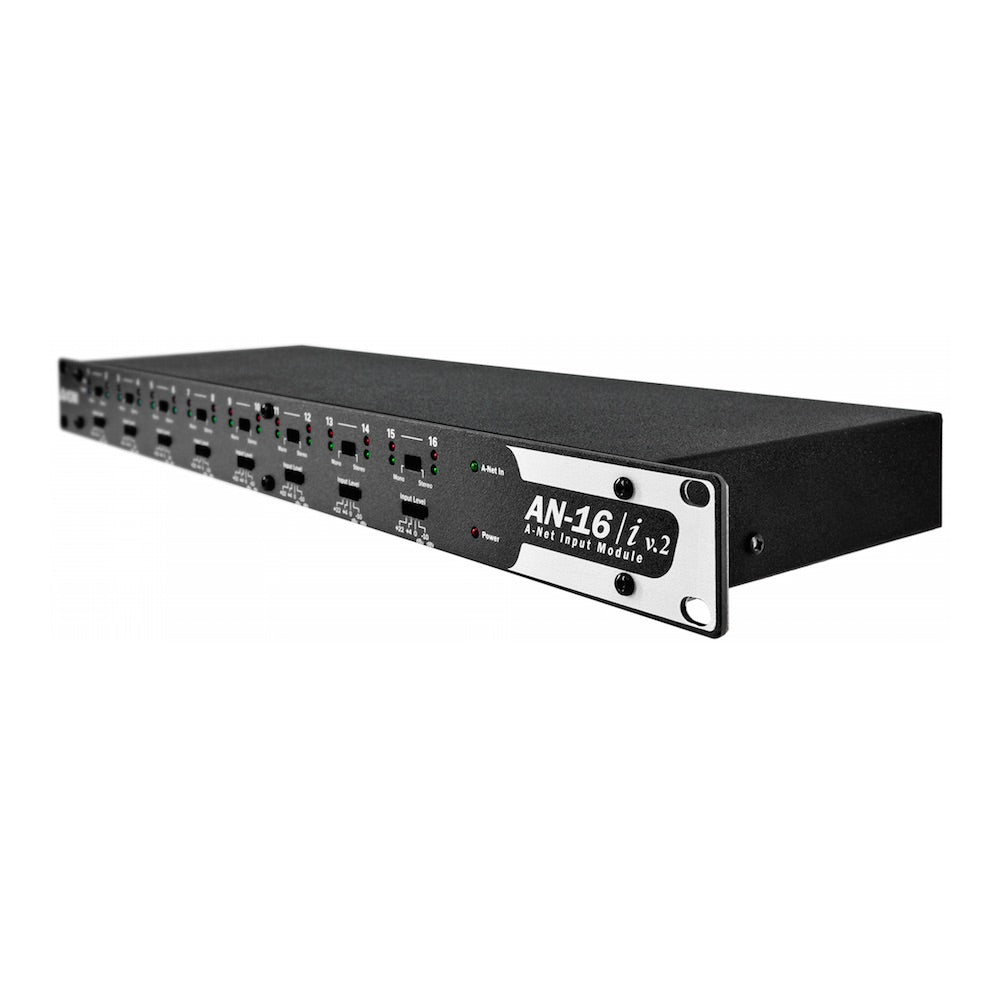

Aviom AN-16/i v.2 - 16-Channel Line-Level Input Module

The Aviom AN-16/i v.2 Input Module provides sixteen channels of analog-to-digital conversion as the head end for Aviom's industry standard personal mixing system and modular digital snake products. The module converts sixteen line-level analog audio channels into uncompressed 24-bit, 48kHz digital audio data.

The AN-16/i v.2 includes an A-Net Input jack for connecting up to three additional Pro16 Series input devices. The AN-16/i v.2 merges its analog inputs with the incoming A-Net stream, creating the expanded Pro16e digital audio stream utilized by Aviom's A360 and A320 Personal Mixers. The digital A-Net audio data is output on standard Cat-5e cables.

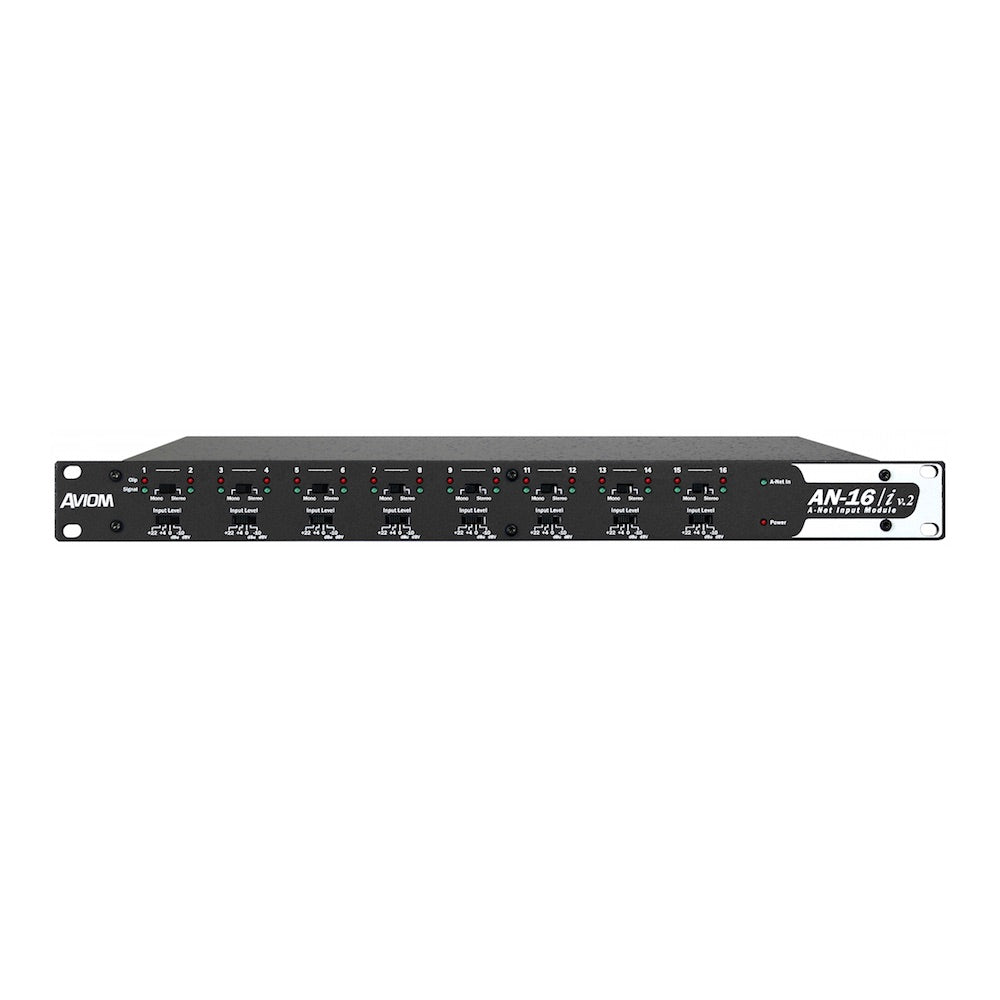

The AN-16/i v.2 front panel has eight four-position input level/gain sensitivity switches, stereo channel link switches for every channel pair, and per-channel signal present and clip LEDs. Digital network connections on the rear panel include one A-Net In jack and one A-Net Out jack.

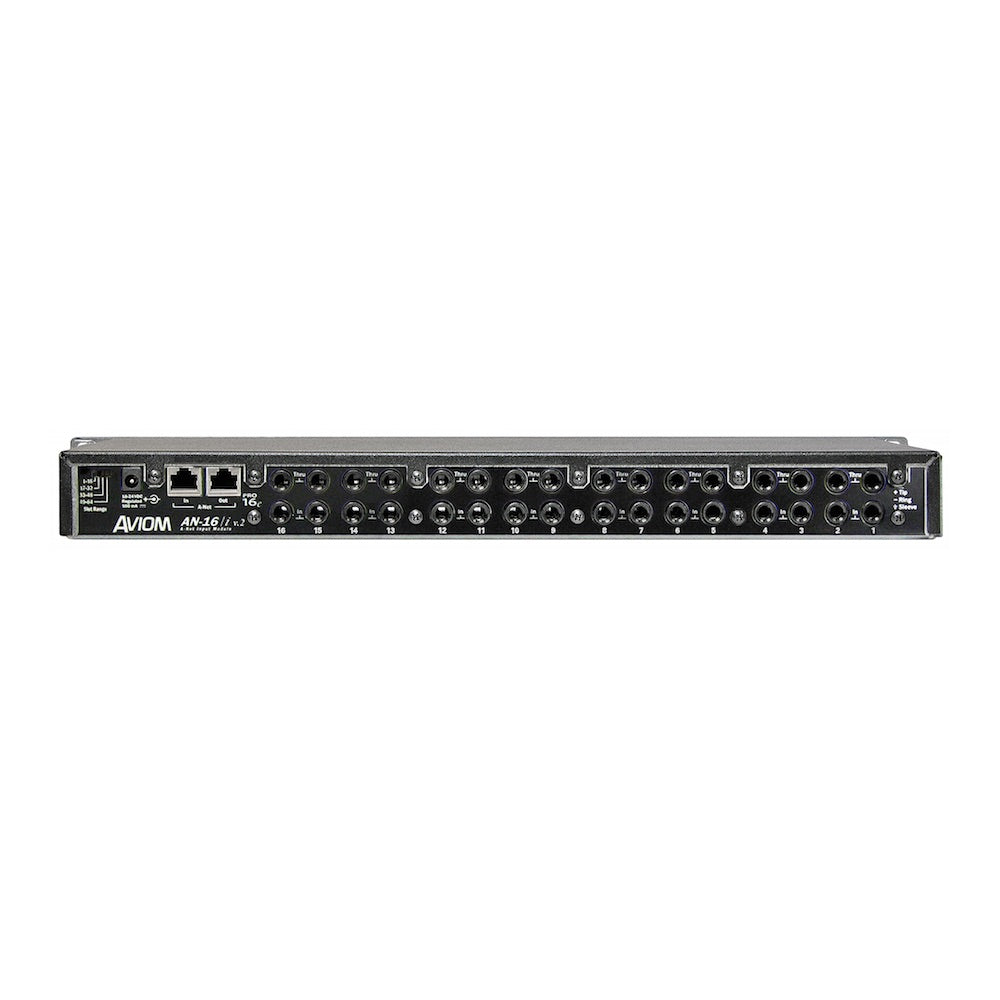

The rear panel of the AN-16/i v.2 also features 16 analog audio inputs with balanced 1/4" TRS jacks. An audio Thru jack for each input allows the AN-16/i v.2 to be inserted seamlessly into an exist- ing audio signal path. The AN-16/i v.2 can be used with any line-level analog audio signal such as console direct outs, inserts, or aux sends.

The AN-16/i v.2 is equally at home with Aviom's modular Pro16 digital snake and audio distribution system products, supporting a range of flexible configurations including: 16x0, 32x0, 48x0, 64x0, 16x16, 32x16, 32x32, and 48x16. All configurations support an unlimited number of digital splits, with no loss in audio quality.

Features
• Converts 16 line-level analog audio channels to a Pro16e A-Net digital stream
• A-Net In for generating Pro16e A-Net for A360 and A320 Personal Mixers
• 16 balanced line-level inputs
• 16 balanced line-level Thru jacks
• 48kHz, 24-bit A/D converters
• Four-position gain sensitivity switch per channel pair
• Stereo Link per channel pair
