The Audio-Technica ATW-R1440 System 20 PRO 4-Channel Receiver offers a new level of functionality and convenience, as the foundation of a self-managing, plug-and-play 2.4 GHz system that’s scalable to 20 channels. It delivers high-quality digital wireless audio regardless of where you set it up. Designed for hassle-free deployment, the system overcomes many challenges of conventional wireless microphones, such as frequency coordination, complex intermodulation calculations, and remote antenna cabling.
Capable of receiving up to four transmitters, the system’s ATW-R1440 receiver makes installation a breeze. Receiver units can remain docked in the half-rack chassis or be mounted remotely (up to 328 feet away) via Ethernet cable for added versatility. Up to five chassis can be linked using the included RJ12 cable, creating a stable, multichannel system with the simultaneous use of up to 20 channels. But the user is always free to choose the most effective operation mode for a given situation: Standard mode (10 channels) to minimize latency or HD mode (20 channels) to maximize channel count.
Seamless setup and management are controlled via Audio-Technica’s Wireless Manager software, which is capable of managing multiple UHF, 2.4 GHz and DECT wireless systems from a single screen. In addition, AES128 encryption comes standard, providing security and reliable operation. The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.
Features

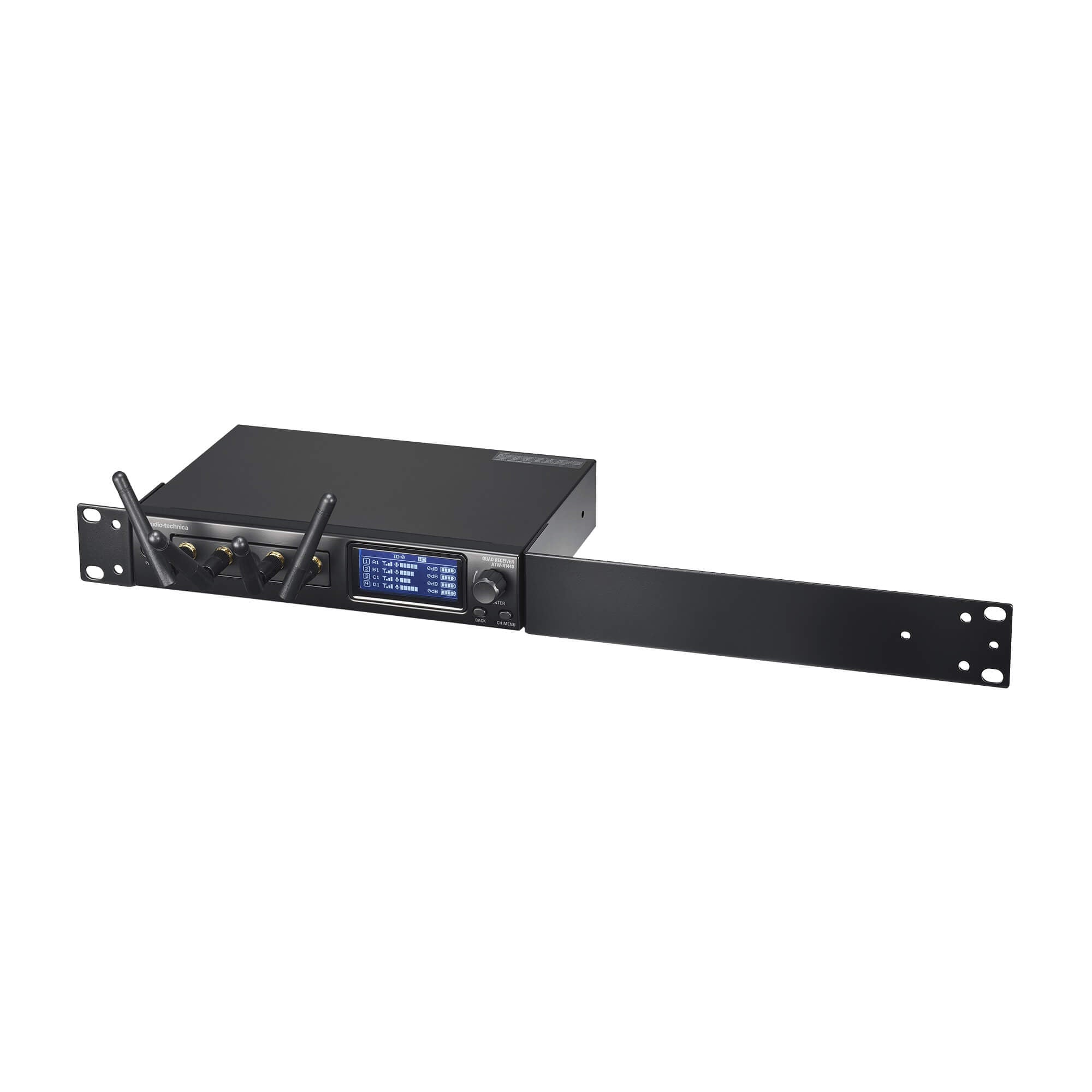

• Half-rack chassis capable of receiving up to four transmitters
• Each receiver channel can be paired with up to four transmitters
• User can switch between Standard (10 channels) and HD (20 channels) modes

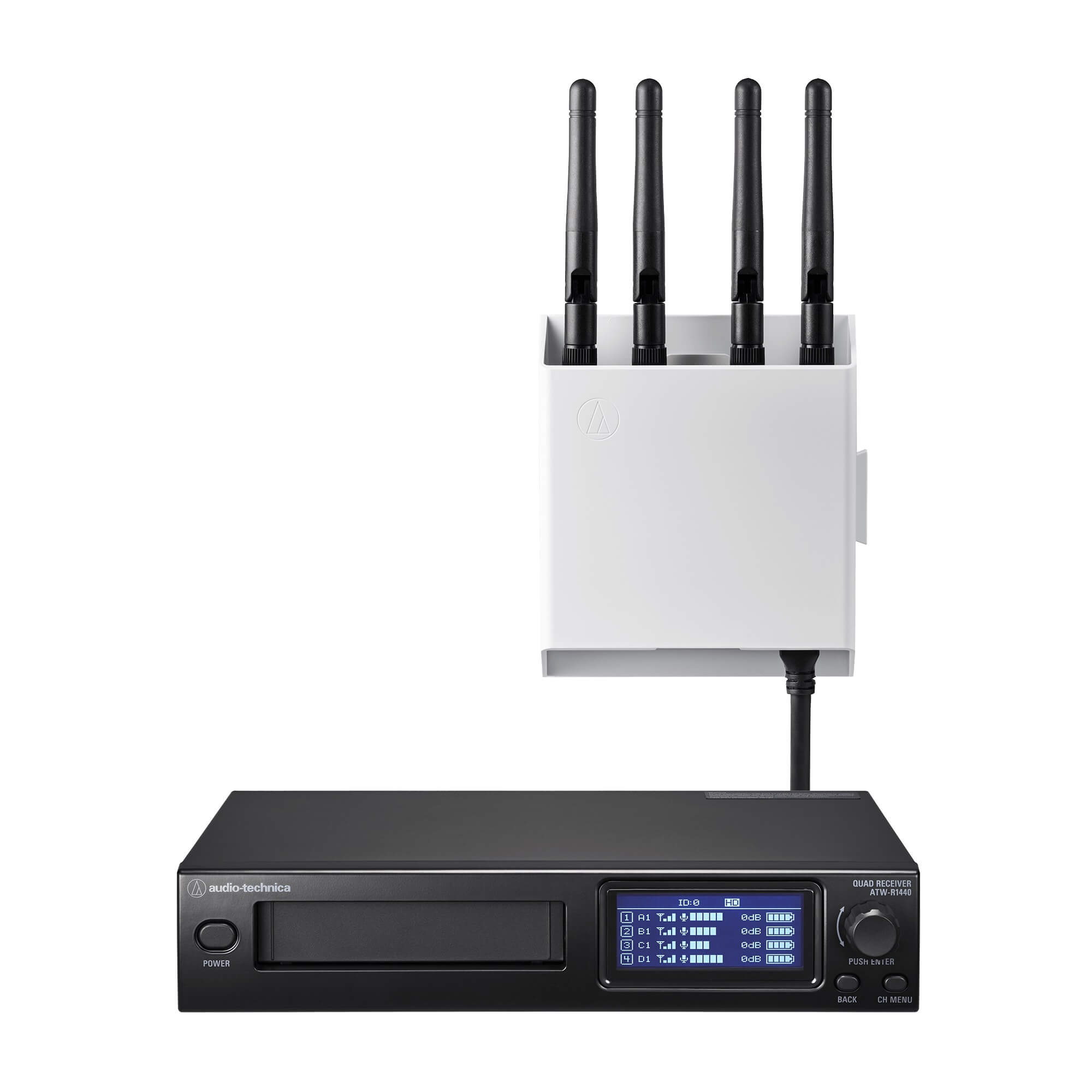

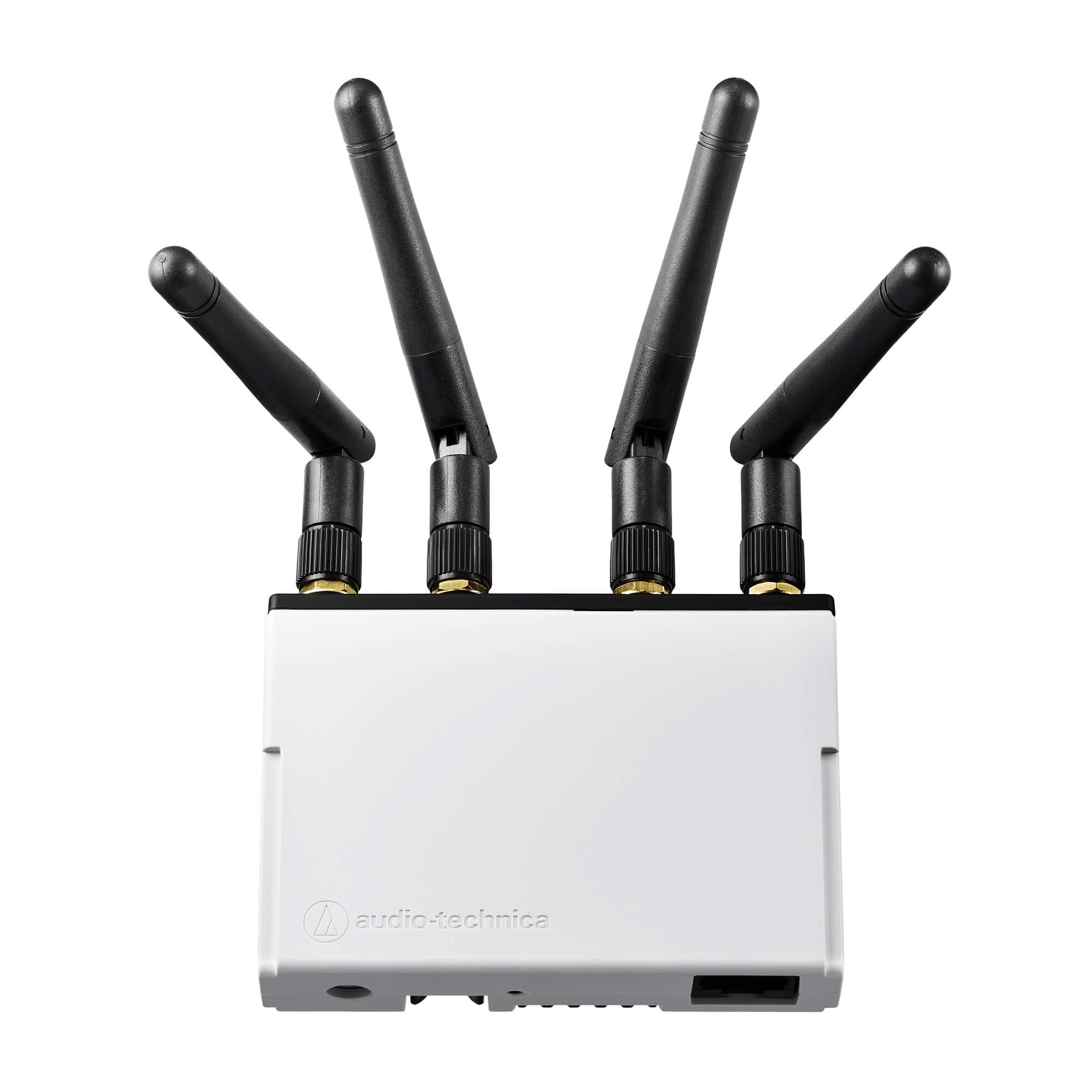

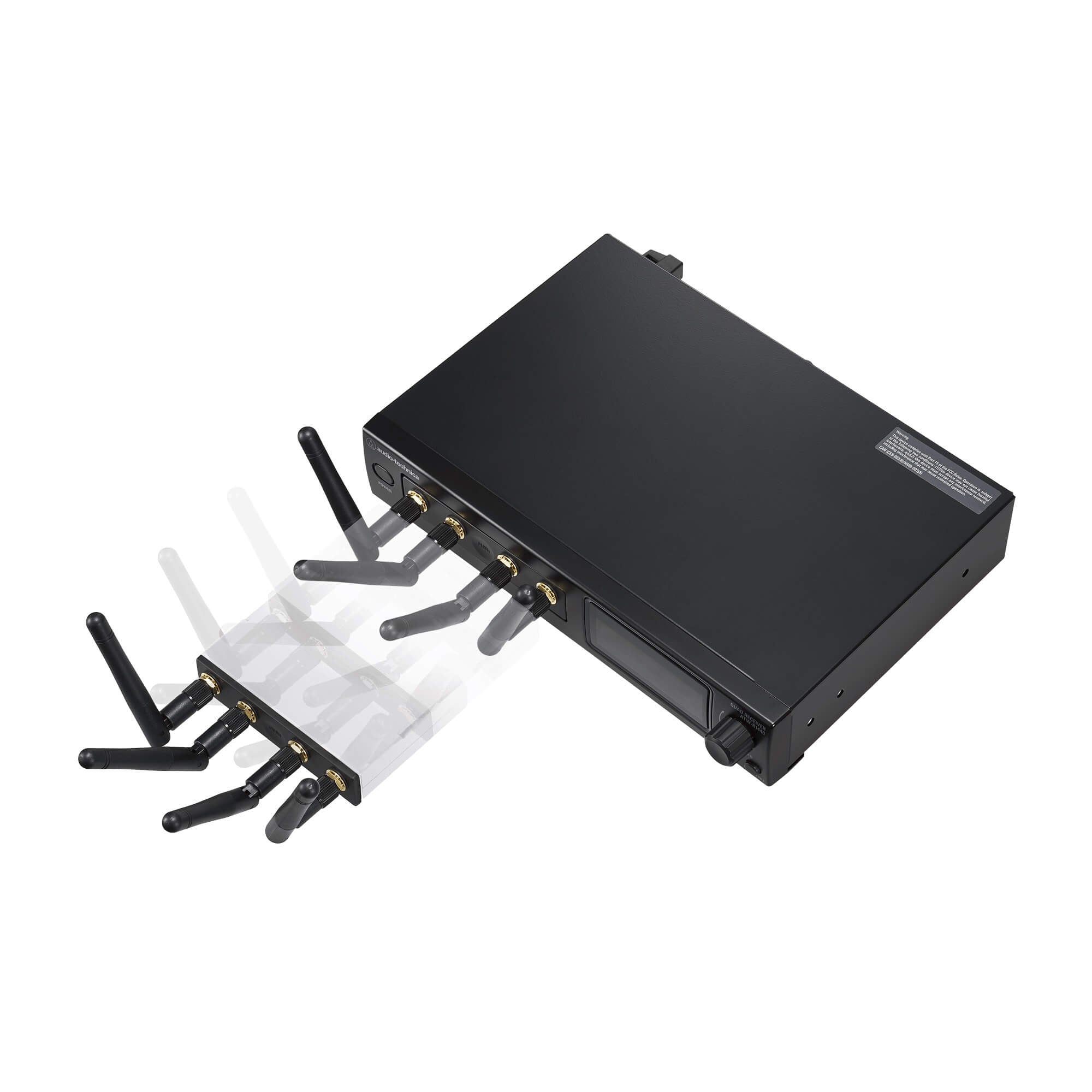

• Receiver units can be docked in the chassis or mounted up to 328 ft. away

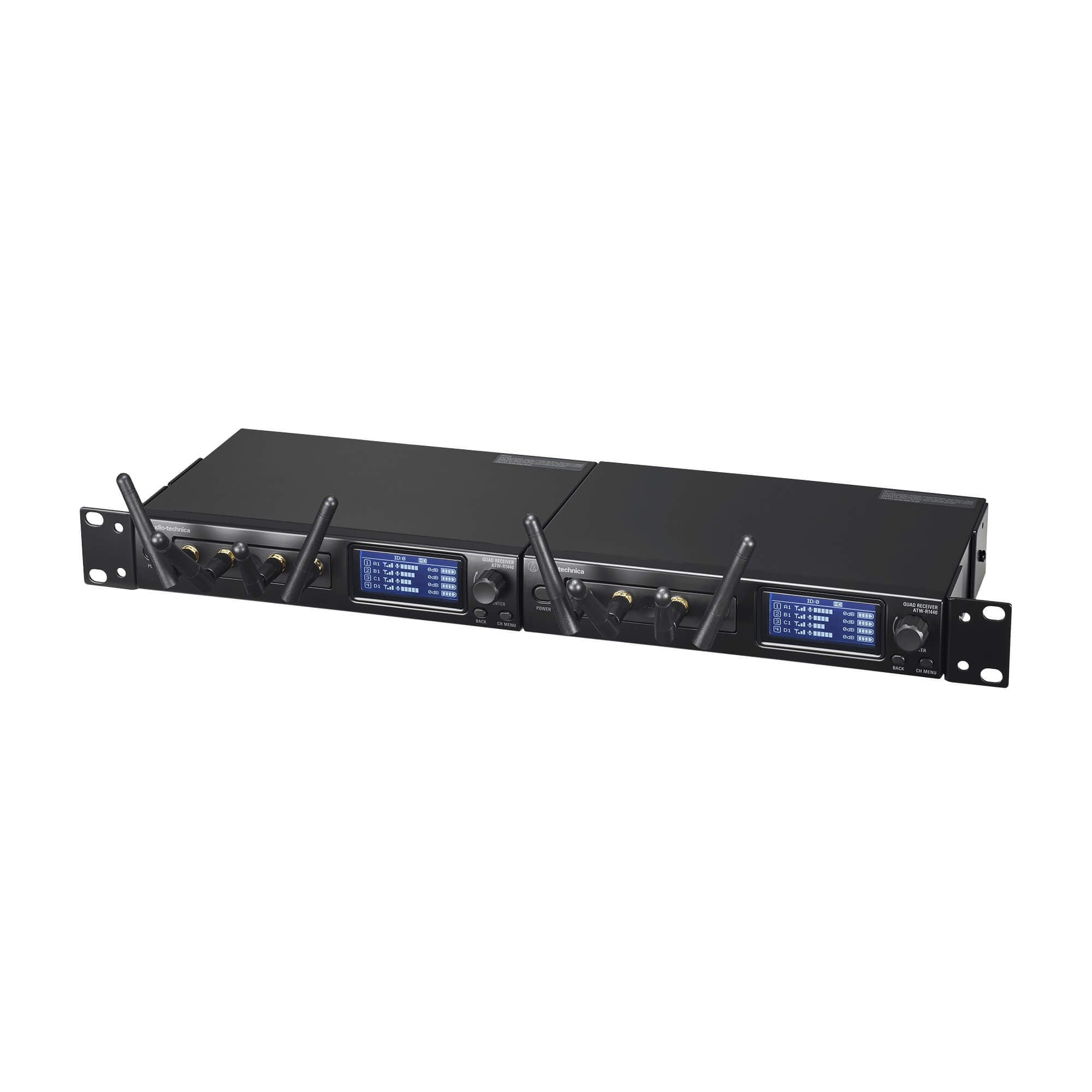

• Up to five chassis can be linked and used simultaneously
• Monitor transmitter status, audio level, battery time, etc. in A-T Wireless Manager
• Auto-lock function prevents unintended operations
FCC CONSUMER ALERT (U.S.)
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change.
For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov.cgb/wirelessmicrophones.
