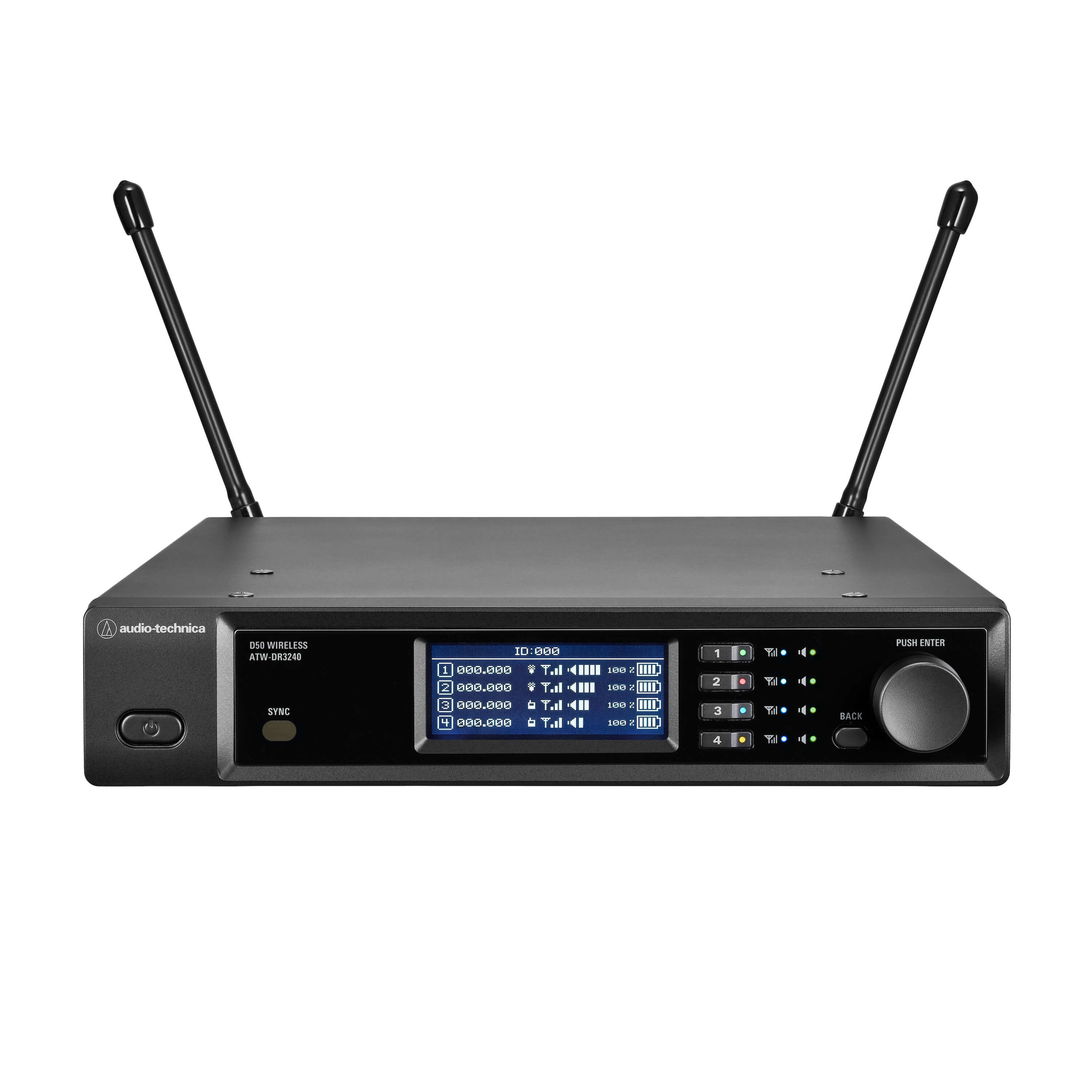

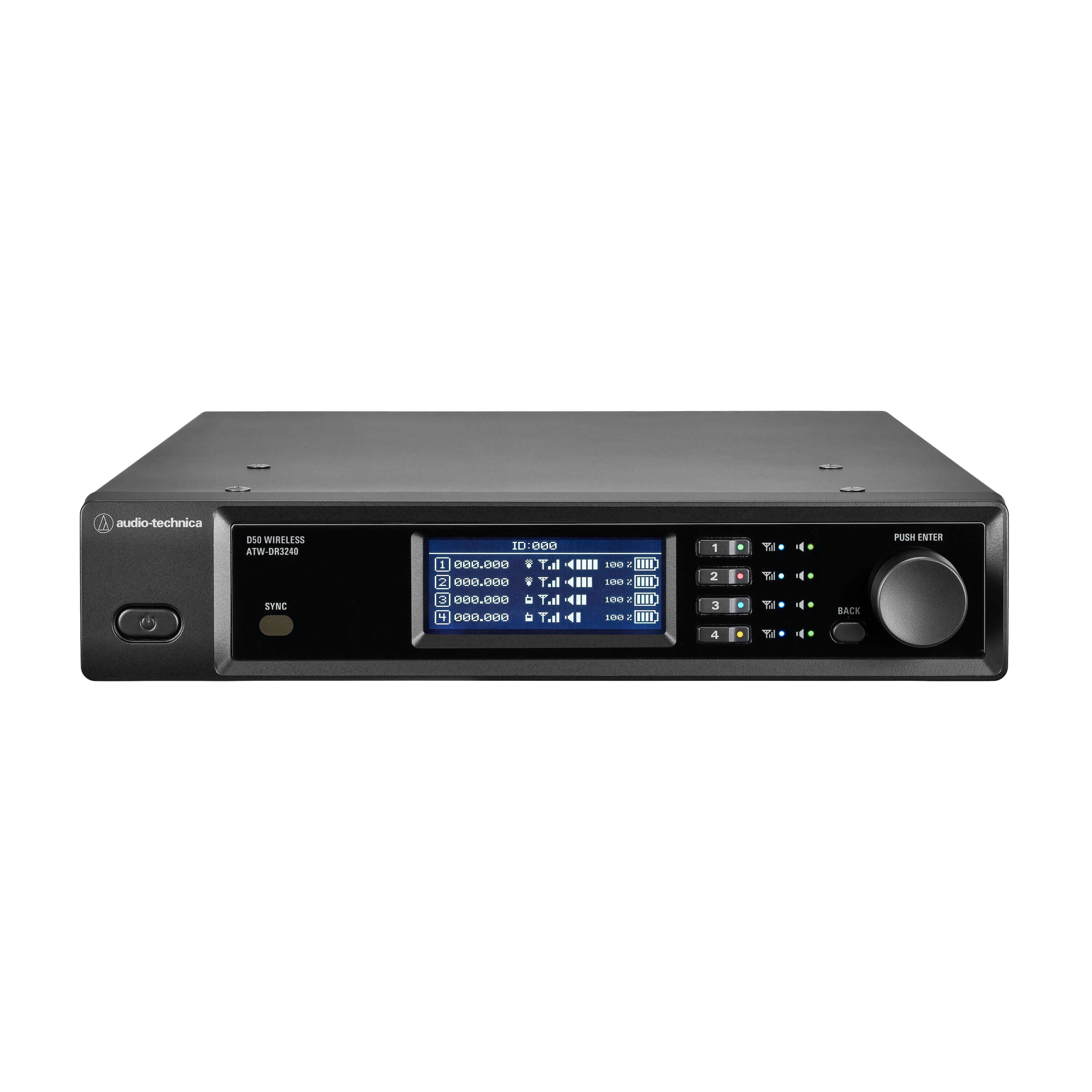

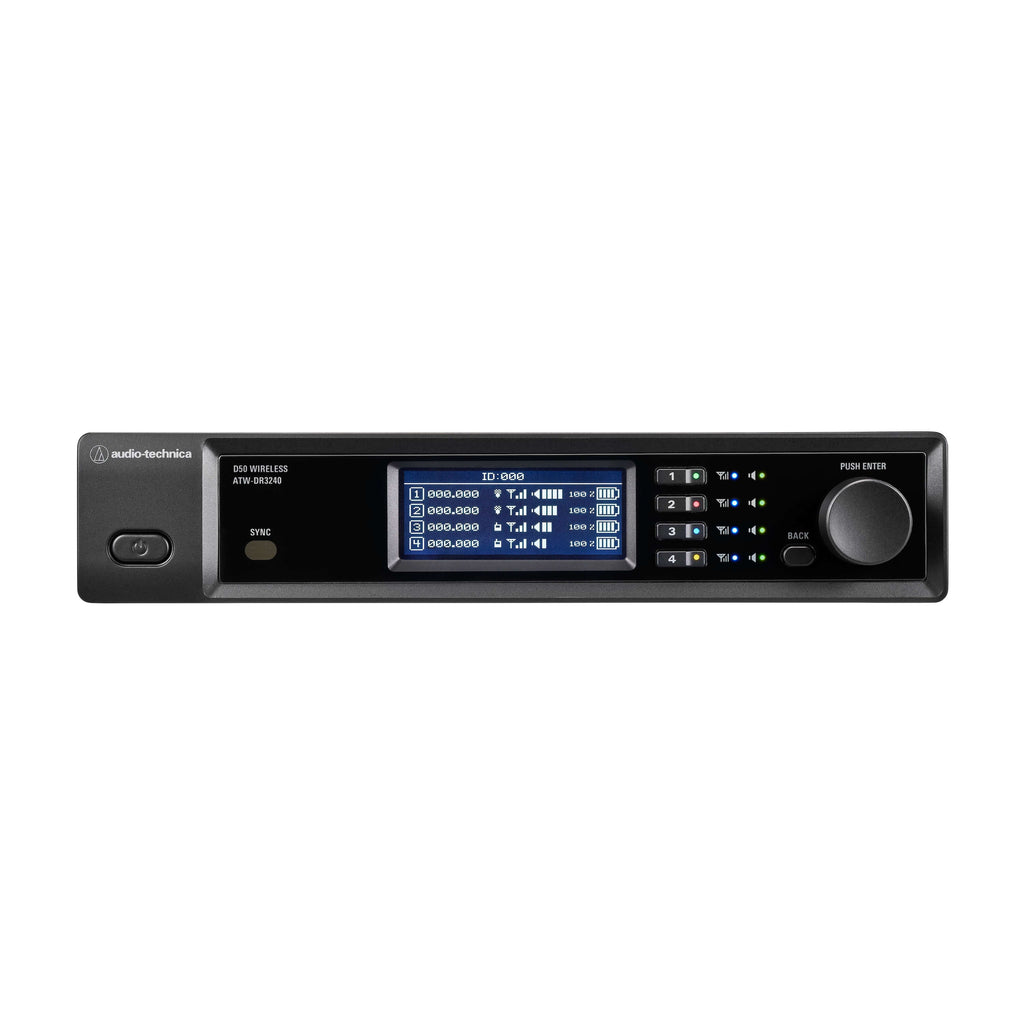

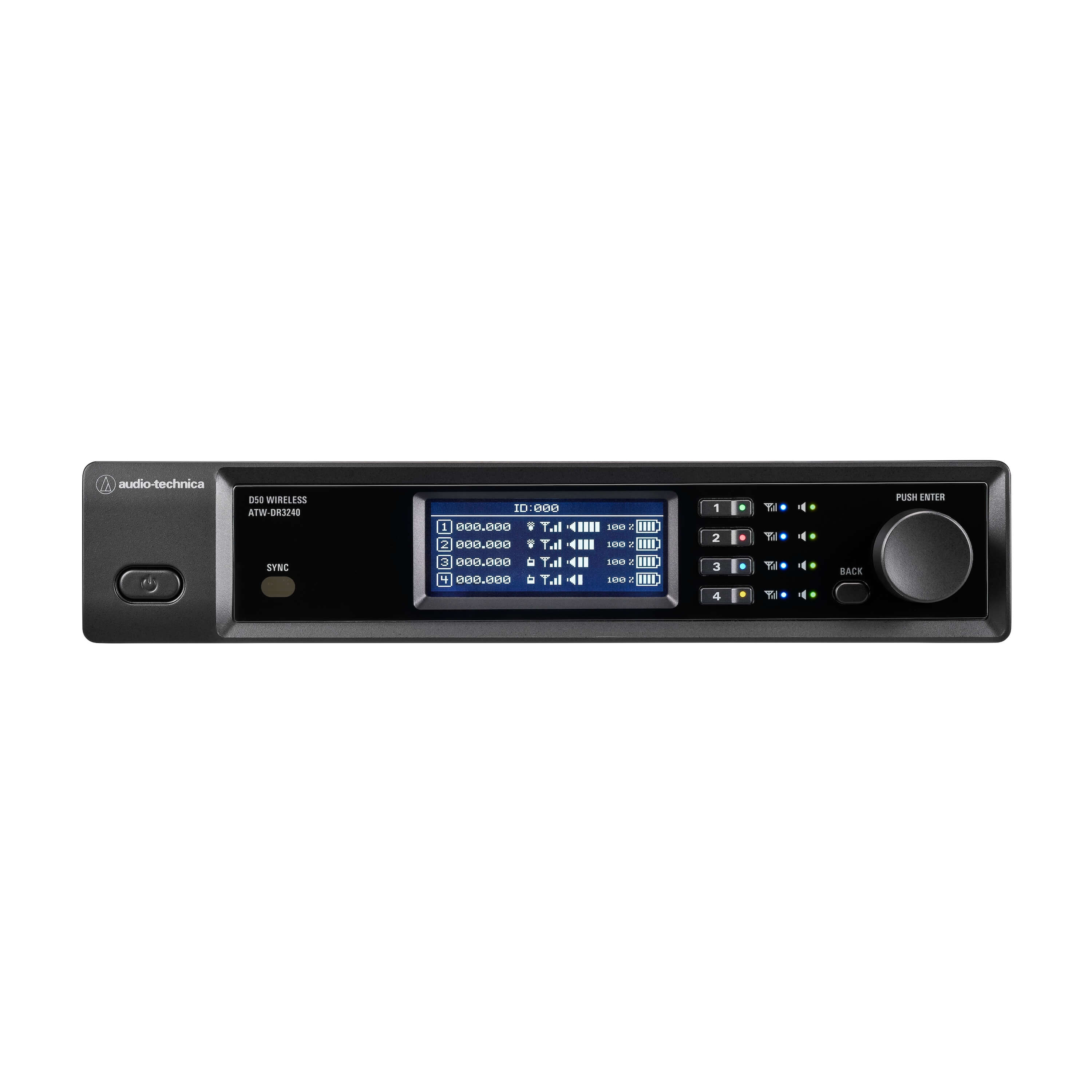

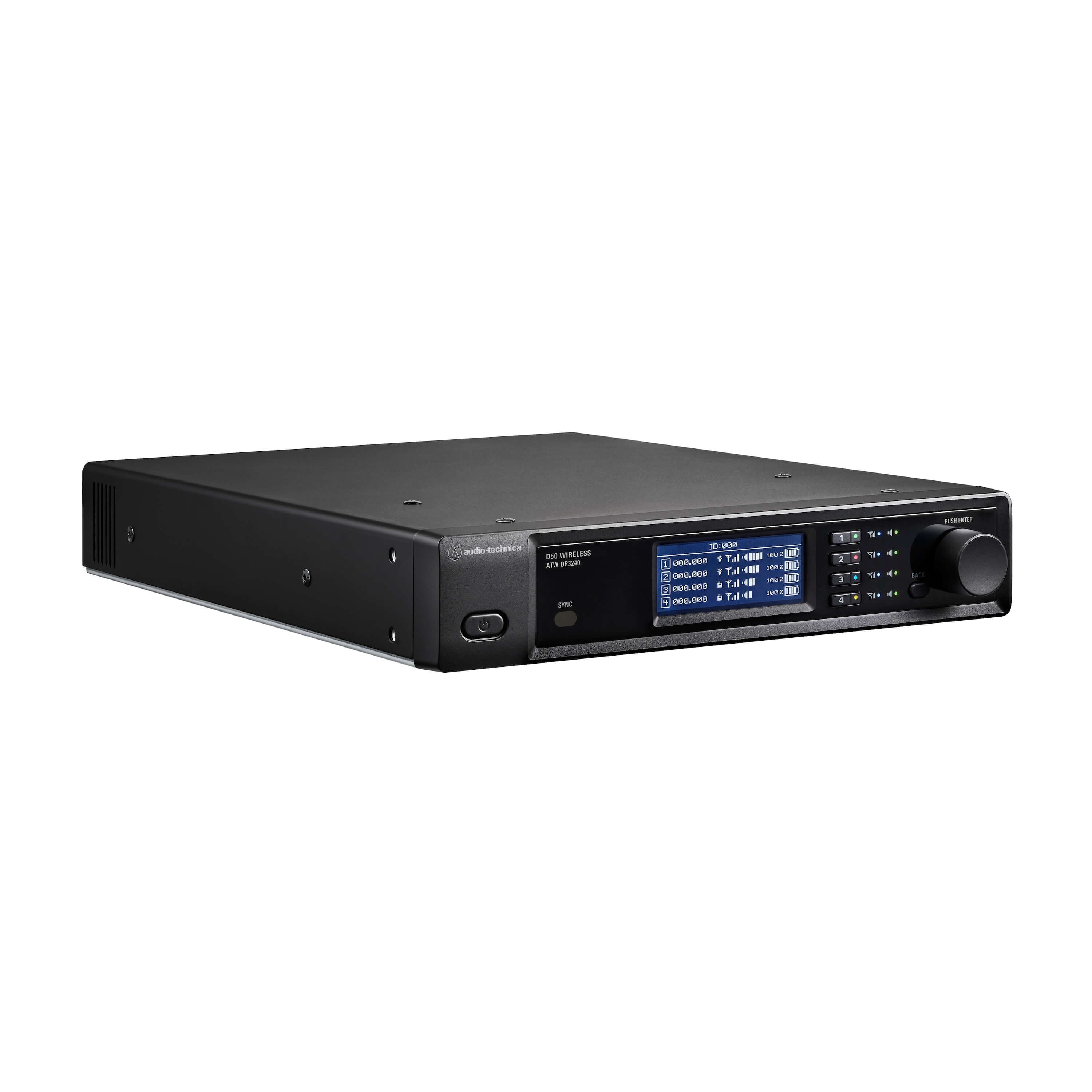

Audio-Technica ATW-DR3240DAN - D50 4-Ch Dante-Enabled Receiver

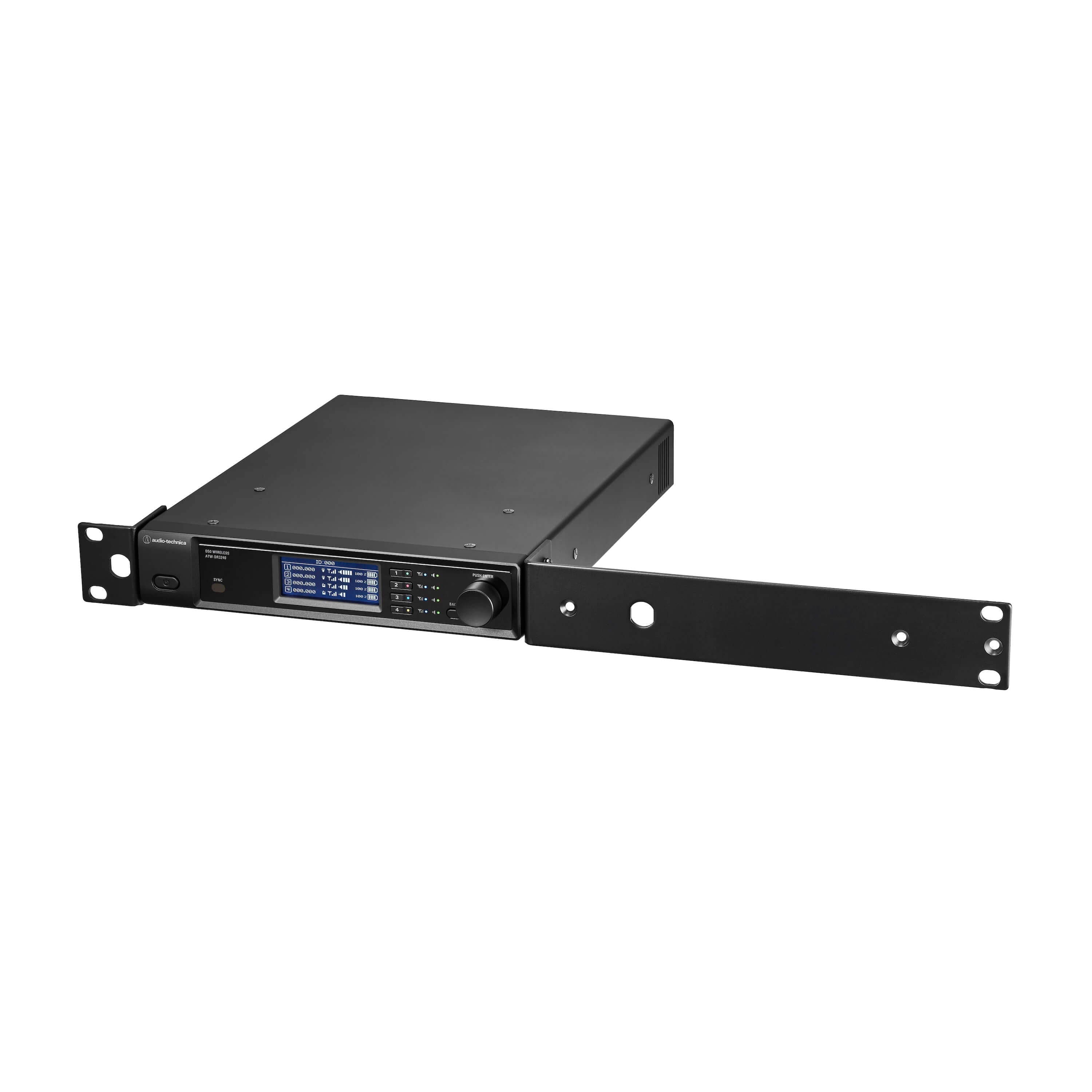

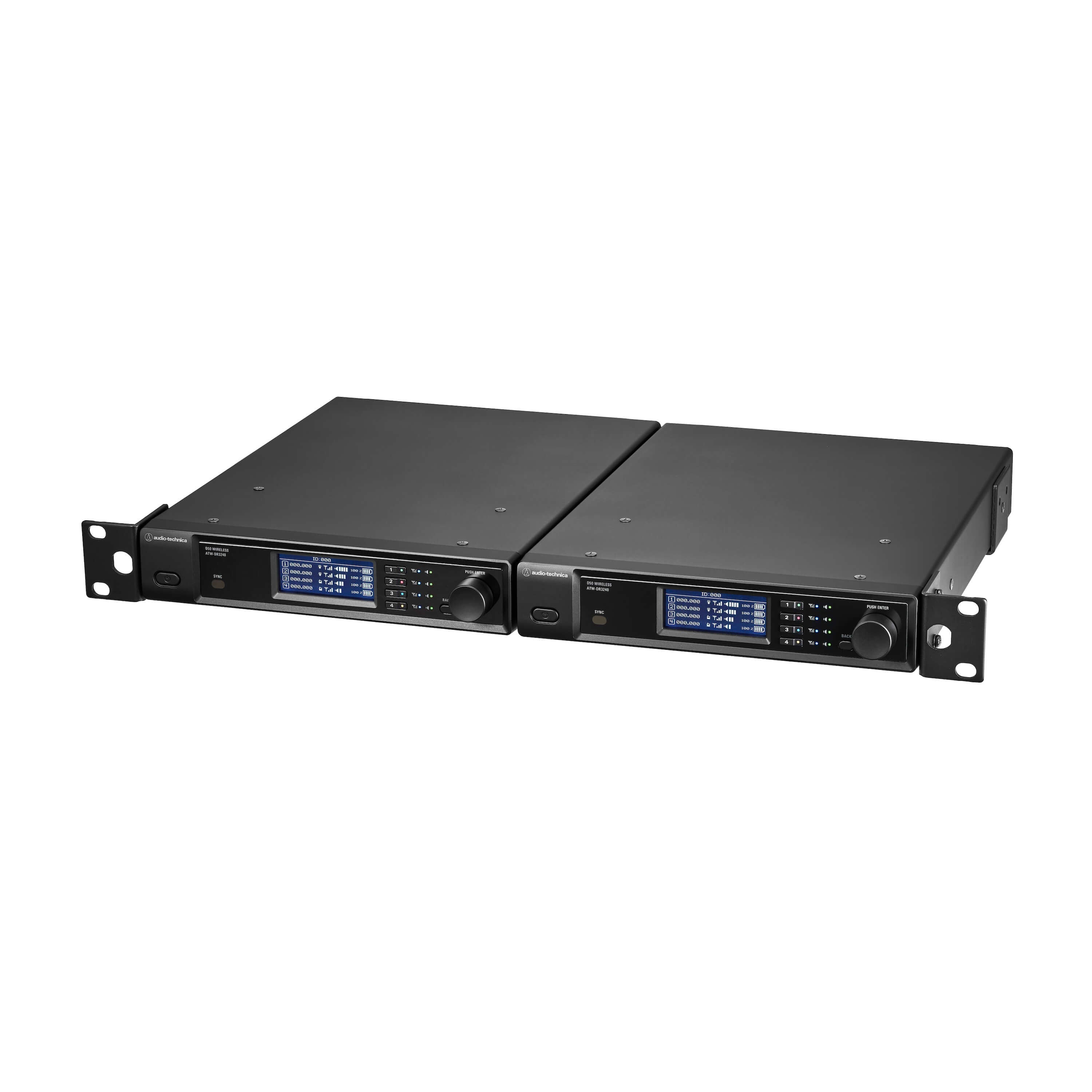

The Audio-Technica ATW-DR3240DAN is a Dante®-enabled 4-channel receiver for the D50 digital UHF wireless system. This half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system’s HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6 MHz TV channel block to 47 frequencies in HD – a feature that can be especially useful in the congested RF environments of large cities.

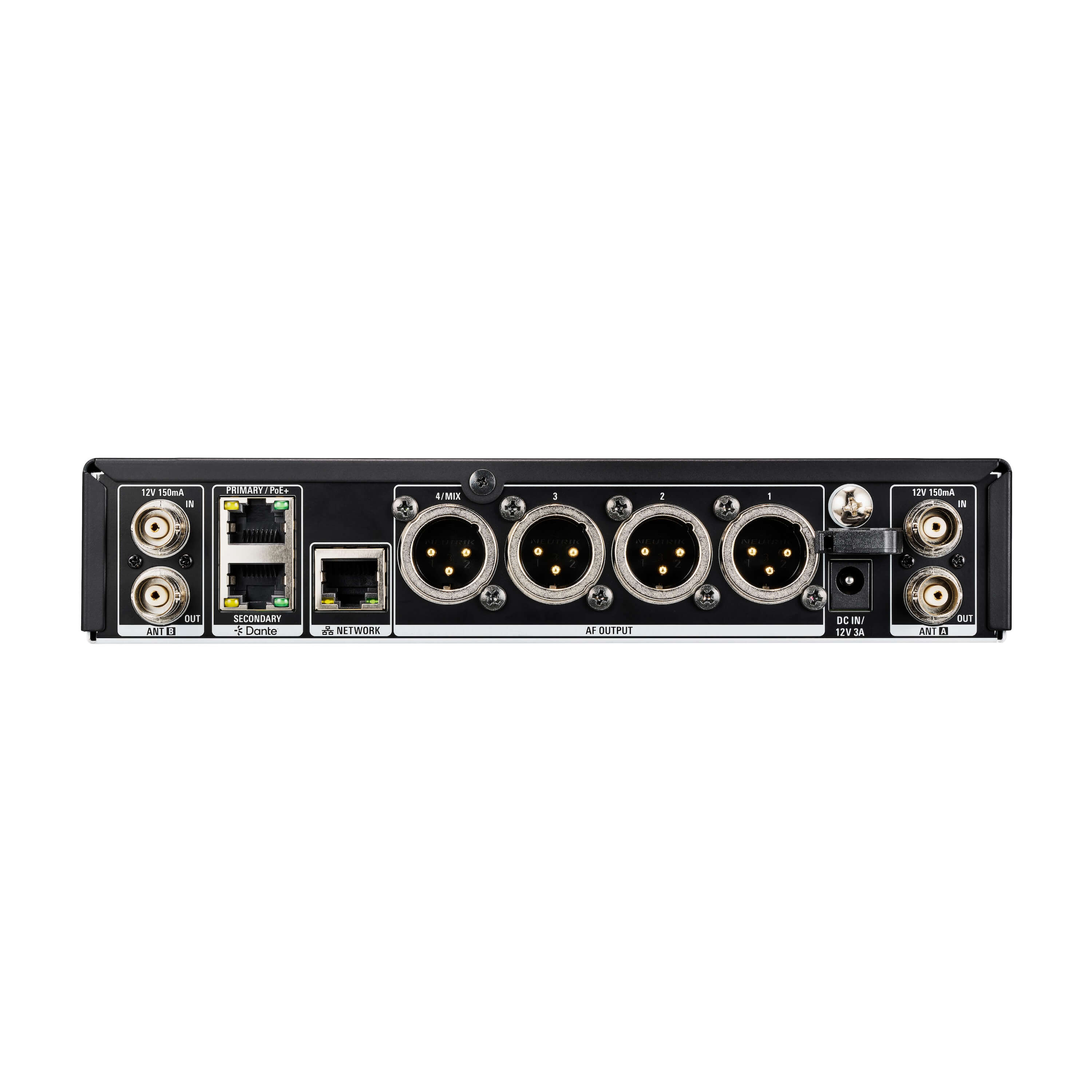

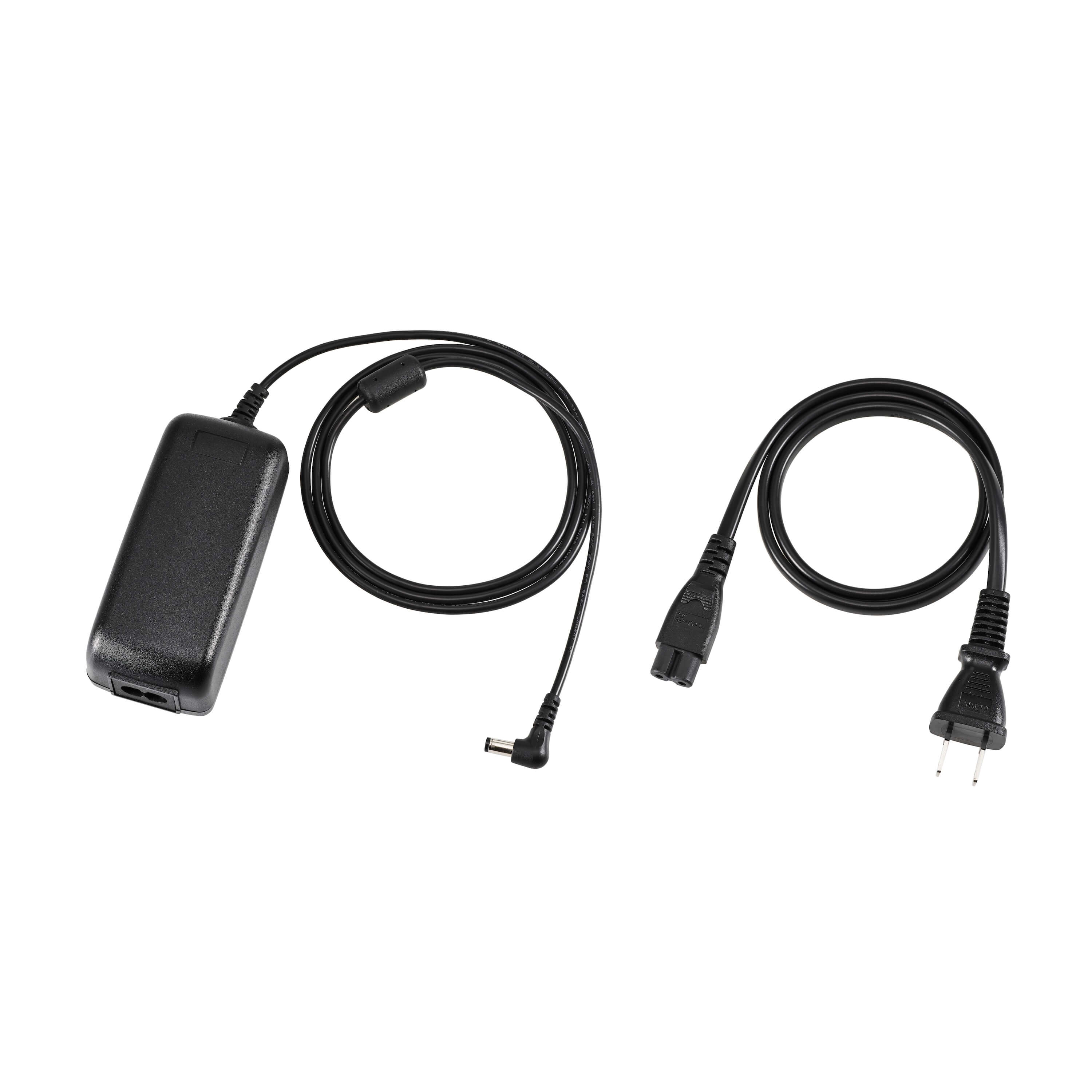

The receiver comes with an AC adapter, but can also be powered by PoE+, either exclusively or as a backup power source for the AC. The receiver also features primary and secondary Dante ports for redundancy, 96 kHz high-resolution audio, and monitoring and device configuration.

Features
• DF2 Operating Frequencies: 470.125 to 607.875 MHz
• Full tuning bandwidth (up to 138 MHz in the U.S.) enables flexible channel planning
• Switchable between Antenna Combining Diversity and MRC True Diversity modes
• Switchable between Standard mode and HD (high-density) mode
• DSP offers high-pass filter, 4-band EQ, and compressor settings for each channel
• Supports AES256 encryption for superior security
• Equipped with a network port for monitoring and configuration via Wireless Manager
• Dante redundancy, daisy-chaining, and 96 kHz sampling rate
• Receiver can be powered by included AC adapter and/or PoE+
• Receiver can be set to mixed output in situations where input channels are limited
• Spectrum analysis and IR sync functionality make setup easy
• Wireless Manager’s system management tools include EQ and COMP settings
• Multipoint receiver function switches to the receiver that has the best signal
• TAA-compliant and Radio Equipment Directive (RED) cybersecurity-compliant
• Firmware updates are performed in Wireless Manager

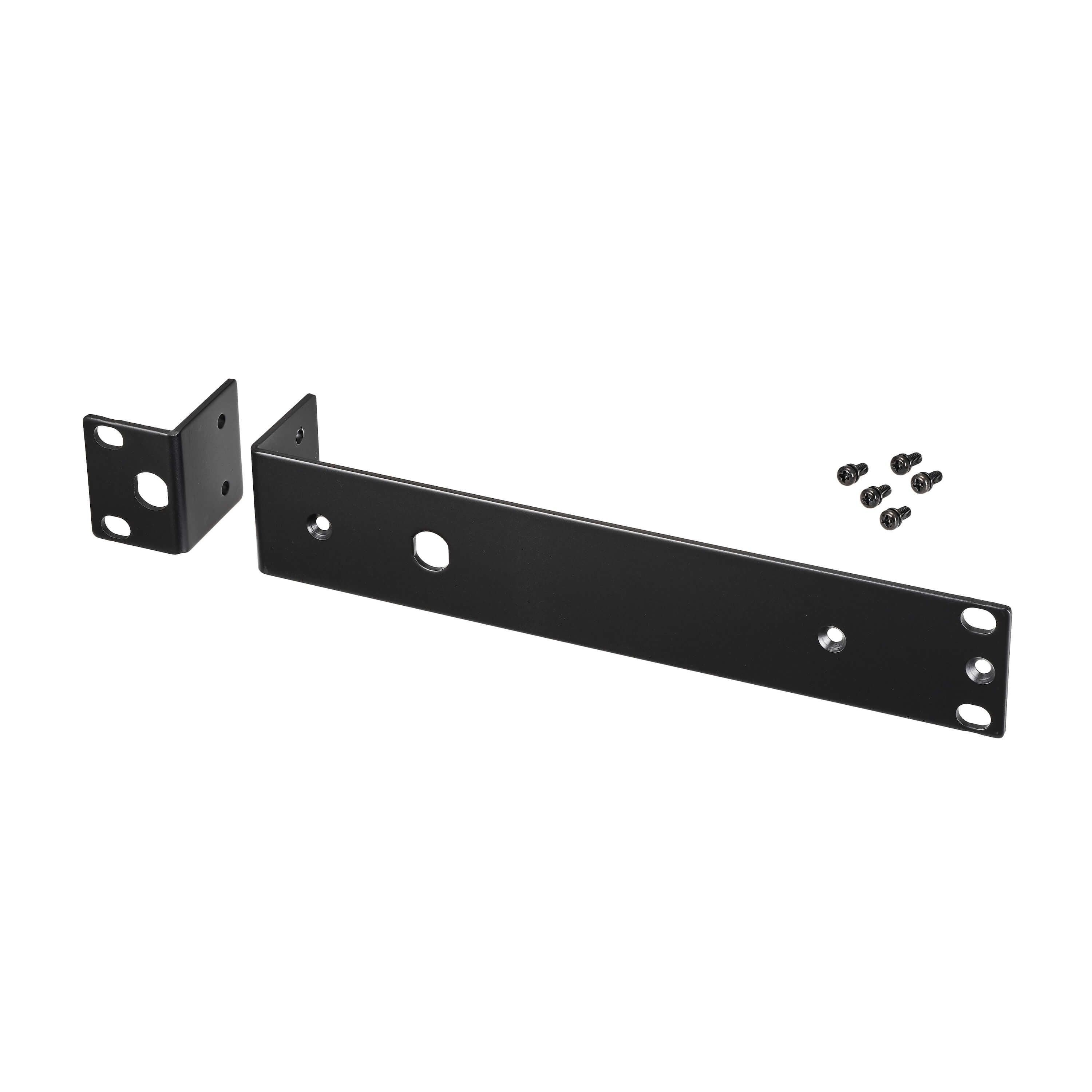

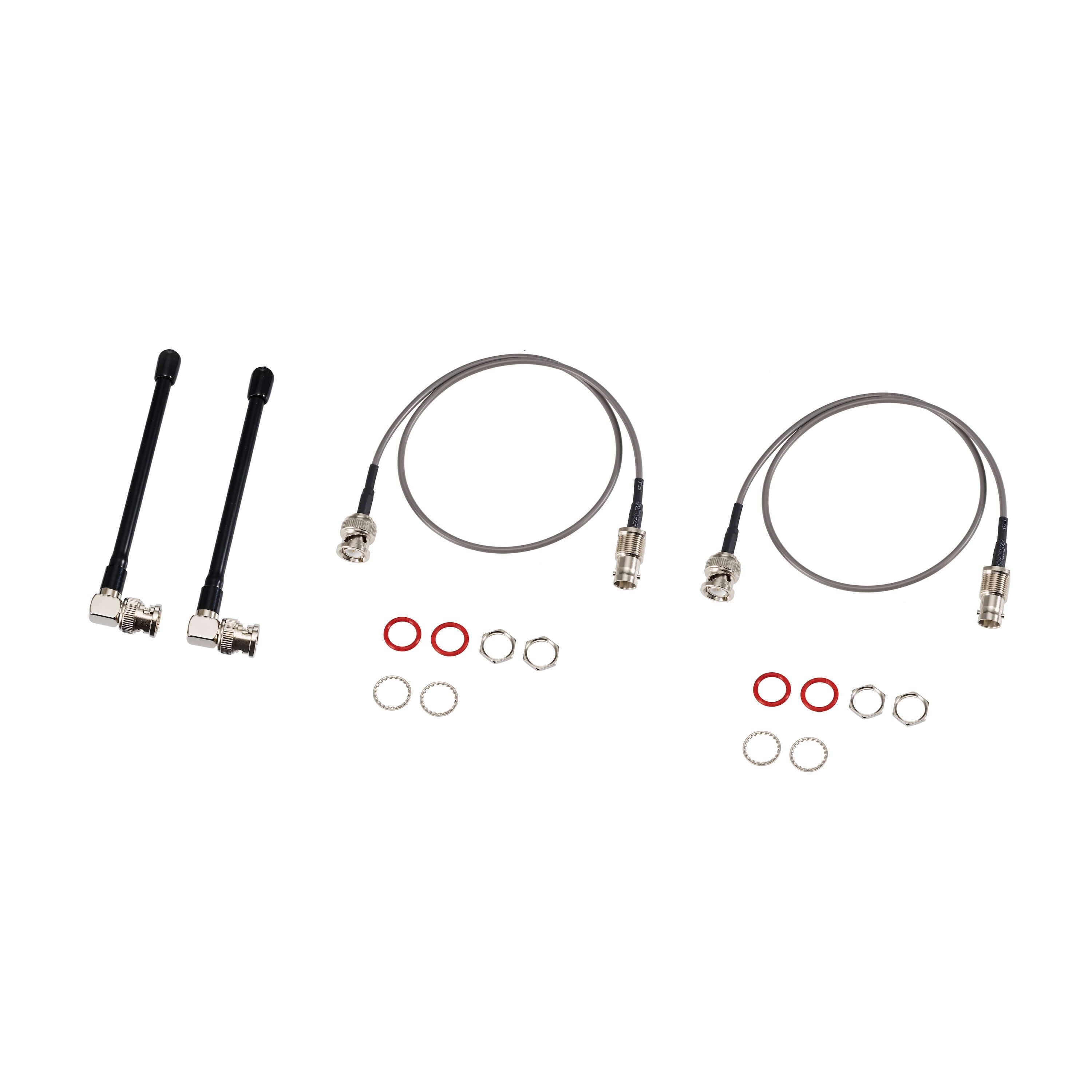

• Includes short and long rack ear kit, power supply, antennas, front-mount antenna kit
• Best-in-Class build quality, all-metal construction, Made in Japan
