Description
The Audio-Technica ATW-D50-DRX-2B is a D50 digital UHF wireless 2-ch body-pack system featuring the AT LINK-enabled ATW-DR3220LK receiver and two ATW-DT3201 compact body-pack transmitters.
The ATW-DR3220LK half-rack receiver operates in one of two switchable RF modes: normal mode (Antenna Combining Diversity) or robust mode (MRC True Diversity) for greater RF stability. Up to four receivers can be linked and operated without antenna distribution, requiring only a single pair of antennas. Plus, the system’s HD (high-density) mode gives users the option of expanding the number of usable frequencies from the standard 17 within a 6 MHz TV channel block to 47 frequencies in HD – a feature that can be especially useful in the congested RF environments of large cities. The receiver comes with an AC adapter, but can also be powered by PoE+, either exclusively or as a backup power source for the AC.
The ATW-DT3201 is a compact body-pack transmitter is equipped with a cH-style screw-down 4-pin input connector for secure connection with compatible lavalier mics, headworn mics, and cables. External control buttons and an OLED status display make the transmitter easy to use, and a special SideTrack function allows users to switch audio to a second output — providing discrete live communications with fellow performers or audio engineers.
The transmitter is powered by a custom-designed lithium-ion battery, providing best-in-class battery life. The battery can be charged in the transmitter, using the ATW-CHG6 two-bay charging station (sold separately), or can be removed from the transmitter and charged separately in the ATW-CHGA6 battery charger (included with this system).
ATW-DR3220LK Receiver Features
• DF2 Operating Frequencies: 470.125 to 607.875 MHz
• Full tuning bandwidth (up to 138 MHz in the U.S.) enables flexible channel planning
• Switchable between Antenna Combining Diversity and MRC True Diversity modes
• Switchable between Standard mode and HD (high-density) mode
• Internal DSP offers high-pass filter, 4-band EQ, and compressor for each channel
• Supports AES256 encryption for superior security
• Equipped with a network port for monitoring and configuration via Wireless Manager
• Receiver can be powered by included AC adapter and/or PoE+
• Receiver can be set to mixed output in situations where input channels are limited
• Spectrum analysis and IR sync functionality make setup easy
• Wireless Manager’s system management tools include EQ and COMP settings
• Multipoint receiver function switches to the receiver that has the best signal
• TAA-compliant and Radio Equipment Directive (RED) cybersecurity-compliant
• Firmware updates are performed in Wireless Manager

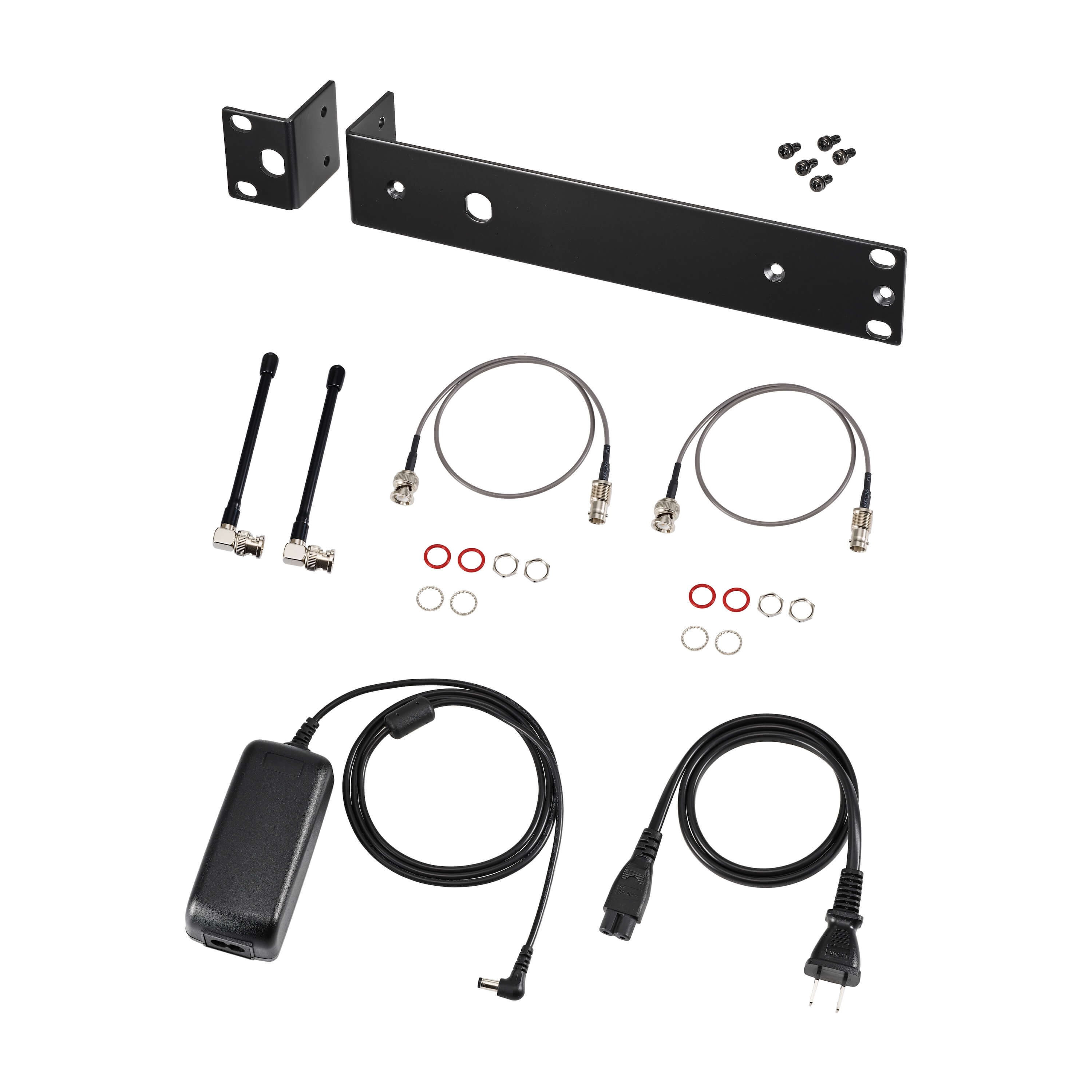

• Includes short and long rack ear kit, power supply, antennas, front-mount antenna kit
ATW-DT3201 Transmitter Features
• Rugged cH-style screw-down 4-pin connector provides a secure connection
• External control buttons, mute switch, OLED display, and a SideTrack function
• Powered by a custom-designed lithium-ion battery for best-in-class battery life
• Seven-color LED makes it easy to color code each channel
• IR sync functionality enables easy synchronization with receiver
• Best-in-class, all-metal construction. Made in Japan.

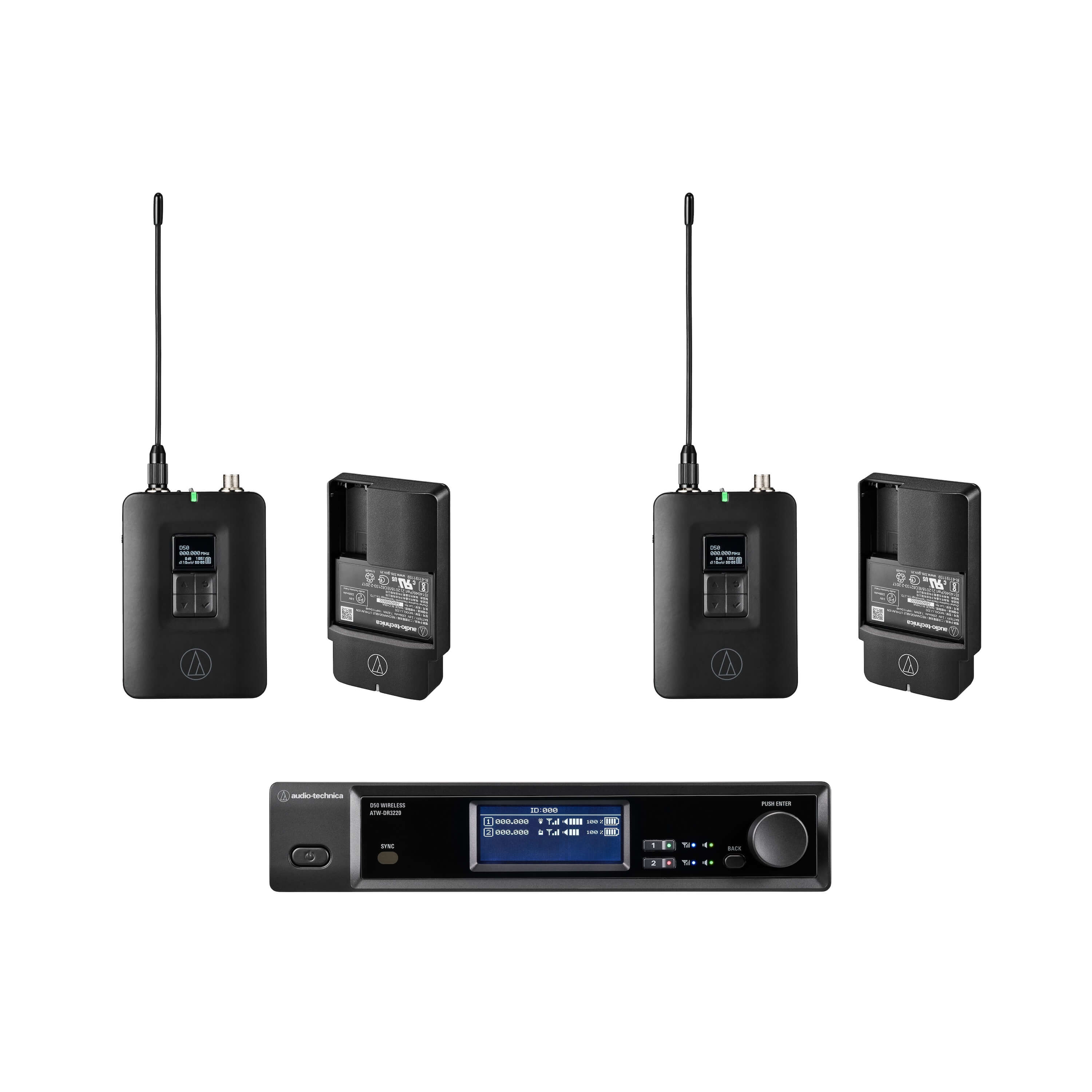

System Includes
• 1x ATW-DR3220LK 2-channel receiver
• 2x ATW-DT3201 Body-pack transmitters

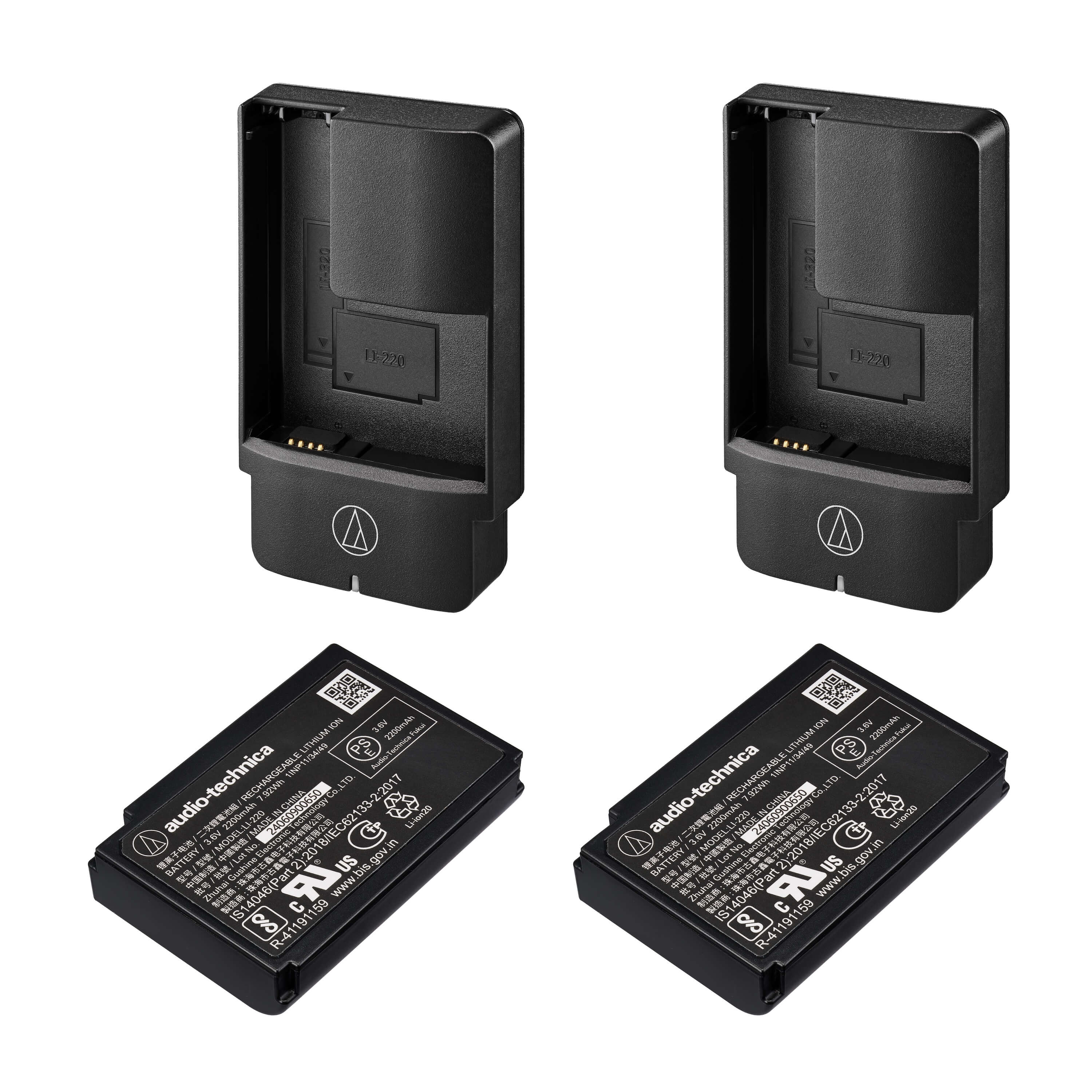

• 2x ATW-CHGA6 battery chargers
• 2x LI-220 rechargeable lithium-ion batteries

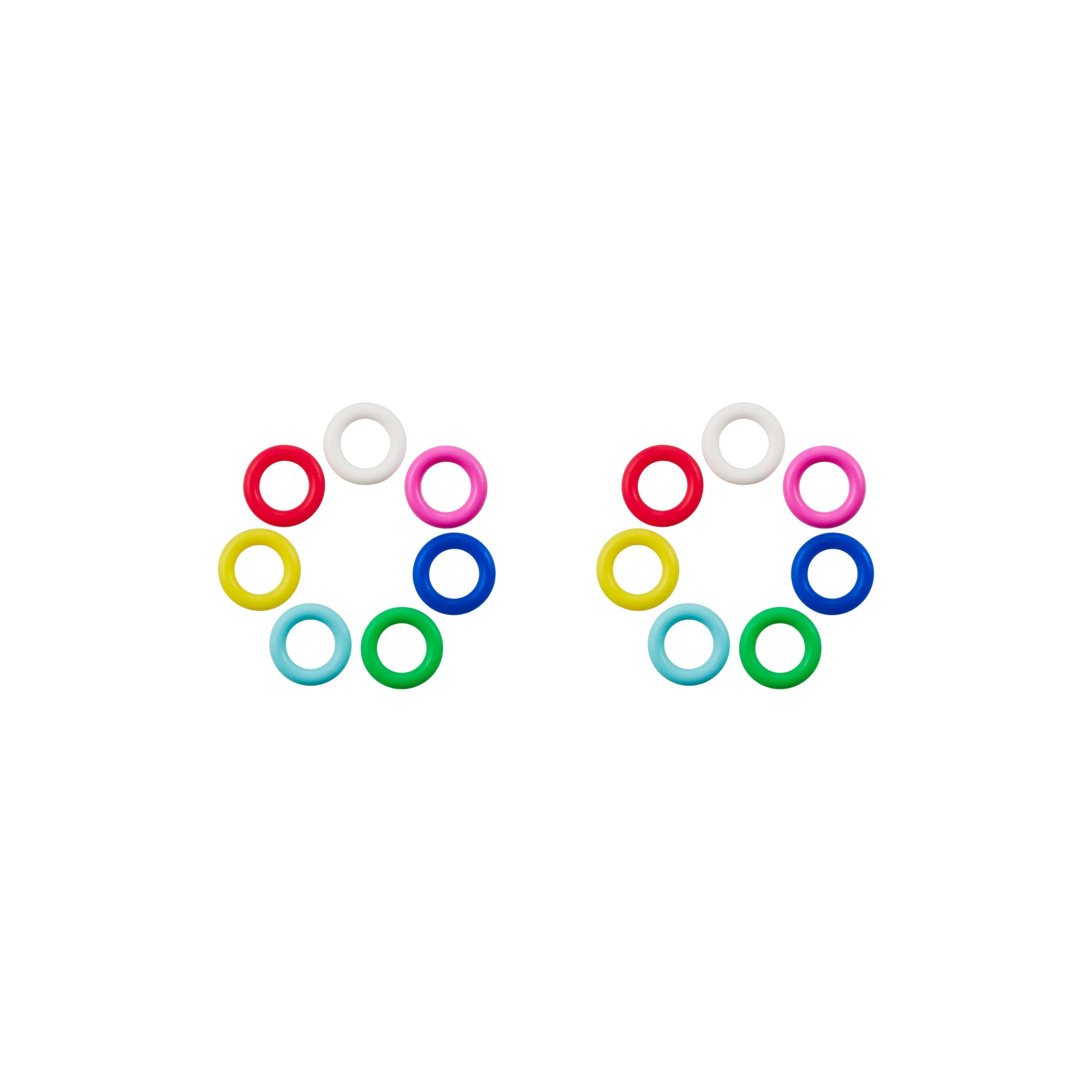

• 2x ATW-TI10 color ring indicator kits
