Description

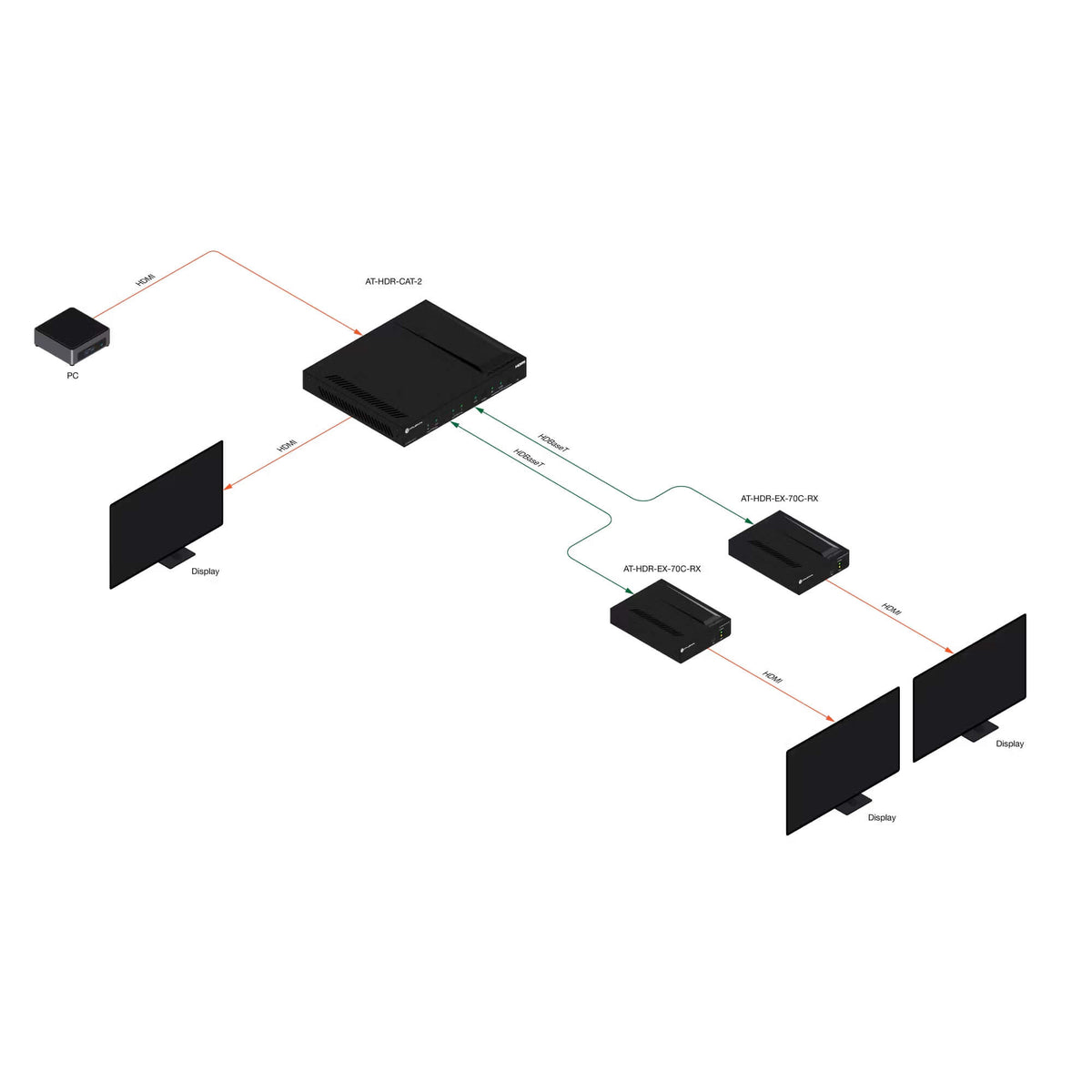

The Atlona AT-HDR-CAT-2 is a high dynamic range (HDR) distribution amplifier with one HDMI input and two HDBaseT outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 feet (40 meters) or 1080p up to 230 feet (70 meters) over Category 6/6A cable. The HDR-CAT-2 is designed for commercial AV distribution applications including HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a low-profile enclosure with external universal power supply. The HDR-CAT-2 is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-70C-RX receivers.
Features
• Direct replacement for the discontinued ECHO-1S
• One HDMI input and two HDBaseT outputs
• Extend 4K/60 4:4:4 up to 130’ (40 m)
• Supports HDR10, HLG, and Dolby Vision
• Pass-through HDMI output
• CEC display control on each output
• Audio de-embedding with volume control
• Also available with 4 outputs, 8 outputs, or 4 extended distance outputs
