Description

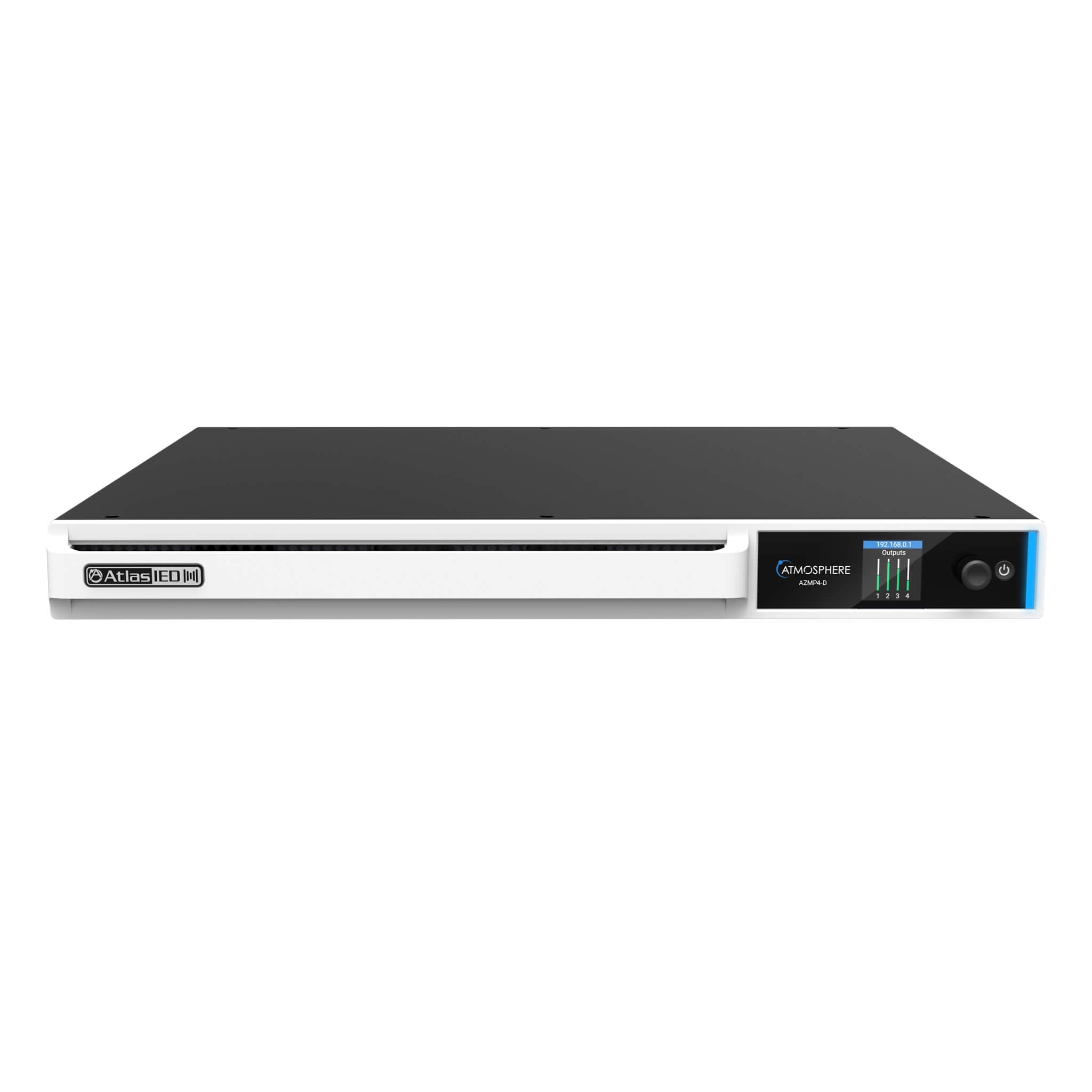

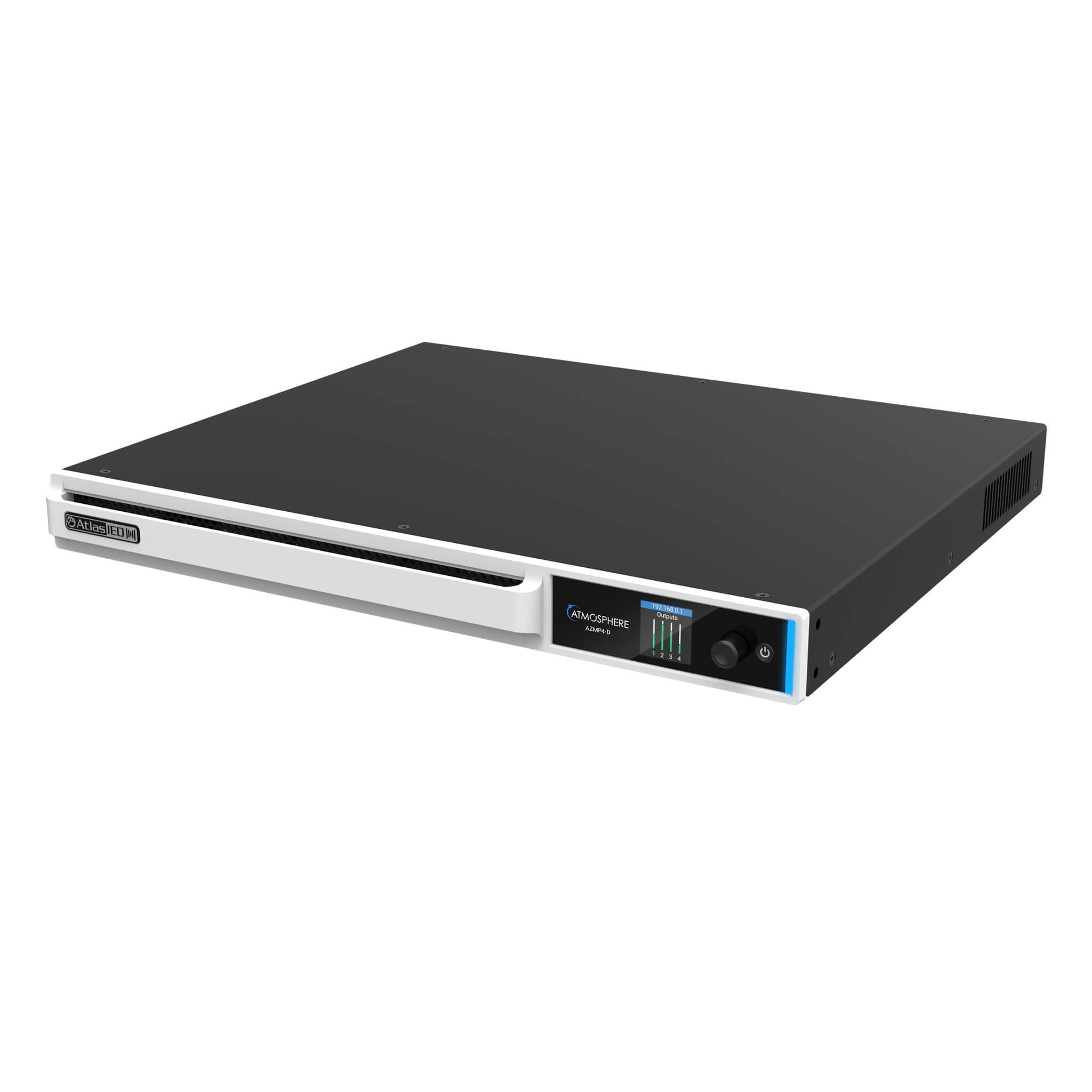

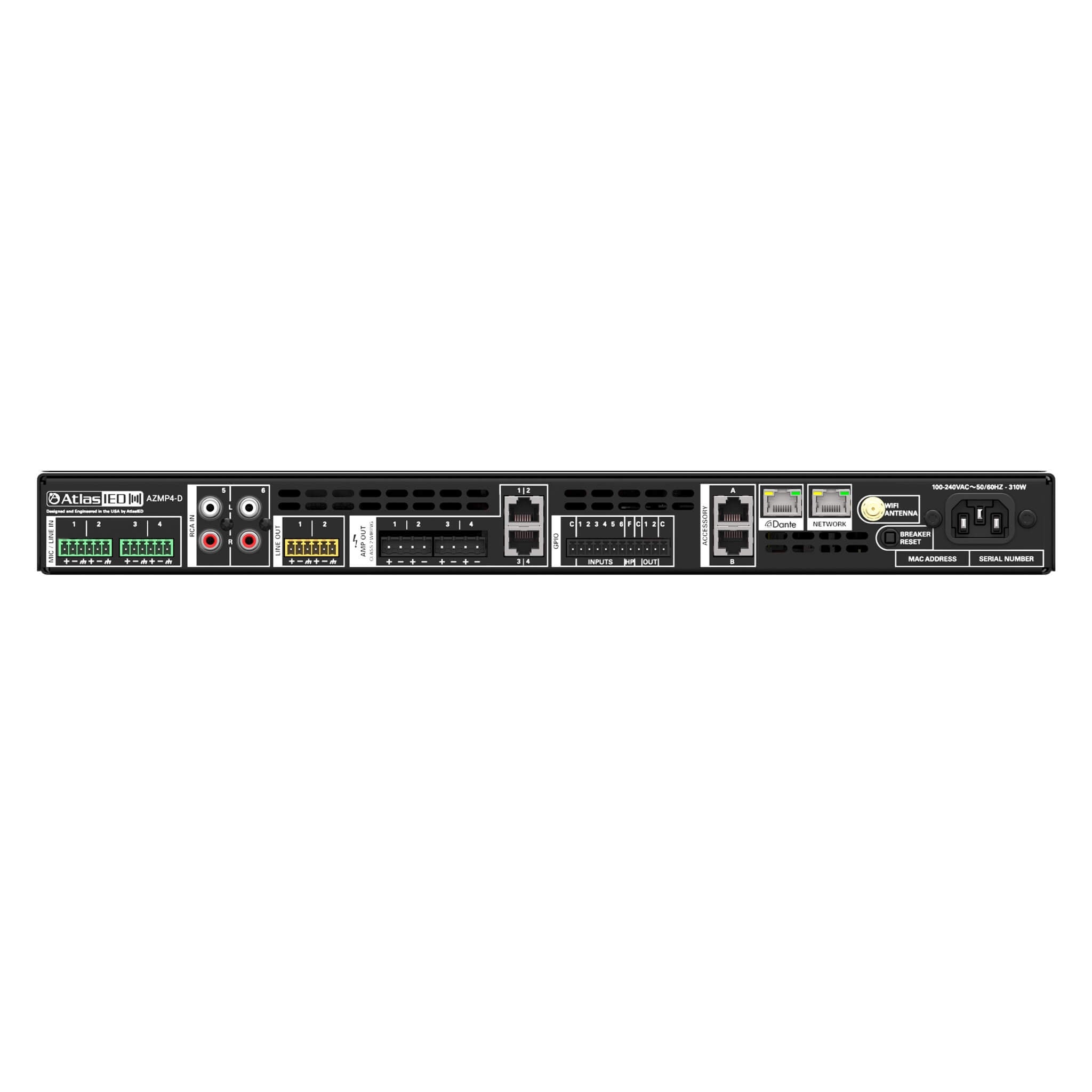

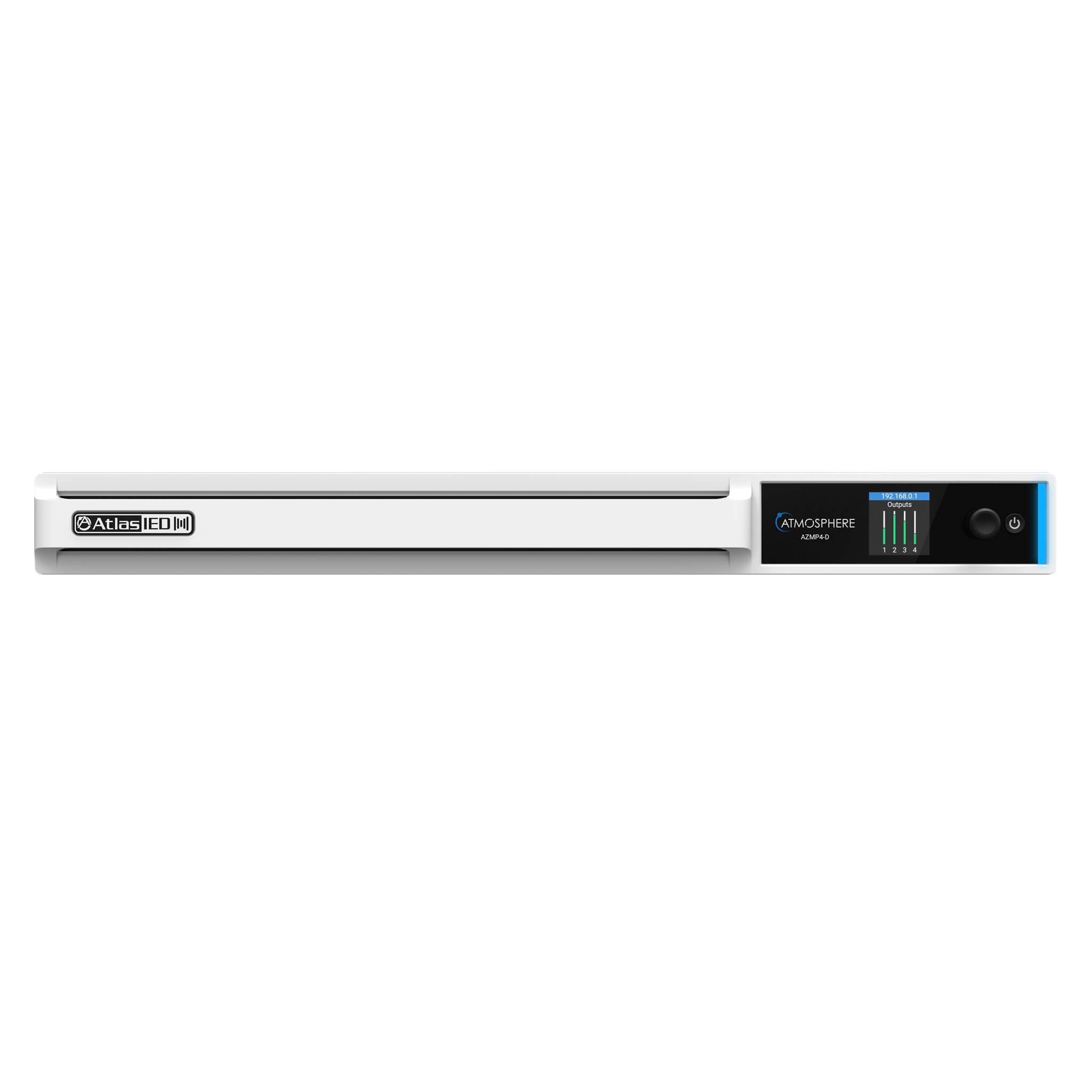

The AtlasIED AZMP4-D is a powered (600 Watt) 4-zone audio processor with Dante networked audio that is the heart of an Atmosphere audio control system. Powerful DSP combined with innovative algorithms offer custom solutions for a wide variety of spaces. Dante networked audio provides convenient audio distribution to other Dante-enabled devices. A built-in message player, virtual wall controllers, learning ambient noise sensing, Tilter Filter, auto-gain, GPIO, bell scheduler, room combine, and many more features, make the AZMP a processing powerhouse.
The AZMP4-D utilizes amplifier power sharing technology that allows for efficient use of available power and avoids system over-design due to traditional amplifier power ratings. The AZMP8 can produce 600W of total power, with each output channel being software assignable anywhere between 5-600W.
The AZMP4-D is compatible with all seven of the Atmosphere wall plate accessories for control, remote audio input, and ambient noise sensing. Up to 16 of these plug-and-play Accessories can be connected across 2 accessory ports on the AZMP4-D. Additionally, a zone paging station can be added as an accessory. Each port is designed to work reliably up to 1000ft.
Programming is simple through a modern on-board web interface, optimized around common use-cases. Built around Progressive Web App technology, the control interface is device agnostic, responsive, and meticulously designed for an ideal user experience without sacrificing design freedom. In addition to Ethernet, built-in Wi-Fi allows for tablets and other controlling devices to connect directly to the AZMP4-D.
While the Brooklyn 3 card used for Dante-based operations supports up to 16x16 audio channels, the AZMP4-D is set to 8x4 channels for Sources and Zones with built-in signal processing. However, additional Dante outputs on the AZMP4-D allow for the on-ramping of audio into the Dante network, enabling seamless integration with other Dante-capable devices.
Control modules available for RTI, Crestron, Extron, and AMX.
Features
• Dante networked audio
• Flexible power sharing amplifier technology
• 600W total output power
• 600W max output per channel
• System Self Test
• 2 accessory ports that support up to 16 controllers and sensors
• Up to 2 audio accessories (one per port) - wall plate or paging station
• App-less virtual wall controller access via QR code or distributed URL
• Bell Scheduler
• Full Sound Masking suite of configuration tools with SHS outputs over Cat5
• Message player
• Room combine and groups
• Mono, stereo, and subwoofer support
• Auto noise compensation
• Loud Noise Detection
• On board Wi-Fi to use as an access point or connect to existing Wi-Fi network
• Large library of AtlasIED speaker presets
• Accessory self-heal
• High Priority GPI input for integration with alarm system
• Wide selection of audio DSP objects
• Third Party Control
