Description

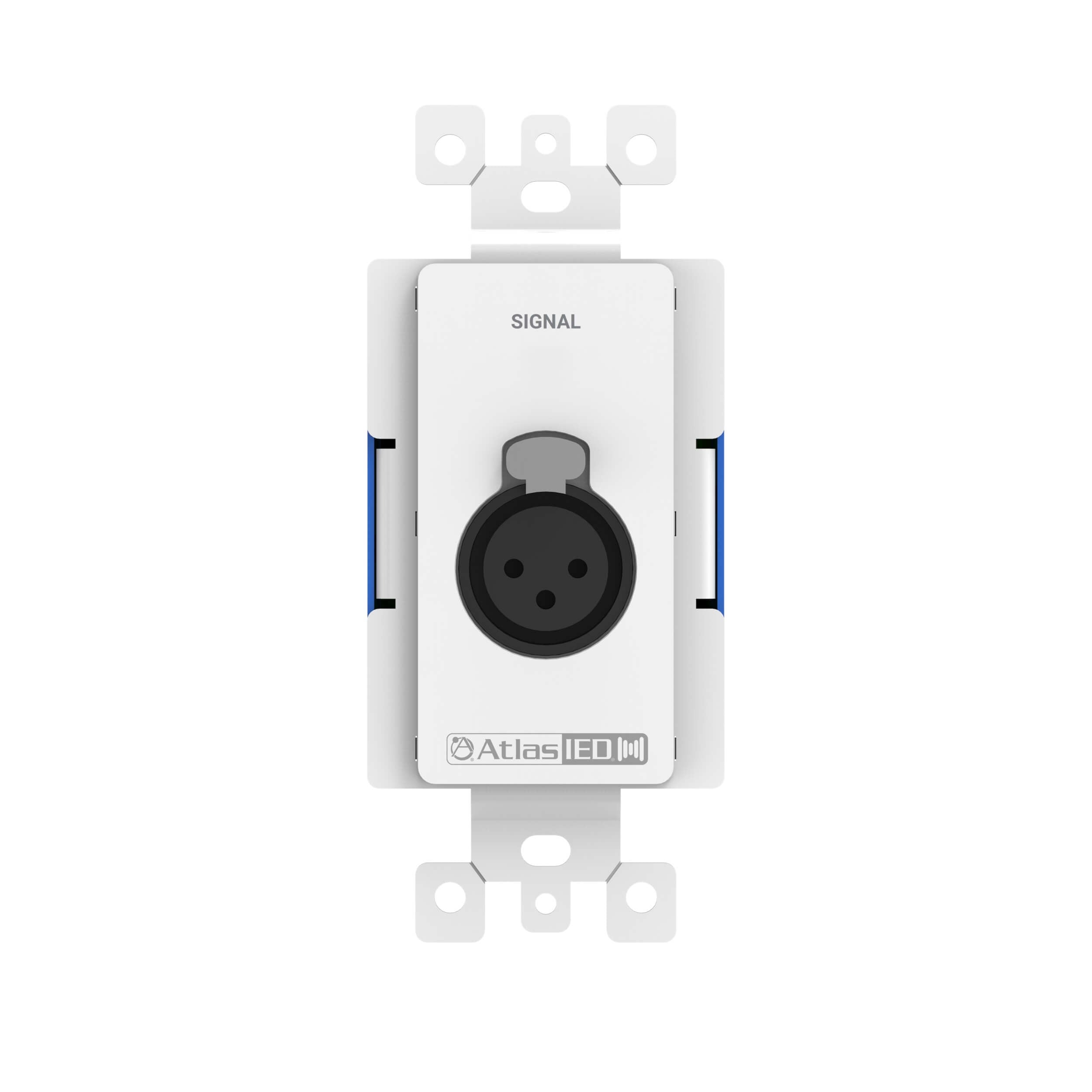

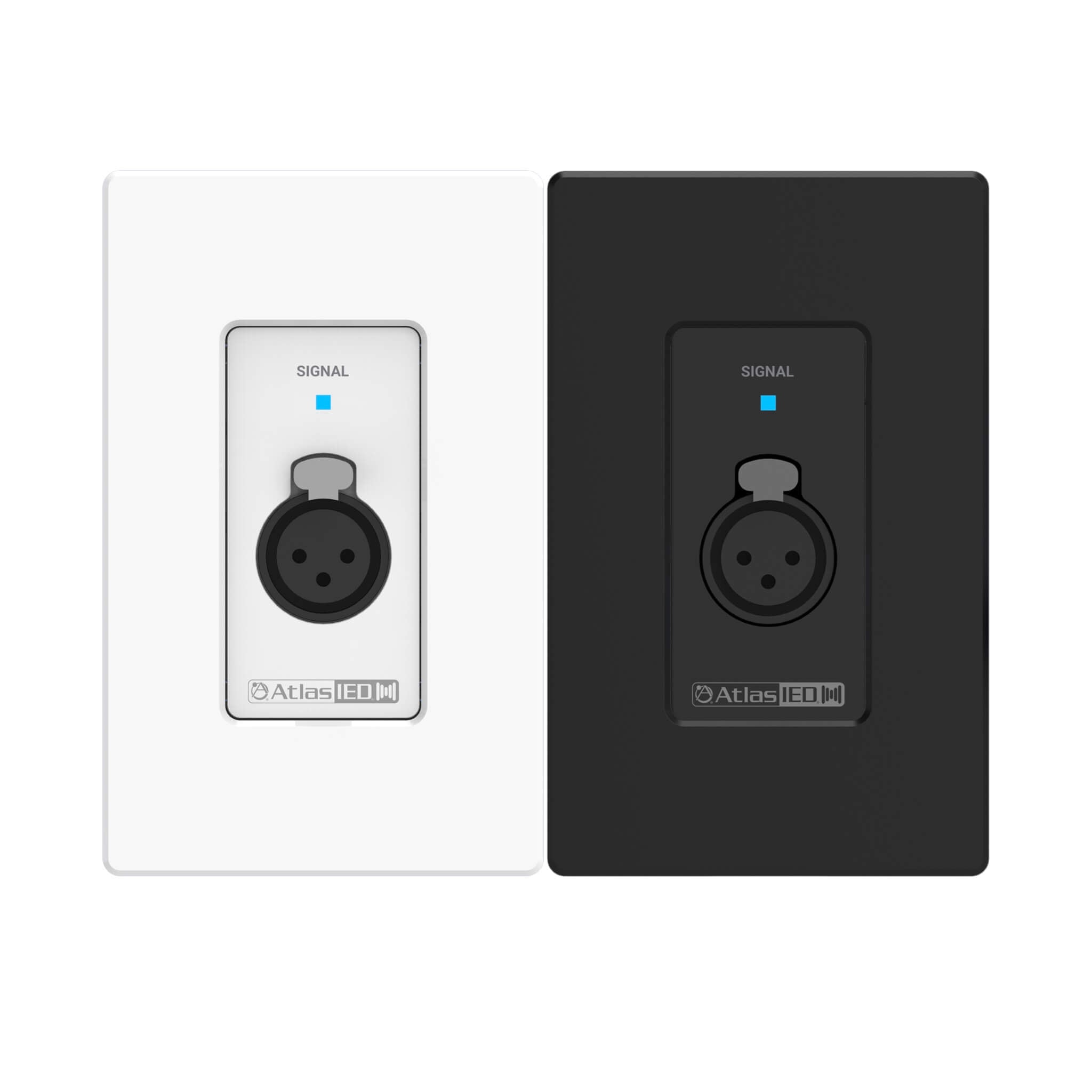

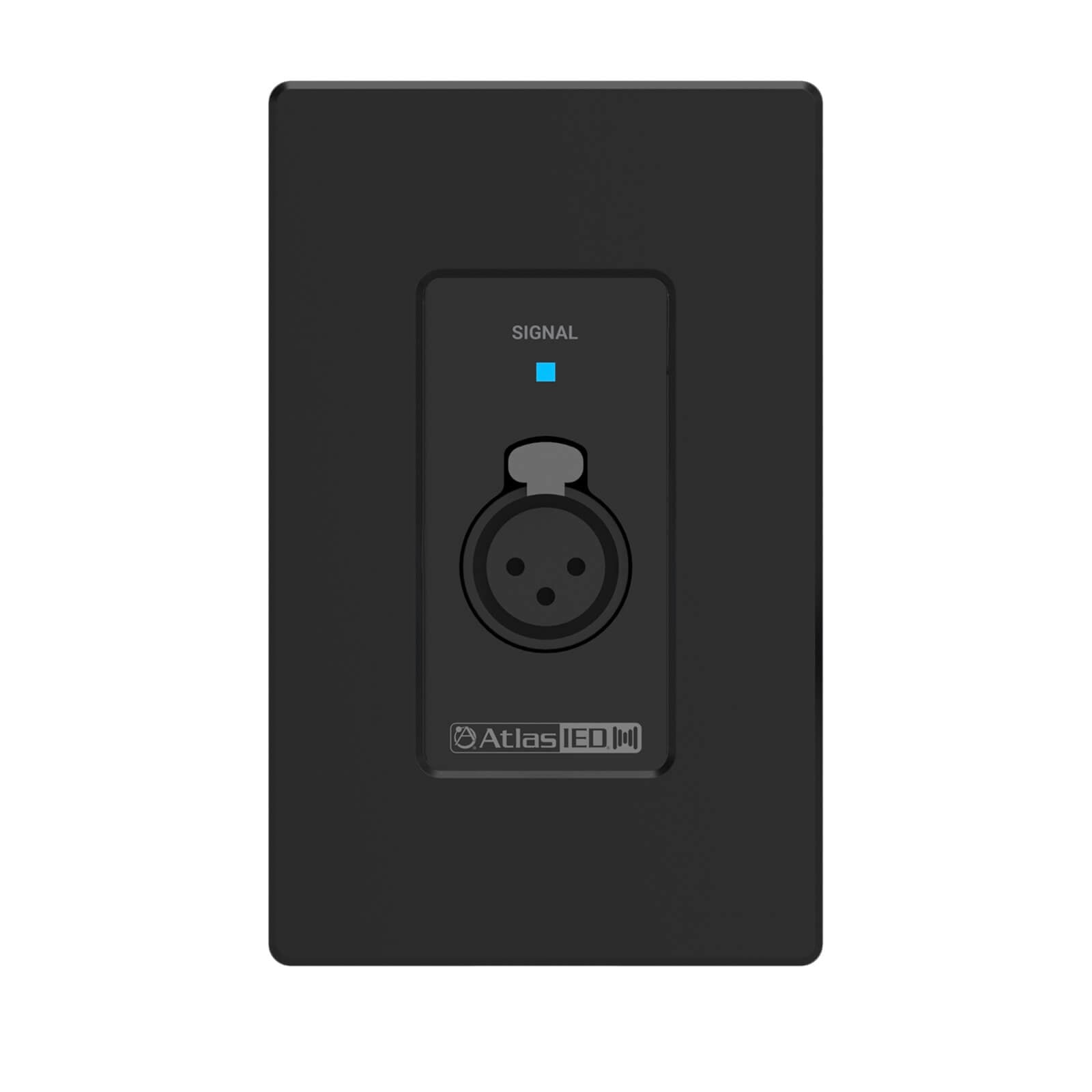

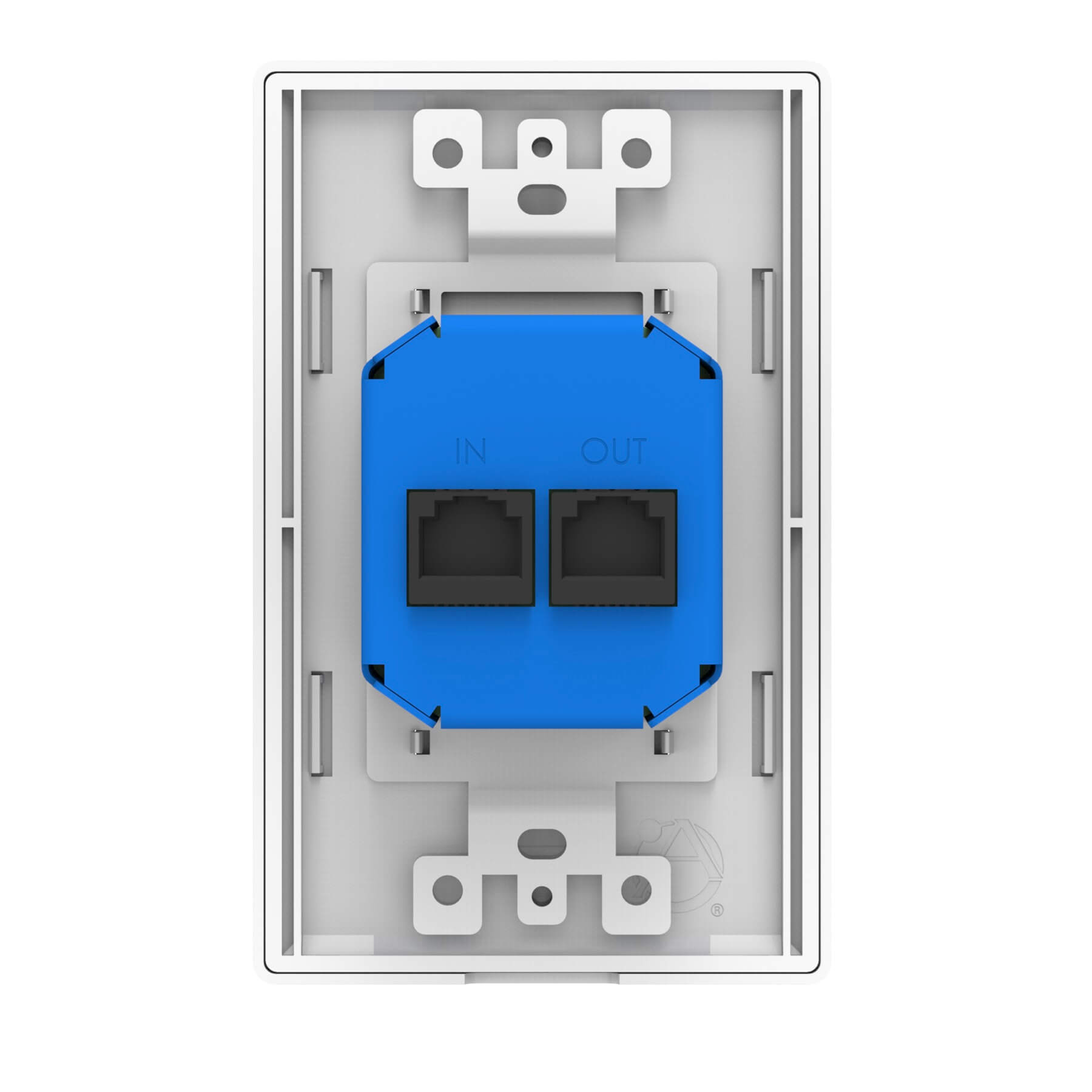

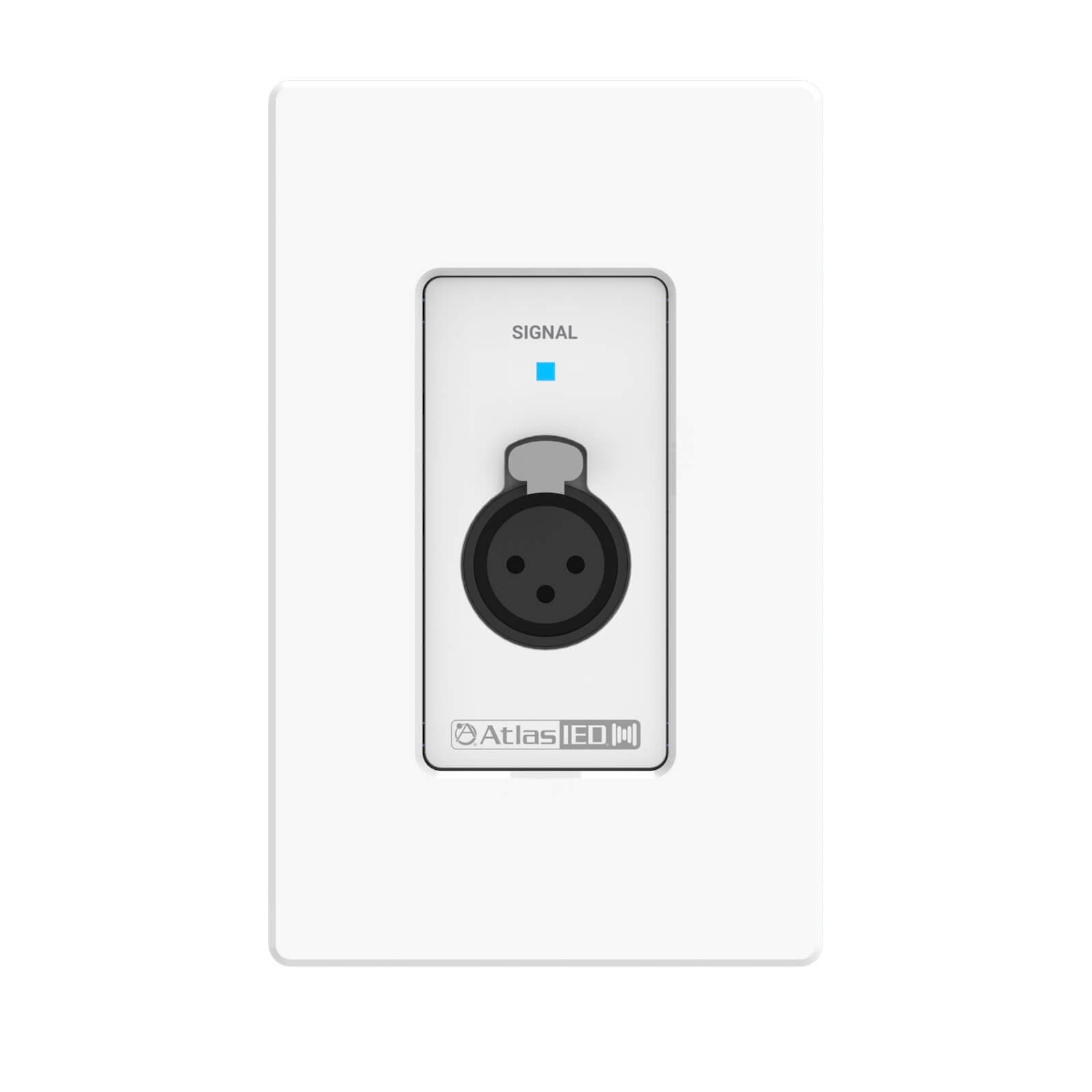

The AtlasIED A-XLR is a remote XLR audio input to an Atmosphere AZM audio processor. This expansion acts identically to the on-board mic/line inputs. The AZM will automatically detect the A-XLR and dynamically assign appropriate audio settings, such as dynamics, EQ, auto gain control, and phantom power, to that input .
Each Atmosphere accessory is a plug-and-play, intelligent device, specifically designed to be approachable and intuitive. The Atmosphere accessory bus allows for up to 8 devices to be connected to a single accessory port, reliably sending audio and data over 1000ft per port. Up to 1x audio input accessory can be added to each accessory port.
Features
• +48V phantom power (software configurable)
• Digital audio return to host processor
• Signal presence indicator
• Neutrik brand connector with latch
