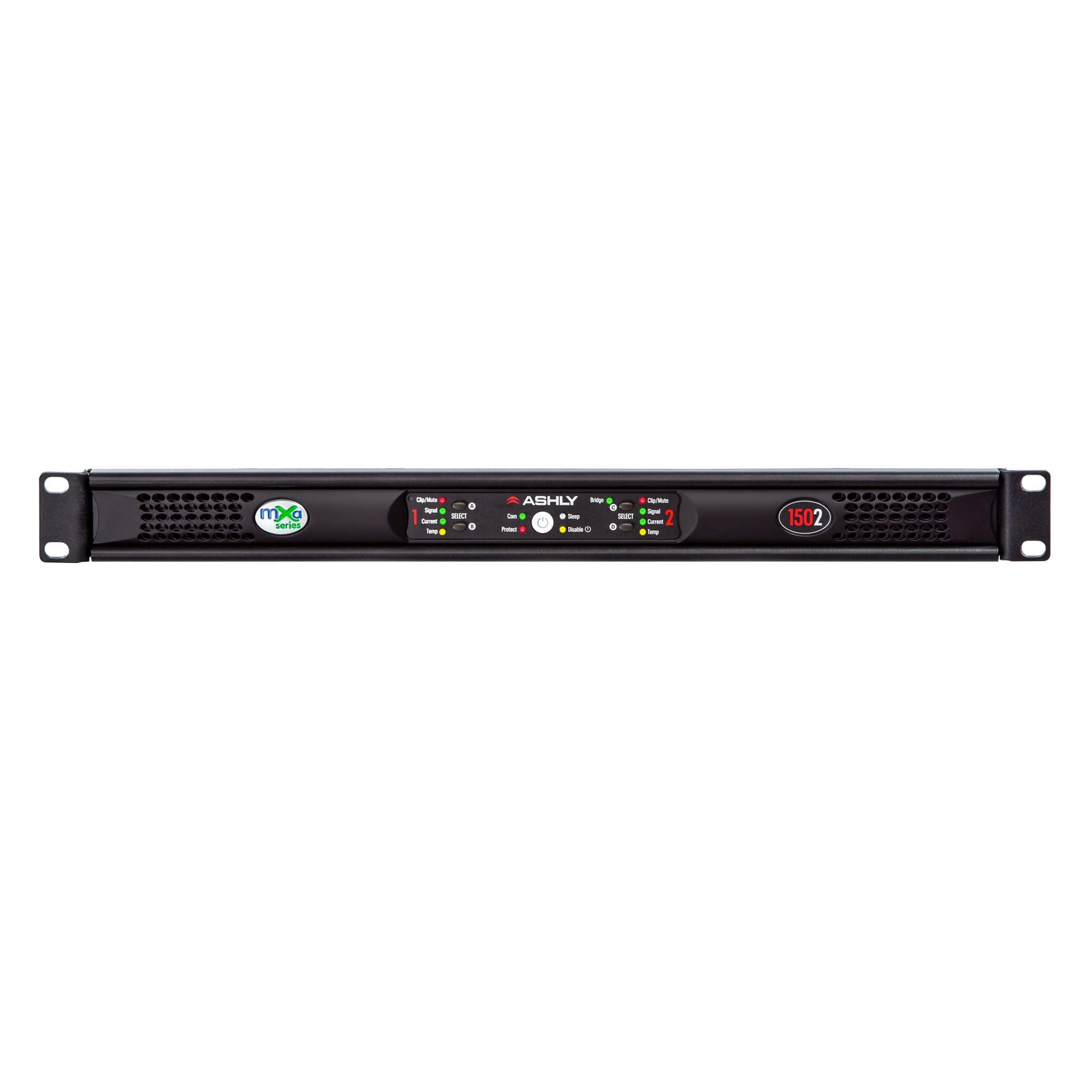

The Ashly mXa-1502 is the Ultimate “One-Box” Solution that combines a 16-channel DSP Matrix Mixer, Advanced Speaker Processor and two-channel multi-mode Power-amplifier in a compact 1RU design. AquaControl software provides total control over four separate zones with a rich compliment of digital signal processing, including routing, auto-mixing, ducking, amplifier monitoring, event scheduling/triggering and more. All through our easy-to-use AquaControl that doesn’t require a week of tutorials to understand and configure. It lets you and your customers navigate using virtually any browser-enabled device. Trouble-shoot or re-configure it without having to travel to the client location. Works with Ashly WR-1.1 remote as well as WR-1, WR-1.5, and WR-2.
Features
• 8-balanced Mic/Line Inputs
• Precision Class A mic preamp design with 48V phantom power
• 4 RCA-type Stereo Line Inputs
• 4 Outputs
• 2x150W Class D Amps with selectable Multi-mode operation (2/4/8 Ohm + 25/70/100V)
• 4 convenient front-panel buttons for Source/Preset select
• Scheduler and RTC (Real-Time Clock) allows various user-defined operations

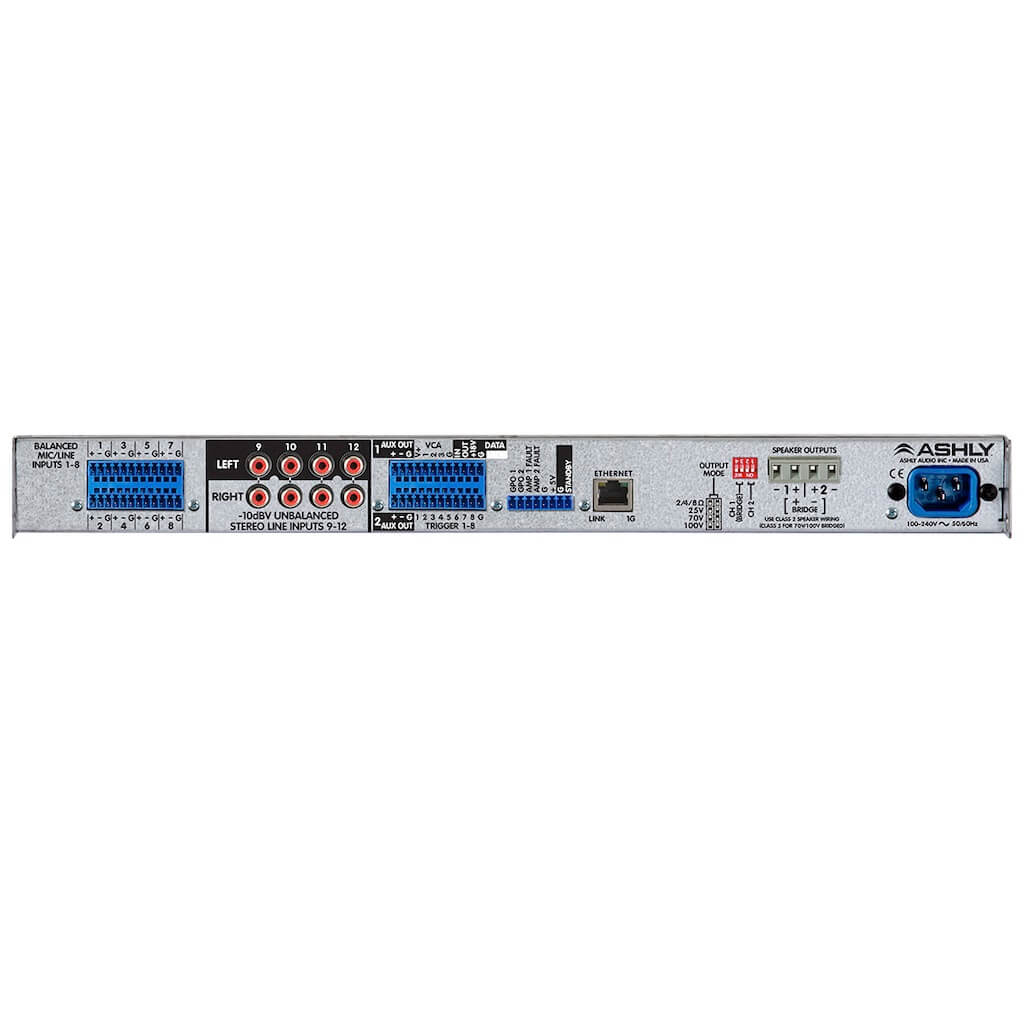

• Generous integration I/O includes: Network, Serial, GPIO, VC, Standby, and Fault
• Comprehensive DSP on 12 input and 4 output channels
• Switch-mode power supply with active PFC auto-detects 100–240VAC mains
• Compact 1U design reduces rack space requirements
• Ashly AquaControl software allows convenient browser-based access
