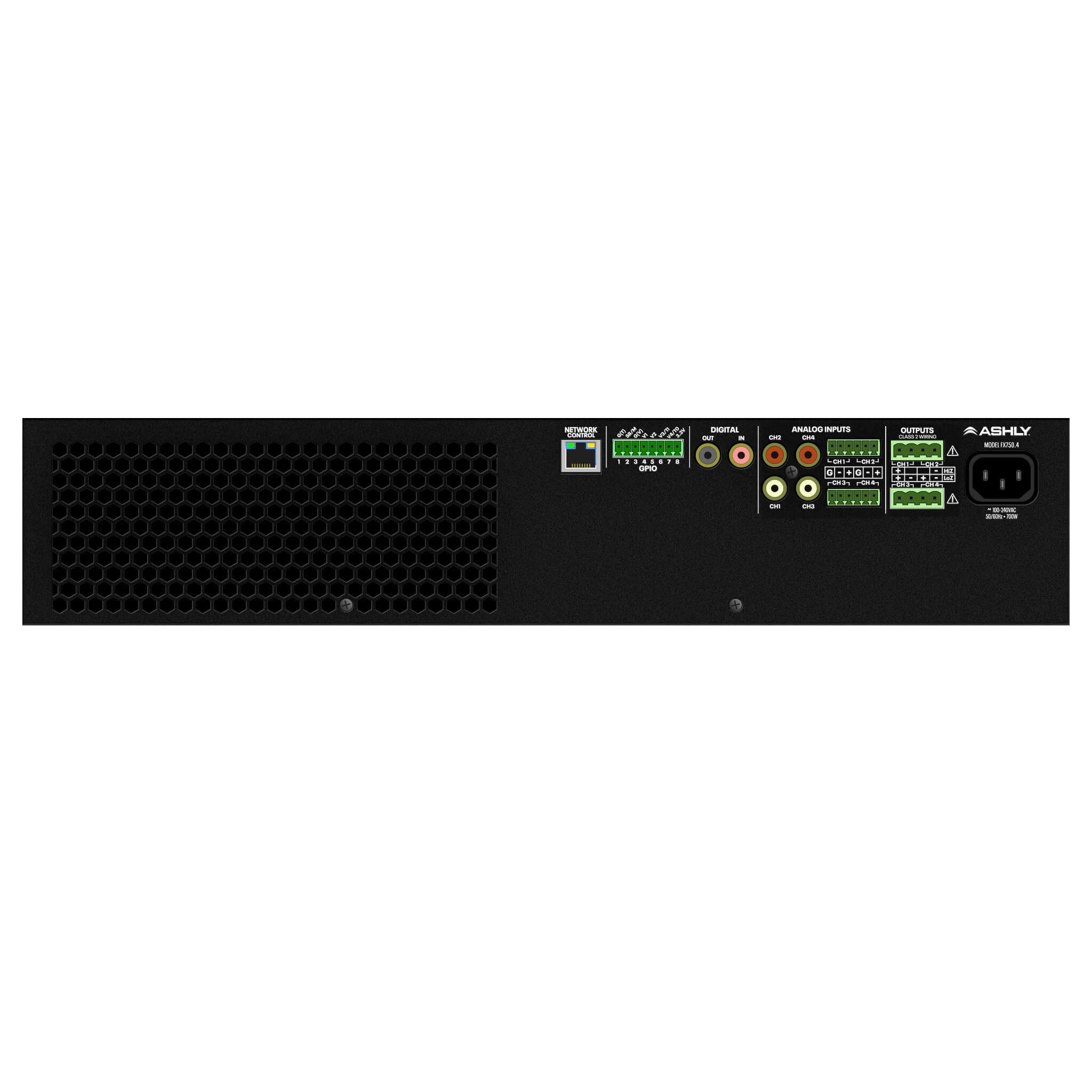

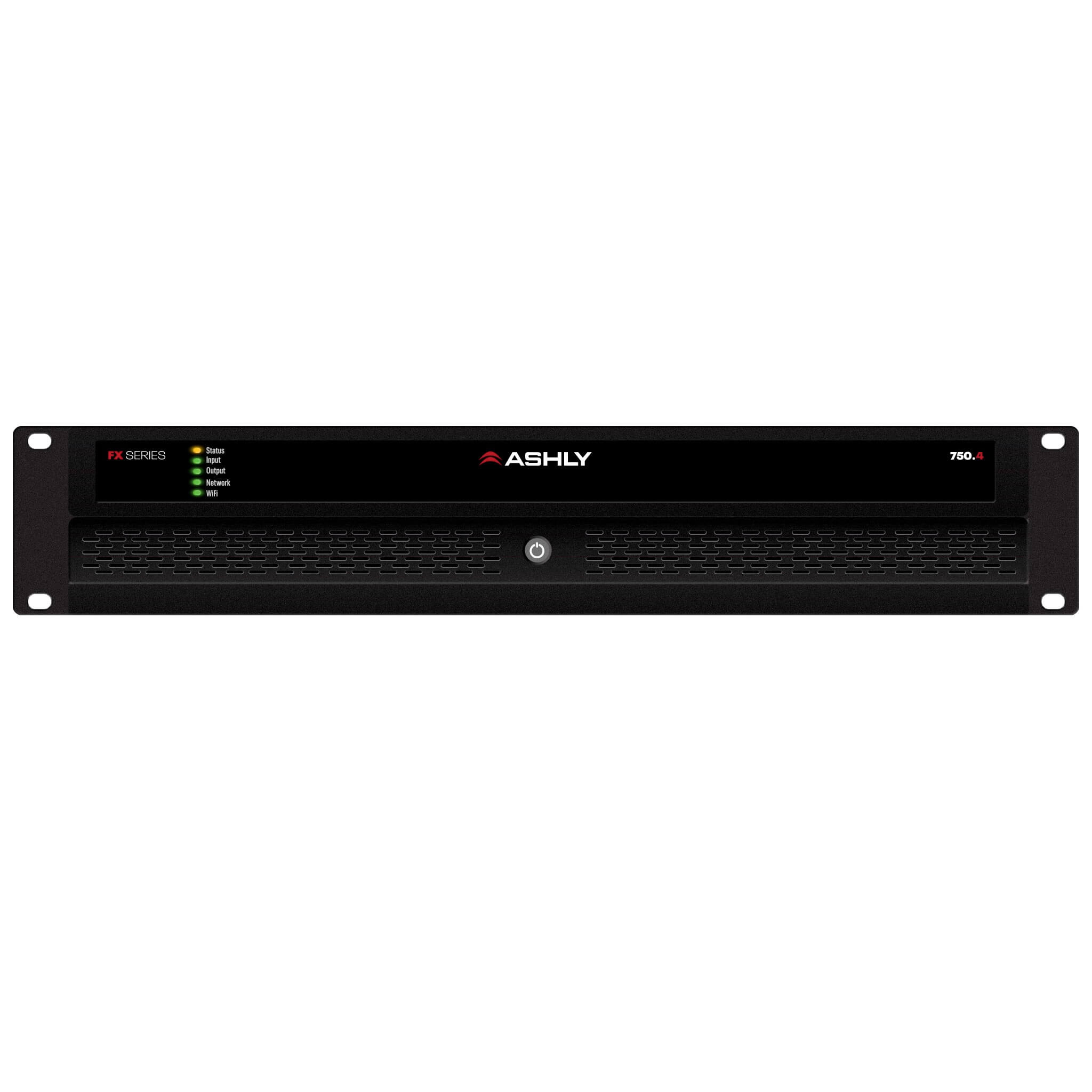

The Ashly FX750.4 High-Density Power Amplifier with DSP is engineered for versatility by combining powerful onboard DSP with flexible output modes supporting both Low-Z and Hi-Z loads. Built-in Wi-Fi and an intuitive browser-based interface makes setup and tuning fast and efficient. Whether you’re managing a small venue or a distributed audio system, FX amplifiers deliver reliable performance and intelligent control.
The FX Series powerful DSP engine can be configured to suit a wide range of tasks, without the need for additional equipment. These amps can route into Zones A-H and then into Outputs (2, 4, or 8 depending on the number of channels). All models have a 4-channel DSP configuration, and 8-channel models have an 8-channel DSP configuration, including: Input processing, Zone Processing, Output Processing, Speaker Processing, and Device Settings.
Features
• 750W x 4-ch highly efficient Class D amplification in a 2 RU chassis
• Low (2/4/8 Ohm) or Hi Impedance (70/100V) operation, selectable in software
• Balanced Mic/Line inputs on Euroblock connectors, plus unbalanced RCA inputs
• 2-channel SPDIF Digital IO
• Front panel status LEDs for amp, input, output and network
• Advanced Dynamic Power Sharing distributes power between channels
• Networkable via Ethernet or built-in WiFi
• Built-in advanced DSP on all inputs, outputs, zones and speaker processing
• Browser-based UI accessed via PC or mobile device - no software to install
• All models have 4 Input channels x 2, 4, or 8 Output channels
• Auto/Manual Power Saver Mode (sleep/standby), adjustable in Software
• Customized Speaker Presets made be created and saved for each output channel
• Addressable GPIO, Standby/Mute and VC remote ports.
• Safety/Compliance: cTUVus, CE, FCC, RoHS
• 5-Year Warranty
