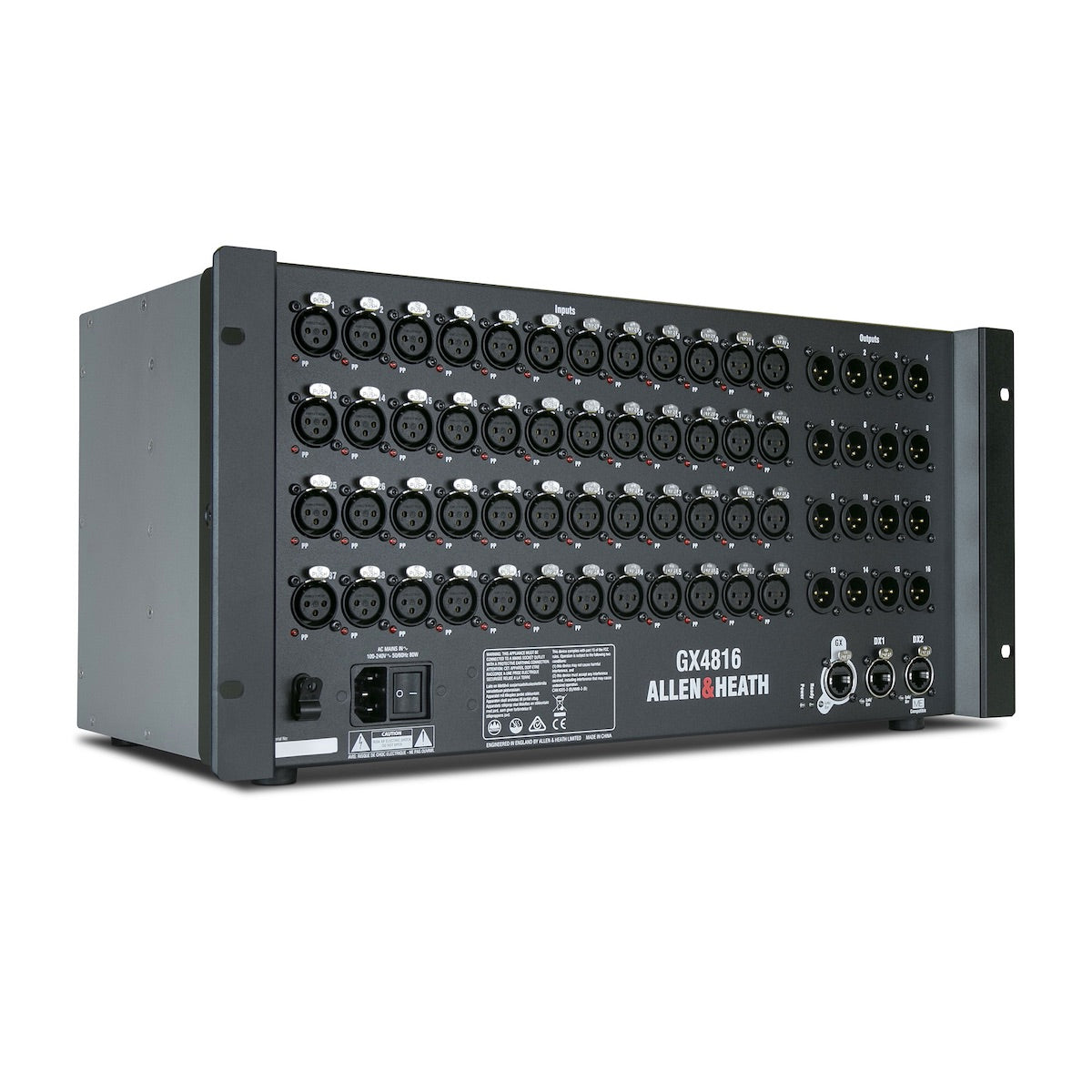

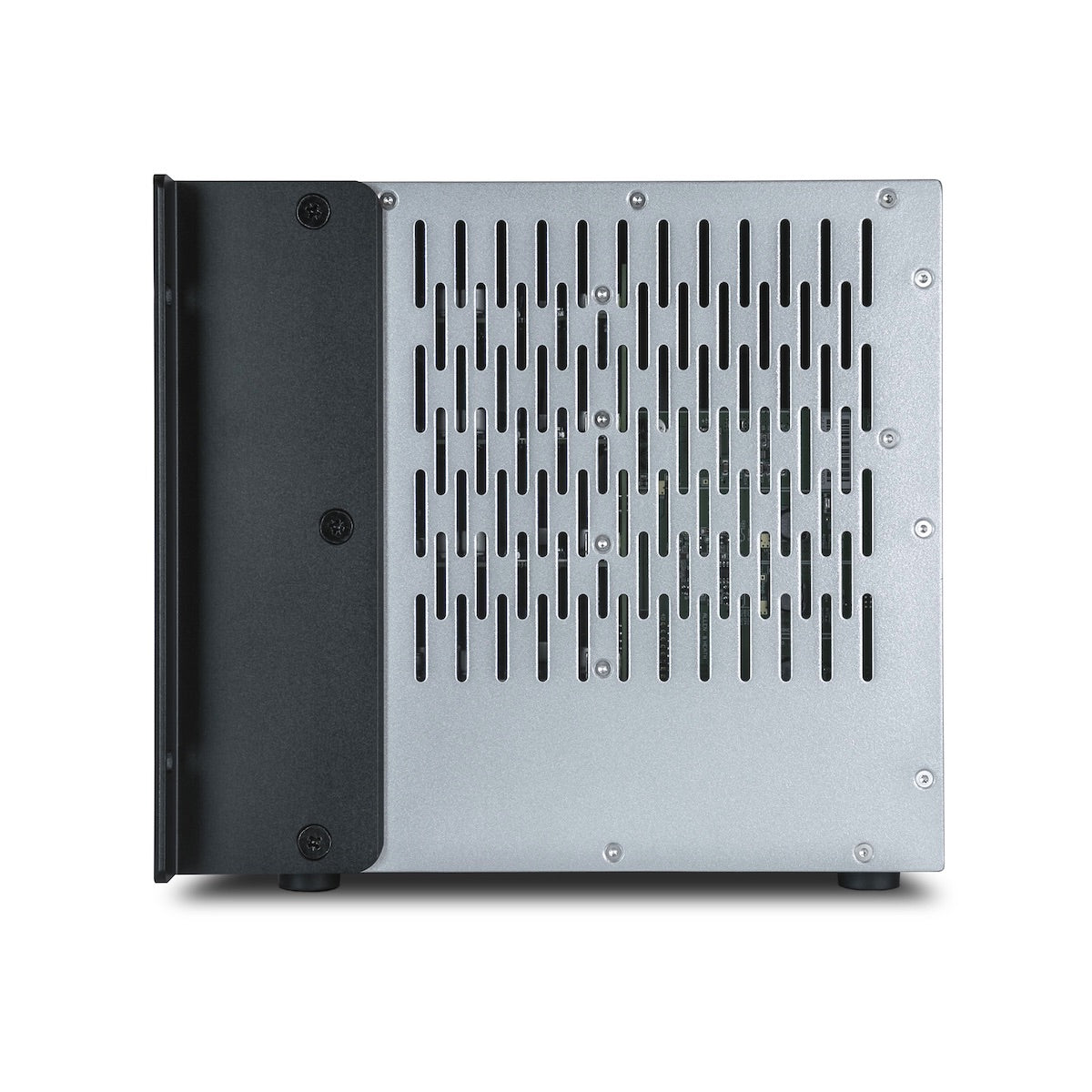

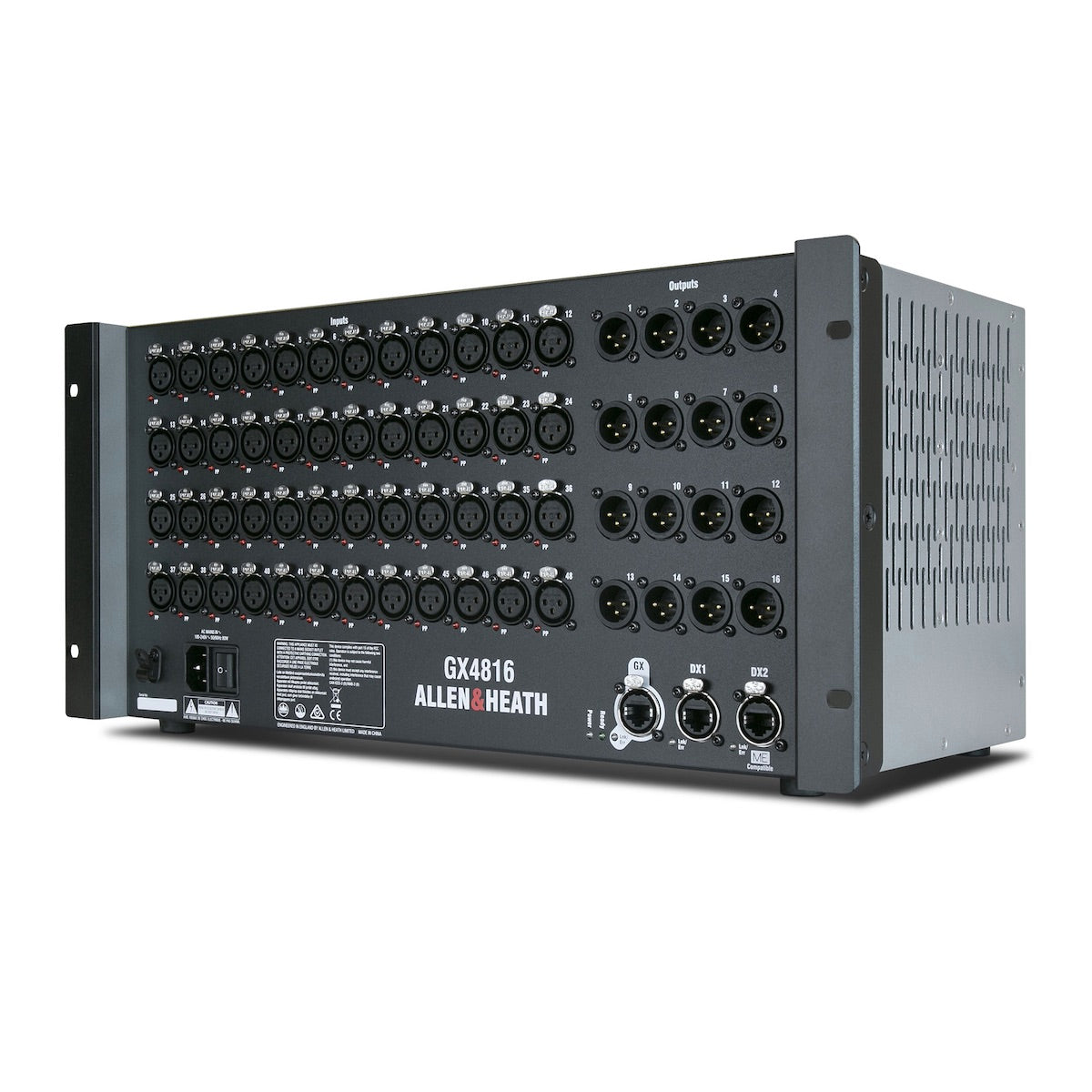

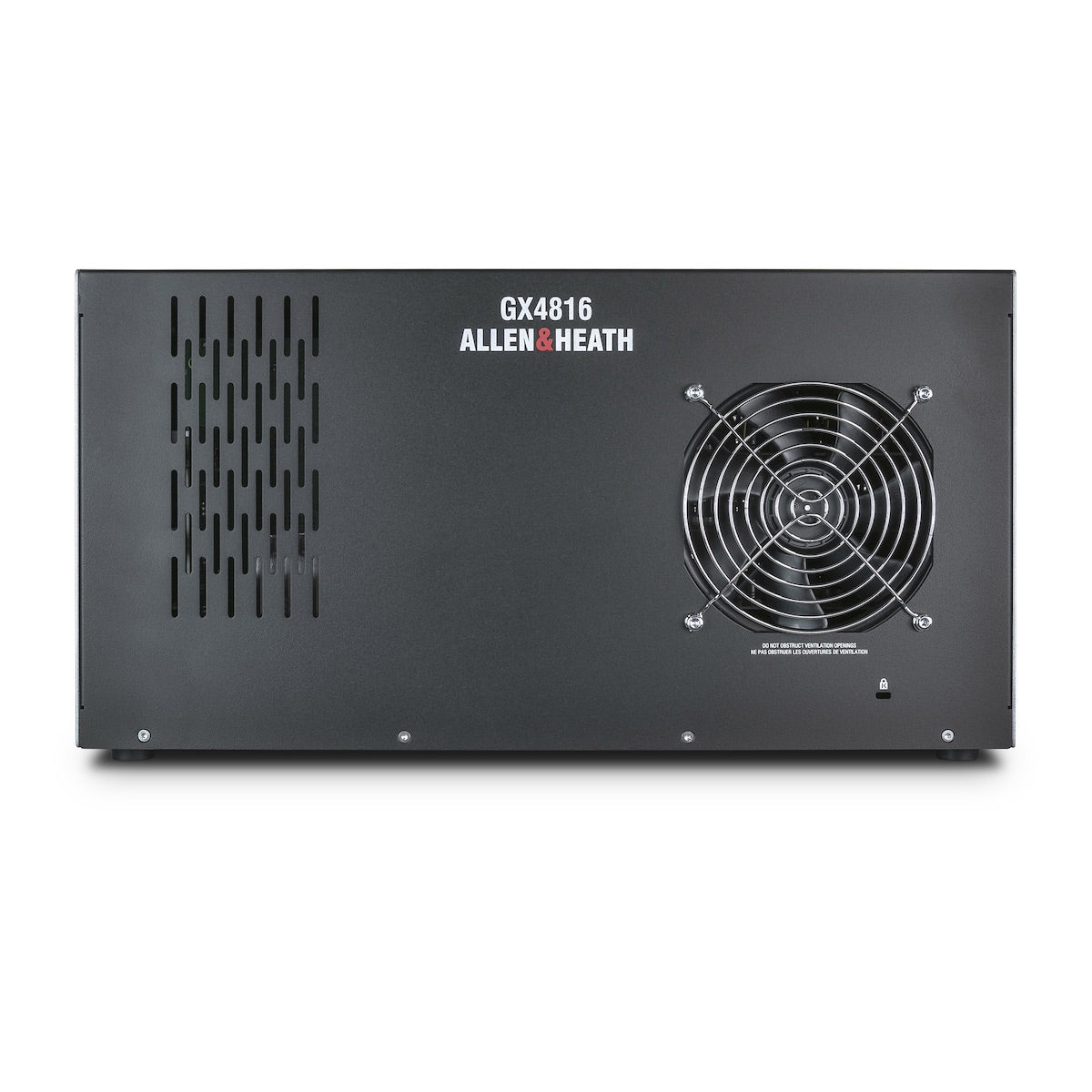

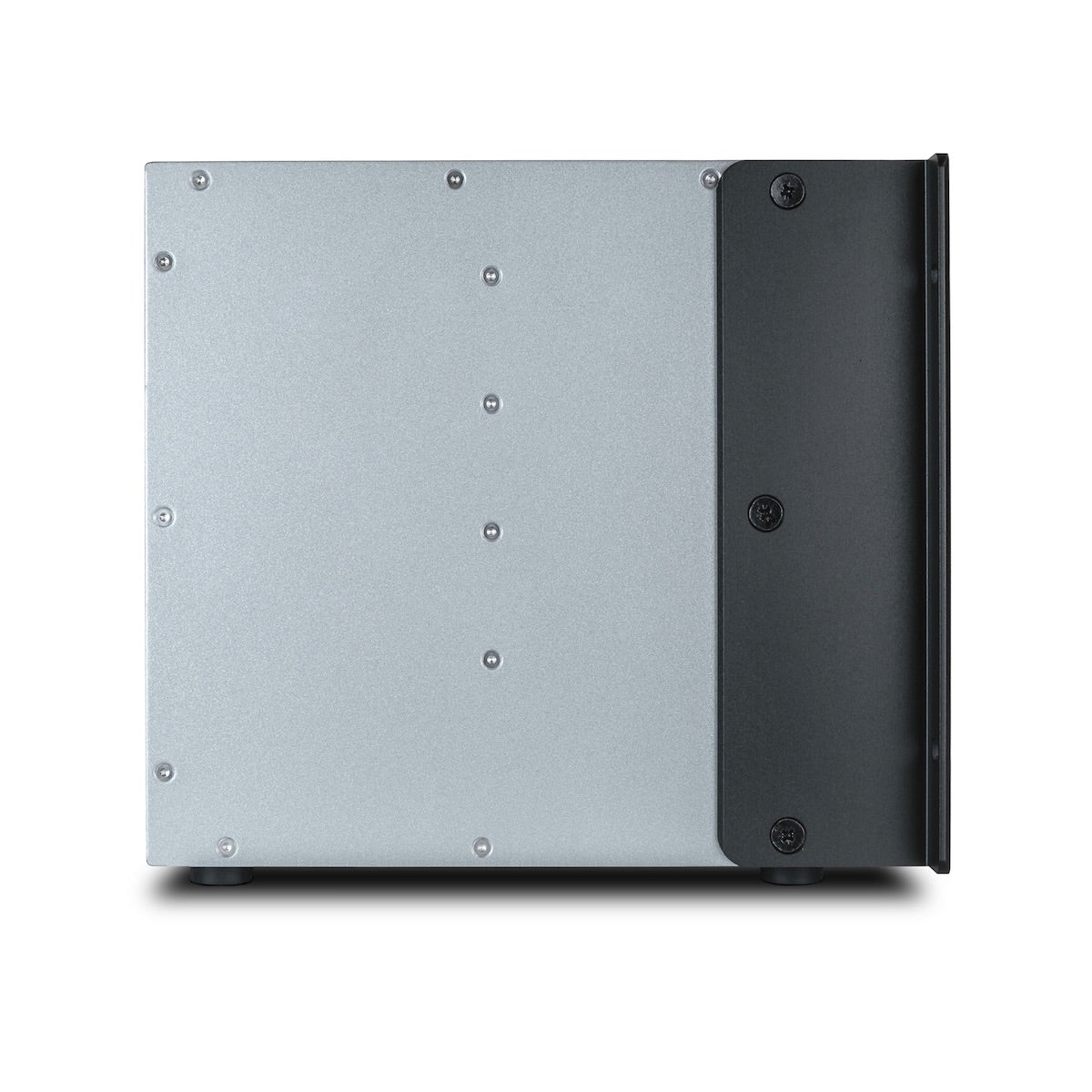

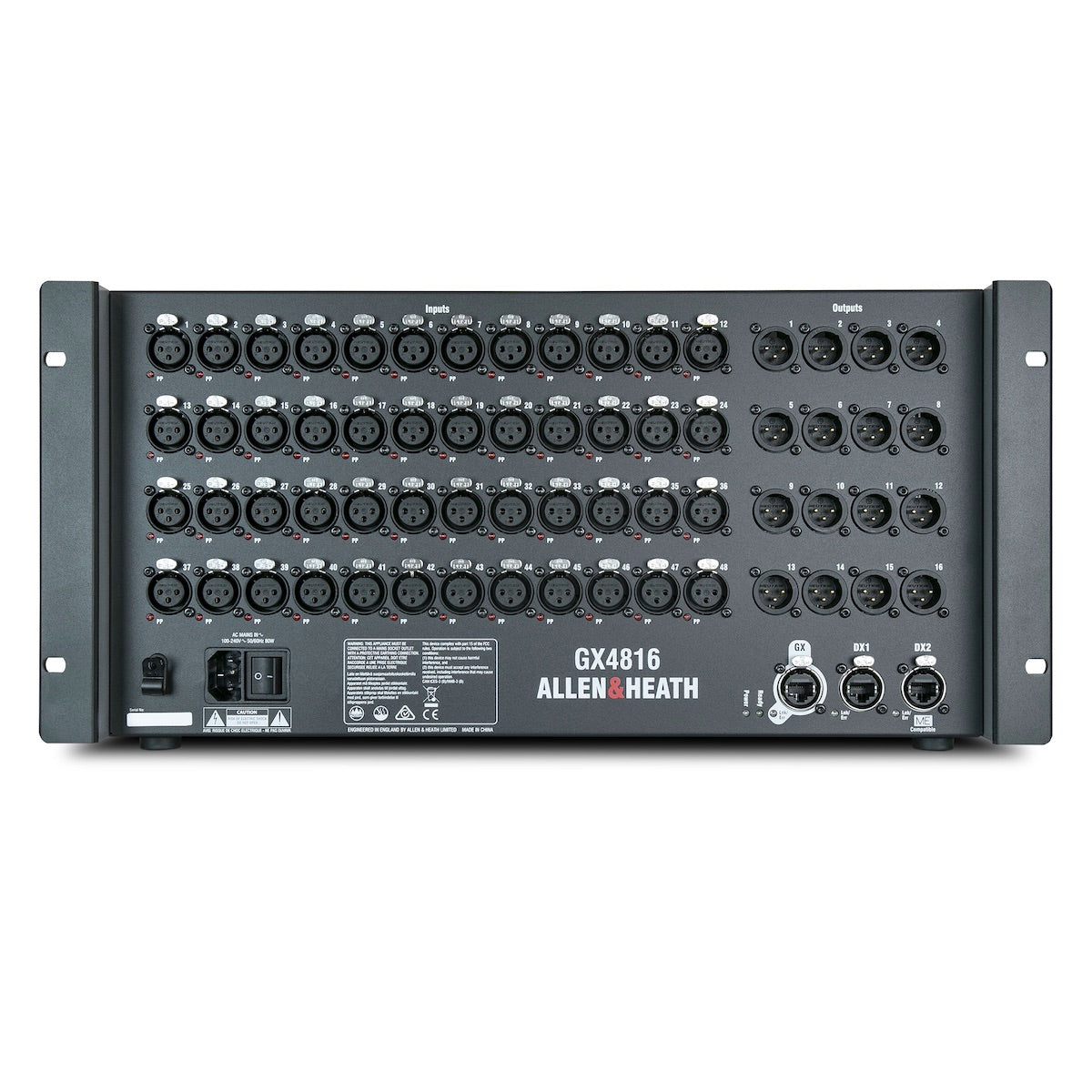

The Allen & Heath GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for the AHM-64 audio matrix processor.
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion. Connection to a ME Personal Mixing System is possible via the DX2 socket when used with SQ or Avantis.
GX4816 connects via a single Cat5e cable to an SLink socket on a SQ, Avantis or AHM-64, or to a gigaACE audio network card on a dLive system. Connection to DX Expanders and the ME Personal Mixing System is also over Cat5e cable.
Features
• 48 Mic Preamps on XLR
• Phantom Power LED per Input
• 16 XLR Line Outs
• 96kHz operation
• GX connection with locking Ethercon port
• DX ports for further I/O expansion
• DX 2 port compatible with ME system (Avantis and SQ only)
• Multiple GX4816 can be added to a system
• Rack-mounted (5u) or shelf/floor operation
• Plug and Play – no IP addressing required
• Compatible with CAT5e (or higher) cables of up to 100m
• Locking EtherCon ports
