Description

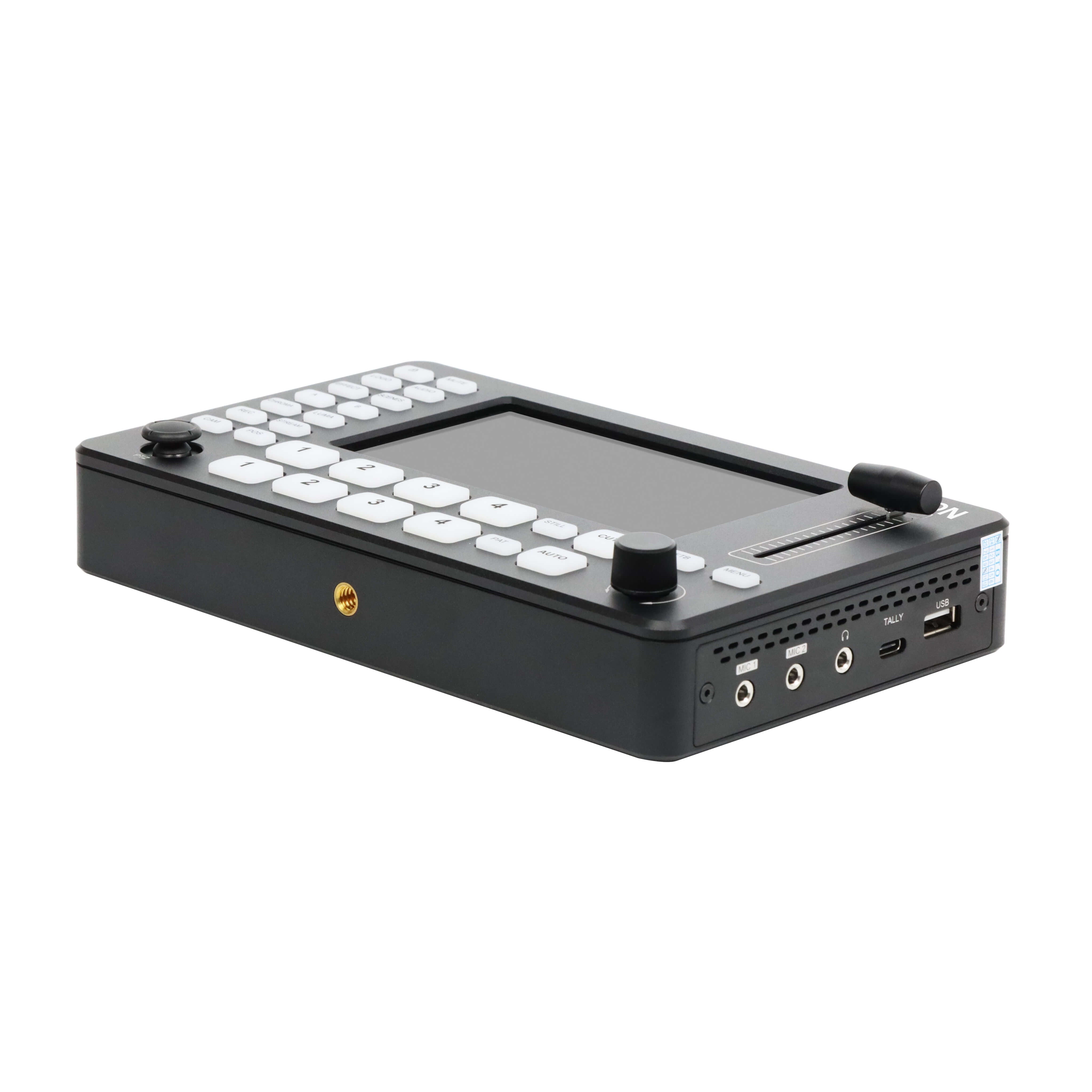

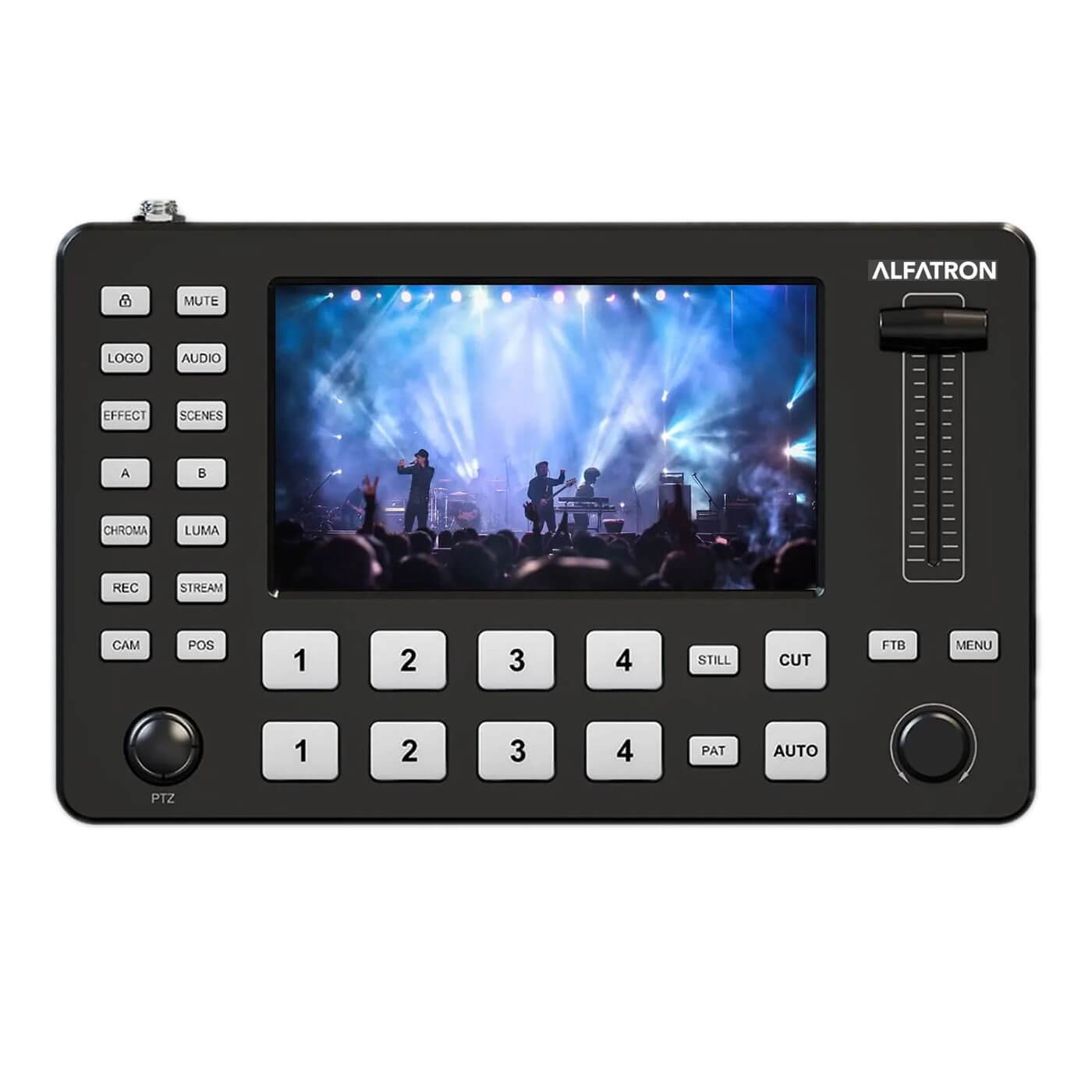

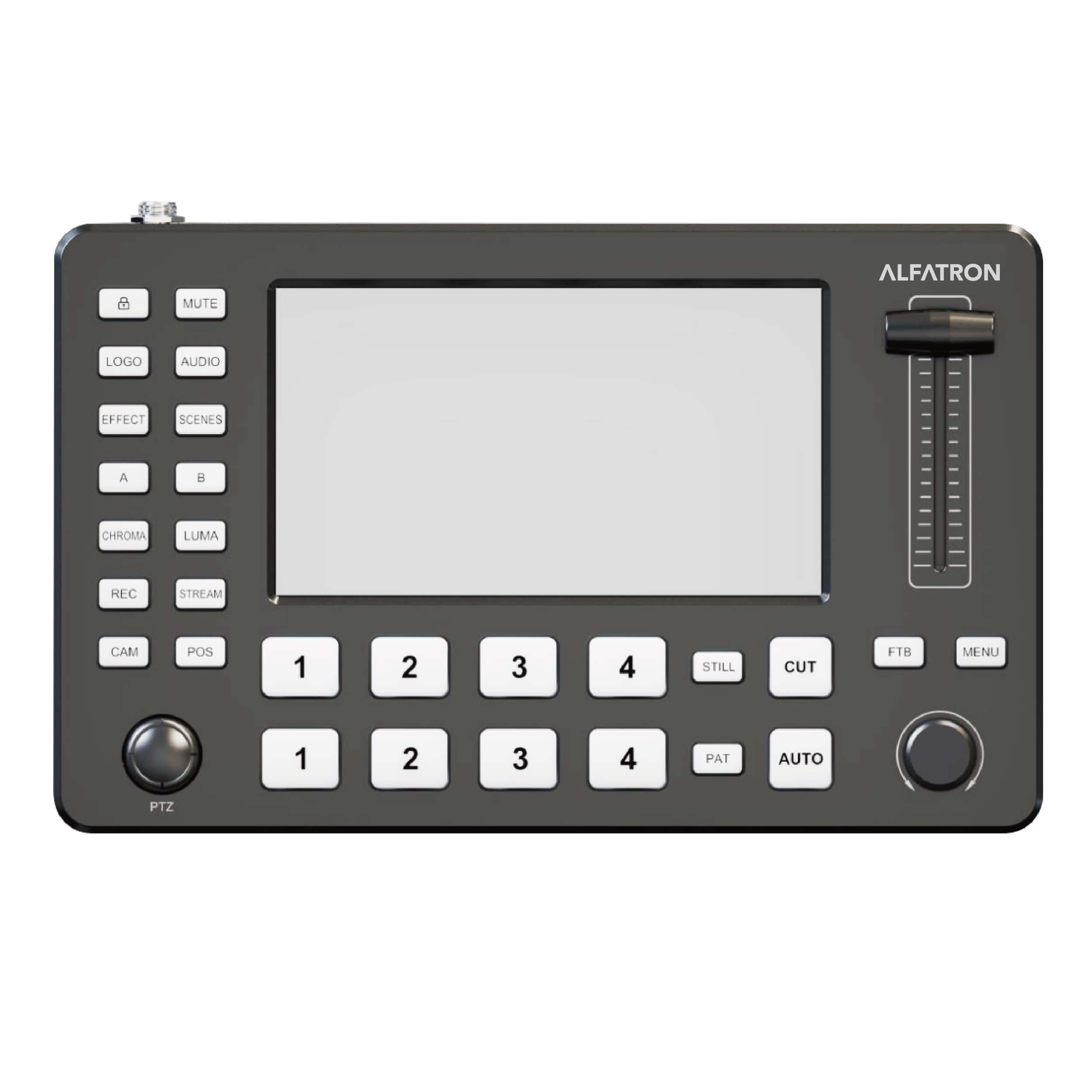

The Alfatron VM-Mini is a compact and professional quad HDMI video switcher with four HDMI inputs. It features a 5" Full HD LCD and a five-way rocker for easy source monitoring, preview (PVW), and PTZ camera control, making it ideal for live broadcasting and streaming.
Powered by FPGA technology, this high-performance switcher offers digital video effects, chroma key, flexible PIP/POP, logo insertion, and other broadcast functions. It supports UVC streaming, multi-network streaming, and local video recording for versatile production needs.
Features
• Easy to carry with mini size
• Easy to monitor and preview with 5" wide gamut Full HD LCD

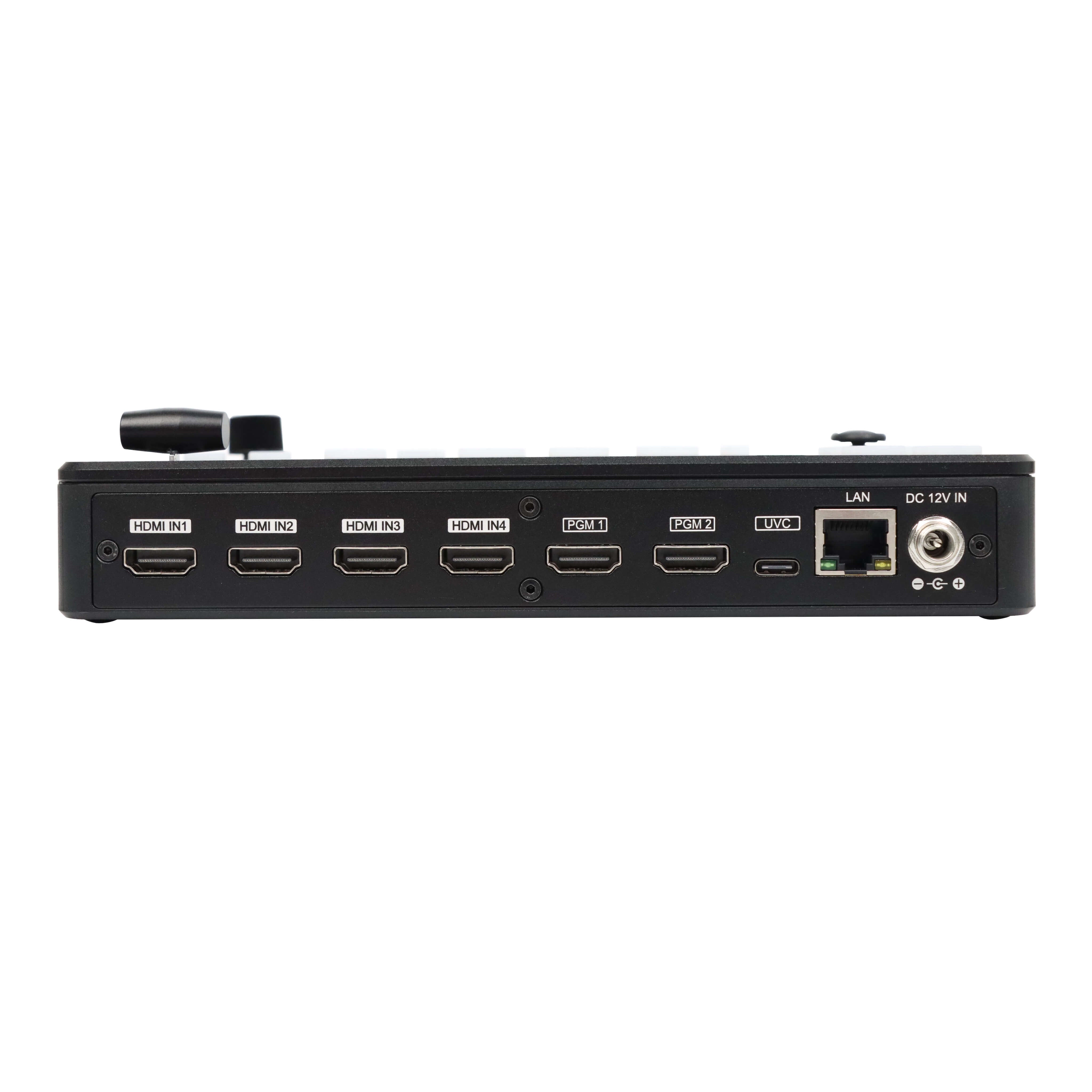

• Quad HDMI inputs, Dual HDMI outputs for PGM, One UVC streaming
• Dual audio inputs, support both Line-in and mic
• One audio output, with selectable sources
• T-bar switching, more than 30 effects
• Film grade chroma keying
• Inner media library, supports user defined pictures and imported pictures
• Logo with alpha channel, supports PNG format
• Flexible layers switching, each with position, size, chroma key and mask
• FTB and image freezing
• Five-way rocker for agilely controlling PTZ
• Focus, white balance, position for PTZ control
• Local video recording
• RTMP multi live broadcast platform, with adjustable code rate and one key streaming
• Agilely control with web on PCs and phones, without additional installation
• 7 year warranty
