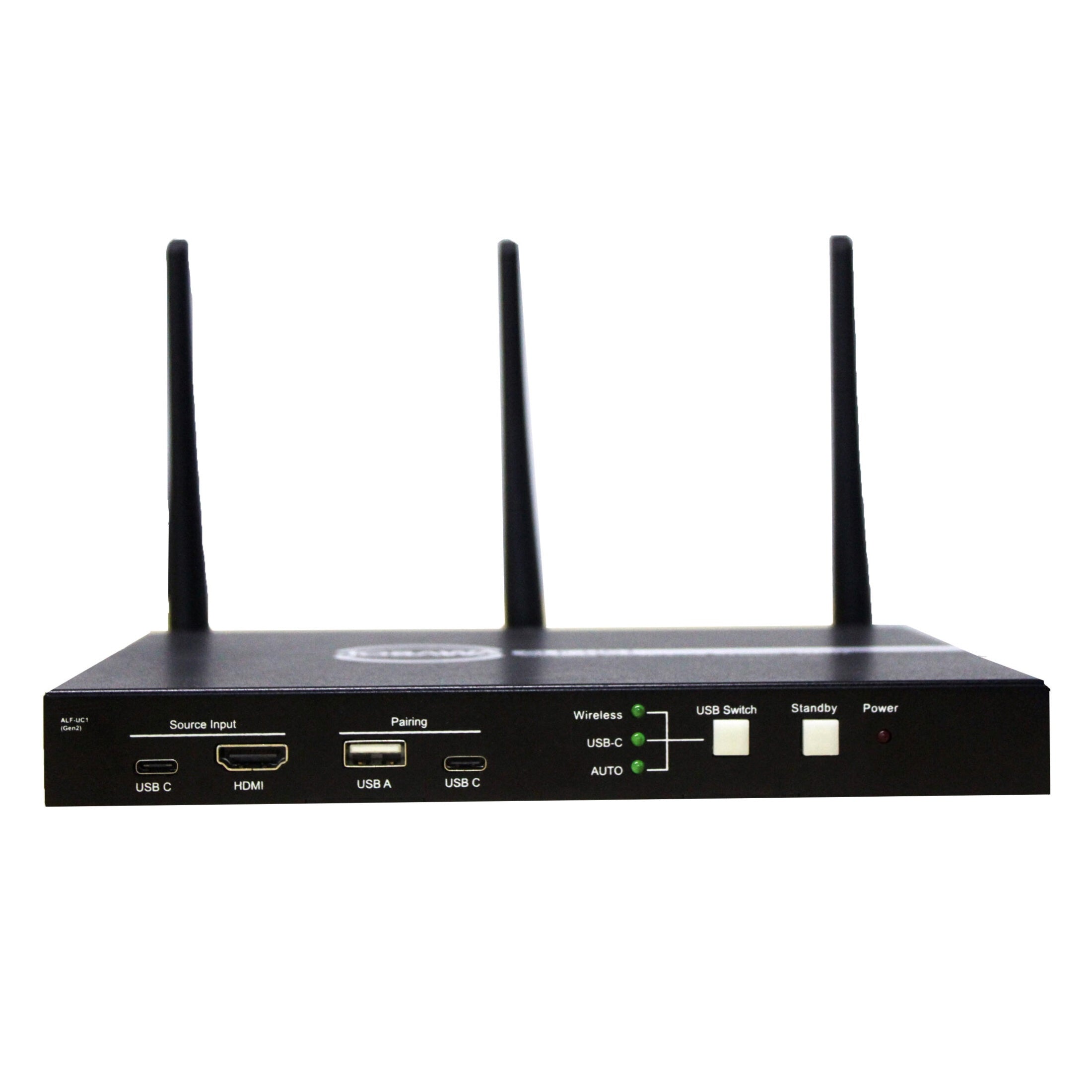

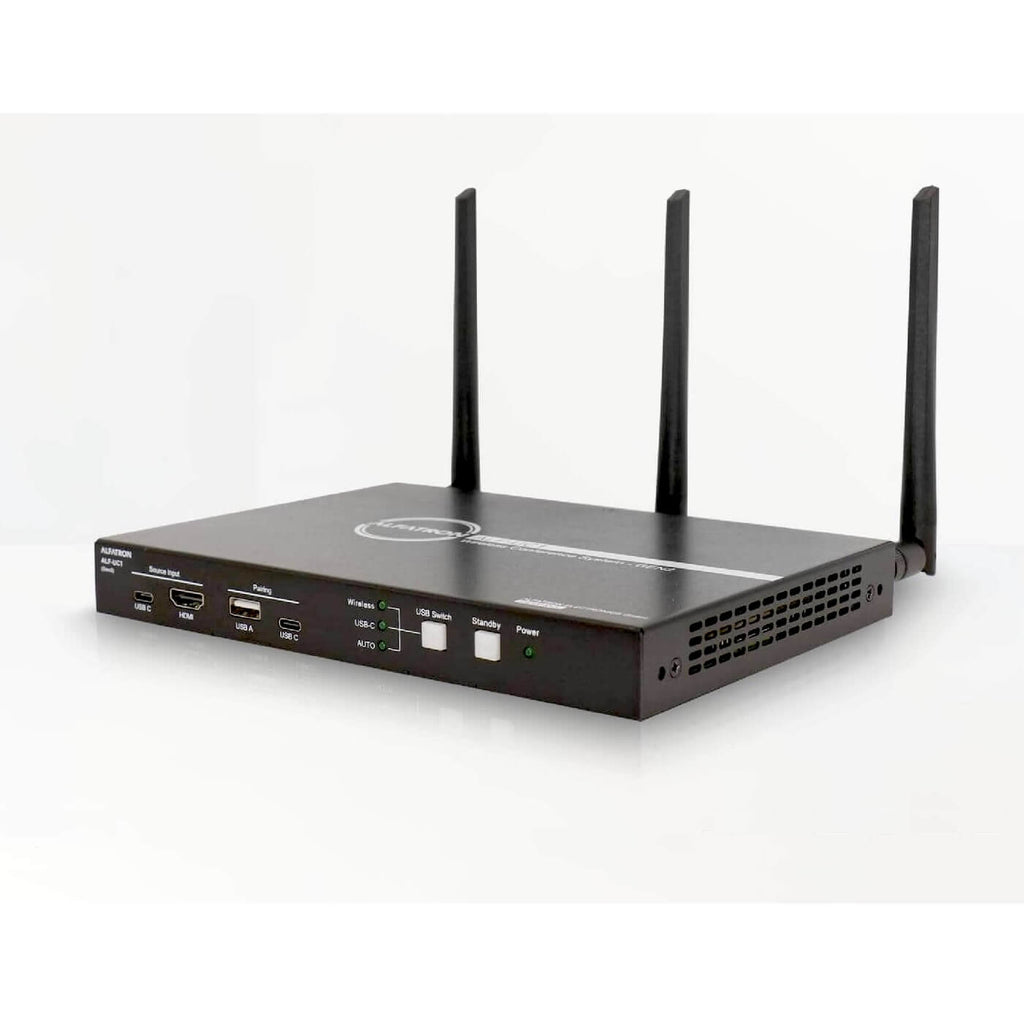

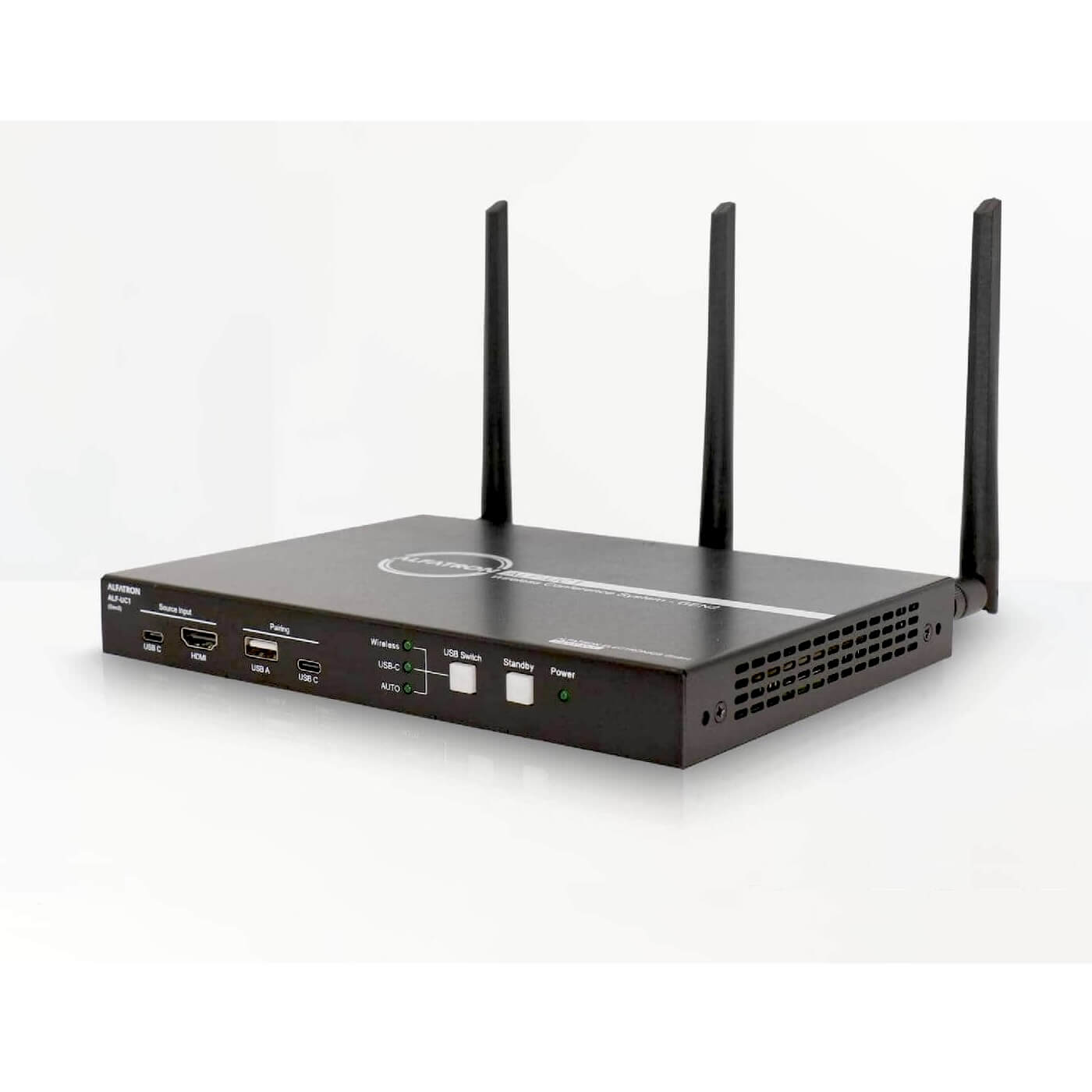

The Alfatron ALF-UC1 (Gen2) is a 4K Wireless Presentation Switcher equipped with two HDMI outputs and optional 4K wireless dongles, making meeting participation effortless with just the touch of a button. Presenters can connect their devices to the display wirelessly, streaming full-HD video and audio without the hassle of cables, converters, or worrying about connection plate locations.
Switching between presenters is intuitive and seamless, with the option to split the screen to show multiple presenters simultaneously—supporting up to four images on one display and a fifth on another. The UC-1 system supports direct connections or can use external dongles to control who can connect at any given time. It works across Android, iOS Airplay, Miracast (Windows), and Mac OS over the local network.

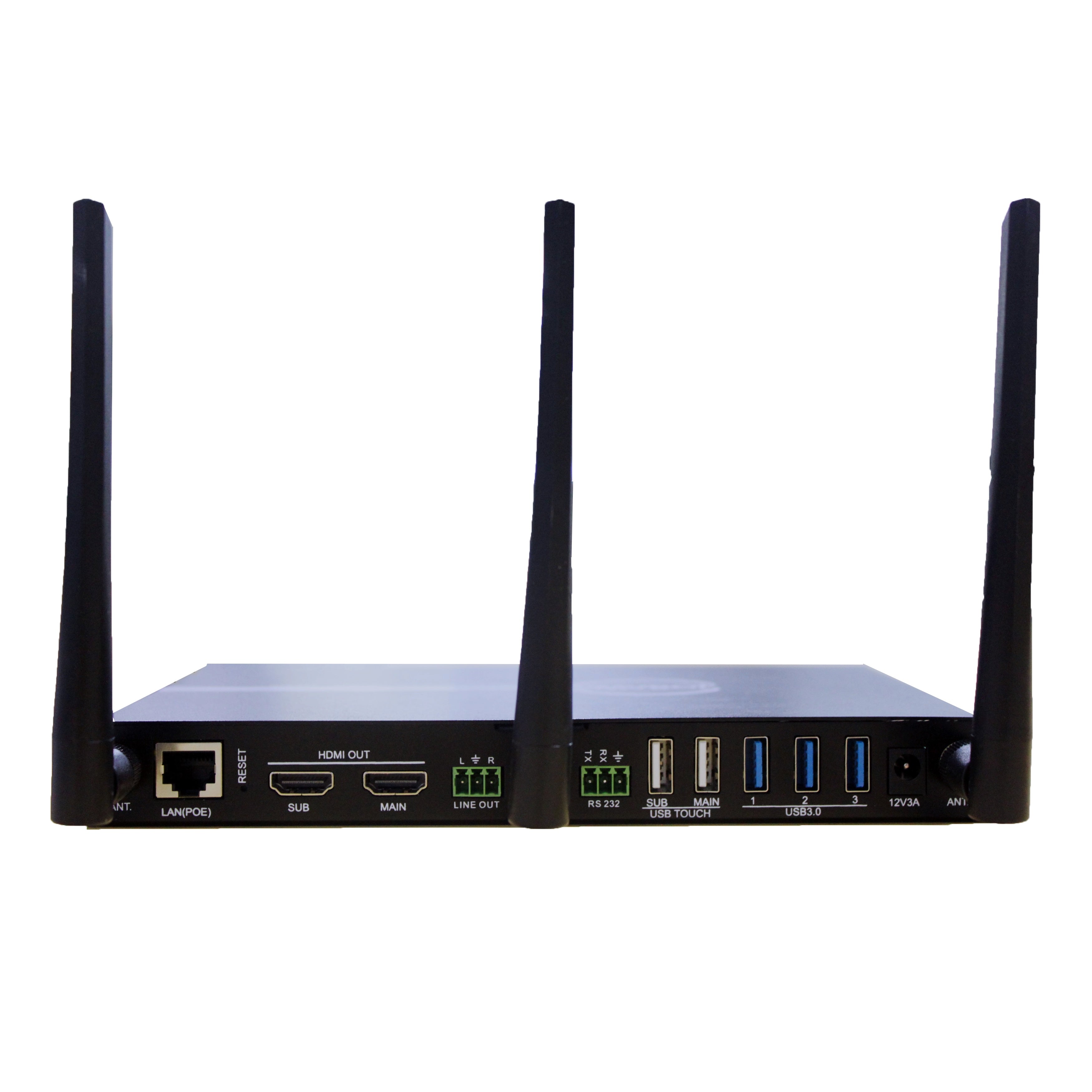

The Gen 2 version adds a secondary HDMI output, allowing connection to an additional display, recorder, confidence monitor, or a remote screen in another location. It also includes a wireless software application compatible with Windows and Mac OS, featuring an intuitive interface for easy connection. Users can share their screens, toggle fullscreen mode, freeze the display, enable local sharing, and customize settings such as USB audio selection and latency quality.
Features
• Output 1 Resolutions up to 4K60
• Output 2 Resolutions up to 1080p60
• HDMI 1.4 and 2.0 compliant
• HDMI, UBC-C input resolutions up to 4k30

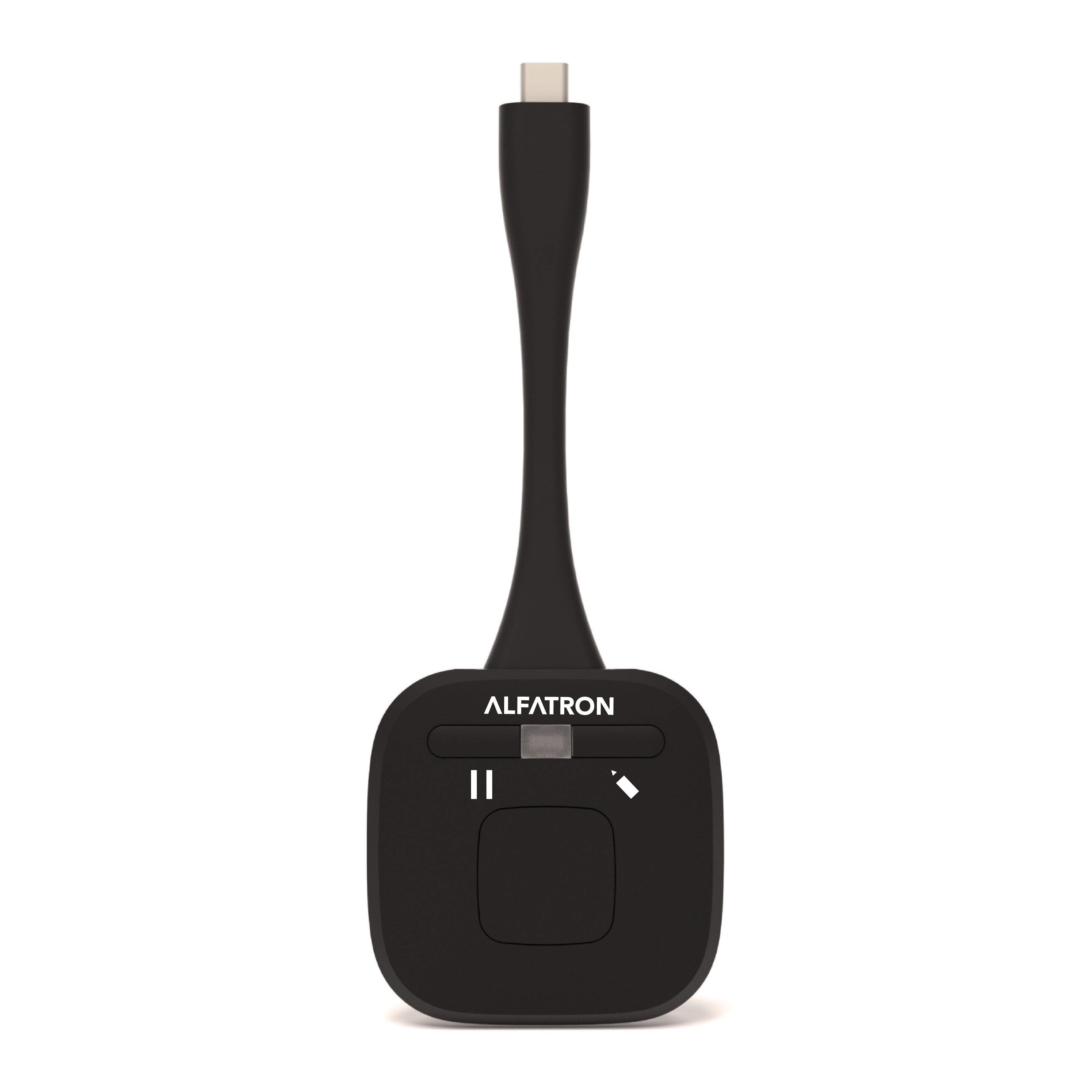

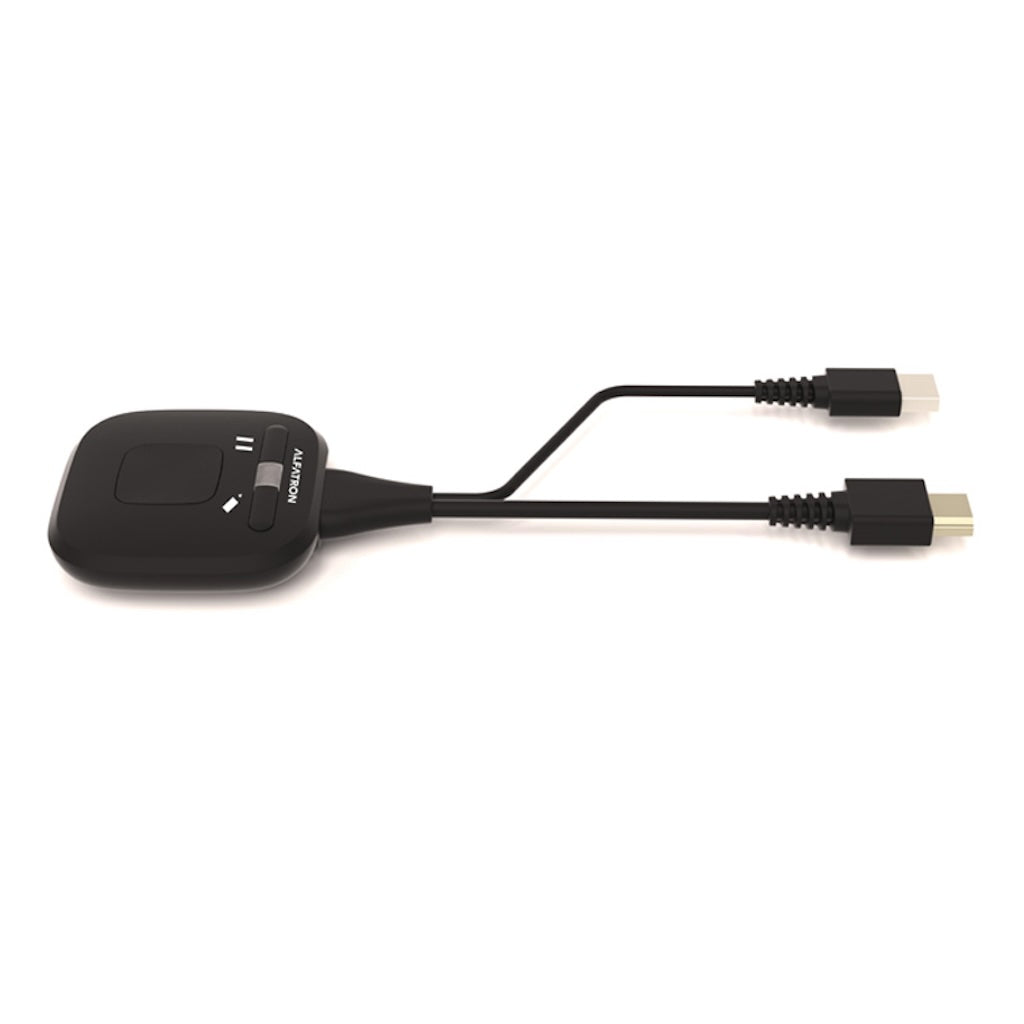

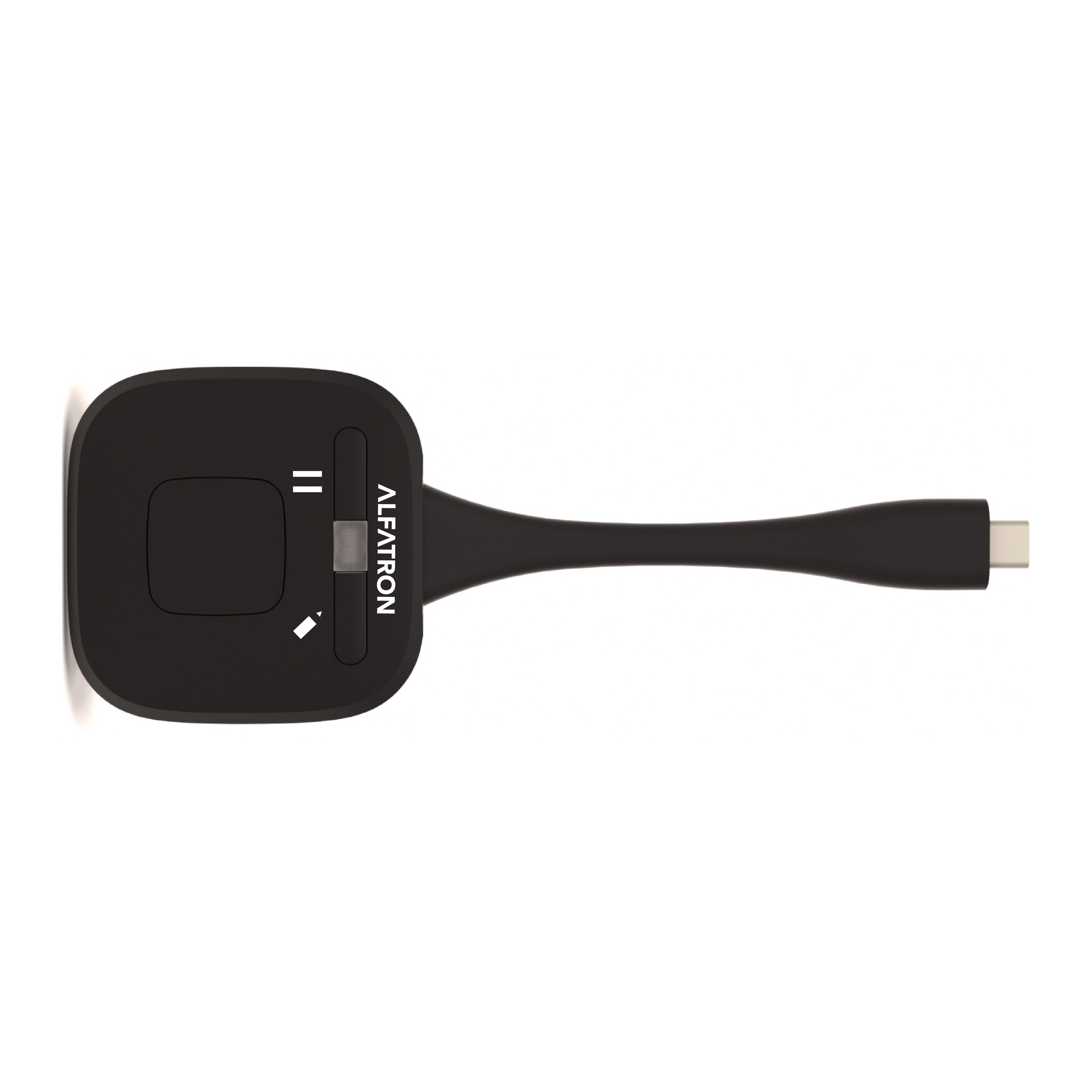

• ALF-HDMI-D(Gen2) and ALF-USBC-D(Gen2) Dongle input resolutions 4k30
• Airplay, Miracast and Chromecast resolutions 1080p60
• Audio outputs HDMI, Phoenix connector, USB.
• Supports all major operating systems Windows, Mac OS, Android, iOS.
• Plug-and-Play solution with Wireless USB drivers required
• WIFI Data rate is WIFI IEEE 802.11 b/g/n/ac
• WIFI 2.4GHz and 5GHz supported
• Lan port is a 1 Gbs speed
• Latency <100ms, Minimum 20s
• Control method is Web GUI, Telnet, RS232, Front buttons.
